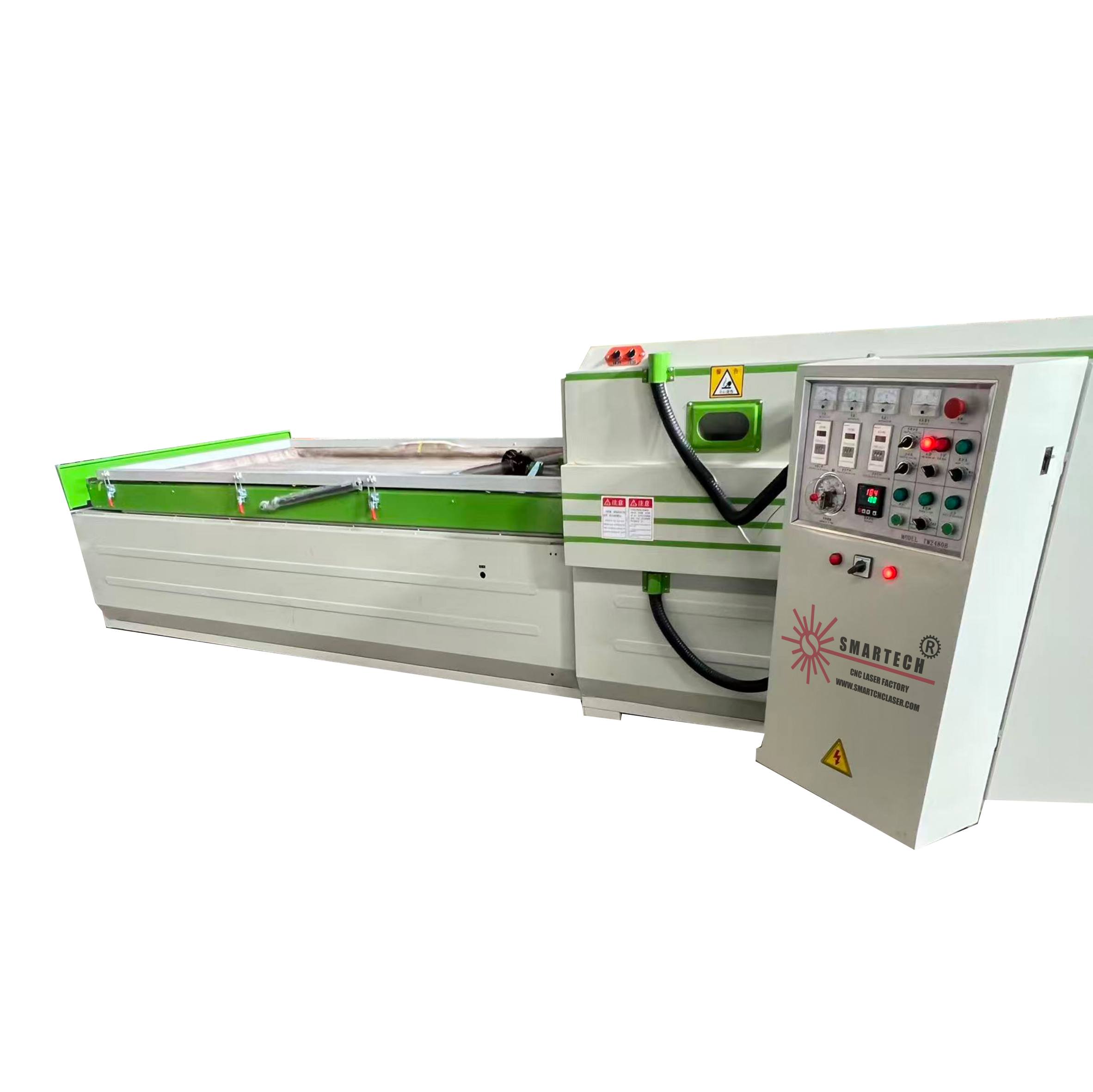

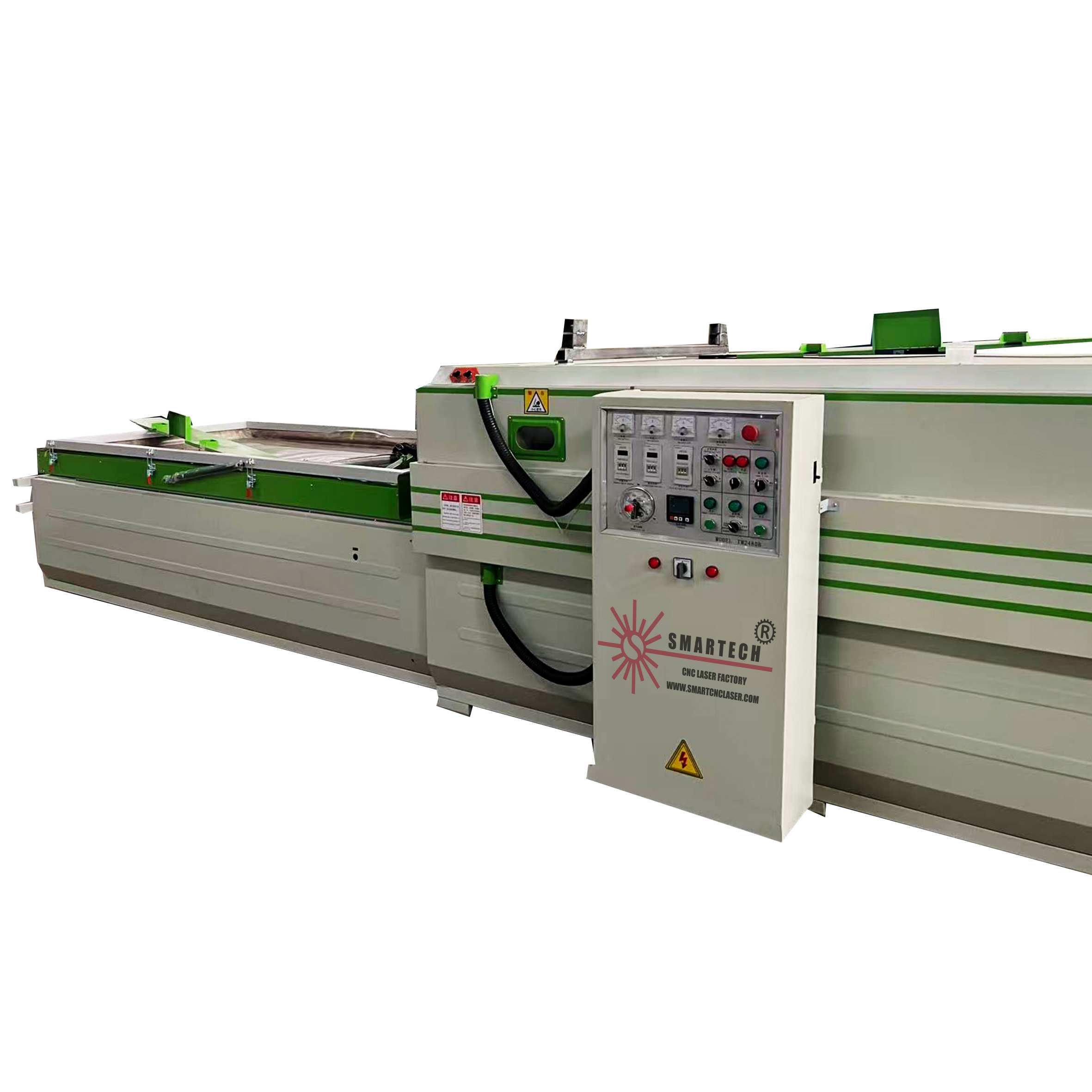

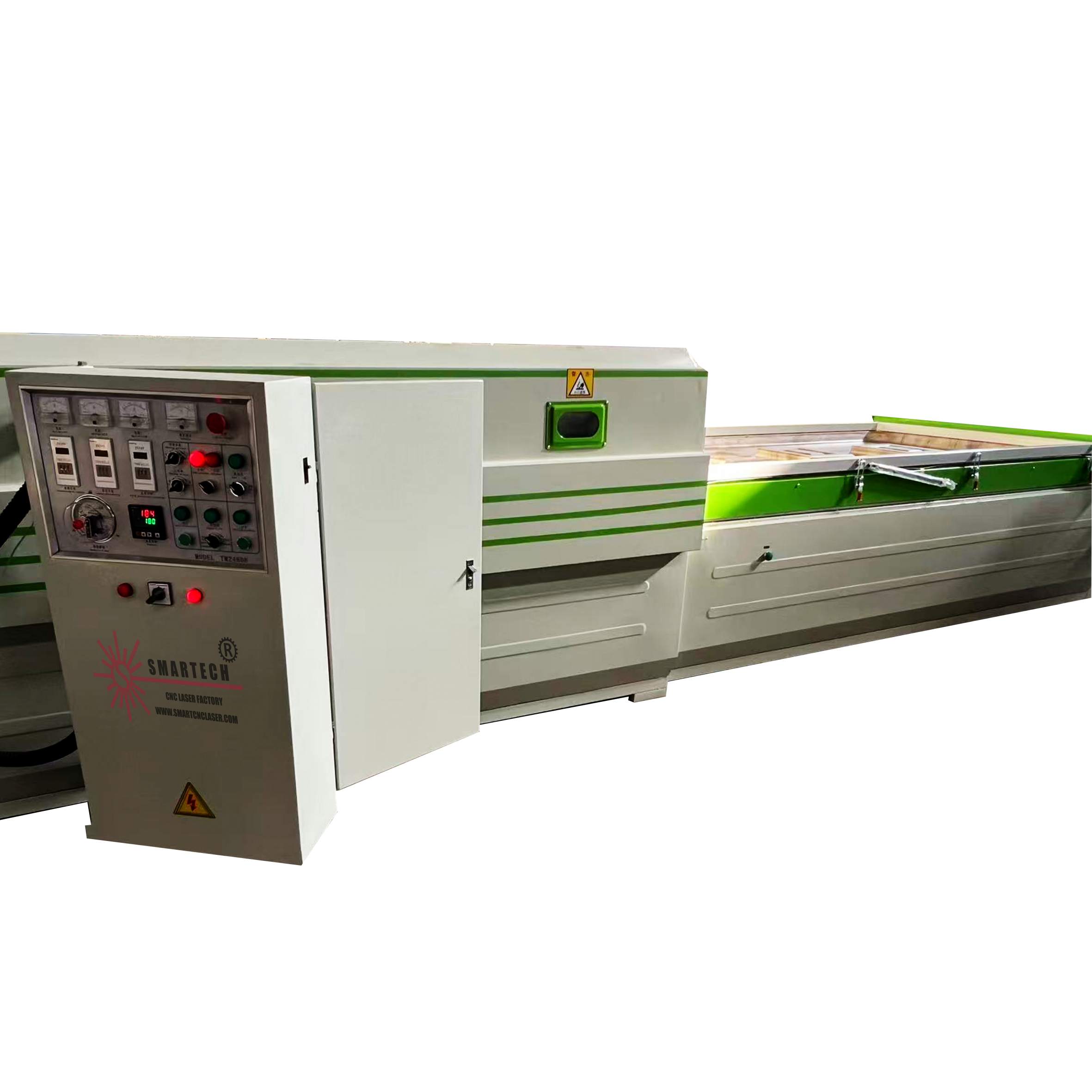

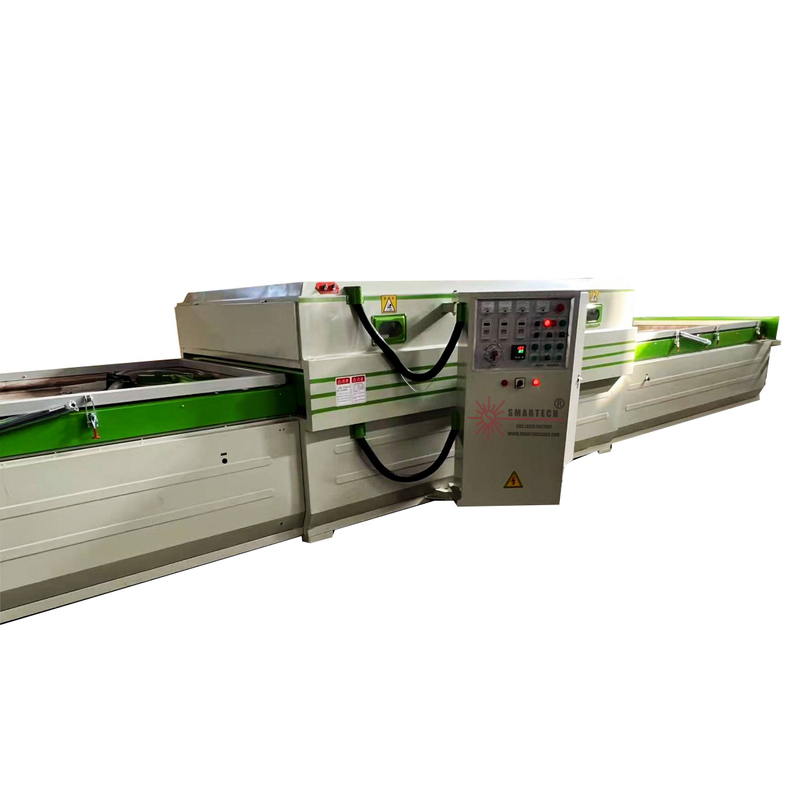

SSV-3014
SMARTECH
7,900 x 1,850 x 1,350mm
20KW
Technical parameters:
1) External dimensions: 7,900 x 1,850 x 1,350mm

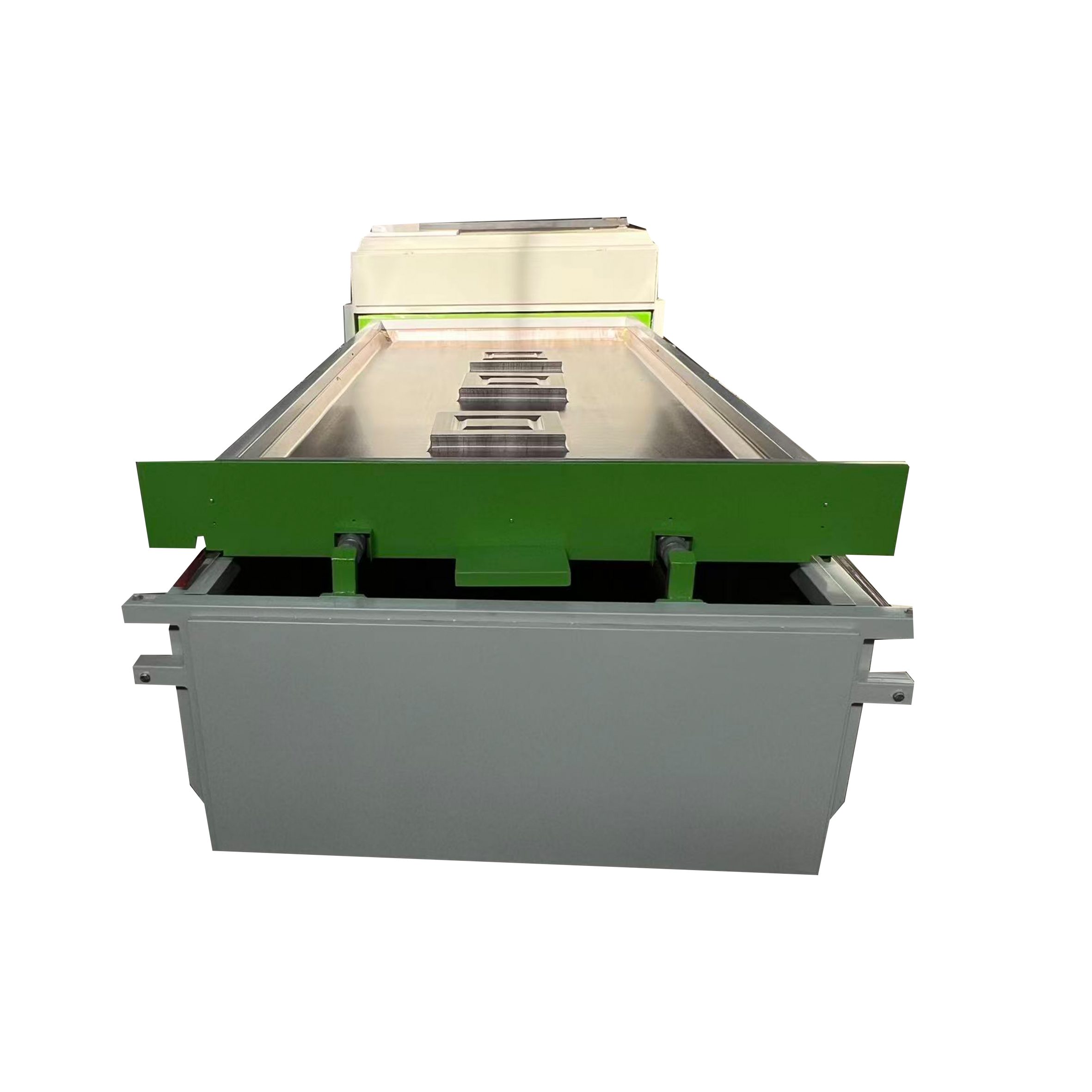

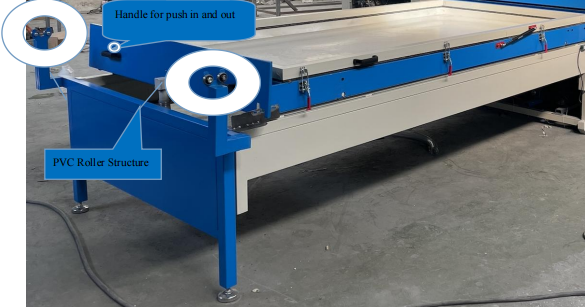

2) Worktable dimensions: 3,000 )x (1,400) x 50mmx2 Packing Size 3150×1940×1920mm(12CBM)
3) Max. processing height: 80mm
4) PVC thickness:0.1-0.45mm;
5)Max vacuum press:-0.1Mpa;
6) Total power: 20kW
7) Actual power:5kW
8)Total weight: 1,300kg
9)Upper heating Single heat preservation (according to your local temperature,if your local temperature is high or hot,then you could select this type.)

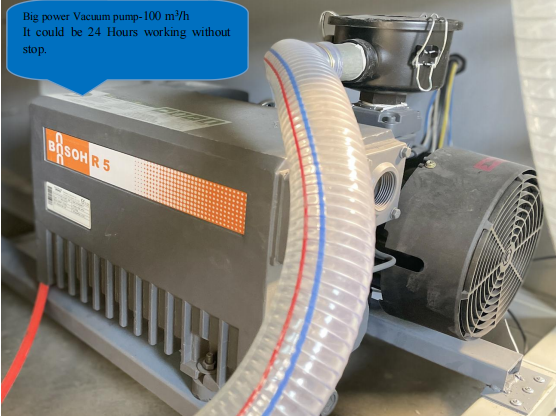

10)100 m3 /h * 1 vacuum pump

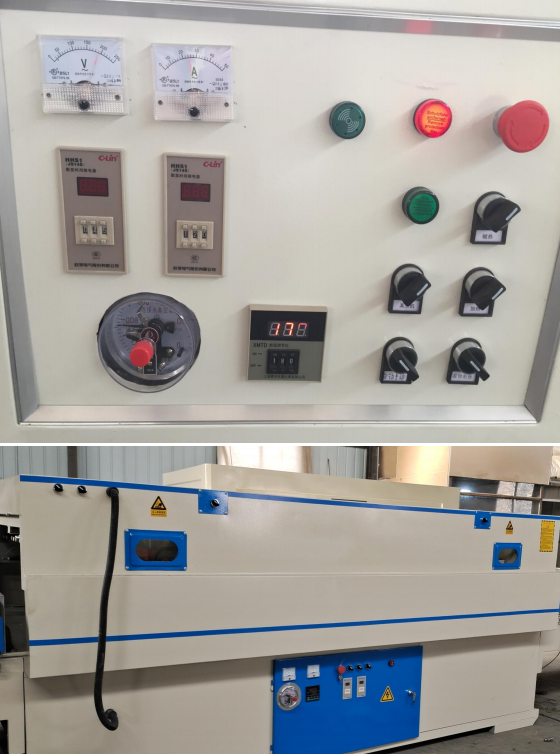

11)Buttons switches not plc
12)Schneider electrical parts
13)Double Observation windows

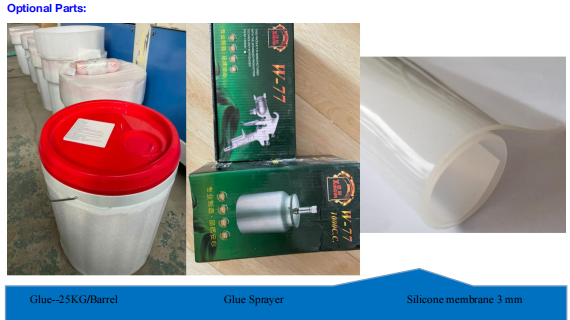

14)Trimming knife+Positioning plate for free 15)HS Code:8477409000 16)Optional parts you might need as below (PVC foil/Silicone membrane/paint sprayer/trimming knife/positioning plate/membrane press adhesive)

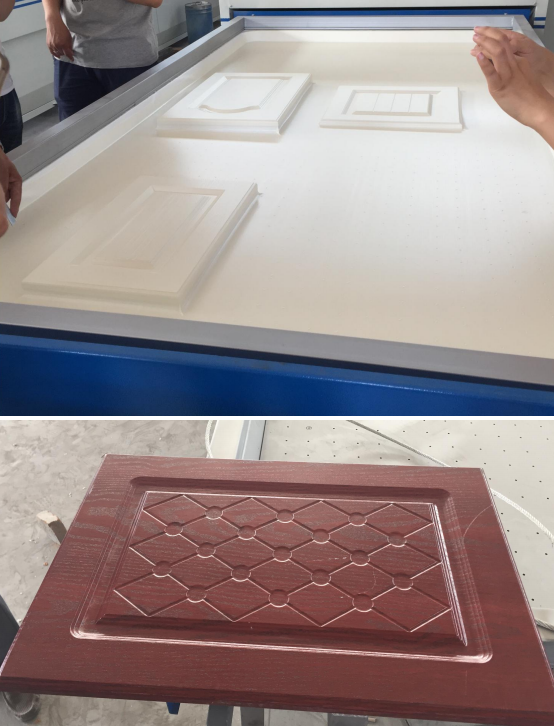

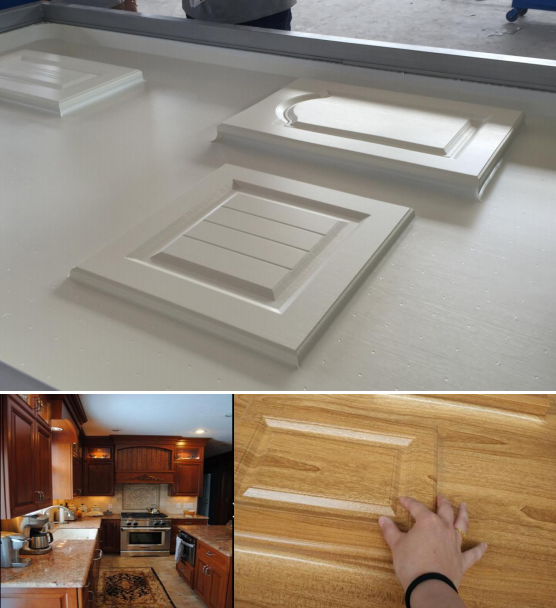

WORKING SAMPLES
