Industrial Wood Finishing Machine Automatic Polisher for Cabinet Sanding Refinishingne

The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and
durability

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

Woodworking Sand Polishing Machine wood Polisher Factory Best Price From China

Advantage features

1.The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and durability

2. The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient maintenance.

3. The belt tensionning cylinder is made of cast iron, which has large tension and good stability.

Model	SP-A
Max.working width	1000mm
Min.working length	400mm
Max.working thickness	100mm
Horizontal roller motor power	2x1.5kw
Disc brush motor power	1.5kw
Screw roller motor power	2x1.5kw
Lifting power of horizontal roller	0.55kw
Lifting power of disc brush	0.37kw
Lifting power of screw roller	1.1kw
Total power	10.44kw
Screw roller number	2pcs
Screw roller diameter	300mm
Brush plate number	9pcs
Brush plate diameter	180mm
Horizontal plate number	7pcs
Horizontal plate diameter	260mm
Conveyor speed	6-30m/min
Conveyor belt size	5970x1000mm
Dunction dust hood	6x100mm
Overall dimension	950x1750x1900mm

微信图片_20250526163522

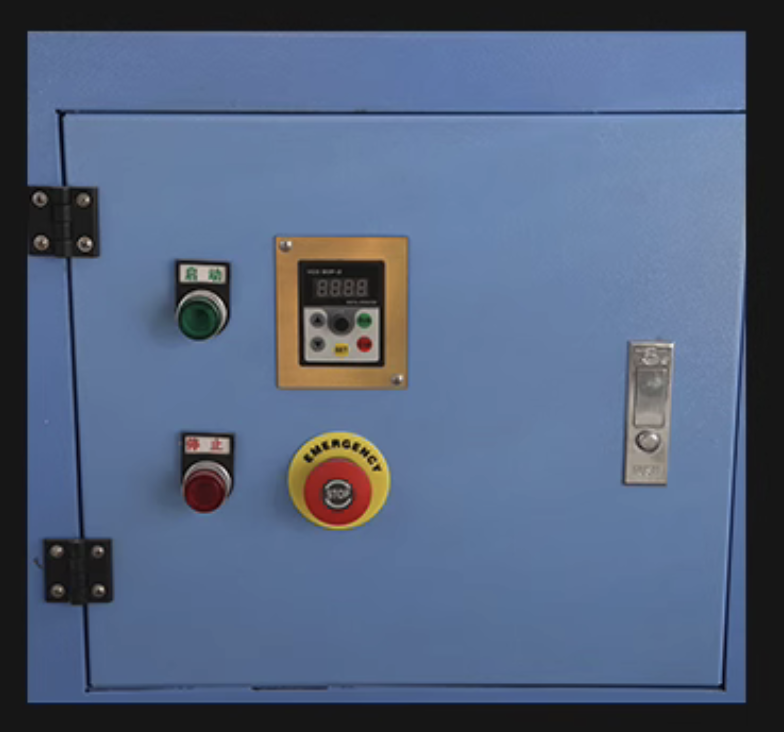

push-button control panel

The push-button control panel is easy to operate and equipped with an emergency stop protection device. It is also equipped with a frequency conversion speed adjustment button to improve work efficiency.

微信图片_20250526164312

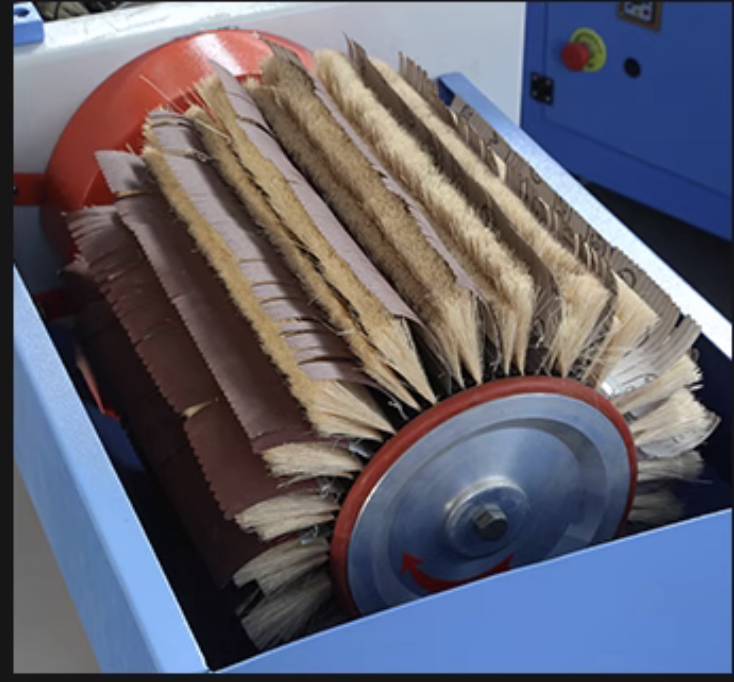

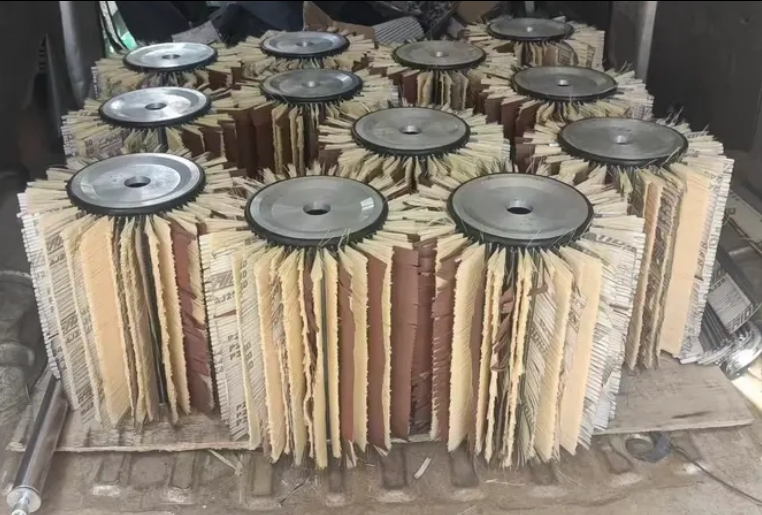

accessories of the wool roller

The accessories of the wool roller are all made of imported gauze strips with a diameter of 300mm. There are many sanding strips, which effectively reduces the frequency of changing the sanding belt.

微信图片_20250526165009

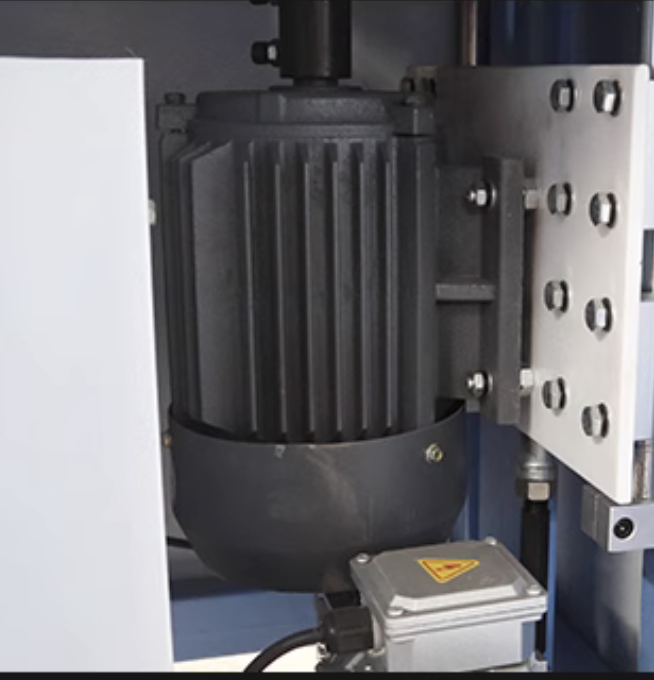

Power

In terms of power, it adopts national standard pure copper motor, which has sufficient power, low loss and low vibration, and is safe and durable, effectively extending the service life.
