SW1325-8
SMARTECH CNC LASER
3KW/3.5KW/4.5KW/5.5KW/6KW/9 KW
AS YOUR PREFERENCE
Applications of CNC Router multi Spindles
(1)WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
(2)Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
(3) Artwork and Decoration: wood crafts, gift box, jewelry box
(4)Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,
PVC pipe, wooden planks and other non-metallic mold.
(5)Relief Sculpture and 3D Engraving & Cylindrical object.

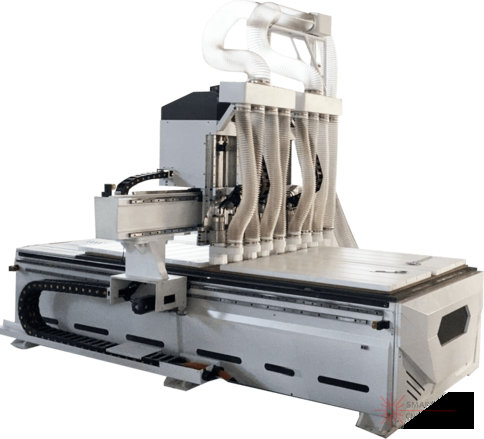

Advantages of multi head cnc router from Smartech
♦ Easy and safe operation and low maintenance cost.
♦ Rotary devices are available for the cnc router as an option
♦ Different power spindles, spindles can be changed with the demands from system. One optional spindle can be rotated 90 degree for lock slot, side milling woodworking etc
♦ Overall seamless steel tube structure. After tempering treatment, reliving of internal pressure, ensure the bathe more rigidty, reliability and durability, no distoration for whole structure.
♦ Top-quality world famous brand components, to make the machine hig-precision and high-efficiency. HSD spindle, Delta inverter, TBI ball screw, Syntec control system etc,
♦ Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages.
* With High efficiency;High stable;Multi-use Popular controller;High loading capacity and smooth operation.
* This machine is suit for diverse complexity products processing:engraving andmilling,drilling,cutting,chamfering edge
* Large compatibility of drawing software, such as type3/Actcam/Artcut, etc.
* The advanced professional control system compatible with many instructionformat, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
* Machine body use heavy steel structure, welding tempering aging,strong enough to avoid shape change.
Parameters of CNC Router For Woodworking Carving.
| No. | Description | Parametrs |
| 1 | X,Y,Z Working Area: | 1300*2500*200mm |
| 2 | Table Size: | 2250*3540mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
| 5 | Table Surface: | T-slot Table (option:Vacuum and T-slot) |
| 6 | Frame: | Steel Tube Welded Structure |
| 7 | X,Y Structure: | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure: | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption: | 5.0kw(without spindle) |
| 10 | Max. Rapid Travel Rate: | 30,000mm/min |
| 11 | Max. Working Speed: | 25,000mm/min |
| 12 | Spindle Power: | 3.0/4.5/6/7 KW Air / Water Cooling Spindle |
| 13 | Spindle Speed: | 0-18000 RPM/0-24000RPM |
| 14 | Drive Motors: | Stepper Motor System/ Servo |
| 15 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language: | G Code |
| 17 | Operating System: | DSP Control System (Options:Ncstudio/ Mach3 PC Software) |
| 18 | Computer Interface: | USB |
| 19 | Flash Memory: | 128M (U Disk) |
| 20 | Collet: | ER25/ER32 |
| 21 | X,Y Resolution: | < 0.03mm |
| 22 | Software Compatibility: | Type3/Ucancame V9 Software(Option: Artcam Software) |
| 23 | Running Environment Temperature: | 0°-45° |
| 24 | Relative Humidity: | 30%-75% |
| 25 | Packing Size: | 3550x2250x2300mm |
| 26 | N.W.: | 2550kg |
| 27 | G.W.: | 2890kg |
PS:All the working area and specifications can be customized according to your requests
Multi head cnc router working samples:
