SMARTECH

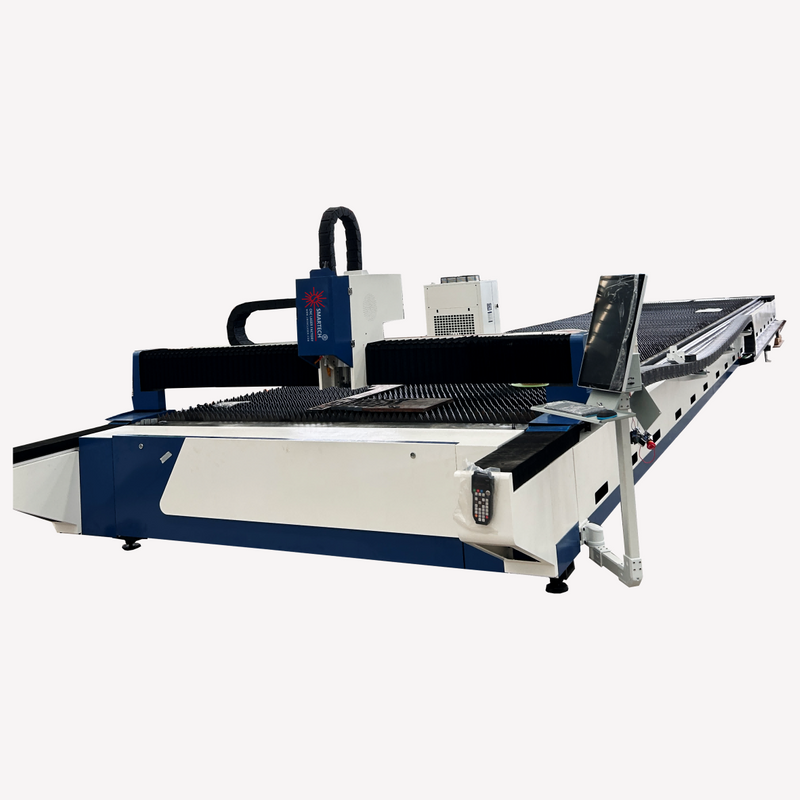

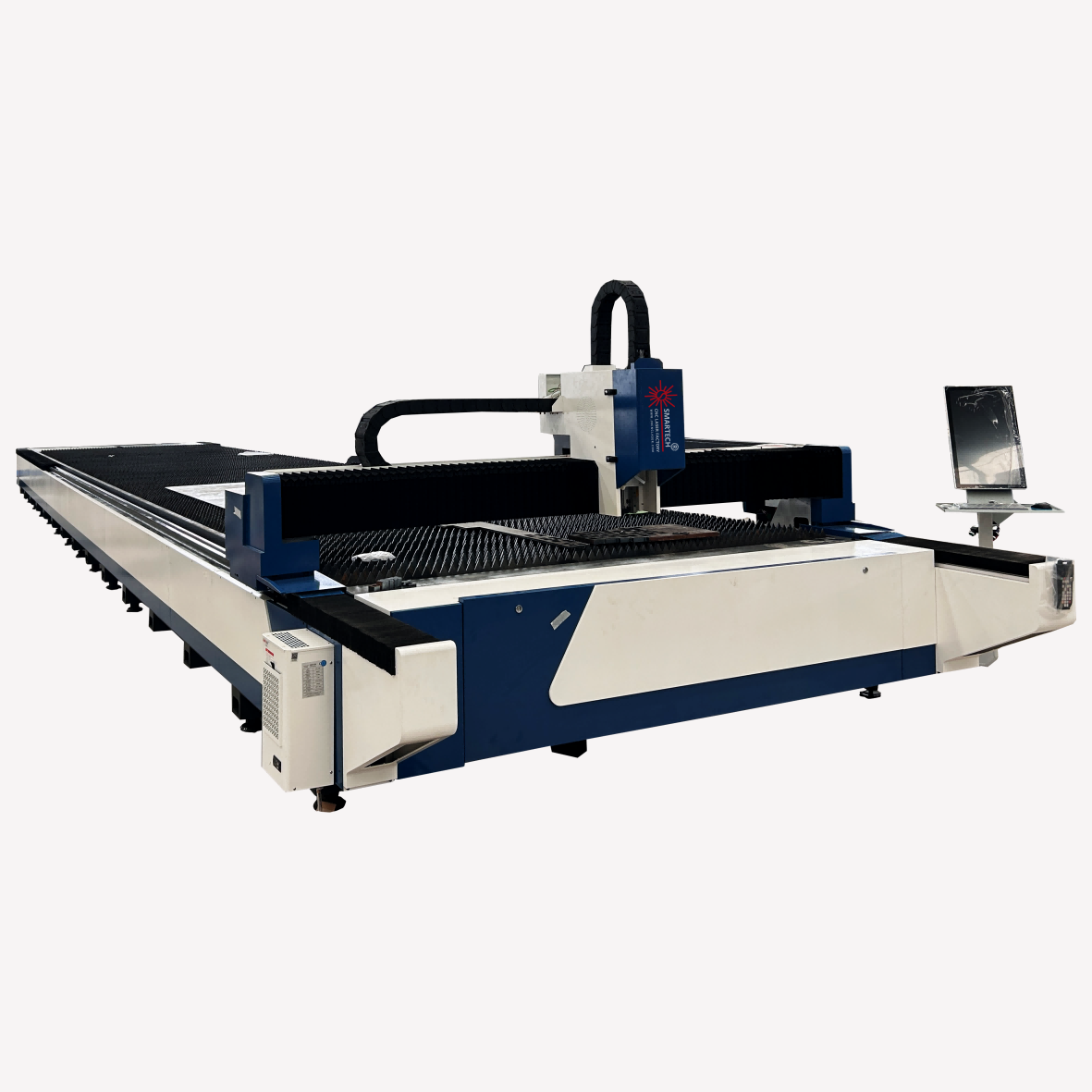

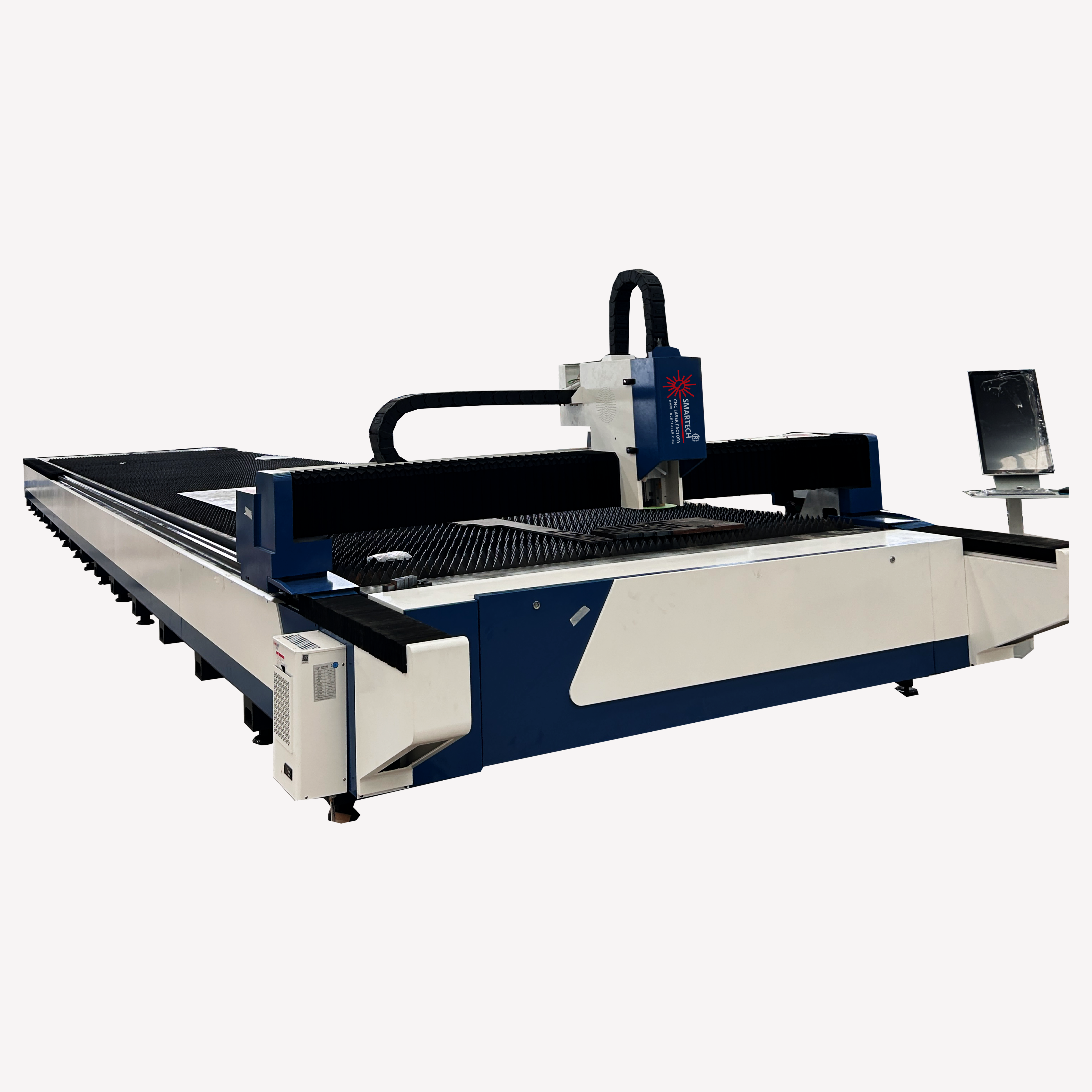

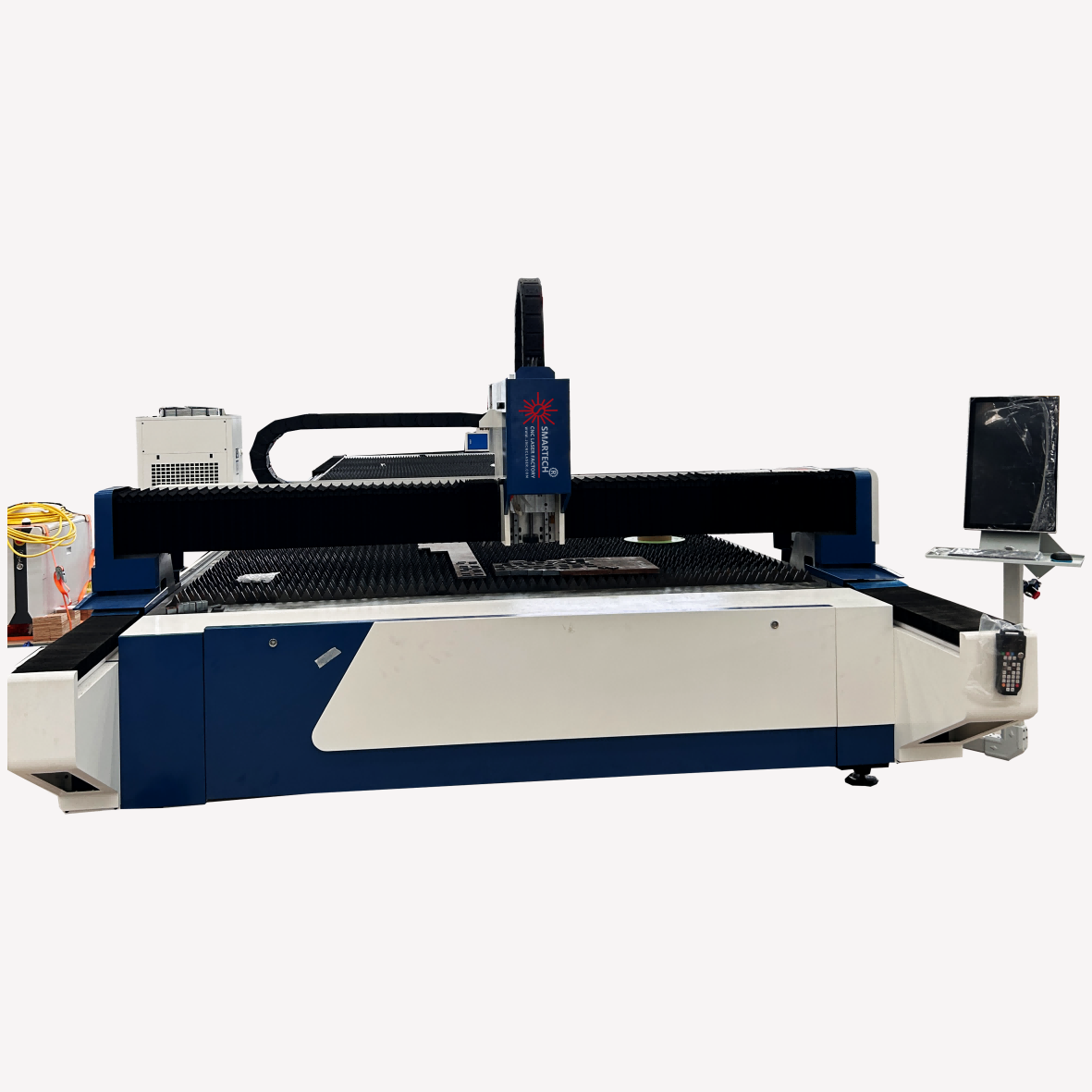

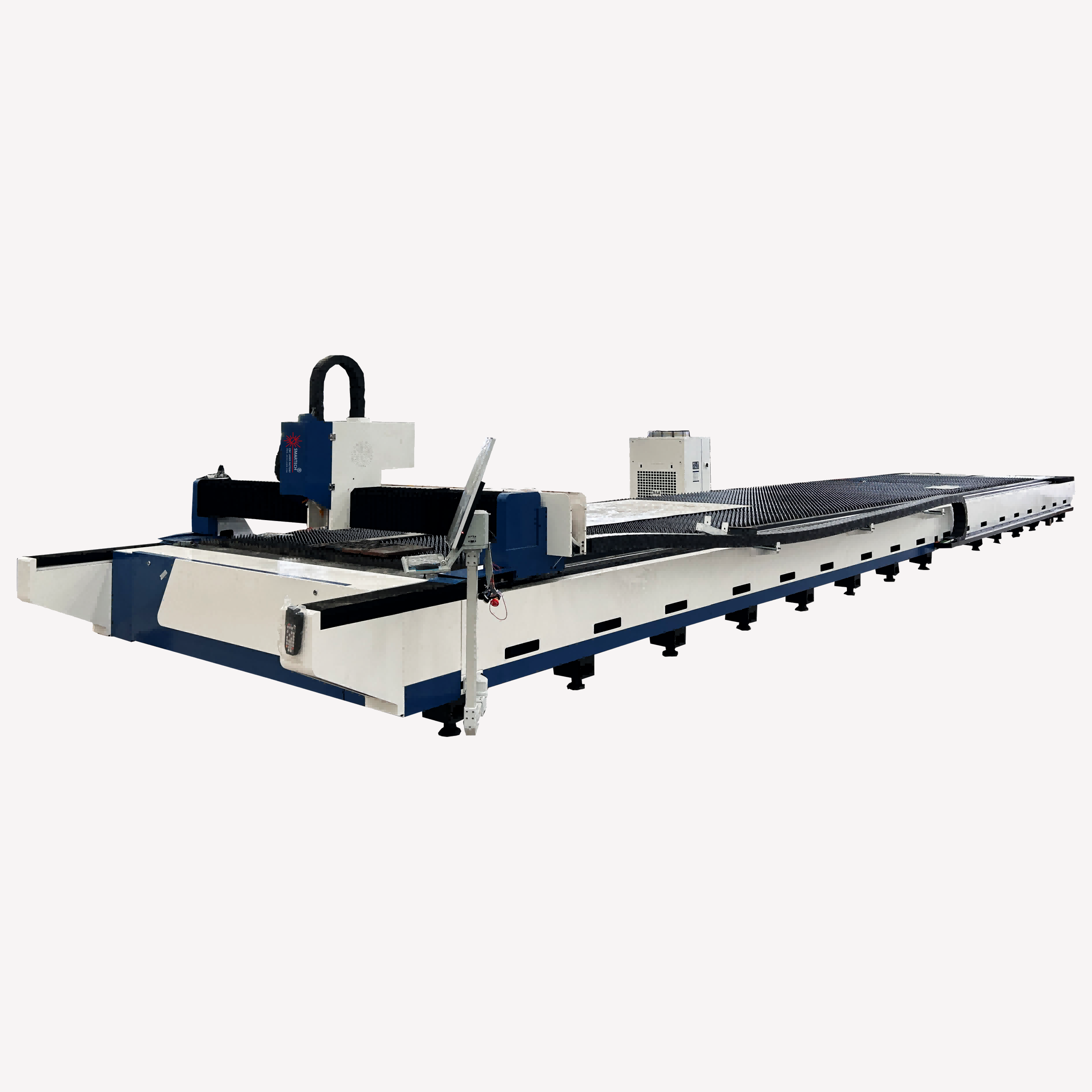

12kW High-Power Fiber Laser Cutter 12000W Industrial Cutting Machine
Model: SFT2060-R
#Working area:60000x1500mm
#Rotary device for pipes cutting chuck 220mm*6000mm

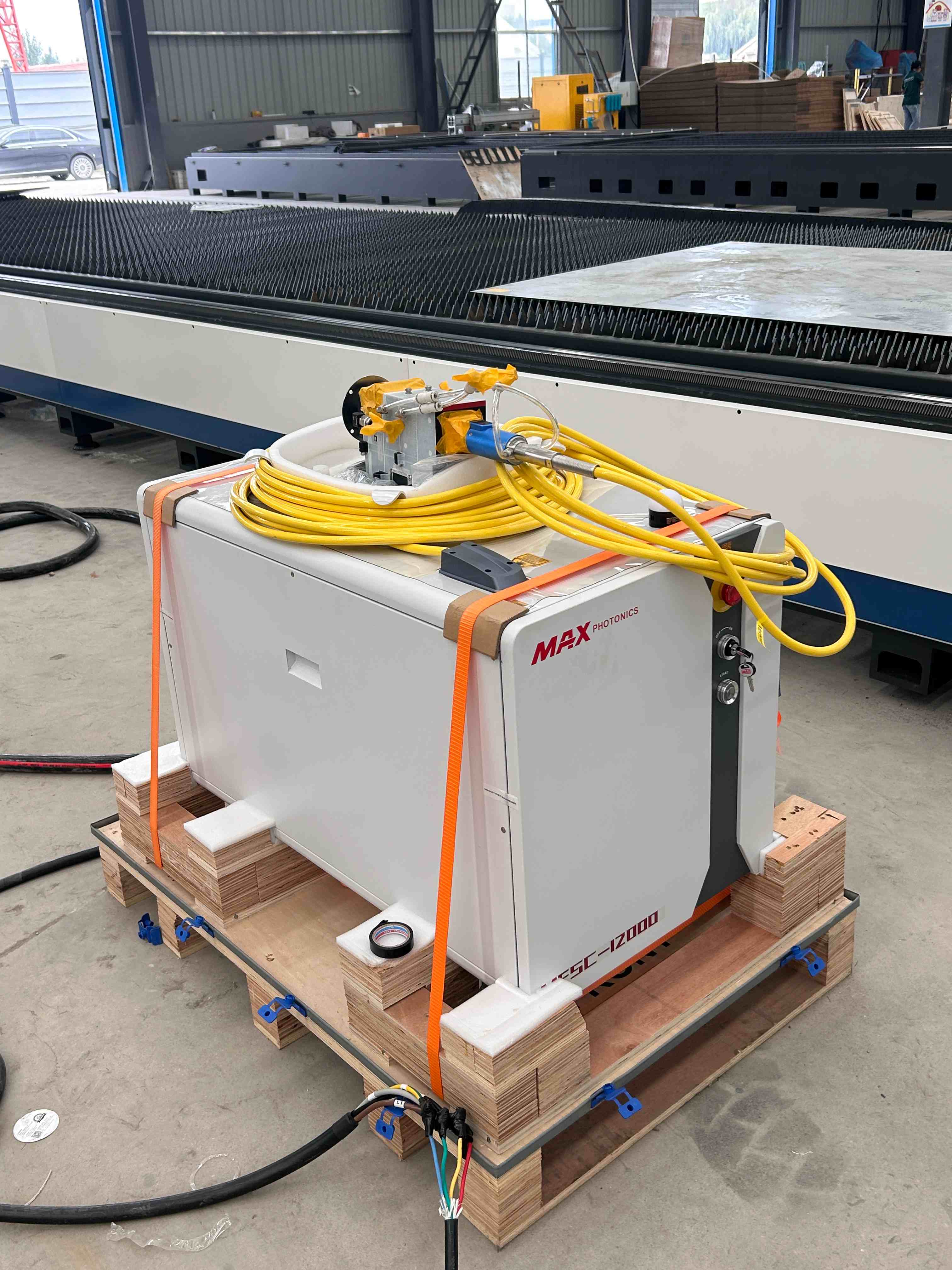

#Laser Source:- Max- 12000W
#Head- RayTools Autofocus BM110 BM06K
#Japan-Servo-yasakawa 1300W
#Controller- cypcut 4000C
#Height controller-BCS100 V3.0
#Reducer--Wanxin-From Taiwan
#Rack- YYC
#Rails - Taiwan PMI
#Germany ball screw transmission
#Support DXF,DXP,NC,G,etc

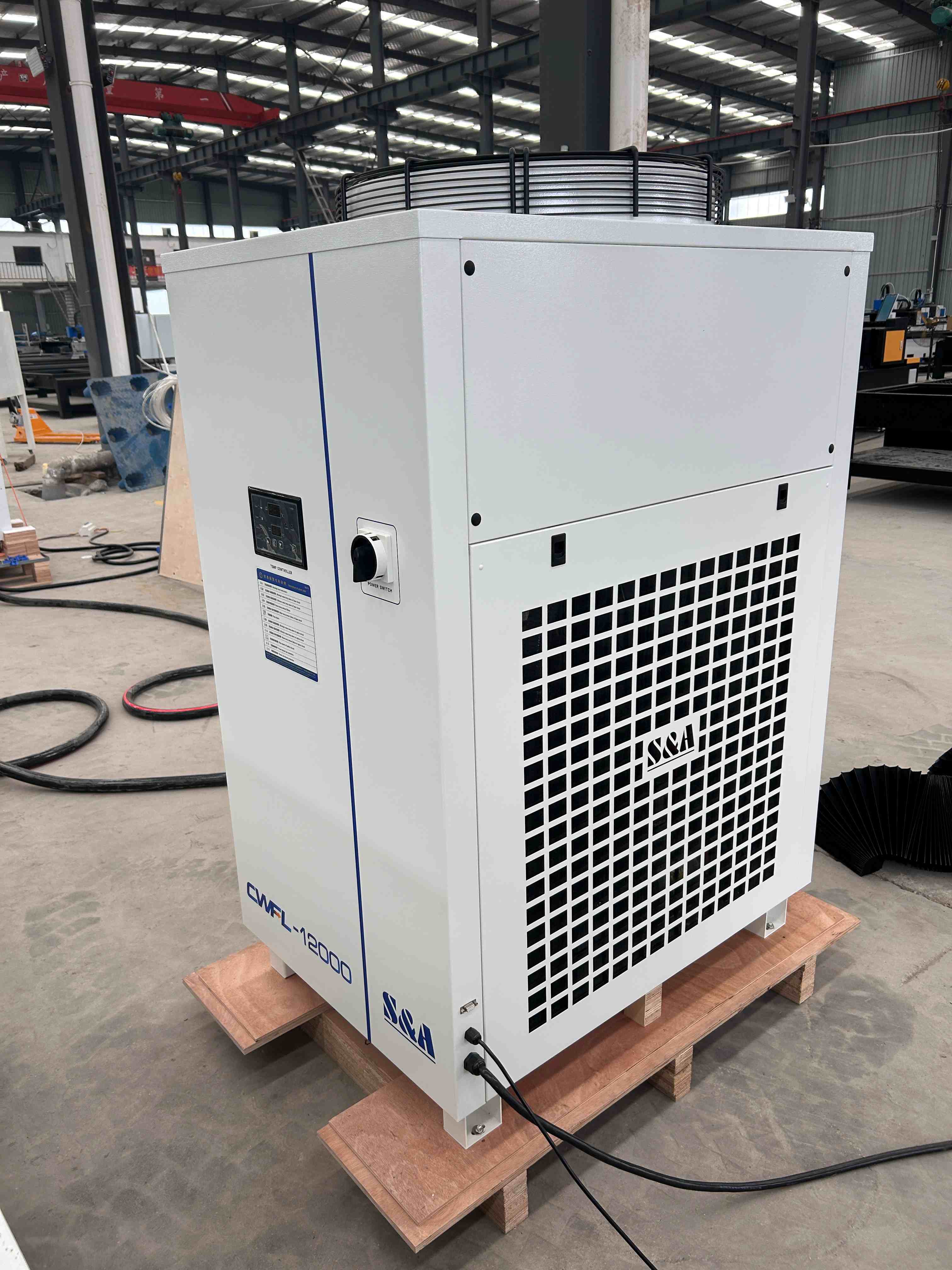

#Water chiller -Hanli
#Annealing , anti vibration heavy bed.
#Chuck size:220mm
#Cyp tube software
#exchange table
| Model | S-Fiber-1325 | S-Fiber-1530 | S-Fiber-1560 |
| Working Area | 2500 ×1300 mm | 3000 × 1500 mm | 6000 × 1500 mm |
| Laser Type | Germany IPG /Chinese fiber laser generator Raycus /Max | ||
| Laser Power | 1000/1500W/2000W/3000W/12000W | ||
| Complete machine power | 52/55 KW | ||
| Maximum XY axis Acceleration | 2.0 G | ||
| Beam Quality M2 | < 0.373 | ||
| Positioning Accuracy | ≤ ± 0.03 mm/m | ||
| Re-positioning Accuracy | ≤ ± 0.02 mm/m | ||
| Max Cutting Speed | 0-40 m/min (depending on material and thickness) | ||
| Power Supply Voltage | 3-phase 380V/50Hz | ||
| X-axis Stroke | 2500 mm | 3000 mm | 6000 mm |
| Y-axis Stroke | 1300 mm | 1500 mm | 1500 mm |
| Z-axis Stroke | 120 mm | ||
| Working Table | Rack working platform | ||
| Control System | Cypcut/Au3tech control system | ||
| Location System | Red dot indicator | ||
| Water Cooling System | Constant temperature water chiller | ||
| Machine Weight | 2000-12000 kg | ||
| X-axis Stroke | 2500 mm | 3000 mm | 4000 mm |
| Machine Dimension (m) | 7.4×2.45×19+1.2×0.8×1.2 | 7.9×2.95×1.9+1.2×0.8×1.2 | 8.6×3.45×1.9+1.2×0.8×1.2 |
| Remark | Automatic exchange worktable, cover(option) | ||
