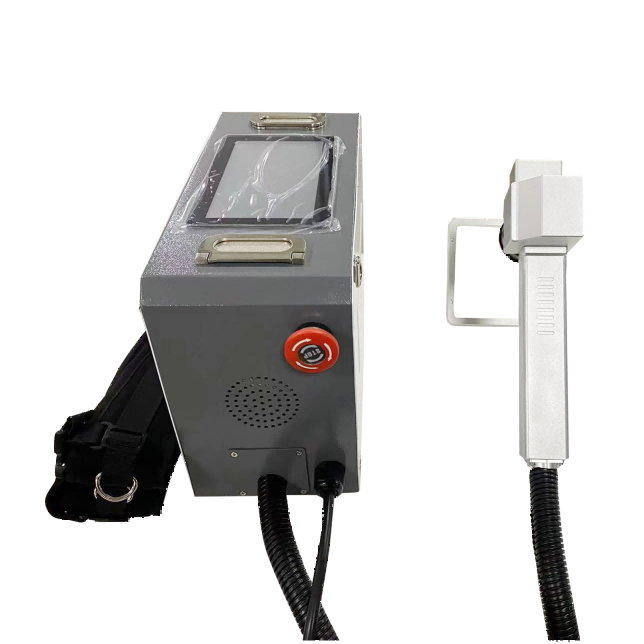

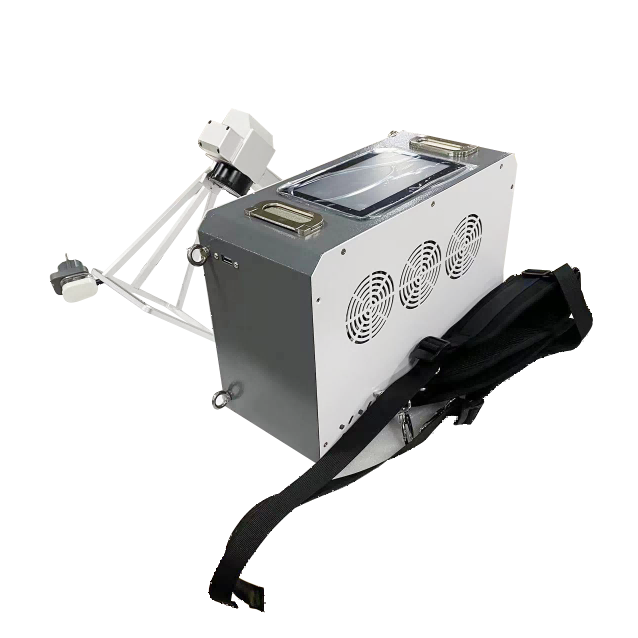

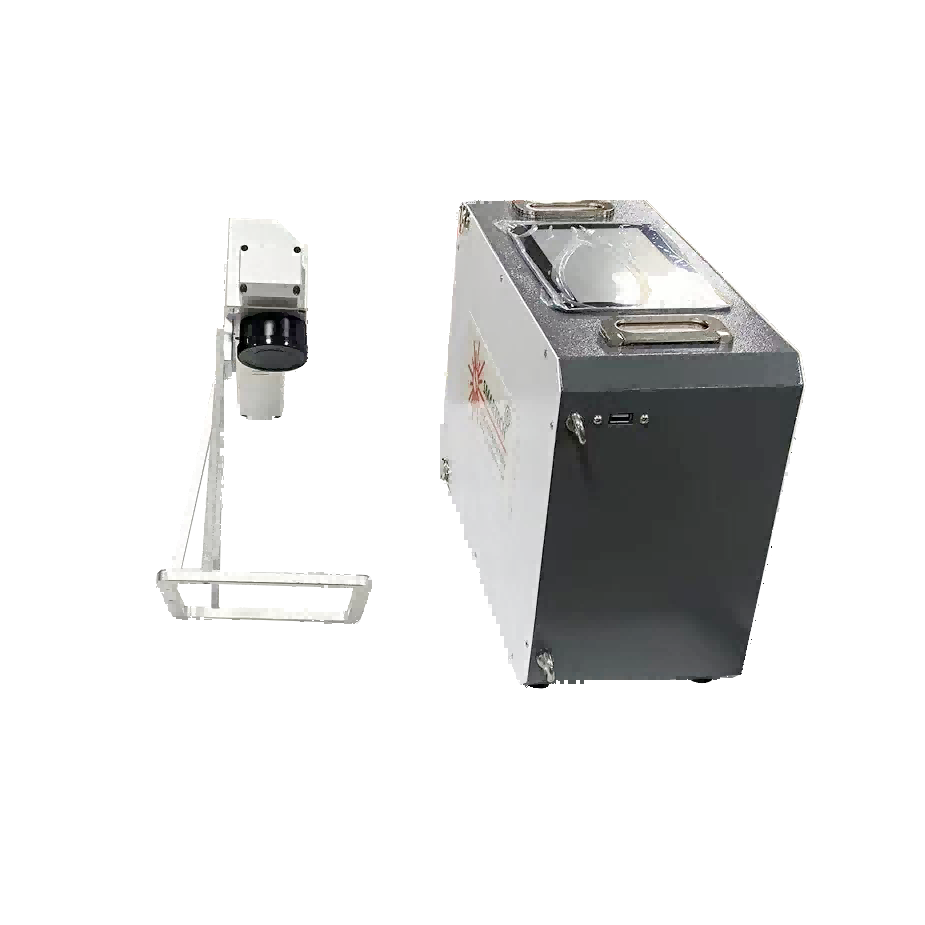

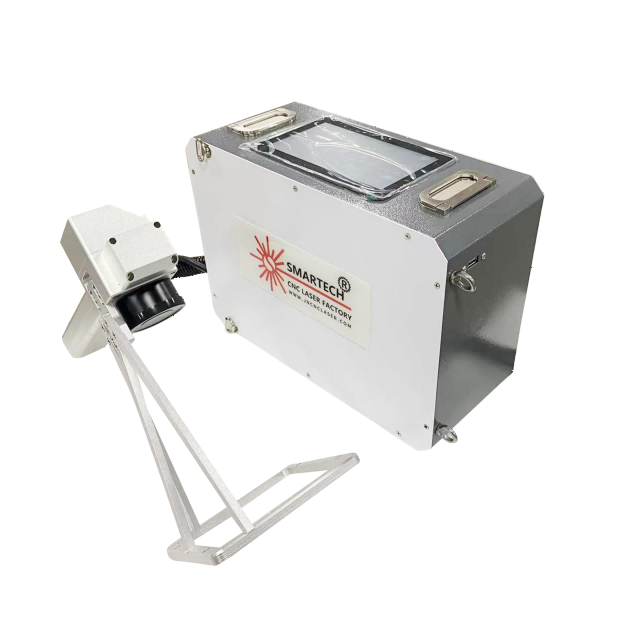

SMART-100W
SMARTECH
Machine Main Config.
Type of laser operation: Pulsed • Power:100W • Laser Source:Max/Raycus • Cooling method: air cooled • Beam wavelength: 1064 +5 nm • Laser switch-off time: 2 μs PULSE CHARACTERISTICS • Adjustable pulse duration: Yes • Optical fiber length: 5m • Control system: Touching PLC • Electrical parts: Schneider brands. • Protective glasses • Spare protective lens • Leakage protector to protect operator's safety • Working voltage:220/380V | HEAD • Dual-purpose handheld/mechanical hand, disassembly and assembly time < 5 s • Mini And Portable • New Generation •2D mini laser cleaning head •Dual motors output multi-plane cleaning patterns •Weight ≤ 0. 8kg •Interface type: QCS •Field lens: with one set F 160 mm; another set F254m; •Touching control panel •Support 24 Languages •Come with Different standard plugs for different countries |
Specification
operating environment | |
content | Smart-100W |
powered by | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) |
Optional battery 100W continuous work 80-90 minutes | |
Overall power consumption | Less than 600W |
Working temperature | 5℃～40℃ |
working environment humidity | ≤80% |
Optical parameters | |
Laser average power | ≥100W |
power instability | less than 5% |
How the laser works | pulse |
Pulse Width | 150-190ns |
Maximum single pulse energy | 1.7mJ |
Beam quality (M2) | <1.6 |
Power adjustment range (%) | 10-100 (gradient adjustable) |
Repetition frequency (kHz) | 20-200 (gradient adjustable) |
Fiber length | 3-5 m |
cooling method | air cooled |
Cleaning head parameters | |
Scanning range (length*width) | 0-100mm, continuously adjustable;Dual axis support8a scan mode; |
scanning speed | up to 10 m/s |
Field lens focal length (mm) | 160mm (210mm/254mm/330mm/420mm optional) |
depth of focus | about 5mm |
Mechanical parameters | |
Host size(LWH) | about 330mmx123mmx380mm (without battery) |
About 330mm×168mm×380mm (including battery) | |
Host weight (including cleaning head) | About 8.5Kg (without battery)About 10Kg(with battery) |
Cleaning head weight (with isolator) | ＜0.75Kg |
Operation method | handheld |
way to control | wireless control panel |
Machine parts

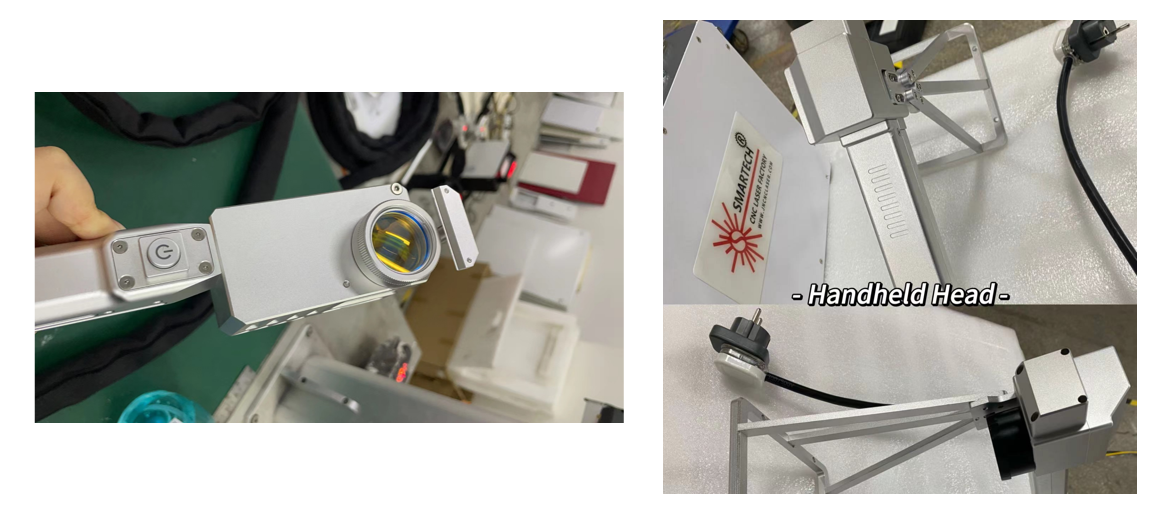

Laser head
Control system

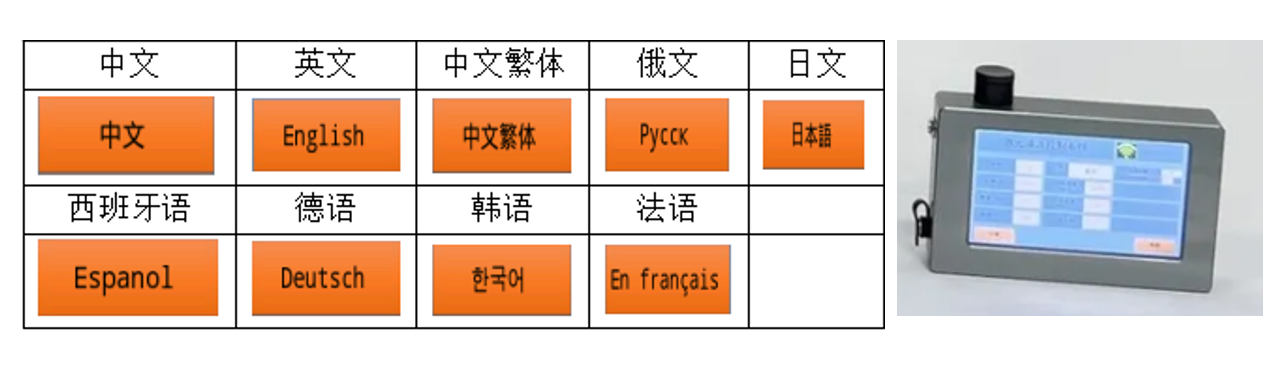

Very Easy to operate Touching Control panel
·8 different modes can be switched and selected quickly to facilitate production and debugging
·Multilangual languages for options-Russian,English,Spanish,Turkish,Arabic etc

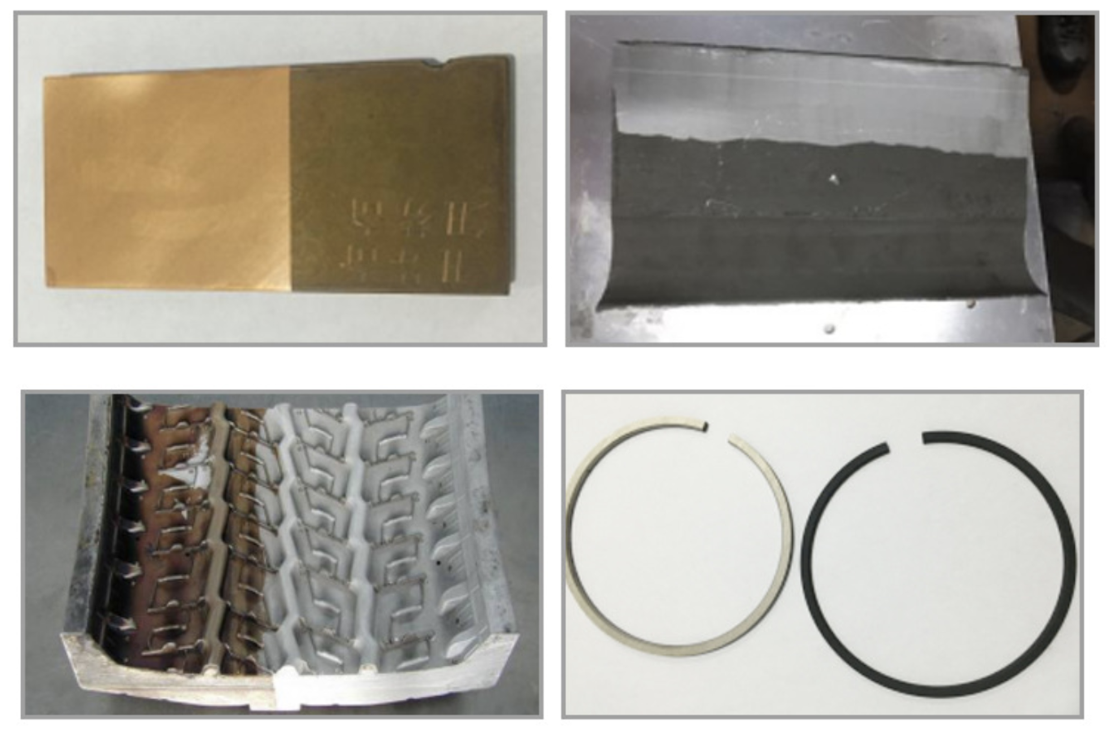

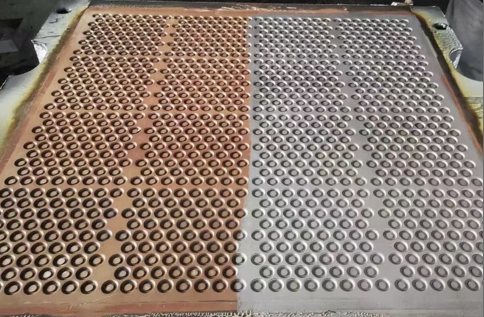

Working samples
About us

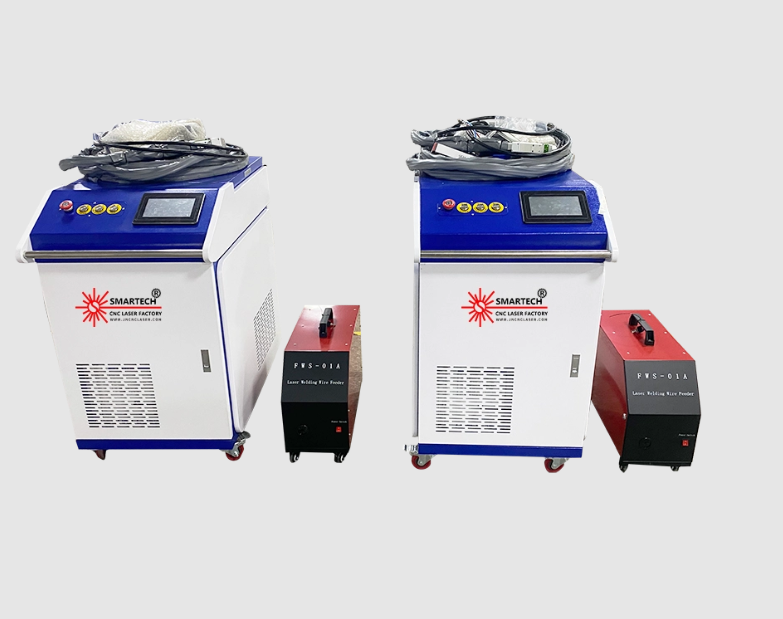

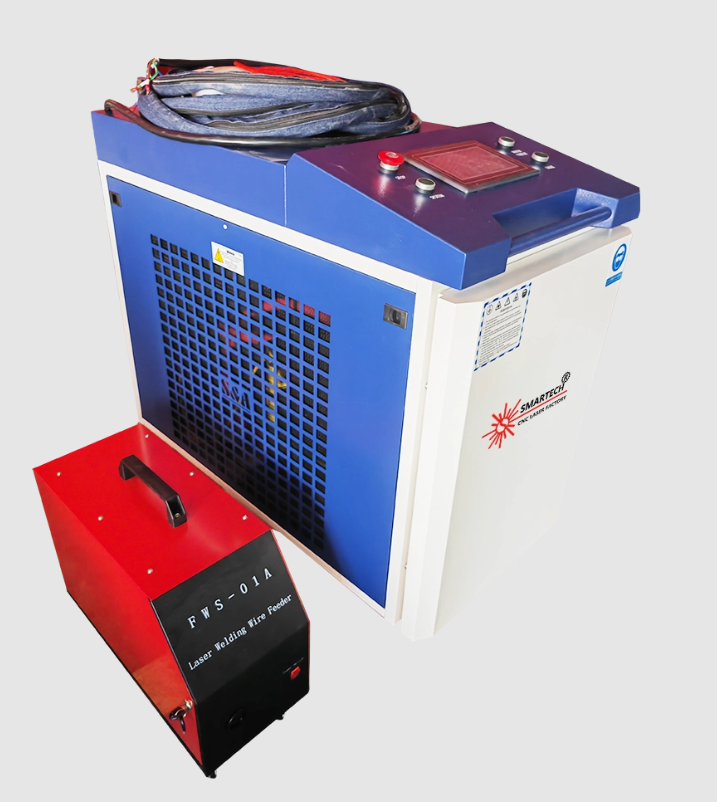

Related Production Line Machines You Might Be Interested In:
