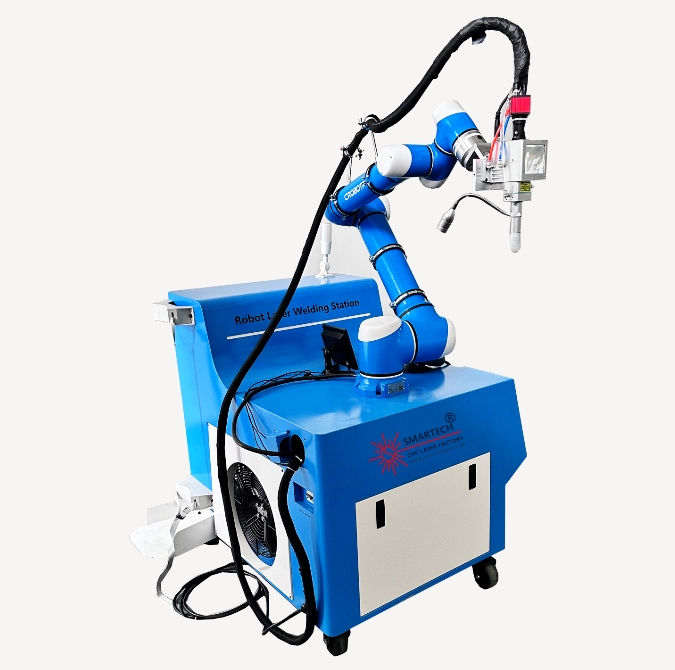

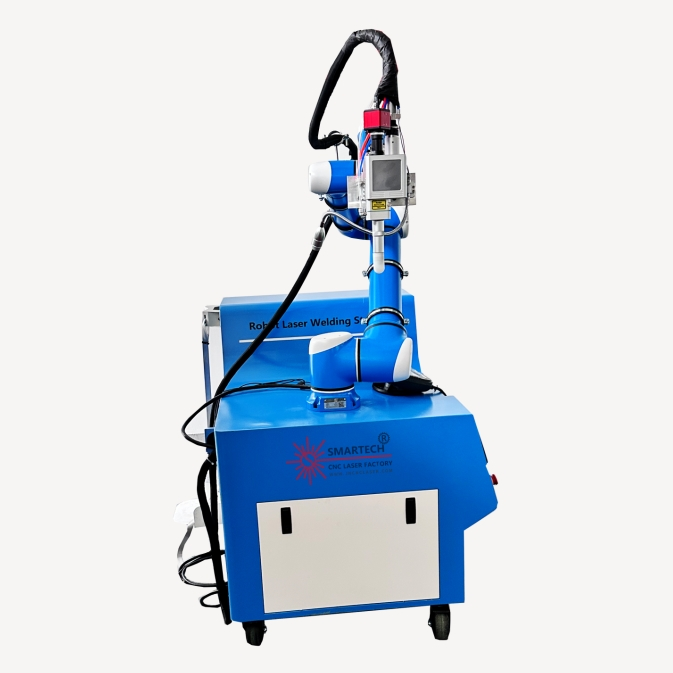

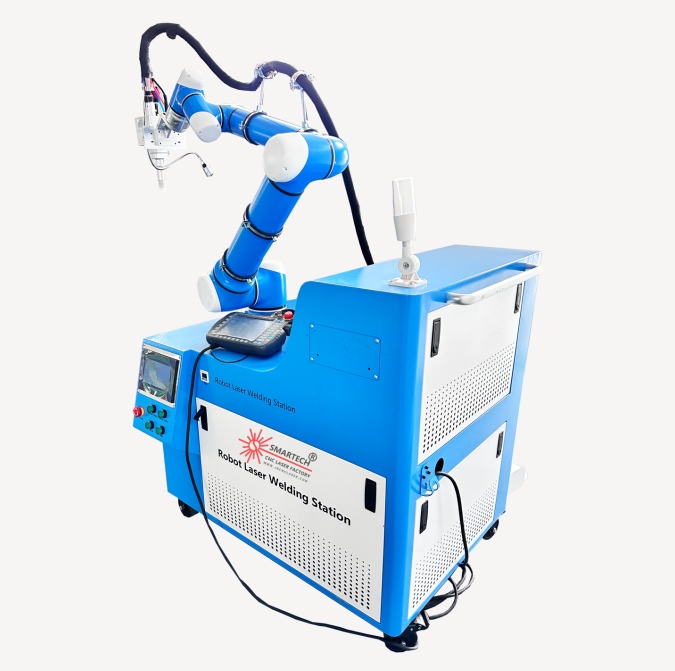

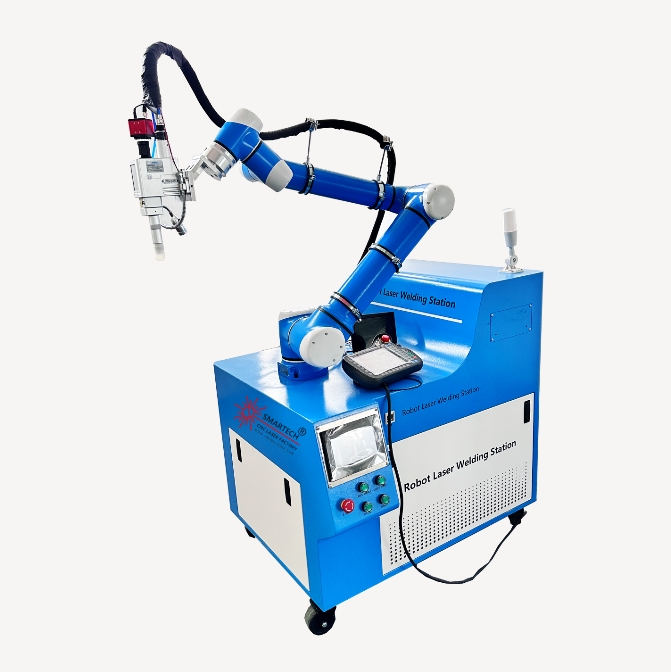

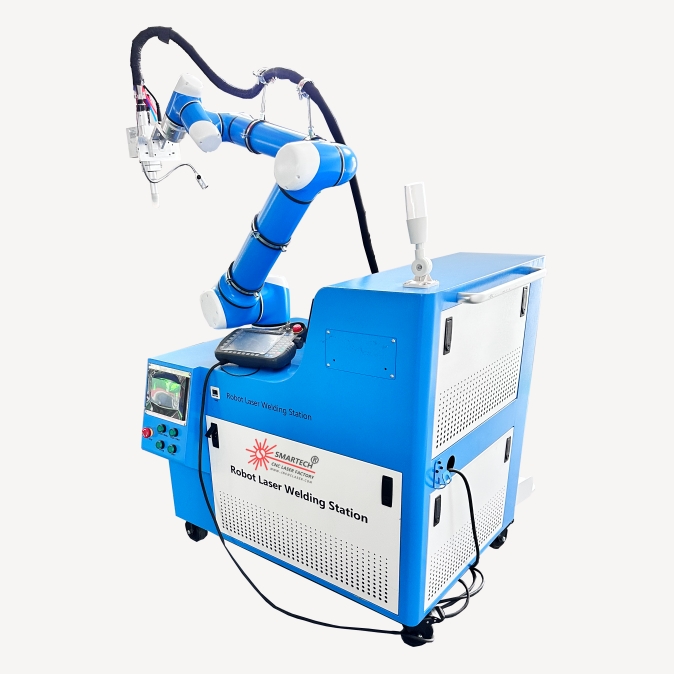

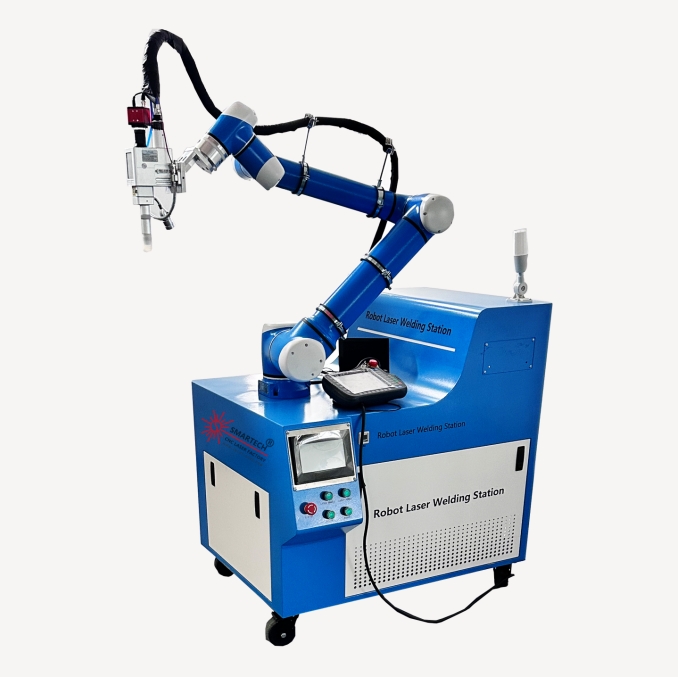

Robot Laser Welding Machine
Smart -2000W
General Robot arm
completely kit， include 6 axis
robot controller , gearbox servo motor ,servo
driver , Electric cabinet, and other spare parts
PRODUCT SPECIFICATIONS
| POWER | 1000W | 1500W | 2000W | 3000W |
| Output Fiber Length | 10M | 10M | 10M | 10M |
| Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Welding Thickness | 0.3-3mm | 0.3-4mm | 0.3-5.5mm | 0.3-7mm |
| Indicator | Red Light | |||
| Max Pressure | 10 bar | |||
| CNC controller | 6 axes | |||
| Cooling Way | Water Cooling | |||
| Working mode | Continuous/Modulation | |||
| Total Power | 8KW | 10KW | 12KW | 15KW |
| Power Supply | 220V±10V | 220V±10V | 220V±10V | 220V±10V |
| Operating Temperature | -10-45 ℃ | |||

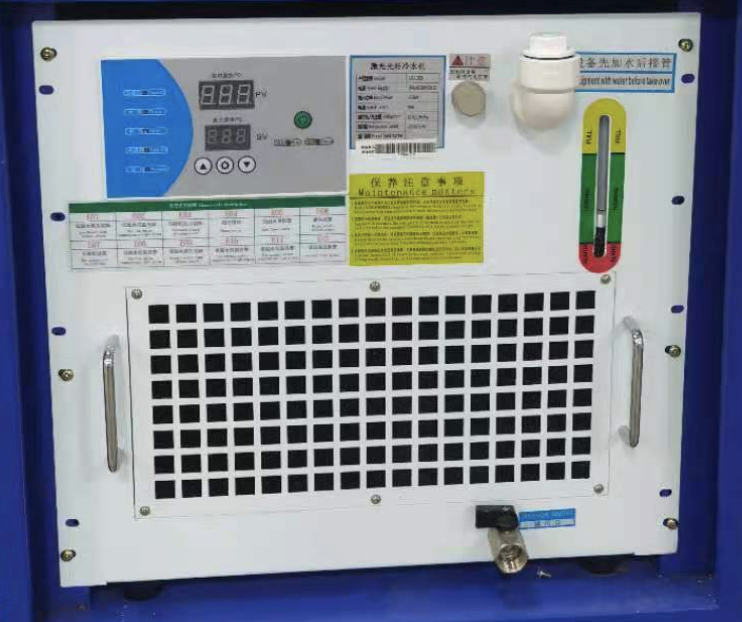

Cooling system
(1) The three-layer condenser sub-technology has large cooling capacity and good heat dissipation, ensuring the equipment is durable in harsh environments.
(2) The water quality is good, the precision is high, and the laser is carefully taken care of to prolong its service life.
(3) With automatic heating and heating technology, it can reduce the waiting time for customers to turn on the laser in winter and improve production efficiency.
(4) The arc-shaped design, the atmosphere is beautiful, and the laser is improved equipment The matching grade.
(5) Energy-saving and electricity-saving, effectively reducing customers' production costs.
(6) High, medium and low matching to meet the diversified needs of customers.

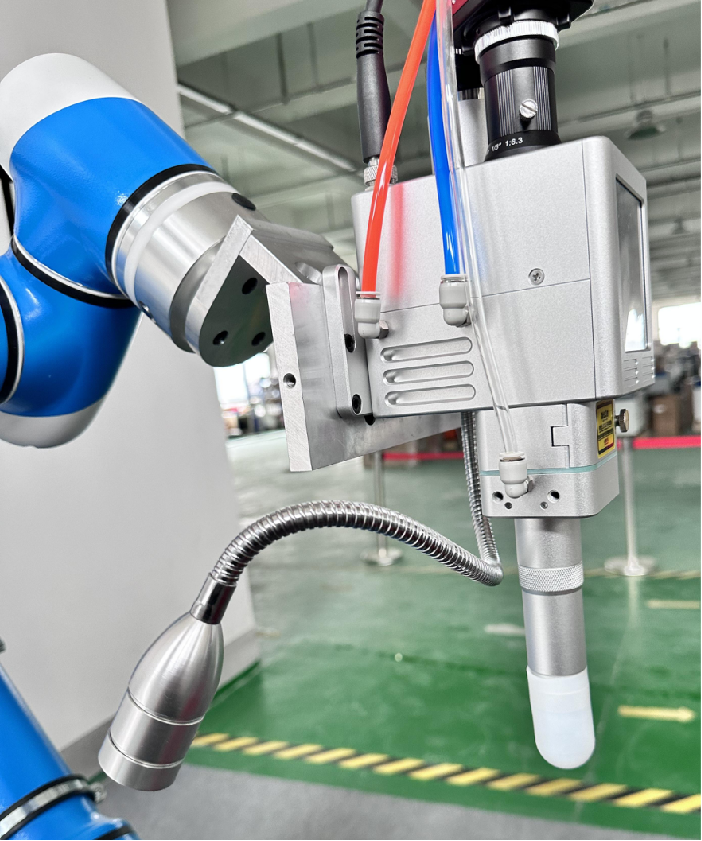

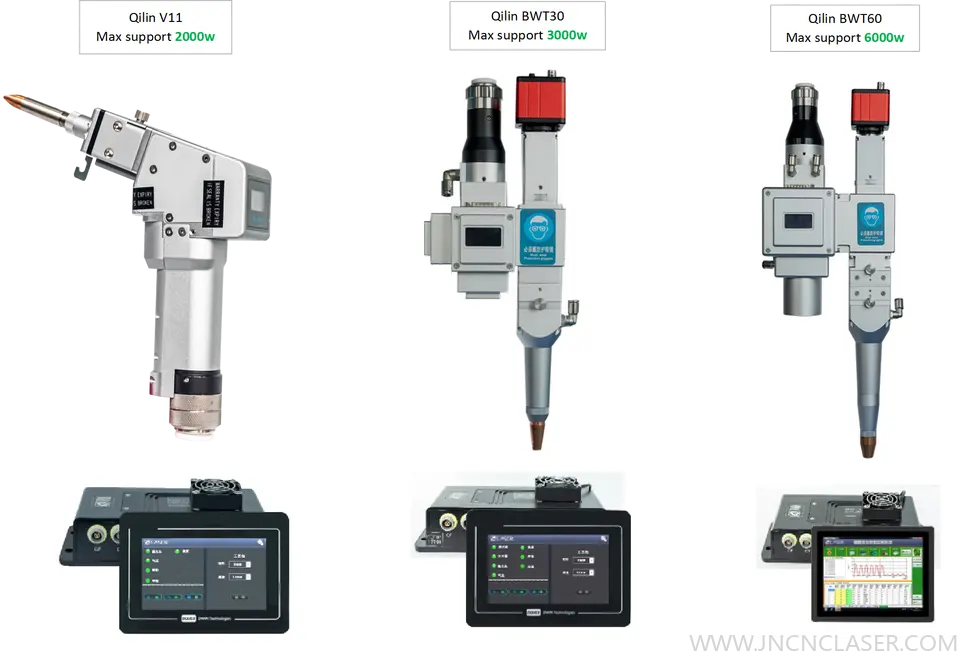

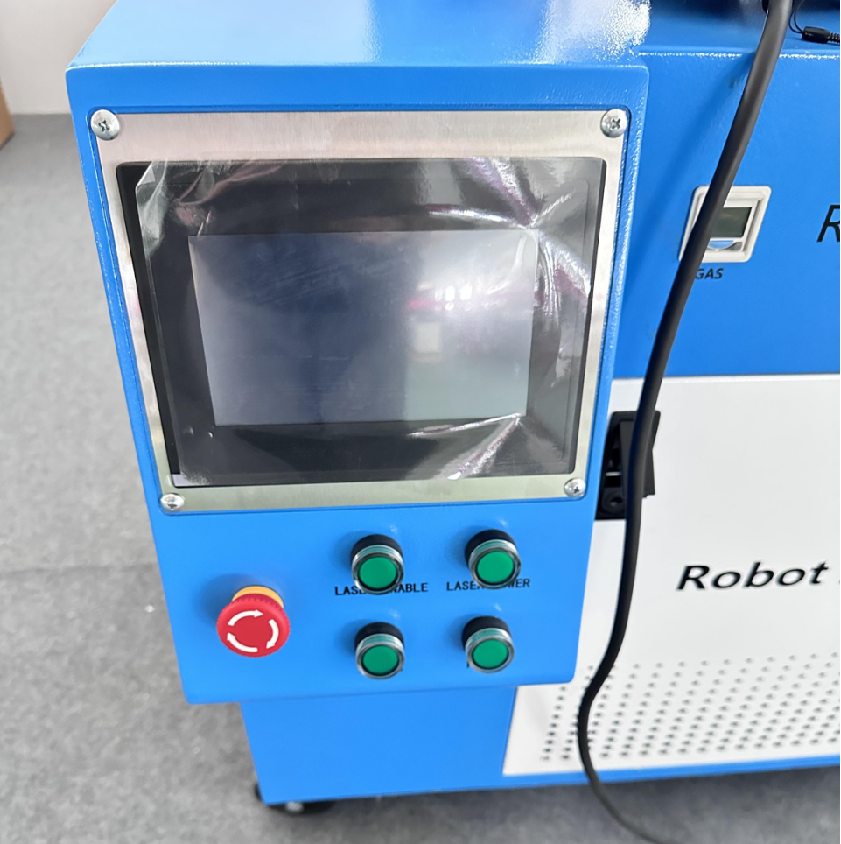

Welding Head
System

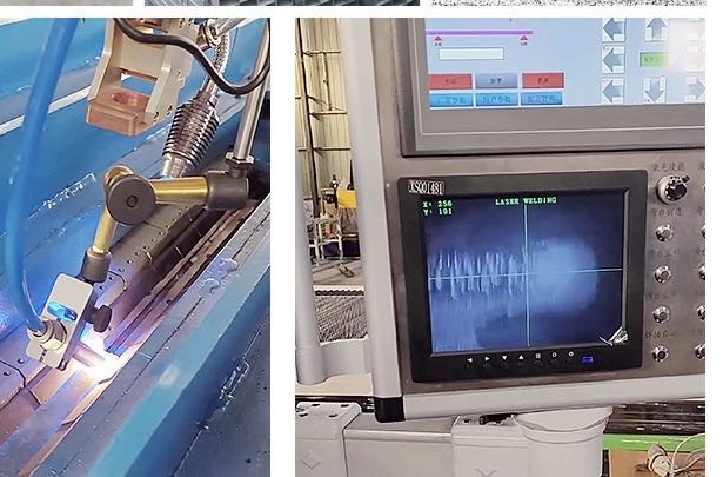

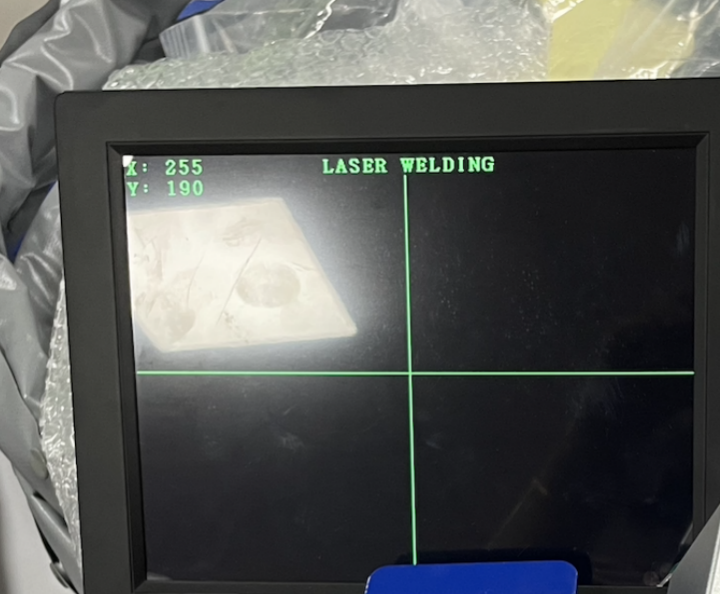

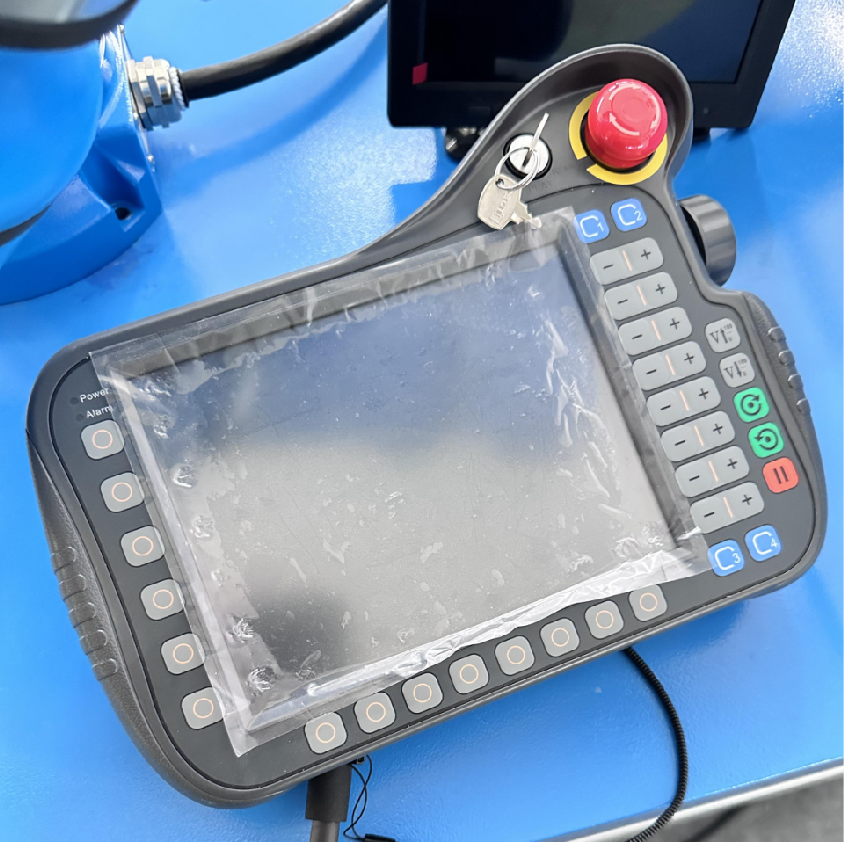

Monitoring System

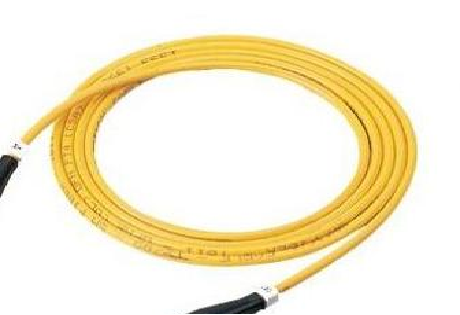

A single laser welding system is equipped with a length of15riceFlexible fiber; The bending radius can reach 80MM. When the optical fiber transmits energy, the laser optical fiber has perfect self-protection function. It can automatically cut off the optical path or turn off the laser in the case of fiber wear and aging, too small bending radius, overheating and laser leakage, to ensure the safety of personnel and the use of fiber.

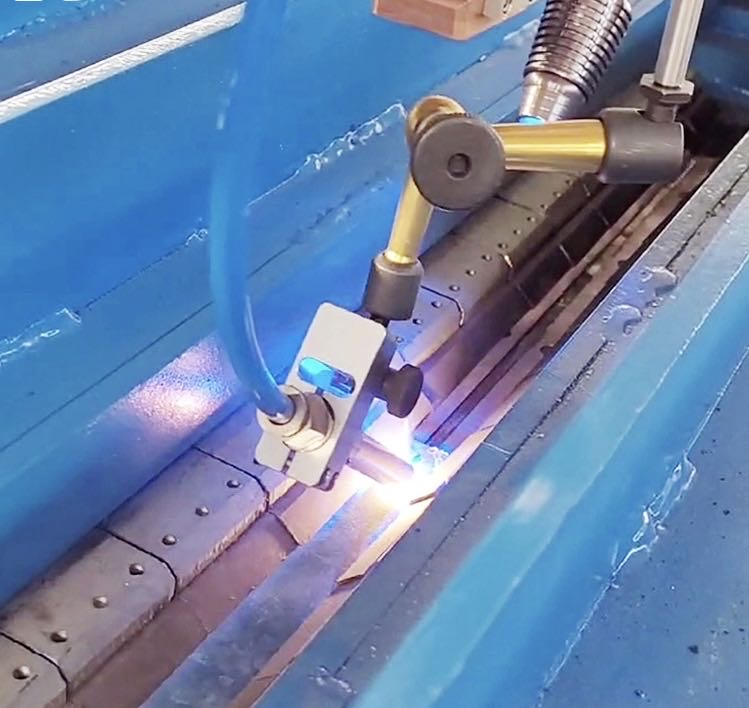

Welding nozzle and sensor
Sample
