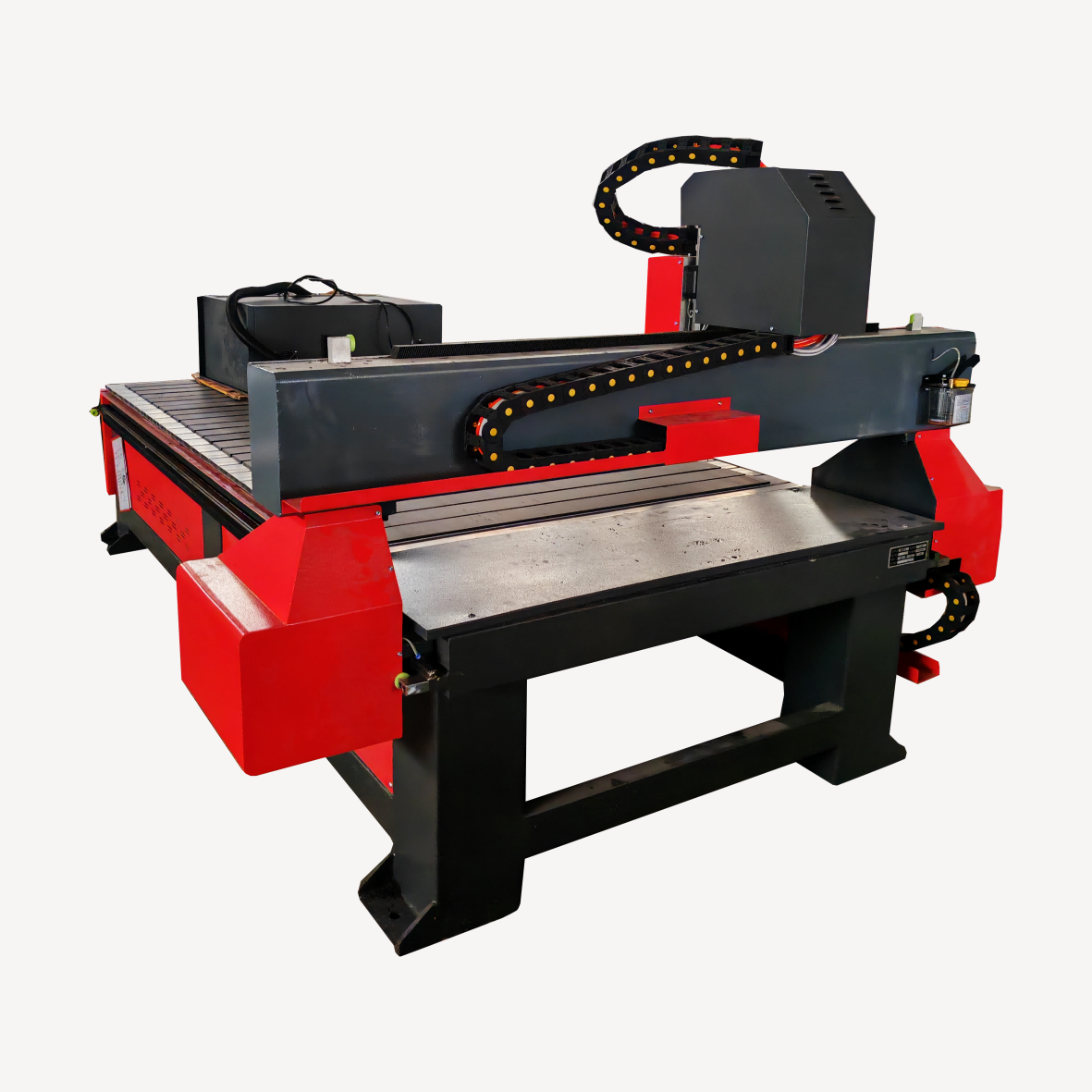

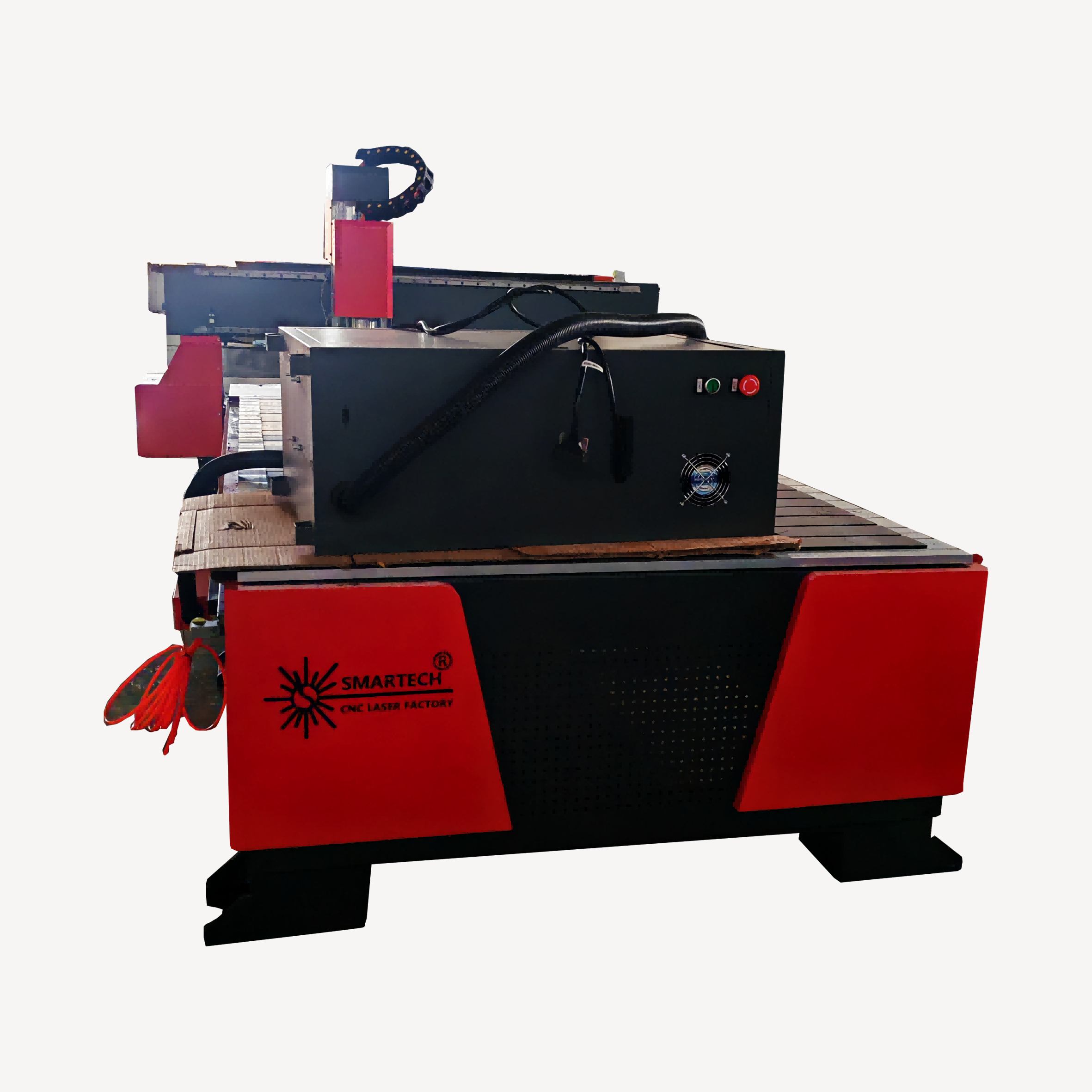

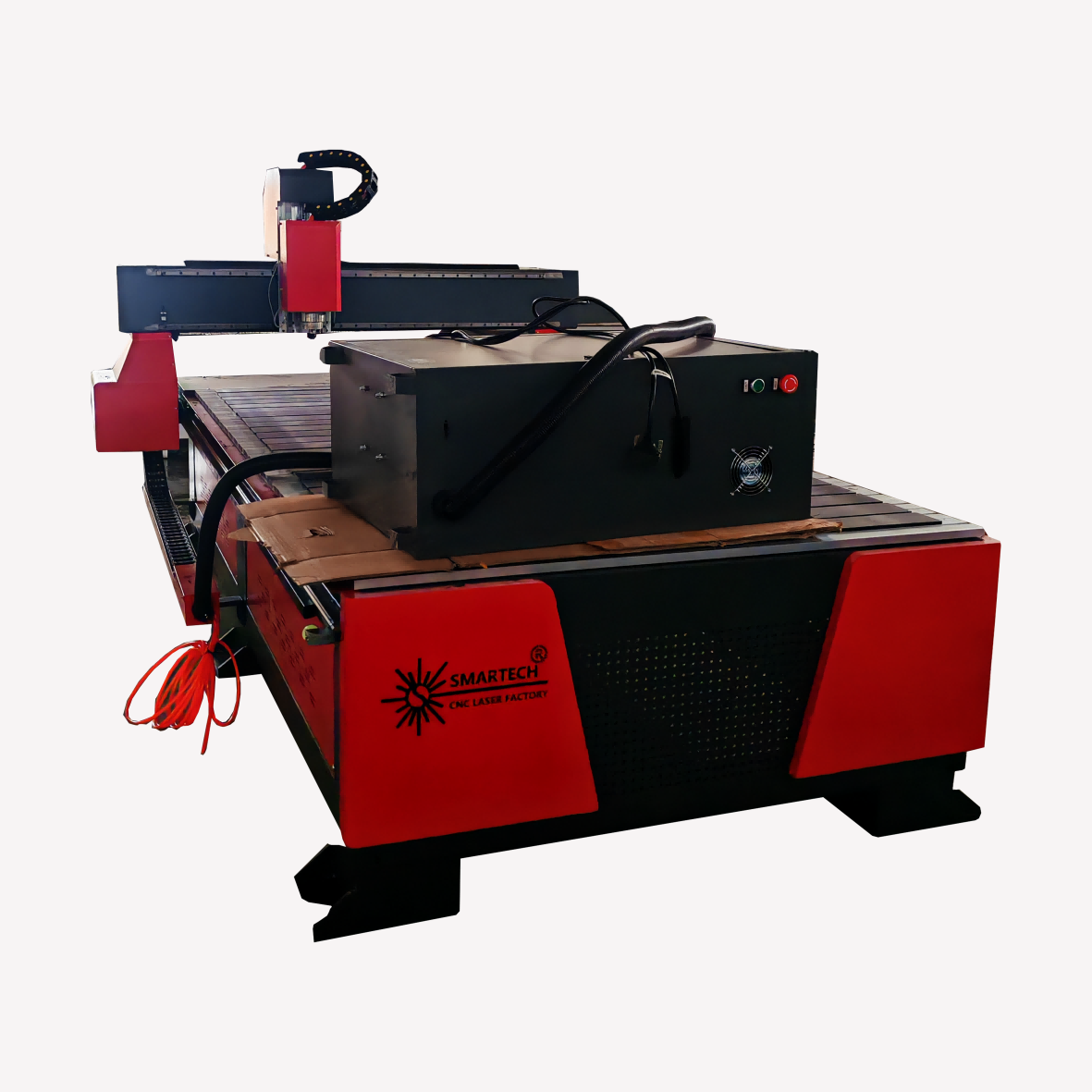

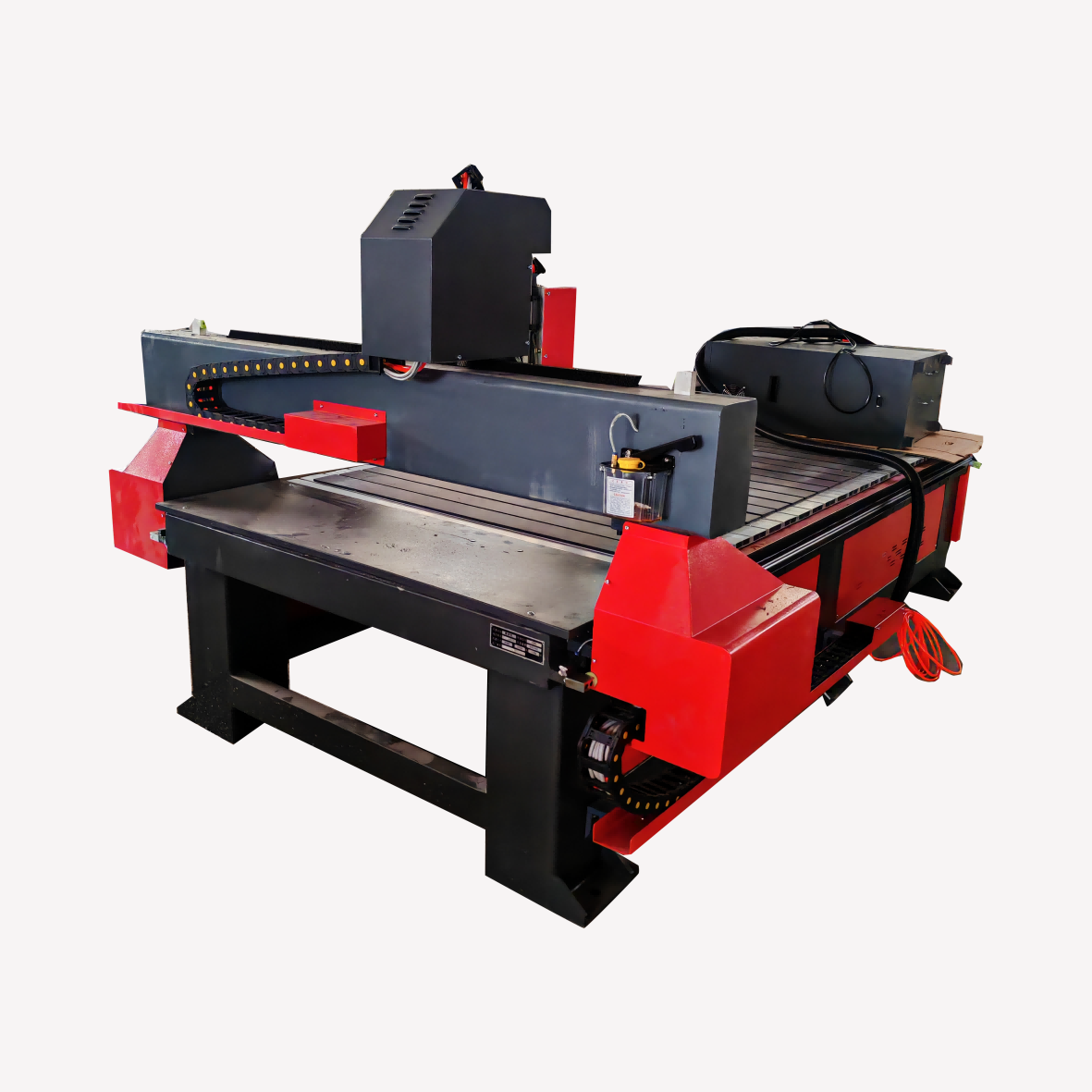

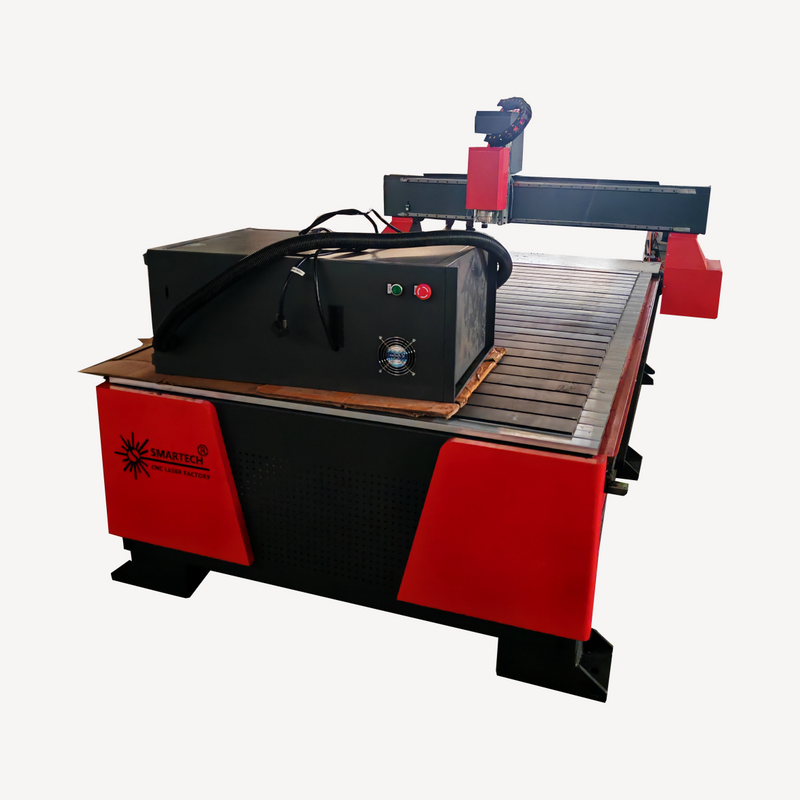

1325 CNC Router Machine Professional Woodworking Engraving Solution

Original spindle ,very powerful and top quality.
Leadshine servo motor system, powerful,precision and durable
Heavy duty frame and gantry

Availability:



Inquire Add to Basket

Brand:
SMARTECH

Product Description

1325 CNC Router Machine Professional Woodworking Engraving Solution

Features

@1.Original spindle ,very powerful and top quality.

@2.Leadshine servo motor system, powerful,precision and durable

@3.Heavy duty frame and gantry @4.3 Axis could do both 2D/3D Engraving and Cutting.

@5.lintelligent control: adopting DSP/Mach3/ nc studio control system.t is very easy to master,especially for the beginners.

@6.China best brand inverter,save your electricity cost.

@7.Temperature monitor could show the spindle temperature,huminity and timing clock help take rest for machine more friendly.

@8.Original imported rails,could ensure the machine precision and longer life span.

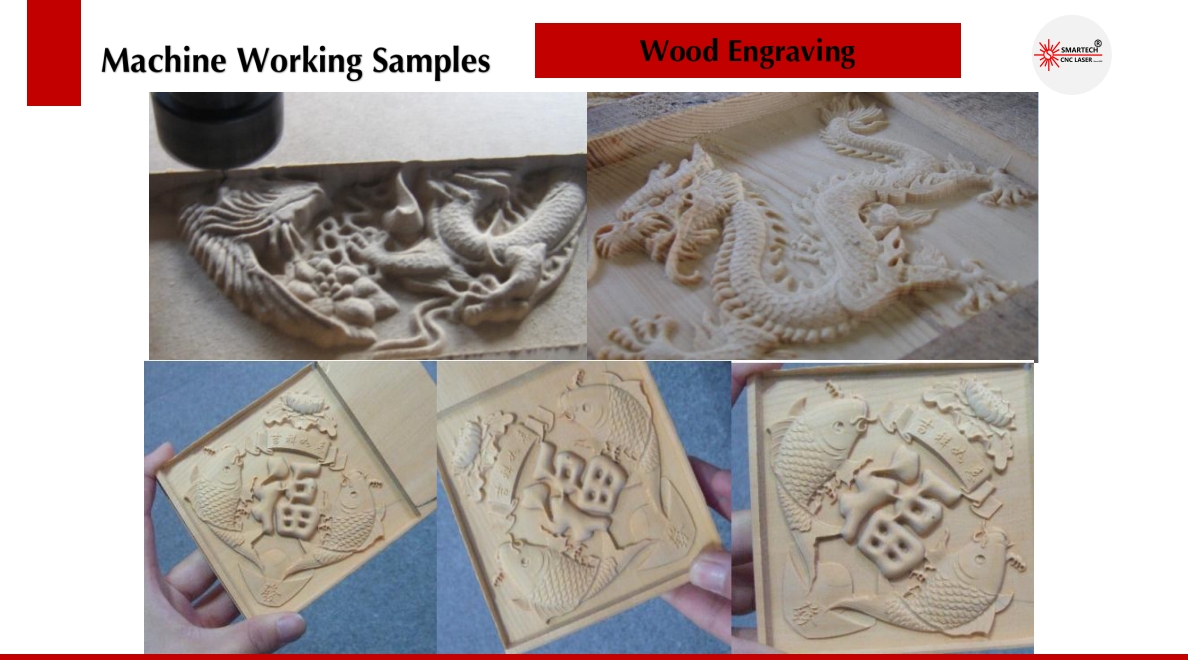

@9.Widely applications,which could be used for wide materials,such as:wood,mdf,acrylic,plastic,pvc etc

@10.Lubricating system which help you maintain machine rails more conveniently.

@11.Machine is equipped with limit switches for each axis,machine will stop if oversize.which is more safely

@12.Each SMARTECH machine is installed with leakage protector to ensure operators' safety in case of leakage or wrongly operatior

@13.Each SMARTECH machine would be debugged well before delivery, so you could use machine directly after its arrival and noneed to install parts.

@14.As one 3 axis cnc router,the price is really very competitive to help each entrepreneur improves their business.This machine isespecially good option for the beginners or hobbyists.

Model	SW1325-A Woodworking Machines
X,Y,Z Working Area	13002500200mm Bigger or smaller(customized)
Traveling Positioning Accuracy	±0.03/300mm(X,Y,Z Axis)
Table Surface	T-slot and Vacuum Working Table
Frame	New type thicker and bigger heavy duty frame gantry
X, Y Structure	Helical Rack gear, Taiwan PMI/ABBA Linear Square Rail
Z Structure	Taiwan TBI Ball Screw, Taiwan PMI Linear Square Rail
Spindle	6kw HQD Italy HSD air cooling spindle for option
Max.Speed	0-60000mm/min
Max. Working Speed	0-40000mm/min
Inverter	7.5kw Chinese Inverter Taiwan Delta for option
Lubrication system	Manual lubrication system
Working Voltage	AC380V, 3Ph, 50Hz 220V
Command	G Code, uoo, mmg, *plt
Operating System	DSP mach3 /nc studio System for option
Interface	USB
Flash Memory	512MB
Running Circumstance	Temperature: 0℃～45℃ Relative humidity: 30%～75%
Packing Size Integrated	3200x2250X1950mm Separated: 3200X2250X1404mm
Net Weight	1900KG
Gross Weight	2100KG

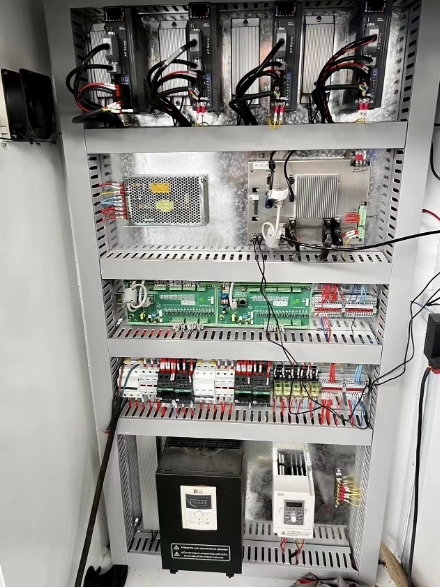

Electricity box

To ensure maximum operator safety and machine reliability, our CNC routers are equipped with a high-sensitivity leakage protector that instantly cuts off power in case of electrical faults, preventing electric shocks and equipment damage. For superior motion
control and precision, we use original servo drivers from leading global brands (such as Yaskawa, Delta, or Siemens), ensuring
smooth acceleration, minimal vibration, and long-term durability. Anti-Interference Grounding System: Every machine undergoes
strict ground wire connection testing before delivery, eliminating electromagnetic interference for stable signal transmission and
improved machining accuracy. User-Friendly Control Interface: Features an ultra-clear LED screen on the control box for real-time
monitoring of cutting parameters, error alerts, and operational diagnostics. Premium Electrical Components: All critical
electrical parts are sourced from reputable manufacturers to guarantee consistent performance under heavy workloads.
