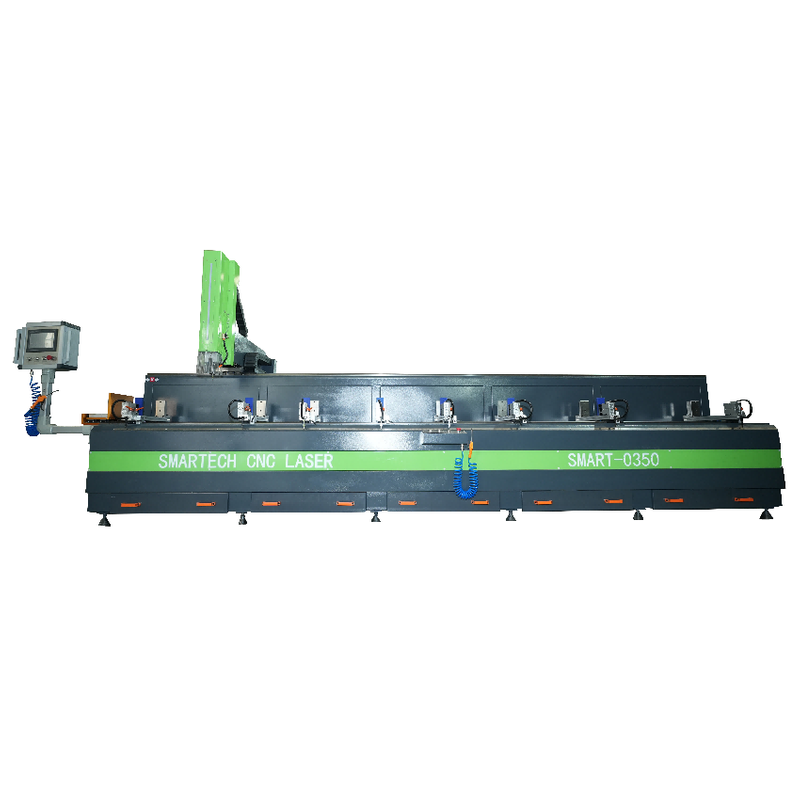

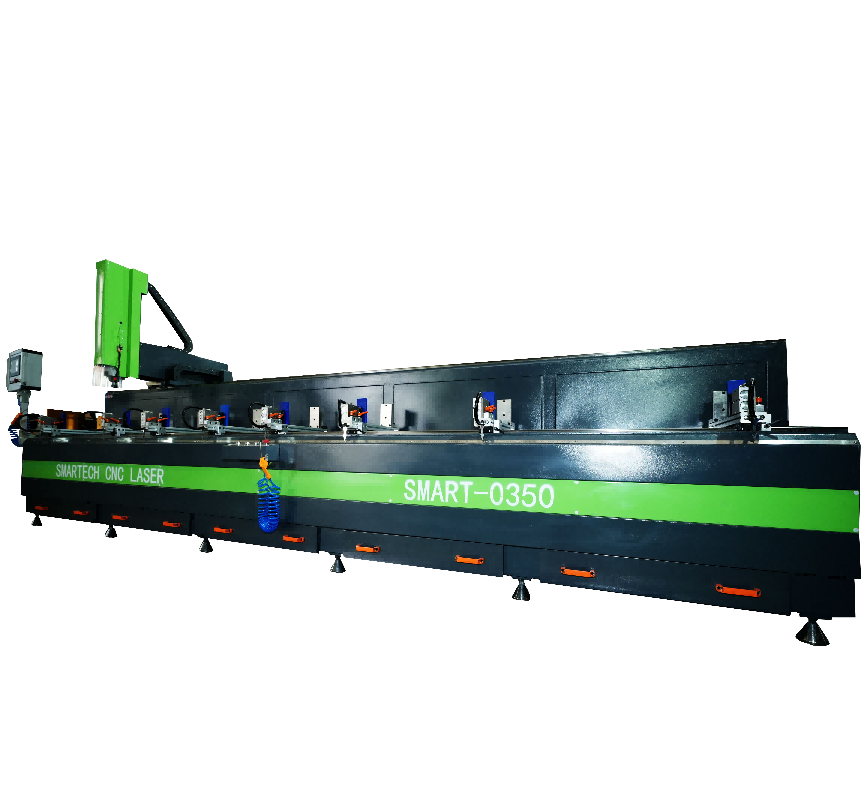

Features:
1. Main performance characteristics:
*Suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy profiles
*The system adopts Red Sea CNC System
*Using electric spindle, high precision, good safety and high reliability
*X-axis adopts high-precision helical gear and helical rack, Y-axis and Z-axis adopt high-precision ball screw transmission, stable transmission and high precision
*Automatic conversion of processing codes through programming software, simple operation, high efficiency and low labor intensity
*The table is flipped 180°. -90～0°～+90°, the profile can be processed on three sides by one clamping. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the table over, with high efficiency and high precision
Technical data
Parts Item | Parameters | Part Item | Parameters |
CNC machine system | Customized system english | Power supply | 380V/50Hz |
Motor | Leadshine Servo | Spindle power | 4.5Kw*2 |
Driver | Leadshine Servo | Spindle Rotating | 18000/24000RPM |
Reducer | Japan Shimpo | Working pressure | 0.5-0.6MPa |
Limit Switch | Omron | X axis travel | 5000mm |
Rack Pinion | High Precision | Y axis travel | 420mm |
Rails | HIWIN from Taiwan | Z-axis travel | 350mm |
Spindle | HQD | Power source | CHNT |
Spindle quantity | Double | Tool holder | ER20,ER25 |
Inverter | Best | Turning angle | 180°. -90～0°～+90° |
Cylinder | Hansanhe pneumatic | Weight | 3000KG |
Electromagnetic valve | Delixi | Package size | 5600x1700x1900MM |

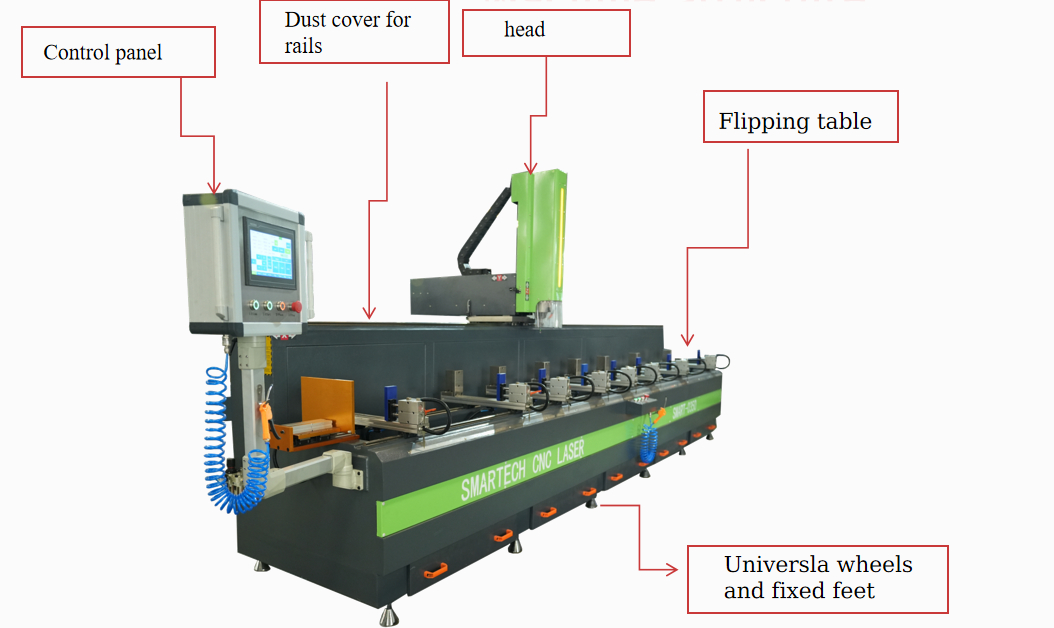

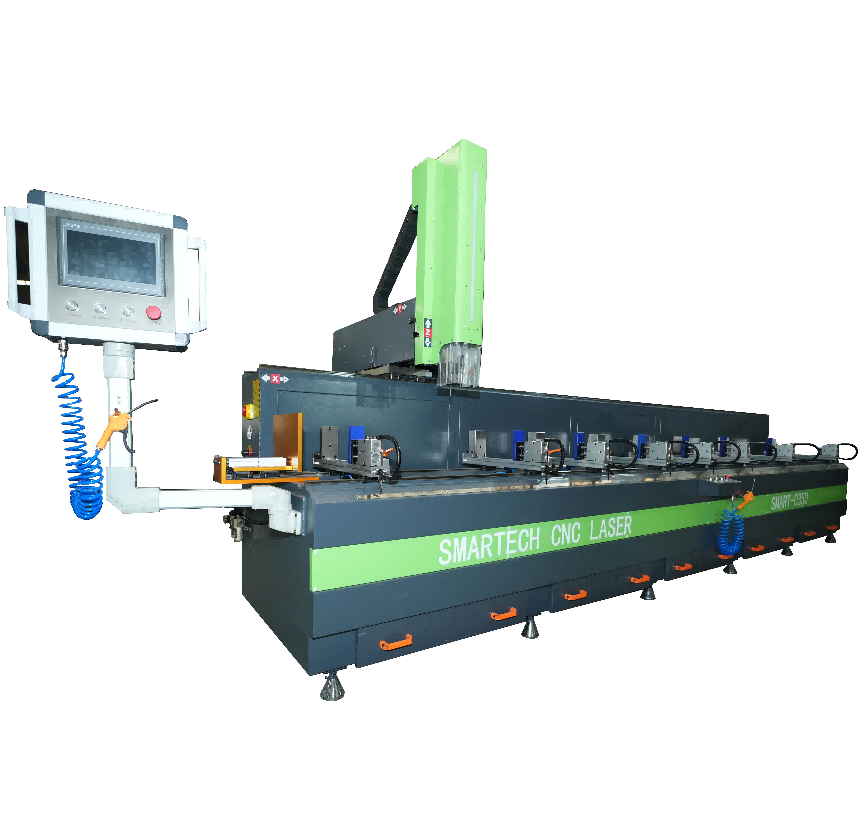

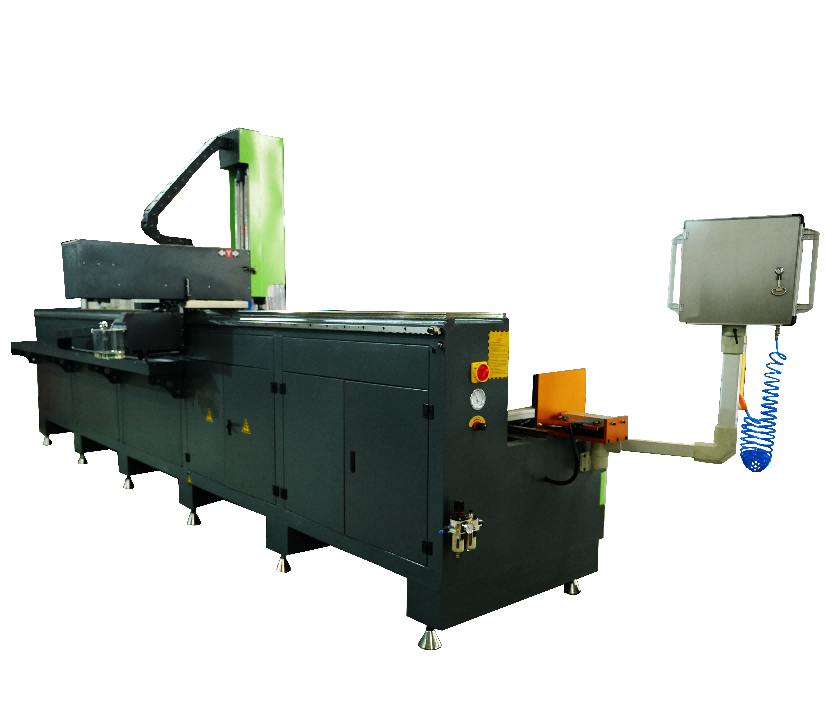

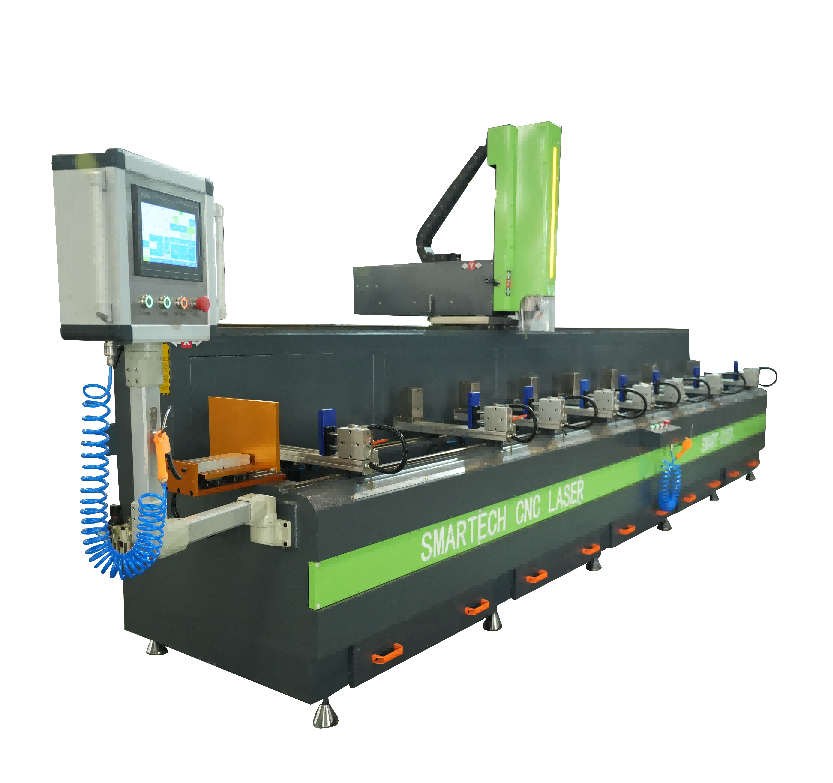

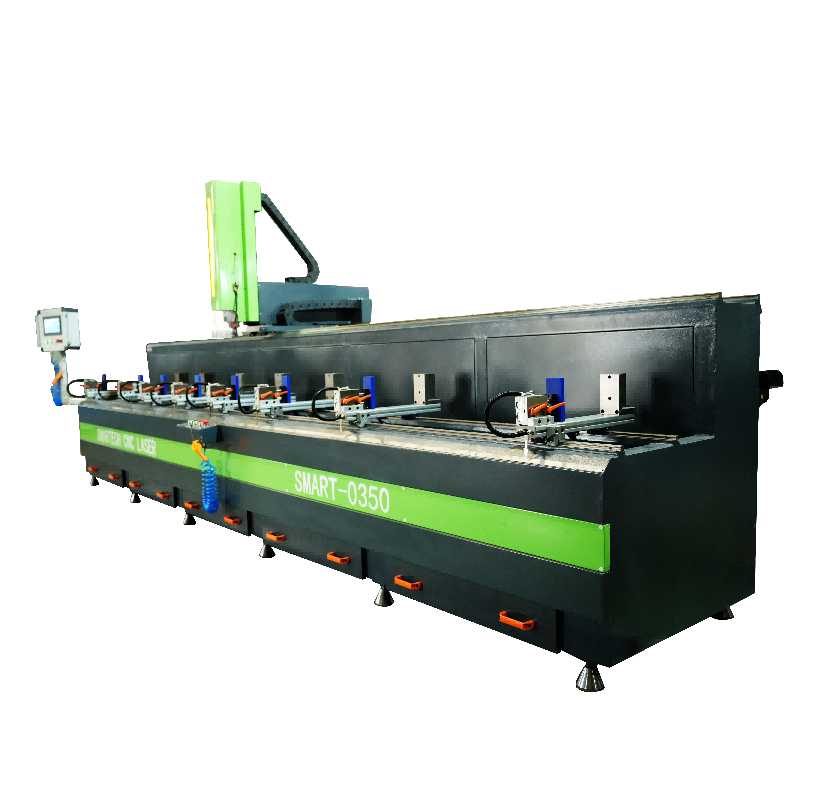

Machine Structure

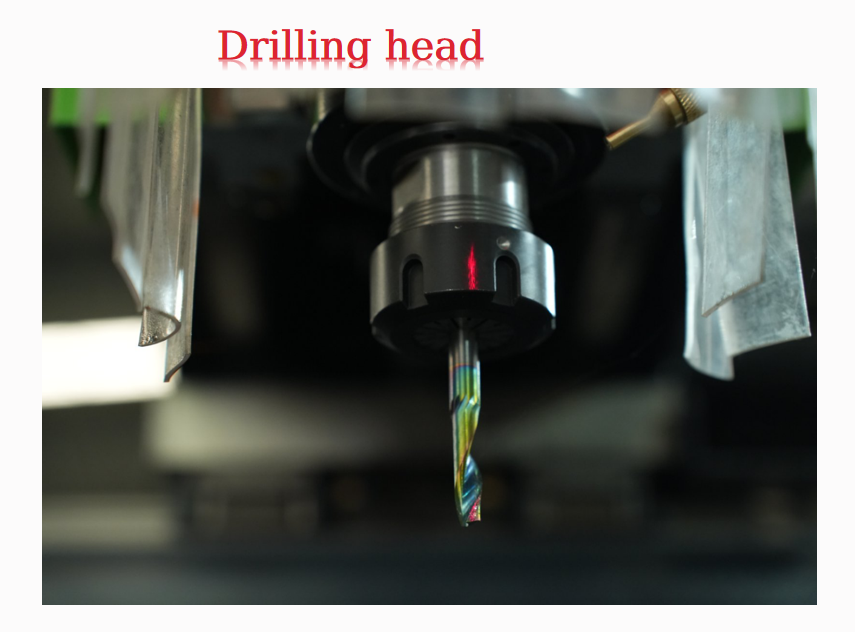

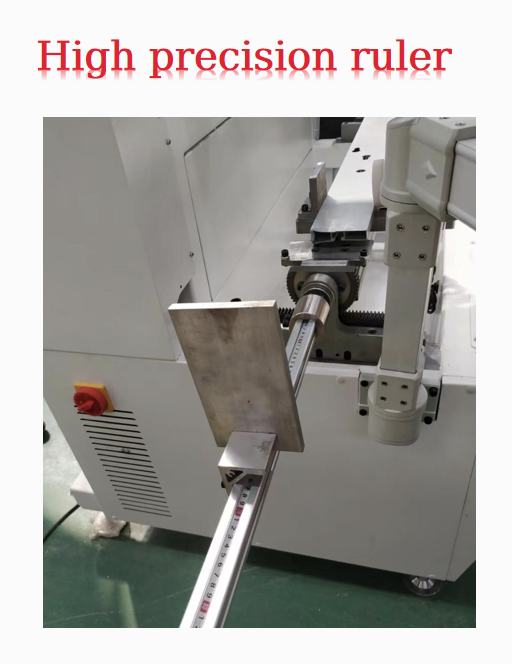

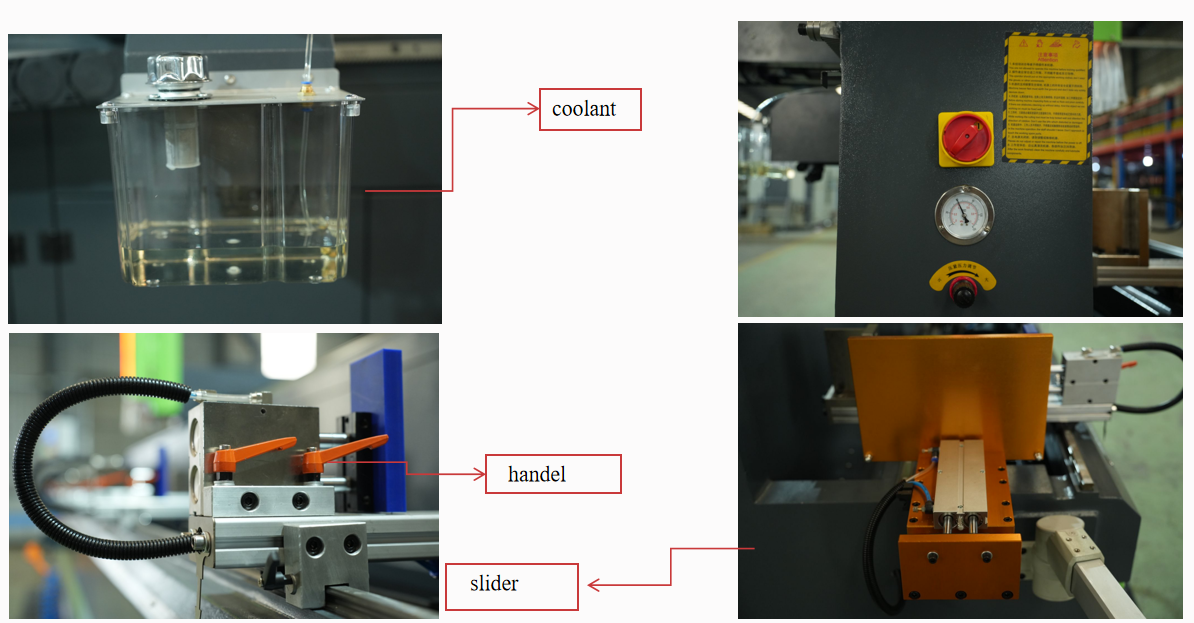

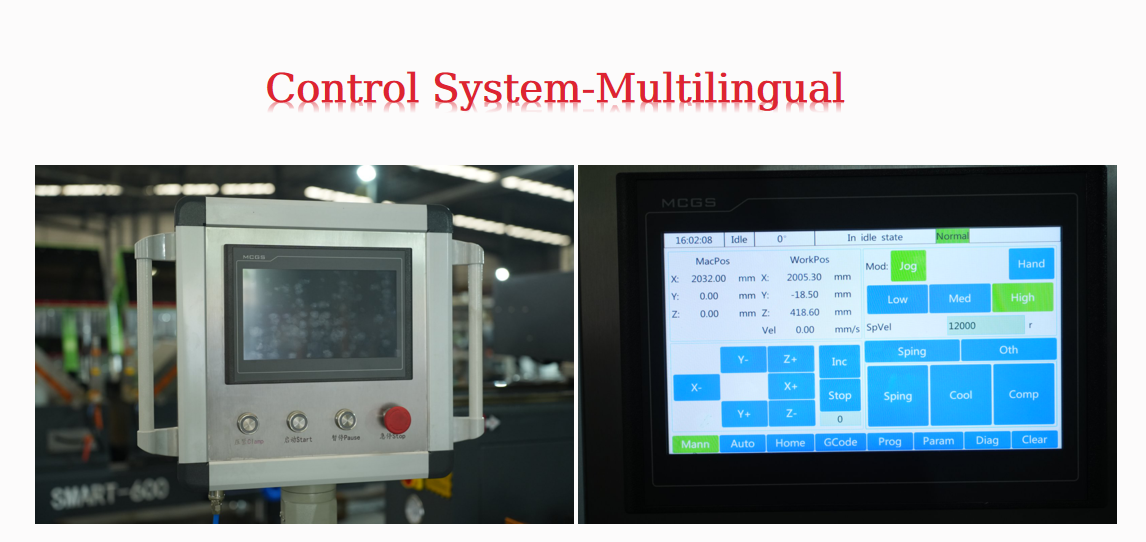

Machine parts
180 rotate Cylinder clamping aluminum table
Worktable can be rotated to 180°
(-90° -0°- +90°),
Clamping profile one time,
three sides processing.
it can process deep
and special-shaped holes
through workbench;
high efficiency and precision.

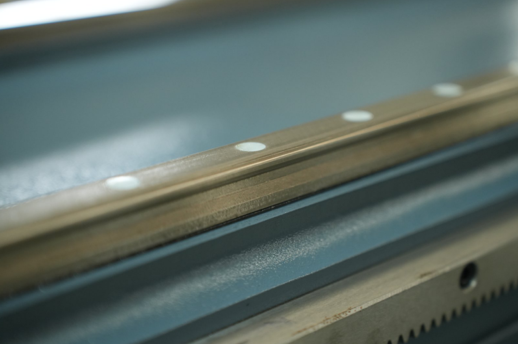

Taiwan HIWIN Rails Rack pinion
Imported Taiwan TBI guide rail,
sliding block, X axis adopt high precision oblique
gear and rack driving. Y and Z axis adopts high precision ball screw drive.

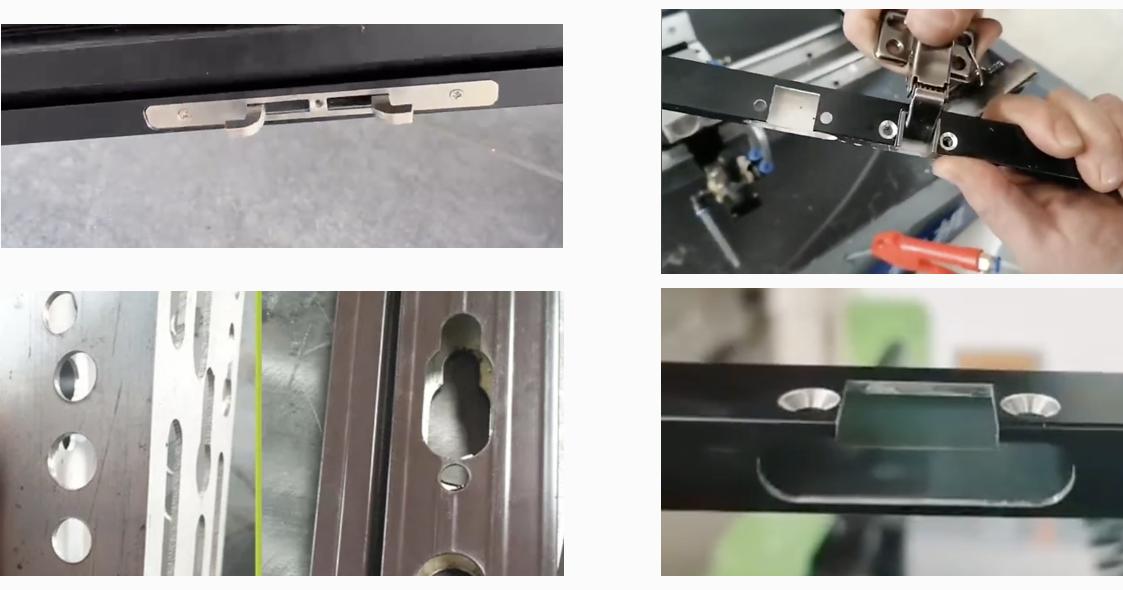

Working samples
