Product Description

Application

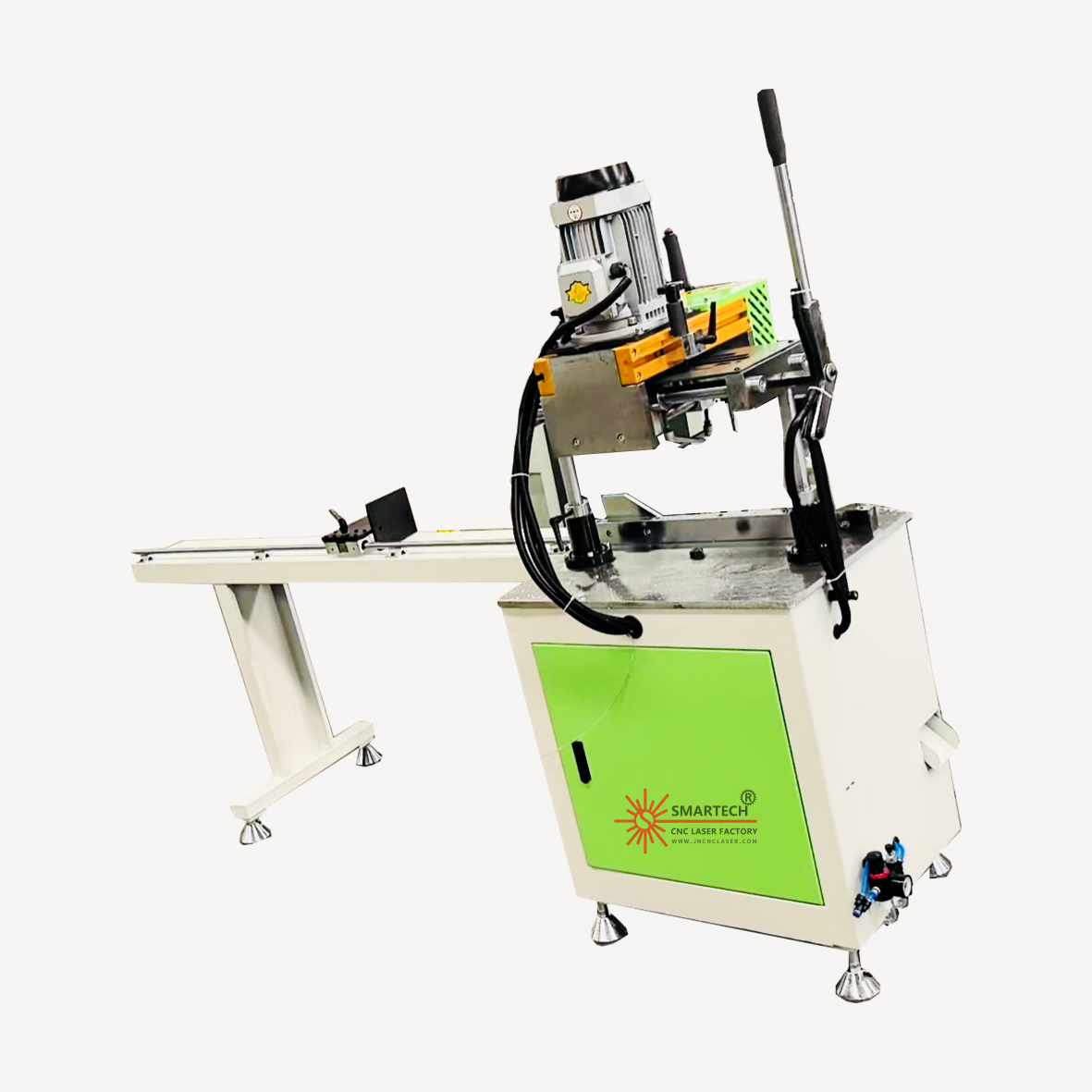

Smart single-axis copy milling machine is used to process various types of holes, grooves, water outlets, etc. of aluminum and plastic profile doors and windows. The machine has a compact structure and small size, and the profile clamping adopts pneumatic transmission. The mold adjustment and replacement are simple, the application range is wide, the efficiency is high, and continuous processing can be achieved. The operation is simple and safe.

Input voltage	440V / 60Hz
Input power	1.5Kw
Working air pressure	0.4~0.6Mpa
Air consumption	30L/min
Copying range	90x290mm
Milling tool diameter	Φ8mm
Overall size	2500x800x1500mm
Machine weight	200kg

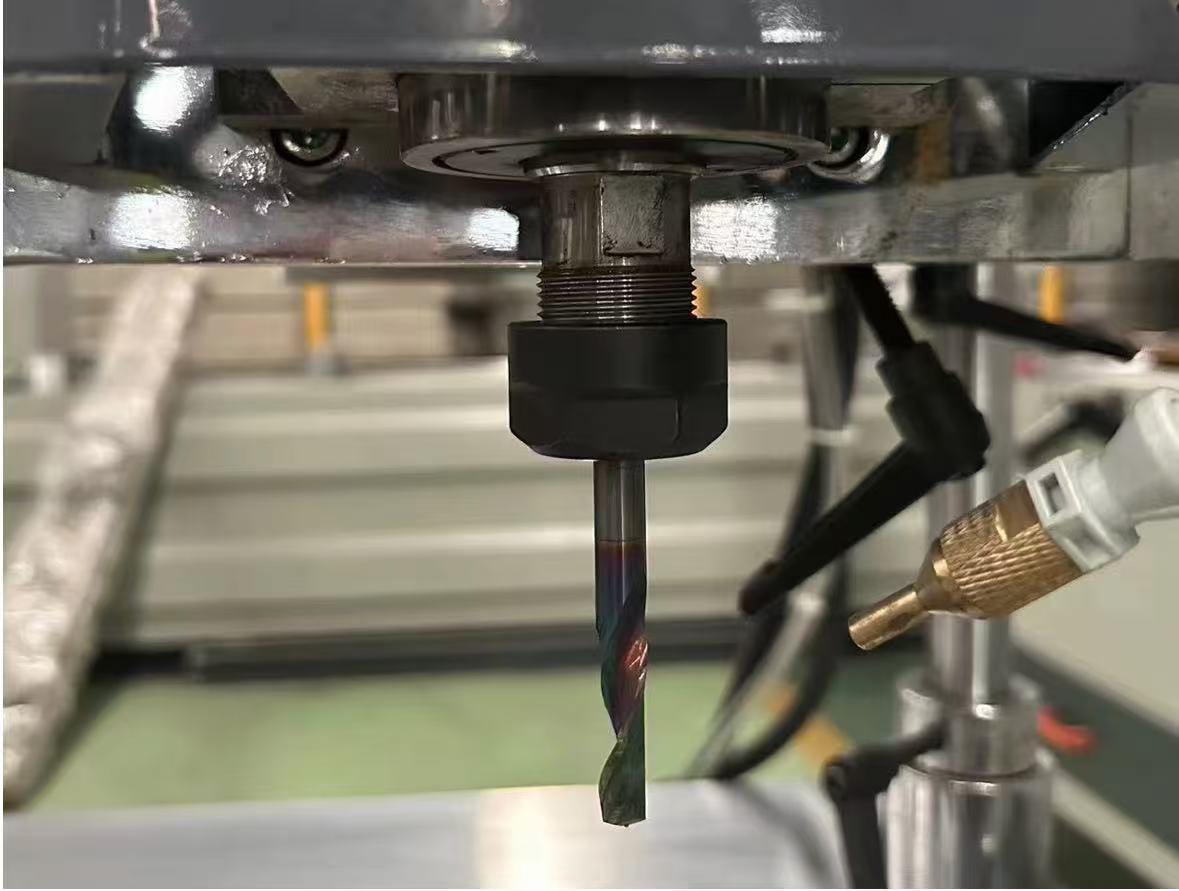

Milling head

The motor drives the milling head to rotate through the annular belt, and after clamping the parts, enabling continuous processing. Spray system (for aluminum profile processing) In order to improve the roughness of parts and extend the life of tools, a spray cooling device is provided. In order to ensure that milling is always carried out under the condition of spray cooling, the motor switch is interlocked with this switch

定位结构

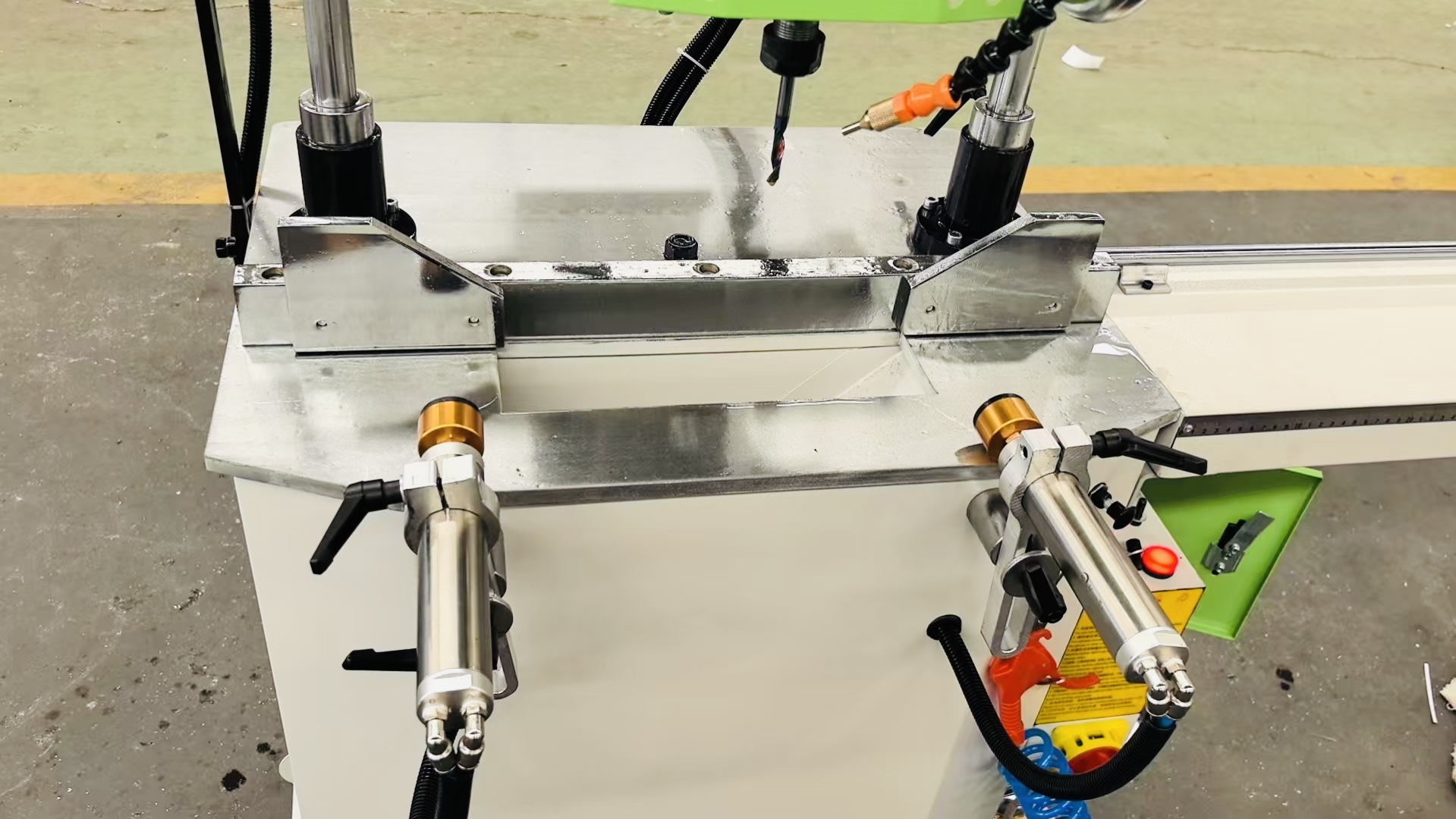

Positioning structure

The extension length of the positioning screw can be adjusted to ensure the cutting depth of the feed. Clamping device There are two cylinders for adding parts to ensure stable and reliable operation

微信图片_2025-08-13_093832_398

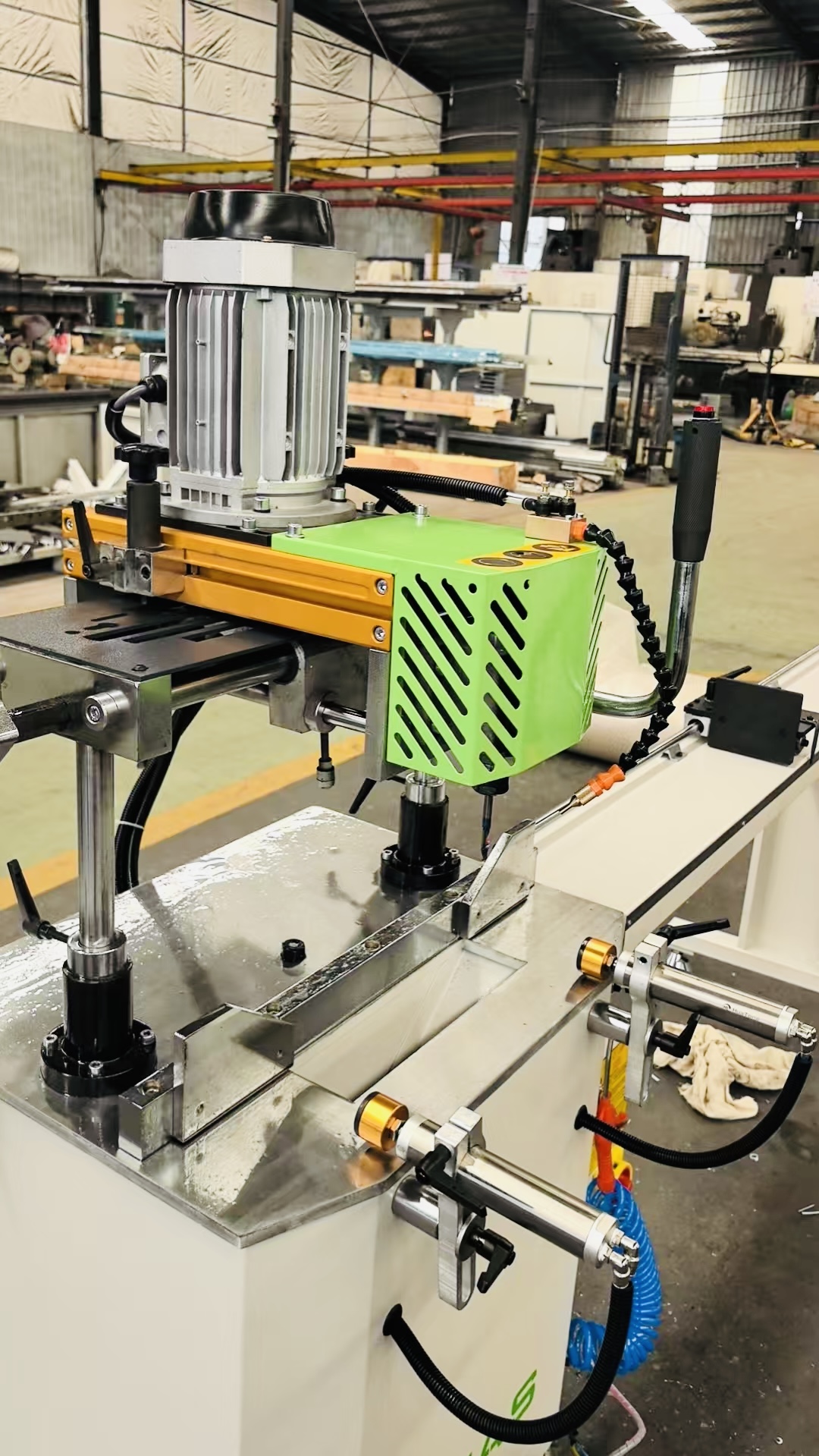

Two-stage contoured contact rod

The diameter of the two-stage profiling contact rod is the same as the diameter of the milling cutter (the contact rod is adjusted according to the diameter of the milling cutter), so the profiling milling process can be performed in a 1:1 relationship to ensure that the shape of the milled part is consistent with the shape of the hole in the profiling plate.
