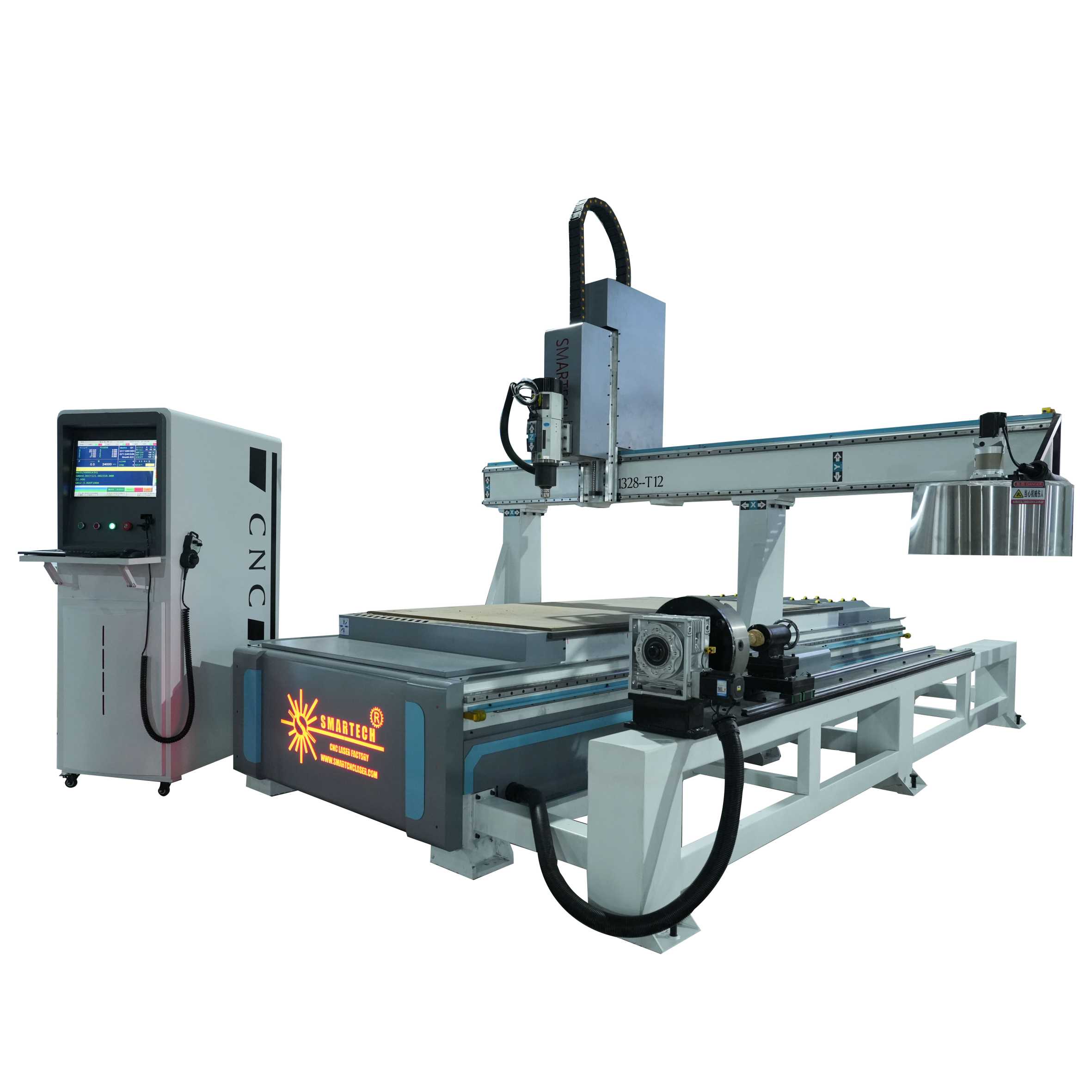

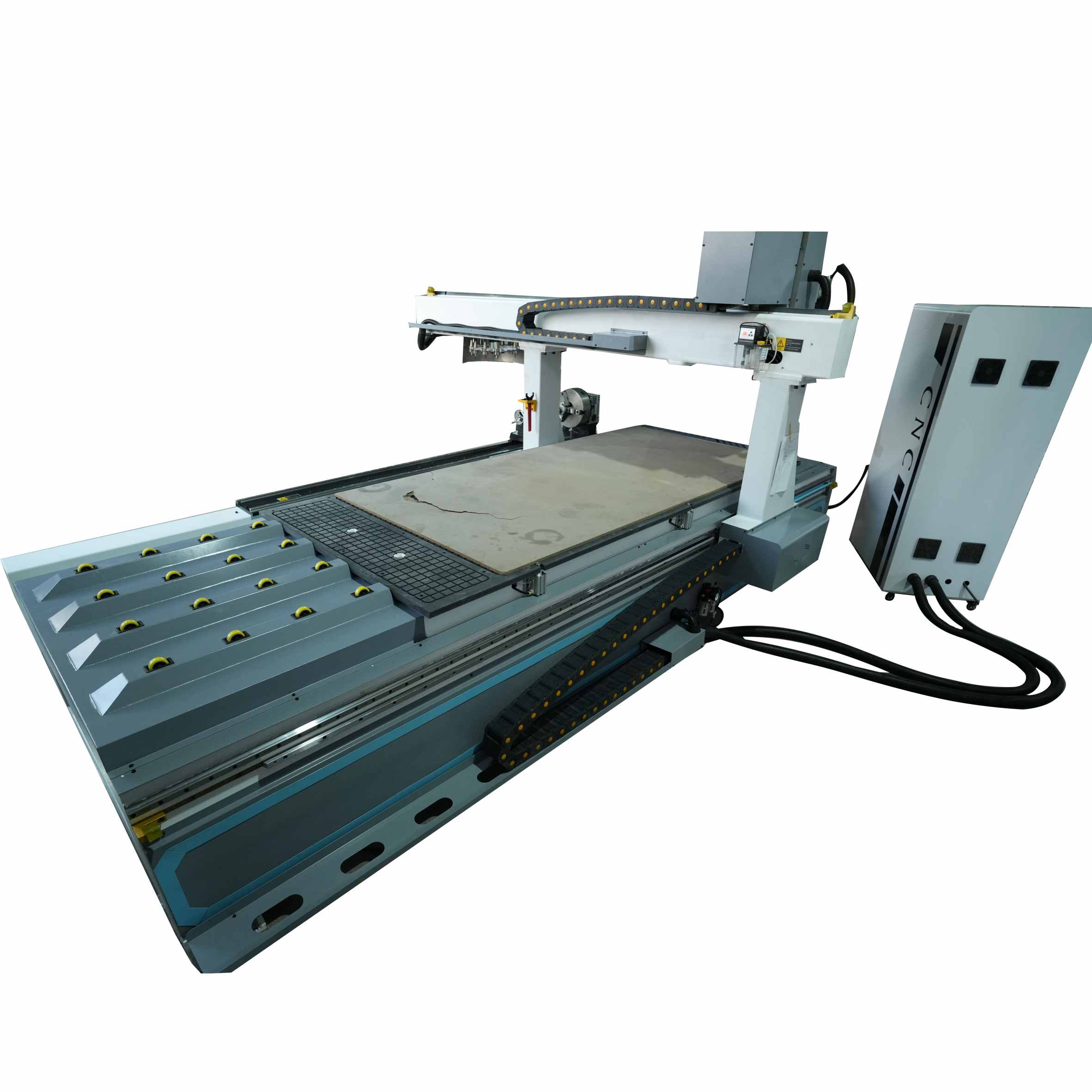

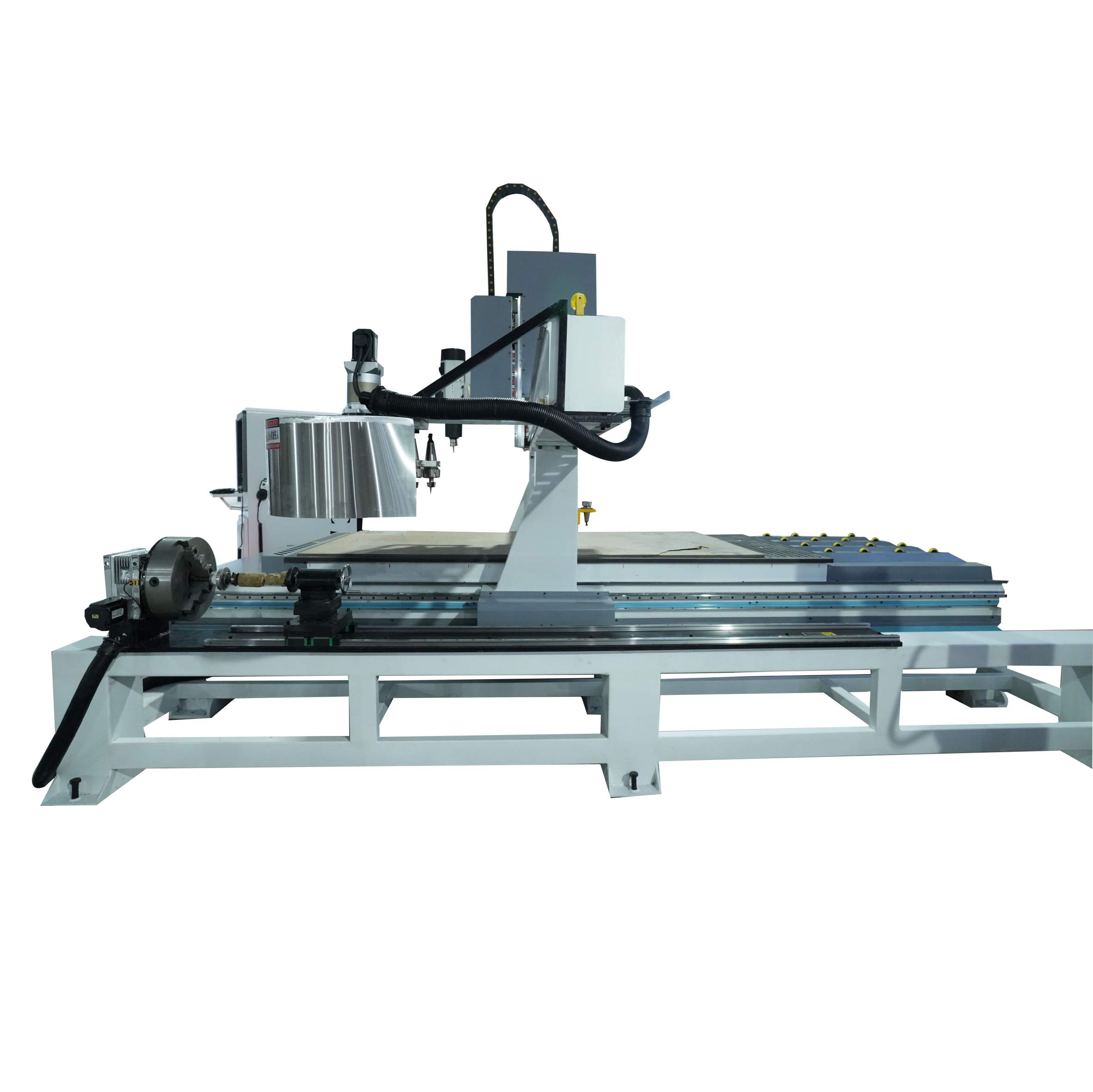

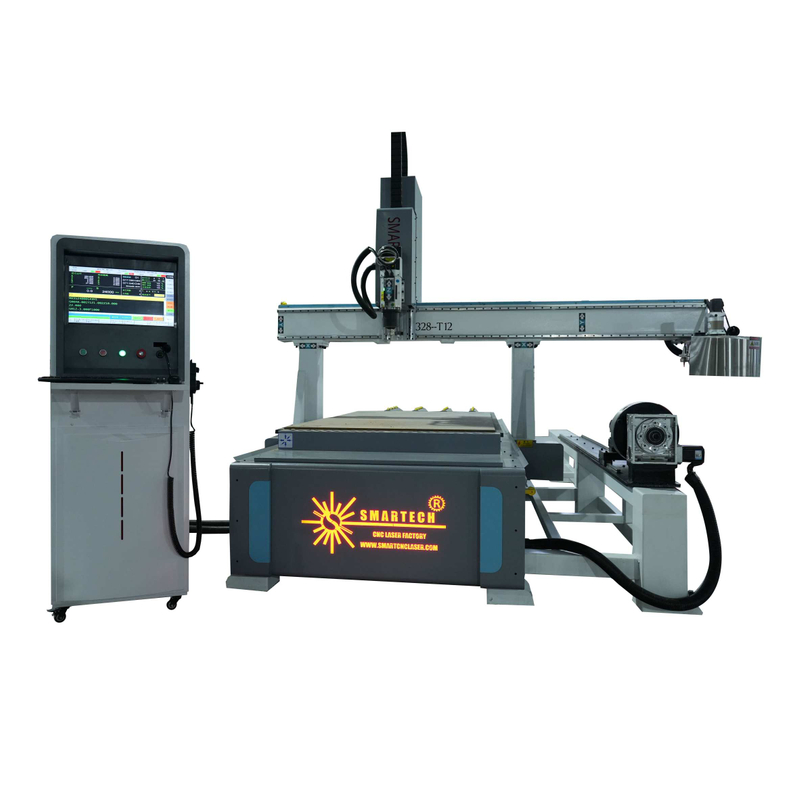

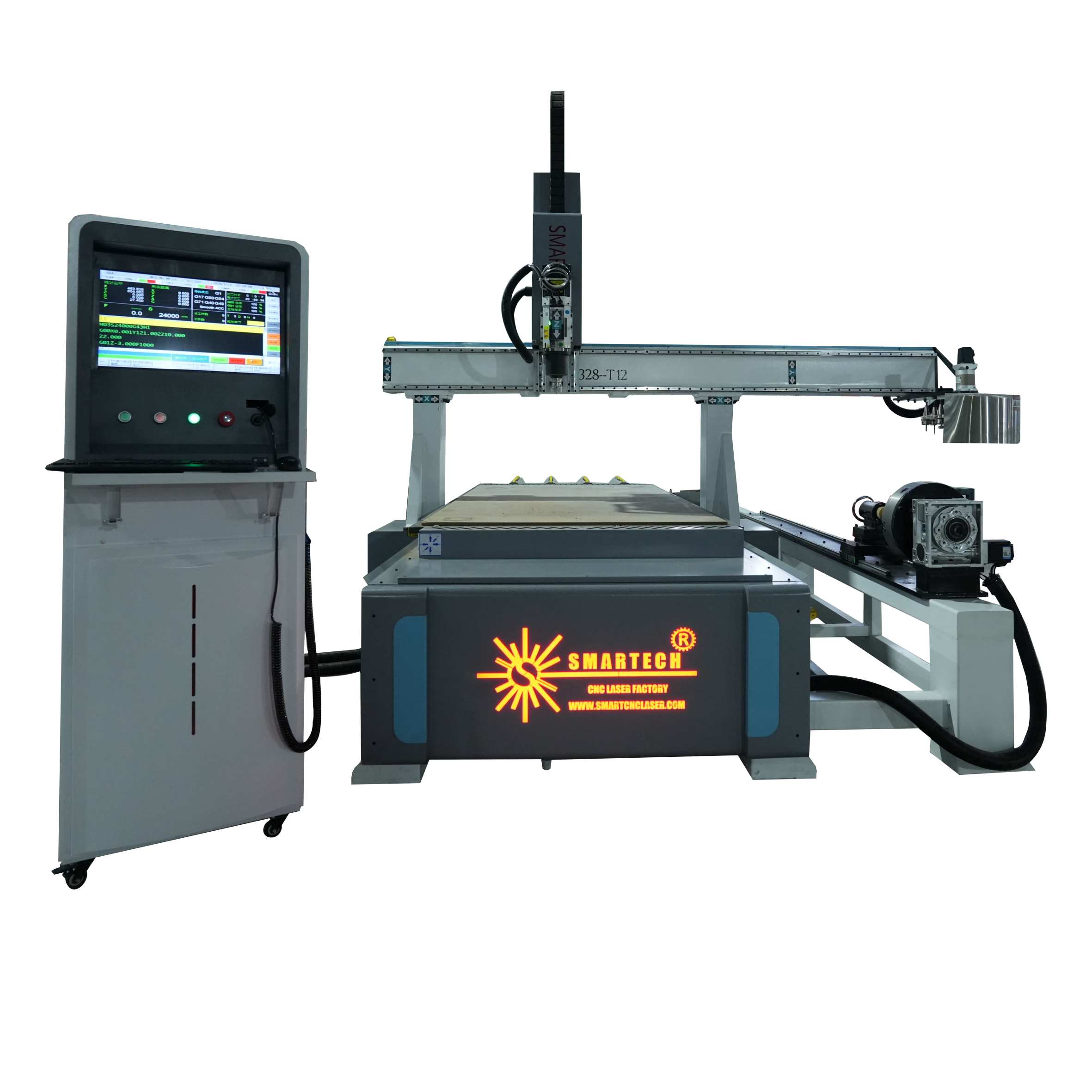

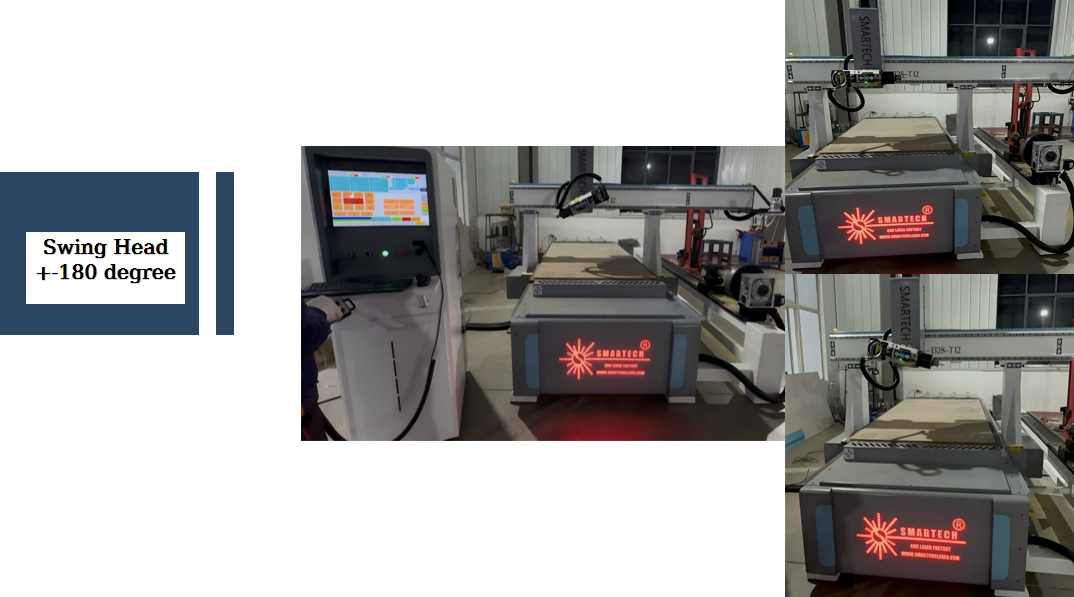

SA Series ATC1530 4 axis Model CNC Router (CE standard)
#Working area:1500*3000*300mm
#9.0KW HQD air cooling automatic tools changer Spindle 4 axis
#12 magazine tools holder

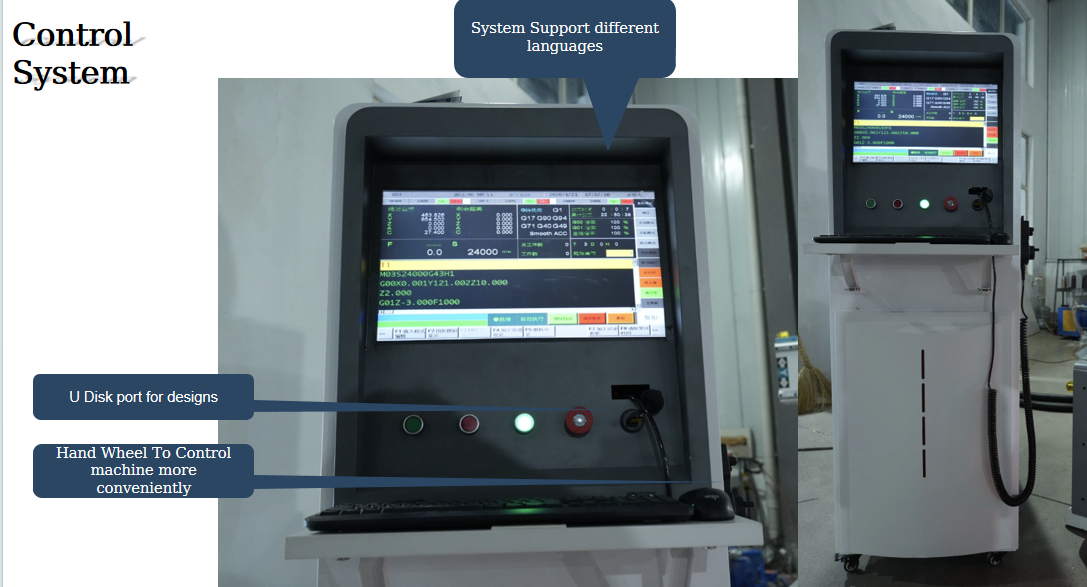

#Control system:Taiwan LNC with hand wheel(easy to adjust bits)--Industrial system
#Japan Yaskawa Servo motor and driver FOR X Y Z AXIS.
#Reducer: Japan shimpo for X,Y-axis
#Gear-wheel transmission imported from Taiwan for X,Y,ball screw transmission for z axis
#1.5 M high precision gear rack pinions.
#Rack and Rails With full anti dust professional structure.
#Advanced vacuum table with new valves map(one of our machine features.)
#Vacuum table with Vacuum pump 7,5KW
#Best inverter 11KW
#Origin point for table protection + Safety sensor (protect human safety)

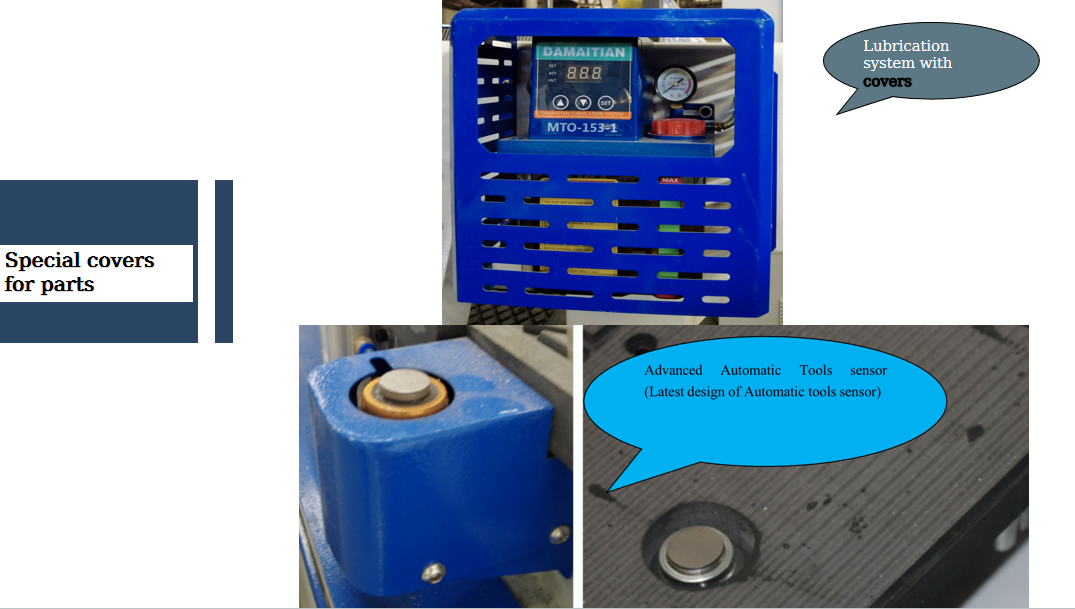

#Auto lubricating system for machine maintenance
#Automatic tool sensor+POP PIN Position cylinder:(used for board calibration)
#Special Anti dust covers for Rails Racks

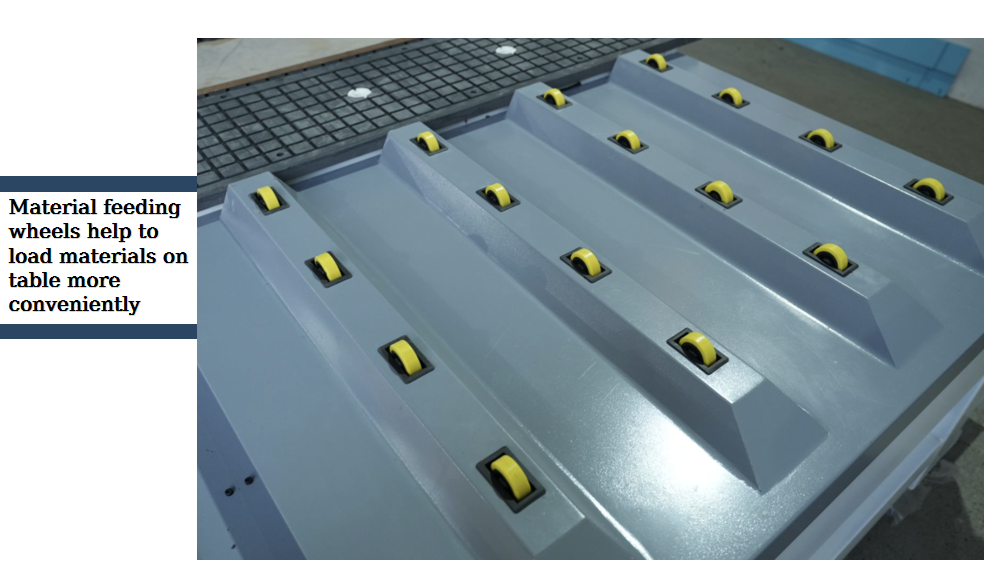

#Rollers for pushing down panel
#Famous brand Delix/CHNT/ schneider electrical components, high flexible shielded cable

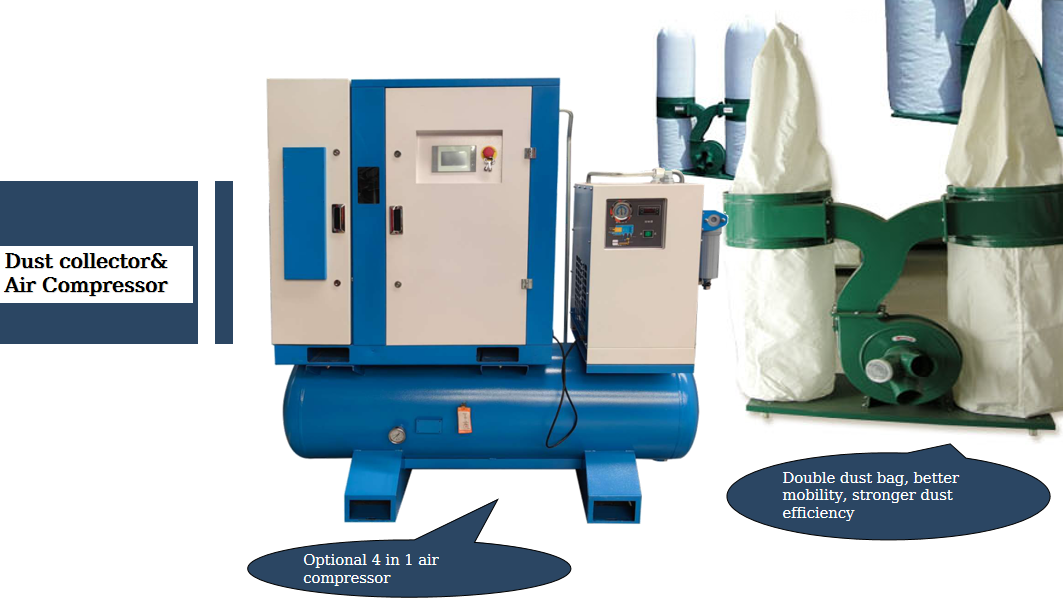

#Dust collector double bags with dust hood, pipeline switch
#Optional Press Roller
Configurations
Equipment: | Linear Type Automatic tools changer |
Machine Body: | Thickening of lathe bed,high temperature heat treatment,machining center,high precision, long life |
Working area: | 1500*3000*300mm |
Machine/Package size: | 4500*2250*1900mm/4800*2300*2280mm |
Net Weight: | 2000Kg |
Speed: | Idling 60-80m/min Working speed:20m/min |
Rail: | Y axis 3.0 X,Z Axis 2.5 |
Transmission: | X,Y-axis high precision 1.5m helical gear , Z-axis 2510 TBI ball screw |
Resolution: Working command : | 0.05mm HPGL.G code.U00.Plt.Eng |
Main parts: | Servo motor |
11KW/380V Inverter | |
Taiwan LNC Controller imported from Taiwan | |
Standard huge control box | |

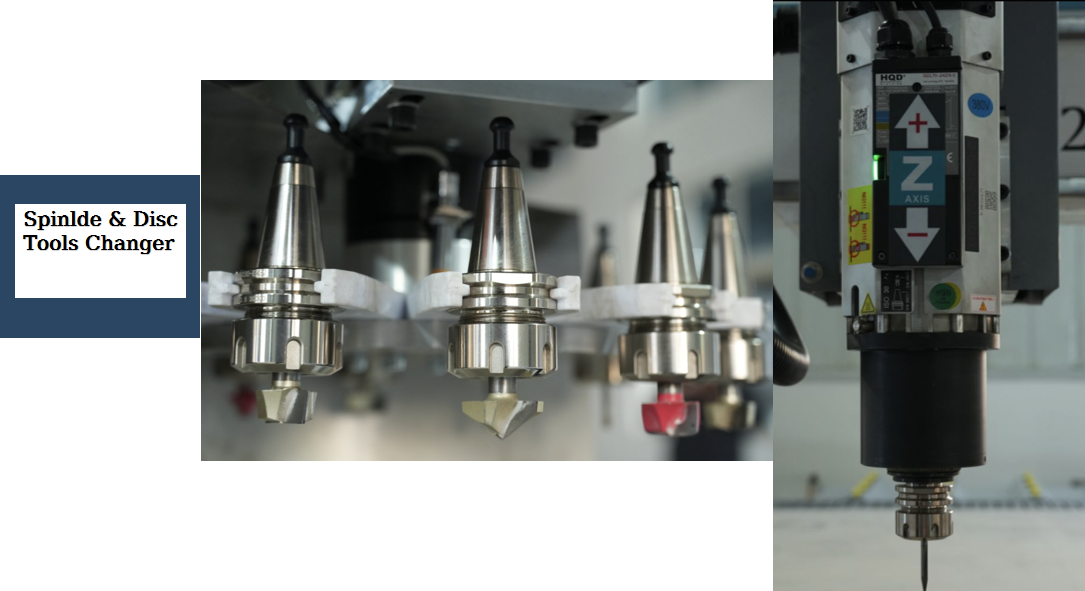

9KW air cooling ATC Spindle ISO30ER32(Better to use air cooling for woodworking) | |
12 pieces tools holder | |
Shimpo reducer |
No. | Configurations |
Table | Double thickening mesa, suction bigger and more uniform |
Automatic tool sensor,Automatic lubricating system | |
Ancillary attachment | Dust collector double bags、Brush、Dust pipes、Dust holder |
Table | Vacuum table + T-slot |
Vacuum pump 7.5 KW*2 sets | |
Automatic oil lubrication pump | |
ISO30 ER32 Collet 12.7 8 pieces | |
Electricity parts: Famous brand delix or chnt or shneider Auto feeding and pushing system Automatic tool sensor+POP PIN Position cylinder:(used for board calibration) | |
Collet 6 2 pieces;Collet 4 2 pieces;Spanners 2 sets | |
Voltage | 380V 3 phase |

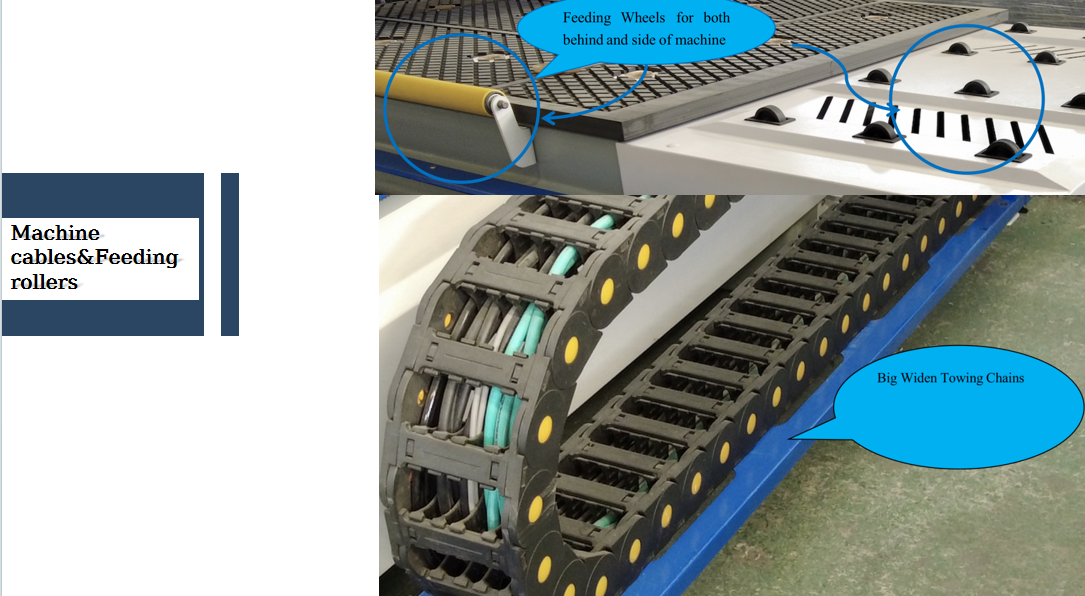

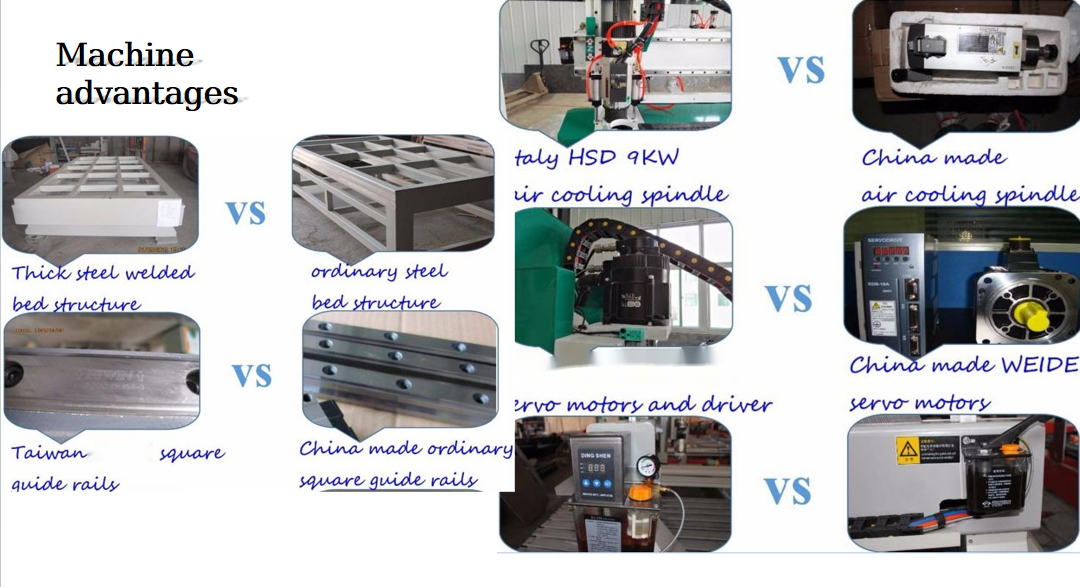

Machine parts
Working samples
