Best Price Automatic Cnc Wood Turning Machine
You are here: Home » CNC Laser Machine » Woodworking Machines » Wood Lathe Machine » Best Price Automatic Cnc Wood Turning Machine
Share to:

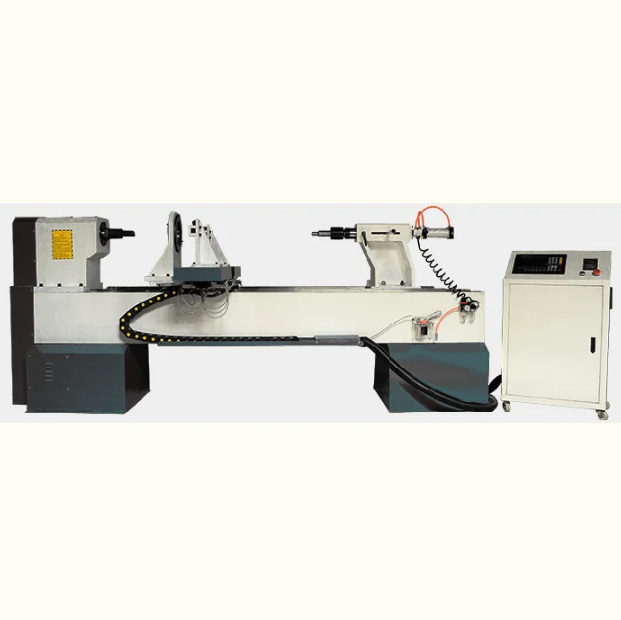

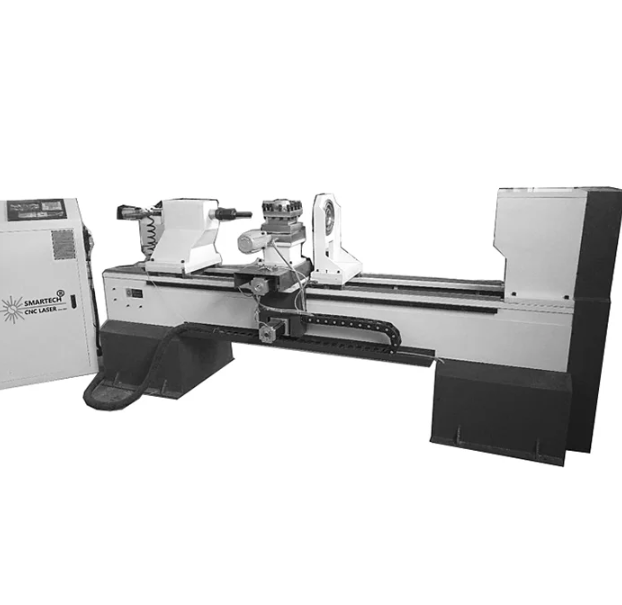

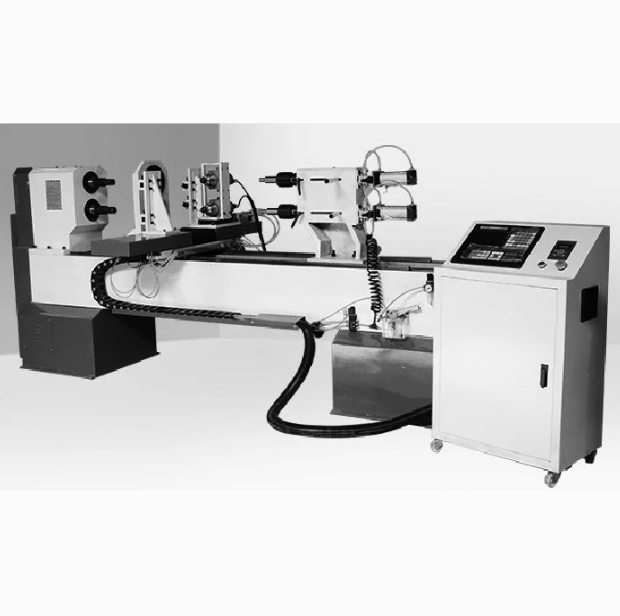

Best Price Automatic Cnc Wood Turning Machine

  • SL1530-2
  • Smartech
  • 4kw
  • red
FEATURES AT A GLANCE
automatic CNC wood lathe is designed for cylindrical workpiece, tubular sharp and vehicle wood crafts such as baseball bats,
pillar, staircase columns, roman columns, general columns, table legs, chair legs, etc.
COMMODITY&DESCRIPTION UNIT PRICE SL1530-2 Model *Working area:1500MM(L)X300MM(Diameter) *Cast iron body (not easy to be deformed and will not be wobbly after 10 years,better than welded body) *4KW Four grade pure cooper 3 phase asynchronous motor *Stepper Motors 3 pieces(XY Axis 450B 10Nm,Z axis 450C 12Nm) *Rails and blocks 25 mm *Y axis Helical rack gear transmission *Fuling inverter *Fuwang blades *Adtech or DSP Controller *Filter/Leakage protector *Helical tooth rails,higher efficiency #Electrical blade system for bowls making Warranty:3 years since delivery Payment:30% deposit,70% T.T after machine production is finished from your company bank to our company bank. Lead time: 15 working days for standards

PRODUCT SPECIFICATIONS
Model SL1530/SL2030/SL2530 Max turning length 1500mm/2000mm/2500mm/Customized Max turning diameter 20mm-300mm for single axis; 20mm-160mm for double axis/Customized Number of axis 1 axis 2 blades/2 axis 4 blades/1 axis 2 blade with spindle/2 axis 4 blades with spindle /with atc electronic plate form Maximum feed rate 200cm/min Minimum setting unit 0.01cm Spindle motor power 4kw Air pressure 0.6-0.8Mpa Power supply AC380v/50hZ or 220v/50hz or option  Overall dimensions 300*110*170cm Weight  1600kgs Control  Adtech /DSP  Driver  Stepper motor/Servo for option Inverter Fuling/Delta for option Control box Standard Rail Taiwan made Blades Fuwang cnc wood lathe Detailed Features: 1. Whole machine is cast with seamless steel structure, which is high temperature annealing and vibrating stress relief,so the lathe body is stable and will not be deformed easily. 2.Professional used for wood turning and cylinder engraving,for table legs,stair railing(banisters)etc 3.Adopting advanced Adtech/DSP system with USB connection,operated with the handle,convenient operation.Our engraver can completely work off- line and do not take any computer resources. 4. Adopt Germany ball screw and taiwan PMI helical square rail with high transmitting precision and longevity.Bid module helical/diagonal rack. 5.Compatible with several CAD/CAM design software,e.g. type3, artcam, etc. 6.Rotating speed is adjusted by inverter,and the speed data is shown on controlling cabinet panel. 7. One time tool setting to finish the whole work piece.Save your time.
PRODUCT CONFIGURATION

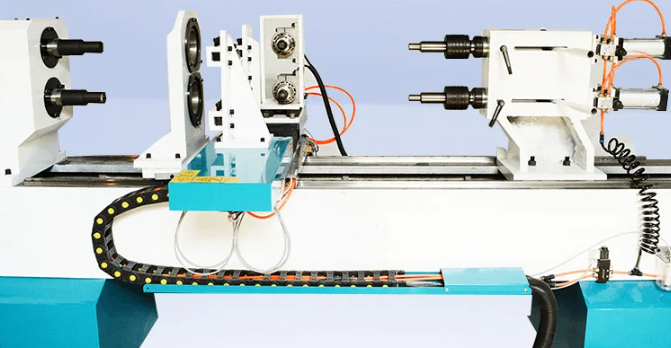

4 axis cnc wood lathe 3 axis
best cnc wood lathe
 table with cnc wood lathe chinaloading wheels

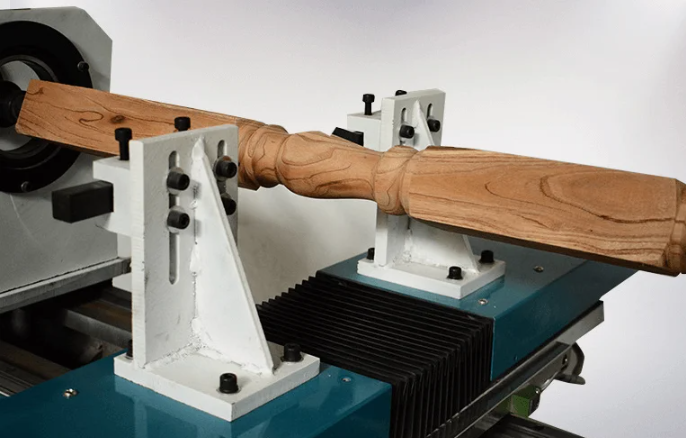

cnc wood lathe for baseball bats details
ball screw
cnc wood lathe machine price
cnc wood lathe router
cnc wood turning lathe machine
cnc wood turning lathe machine price
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
ATC cnc wood lathe with spindle with rotating system.     wood lathe with spindle.              wood lathe with rotating system
FAQ
-Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
