SMARTECH

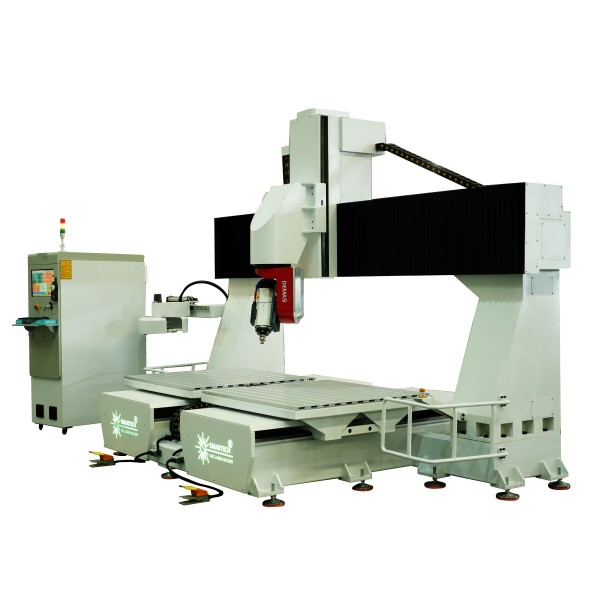

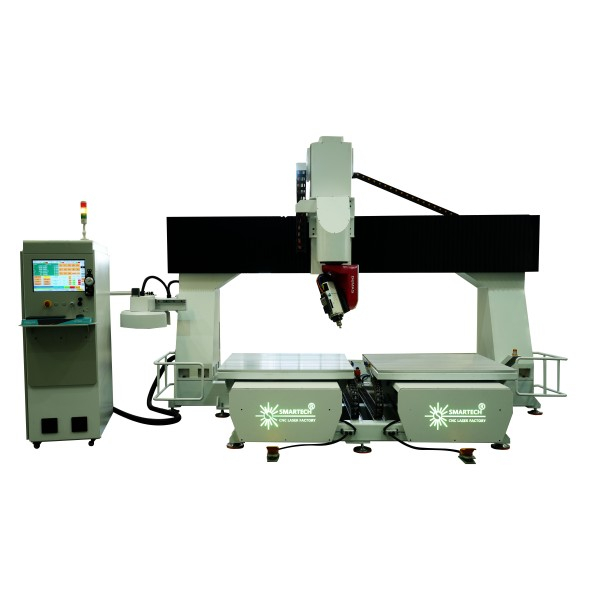

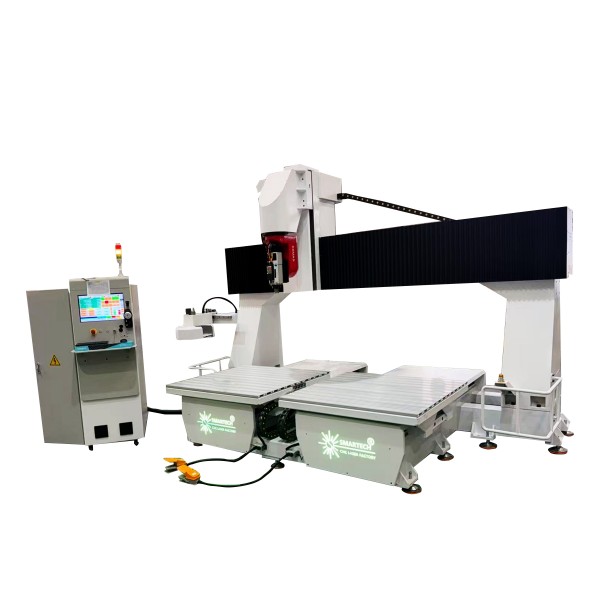

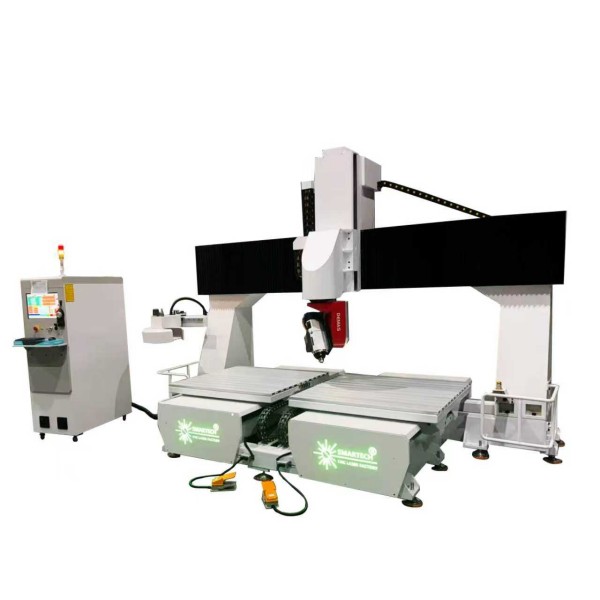

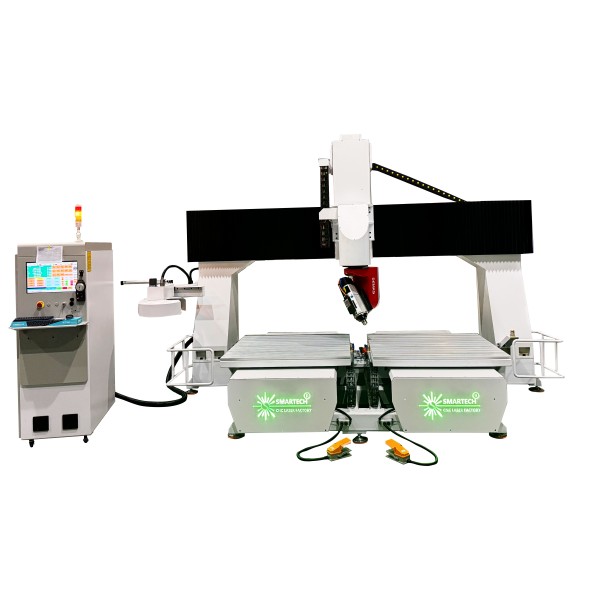

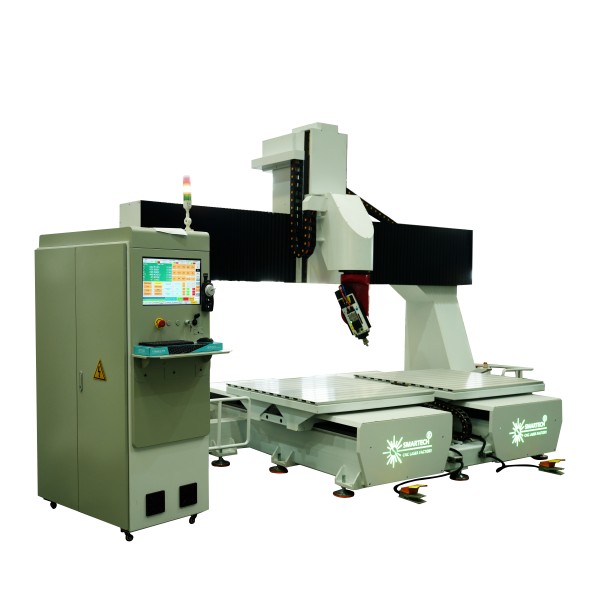

5 Axis CNC Router Machine for Complex 3D Wood Carving
#Working area:1200*1250*800MM *2 tables
#HQD automatic tools changer spindle
#Taiwan Delta Inverter
#Demas 5 axis head
#Taiwan TBI Ball Screw, Taiwan Hiwin Linear Square rails

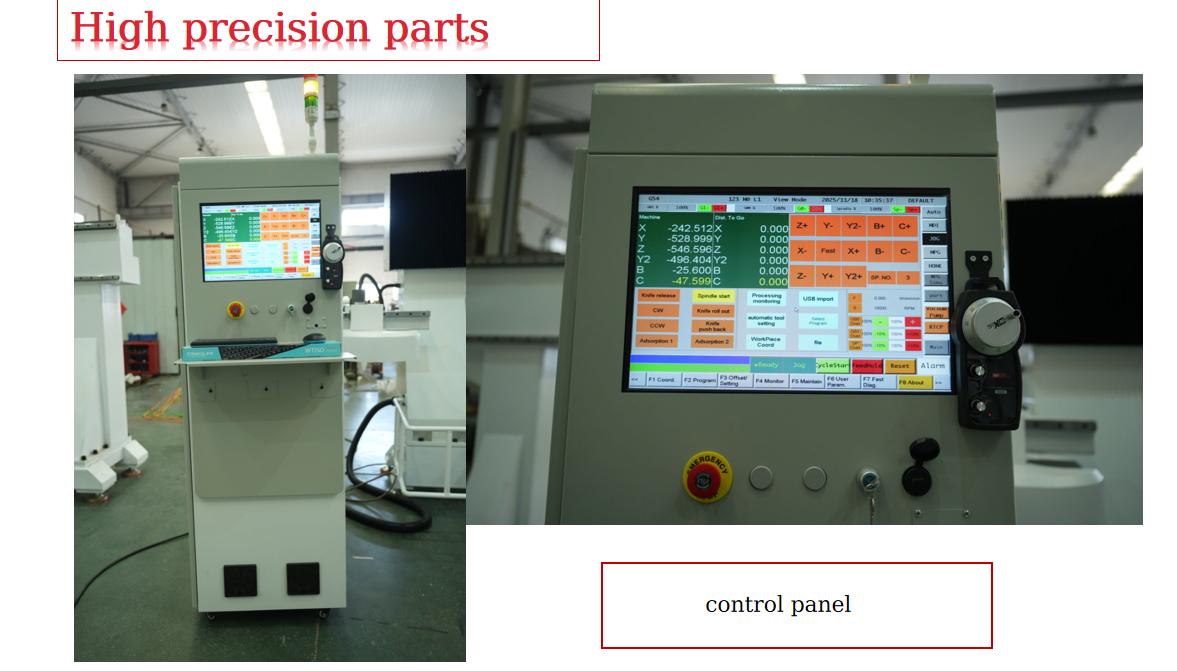

#Syntec Controller
#T-slot table
#Servo motor driver
#lubrication system for machine maintenance
#leakage protector(protect operators'safety)
#Famous Schneider electrical parts
#Big control box
#Tools and tool box
#Automatic Safety Sensor
#Leakage protector to protect operators’ safety
#Full Enclosed Towlines
#Voltage :380V 3 Phase
PRODUCT SPECIFICATIONS
| Technical Data | SMT1212-2 5 Axis |
| Maximum working size | X Axis:1200mm |
| Y Axis : 1250mm | |
| Z Axis: 800mm | |
| A Axis: ±120° | |
| C Axis: ±400° | |
| Table structure | Cast Steel Movable Table |
| X,Z Structure | Taiwan-made HIWIN Guide rail:X 30, Z 25 Germany-made rolling ball screw |
| Y Structure | TaiWan HIWIN Guide rail:30 Helical Rack and pinion |
| Spindle | 10kw spindle, air-cooled |
| Magazine | Linear-type ATC 12 tools (Option) |
| Fast moving speed | 55m/min |
| Working speed | 20m/min |
| Diameter of Cutter | φ3.175-φ12.7 |
| Spindle Speed | 12000(400HZ)-24000r/min(800HZ), variable speed |
| Motor and driver | Servo |
| Inverter | Taiwan Delta inverter |
| Command | G code |
| Controller | Syntec from Taiwan |
| Software | Power mill |
| Dust-collect function | Optional part |
| Working table | T-slot Table (Vacuum table for option) |
| Net weight | 4500kg |
| Gross weight | 4600kg |
| Machine size | 4200*2800*3700mm |
| Working voltage | AC380V/50HZ or Customized as your workshop |

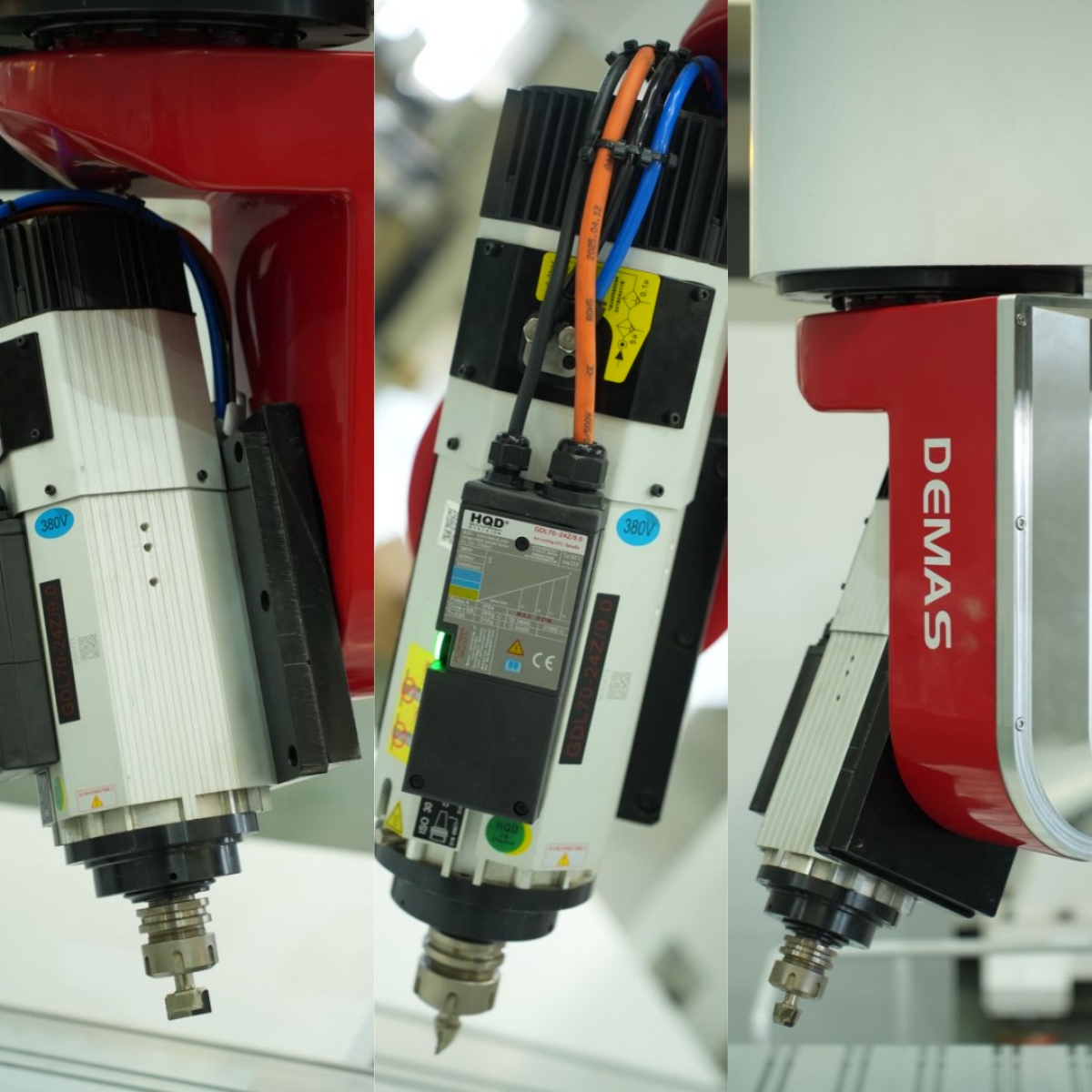

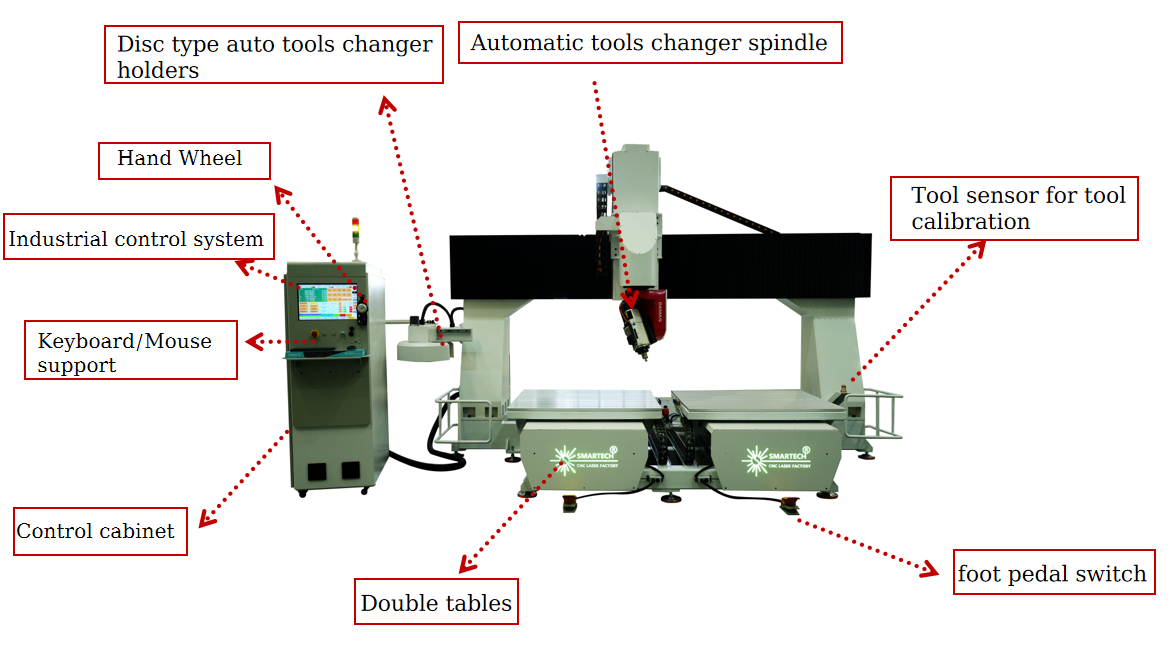

Automatic tools changer spindle with 5 axis head
