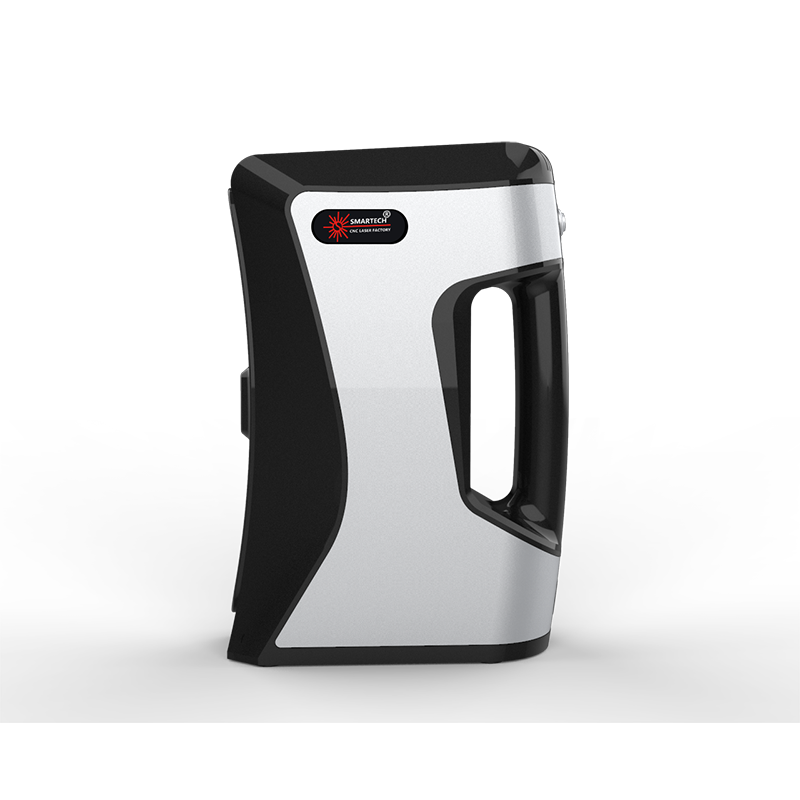

Factory Price 3D Scanner For CNC Router Handheld Portable Color Industrial Scanner 3D

Availability:



Inquire Add to Basket

Model:
Smart Scanner
Brand:
SMARTECH

Product Description

Product Overview

ITEM:Smart Scanner

 5 million pixel professional 5MP optical measurement system
1024000pixel/s high-speed HD scanning
Up to 0.02mm quasi-4K detail resolution
0.01mm system calibration accuracy
Sub-pixel-level non-contact phase-structured glossy scanning technology
Fully automatic turntable + swing arm pulse deceleration mute dual-axis system
Supports the maximum swing angle of 110 degrees in the inlay scan mode, which can scan multiple gemstones at a time
In the multi-piece scanning mode, it supports both the standard partition disk and the intelligent partition at the same time.
Provides fast and fine scan path planning modes
According to the color depth of the object surface, the corresponding optimal scanning parameters can be set with one key
Supports multi-group scanning (up to 6 groups), group-group feature splicing and selected point splicing
Intelligent global registration algorithm to calibrate mechanical deviation with high precision
Intelligent supplementary scanning according to the three-dimensional perspective, what you see is what you get, 360 degrees
without dead ends.
Support automatic denoising, hole filling, smoothing, and curvature sampling to generate standard STL 3D data files
Provide standard adjustable jig, standard split plate, high borosilicate 3.3±0.1*10-6/K calibration plate
Output format AC/STL, can be seamlessly connected to JewelCAD, GemvisionMatrix, Rhino, Geomagic, Zbrush, Artcam, UG, etc.
Passed CE FCC WEEE CNAS national laboratory third-party certification
Can provide third-party API development interface, expandable to support OEM system integration


FEATURES AT A GLANCE

Full Color (built-in design, no need any add-ons) Support map photo, display more real color

High Accuracy (0.04mm accuracy, qualified for industry)

High Resolution (up to 0.12mm, can customize 0.05mm)

High Quality Hardware (1280*800 DLP + 5mp camera) 5.High Speed (USB 3.0 interface, 12-15F/S) 6.Four Alignments (Totally open free)
Structured light technologyswipe to collect whole surface data
 with 2,000 points/s speed,
 no need to fill in the gaps and corners.


 Right elevation

 Left elevation

 Front elevation

The system comes with 3D data editing and processing software

 Support lasso selection, polyline selection, stroke selection, delete, flip normal, and undo operations;
 Support point-to-point measurement, point-line measurement, point-surface measurement;
 Support curvature fill hole, plane fill hole, automatic curvature fill hole undo;
 Automatic mesh doctor, remove surface spikes, manual smooth brush;

PRODUCT SPECIFICATIONS

 Delivery Time      30 working days after get deposit
Payment              30% T/T advance, 70% after production
Offer Validity       7 Days Only
Warranty              3 Years
Certificate           CE

PRODUCT CONFIGURATION

Full Color  (built-in design, no need any add-ons)

High Resolution up to 0.12mm, can customize 0.05mm


High accuracy (0.04mm accuracy,qualified for industry)


High Quality Hardware 1280*800 DLP + 5mp camera


High Speed USB 3.0 interface, 12-15F/S


Four Alignments  (Totally open free)

 Structured light technology swipe to collect whole surface data
with 2,000 points/s speed,
no need to fill in the gaps and corners.
