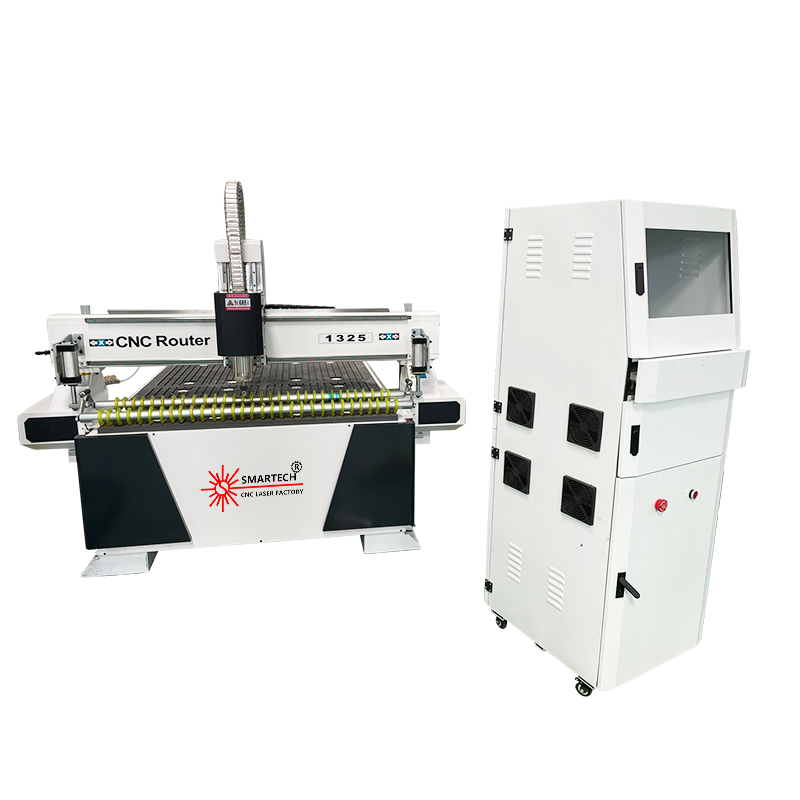

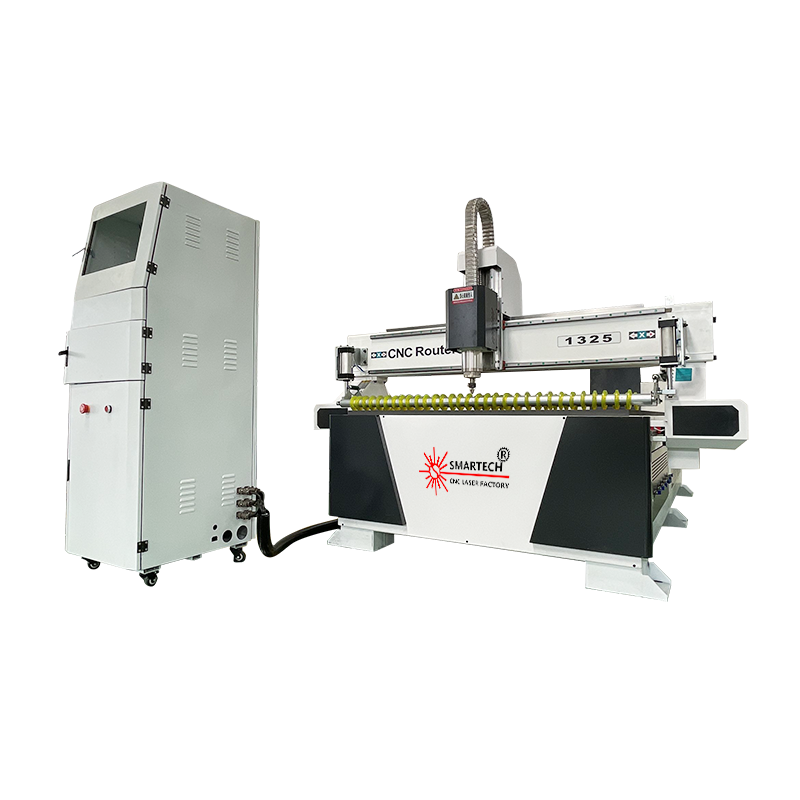

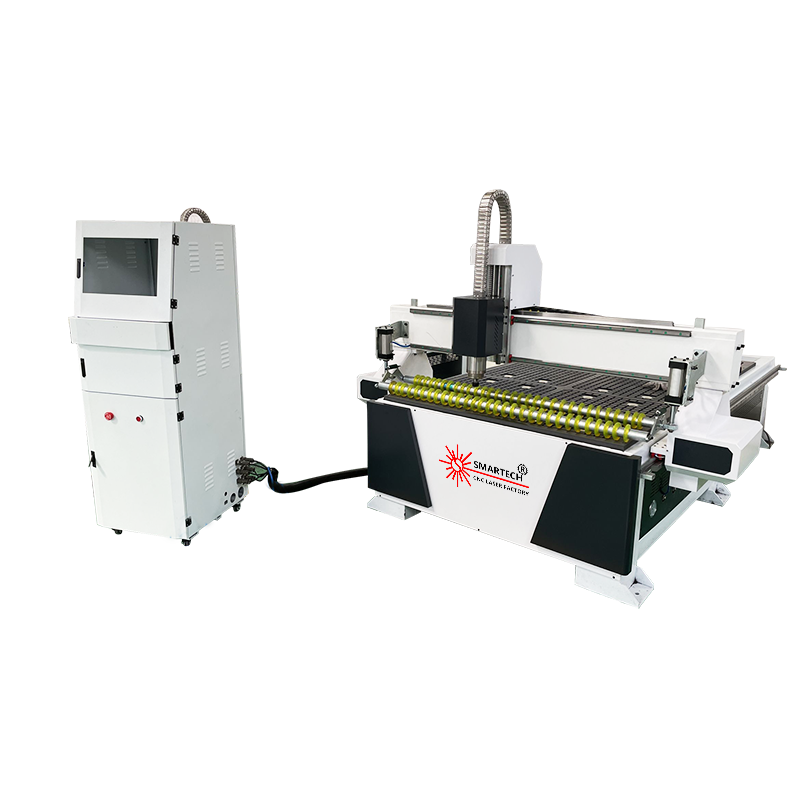

1325 Cnc Router Cnc 1325 Wood Router Cheap China 3D 1325 Cnc Wood Router Machine Vacuum Table
You are here: Home » CNC Machines » CNC Router » 3 Axis CNC Router » 1325 Cnc Router Cnc 1325 Wood Router Cheap China 3D 1325 Cnc Wood Router Machine Vacuum Table

loading

Share to:
sharethis sharing button

1325 Cnc Router Cnc 1325 Wood Router Cheap China 3D 1325 Cnc Wood Router Machine Vacuum Table

Availability:
  • cnc wood router 1325

  • SMARTECH

  • New Product

  • 3100 * 1950 * 1850mm

  • 220V / 380V 50 / 60HZ,380V / 220V 50HZ

  • as your preference

FEATURES AT A GLANCE

COMMODITY&DESCRIPTIONUNIT PRICE

SW1325-A Model cnc router #Working area:1300*2500*200MM #6KW self cooling spindle(best quality spindle in China) #7.5KW Inverter(famous brand in the world) #Taiwan TBI Ball Screw, Taiwan PMI/ABBA Linear Square Rail(famous) #DSP /nc studio Controller #Artcam software #Vacuum table with vacuum pump #Stepper/Servo motor and driver #Auto Tool Sensor #lubrication system (lubricate oil for machine maintain) #leakage protector(protect operators’ safety) #Tools and tool box #water pump #Emergency stop switch on motor box
#Press roller #Dust collector ( to keep a clean workshop and protect guide rails)
Machine color could be customized
Optional part @Rotary Device (It can work with cylindrical object.) Machine comes with full set parts,no need to buy additional parts.could be used directly after arrival Warranty : 3 years; 24 Hours Lifetime after sale service for free
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS

Description Parameter Optional parts Model SW1325-A Woodworking Machines X,Y,Z Working Area 1300*2500*200mm Bigger or smaller(customized) Traveling Positioning Accuracy ±0.03/300mm(X,Y,Z Axis) Table Surface T-slot and Vacuum Working Table Frame New type thicker and bigger heavy duty frame gantry X, Y Structure Helical Rack gear, Taiwan PMI/ABBA Linear Square Rail Z Structure Taiwan TBI Ball Screw, Taiwan PMI Linear Square Rail Spindle 6kw HQD Italy HSD air cooling spindle for option Max.Speed 0-60000mm/min Max. Working Speed 0-40000mm/min Inverter 7.5kw Chinese Inverter Taiwan Delta for option Lubrication system Manual lubrication system Working Voltage AC380V, 3Ph, 50Hz 220V Command G Code, *uoo, *mmg, *plt Operating System DSP mach3 /nc studio System for option Interface USB Flash Memory 512MB Collet ER25,ER32 Running Circumstance Temperature: 0℃~45℃ Relative humidity: 30%~75% Packing Size Integrated: 3200x2250X1950mm Separated: 3200X2250X1404mm Net Weight 1900KG Gross Weight 2100KG PS: All the working area and specifications can be customized according to your requests. Spare parts come with machine: Cutting tools 20 pcs Collet 4 pcs Clamp 8 pcs Water-cooling Pump(water cooling spindle) 1 unit Spanner 2 pcs Brush 1 pcs Power Cord 1 pcs USB Cable 1 pcs CD 1 pcs Tool Box 1 pcs Controller 1 pcs

X,Y,Z Working Area 1300*2500*200mm Bigger or smaller(customized) Traveling Positioning Accuracy ±0.03/300mm(X,Y,Z Axis) Table Surface T-slot and Vacuum Working Table Frame New type thicker and bigger heavy duty frame gantry X, Y Structure Helical Rack gear, Taiwan PMI/ABBA Linear Square Rail Z Structure Taiwan TBI Ball Screw, Taiwan PMI Linear Square Rail Spindle 6kw HQD Italy HSD air cooling spindle for option Max.Speed 0-60000mm/min Max. Working Speed 0-40000mm/min Inverter 7.5kw Chinese Inverter Taiwan Delta for option Lubrication system Manual lubrication system Working Voltage AC380V, 3Ph, 50Hz 220V Command G Code, *uoo, *mmg, *plt Operating System DSP mach3 /nc studio System for option Interface USB Flash Memory 512MB Collet ER25,ER32 Running Circumstance Temperature: 0℃~45℃ Relative humidity: 30%~75% Packing Size Integrated: 3200x2250X1950mm Separated: 3200X2250X1404mm Net Weight 1900KG Gross Weight 2100KG PS: All the working area and specifications can be customized according to your requests. Spare parts come with machine: Cutting tools 20 pcs Collet 4 pcs Clamp 8 pcs Water-cooling Pump(water cooling spindle) 1 unit Spanner 2 pcs Brush 1 pcs Power Cord 1 pcs USB Cable 1 pcs CD 1 pcs Tool Box 1 pcs Controller 1 pcs
PRODUCT CONFIGURATION
Successful Project
Project  in granite carving
Project in colume engraving
Project in marble engraving
SIMILAR PRODUCTS
FAQ

-Q What is the payment terms?

A:Western Union,Cash,T/T

-Q How long is the delivery date?(After getting the deposit)

A: Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.

-Q How about the shipping ways? A:By sea or by air

-Q Is on site training is available ?

A: Yes, we could provide training in our factory or at your workshop after machine arrival.

-Q Where is your factory located? How can I visit there?

A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai.

-Q Can I arrange sample for cutting test?

A:Yes, always welcome.

-Q How about your laser machine package?

A: Standard export wood package with free fumigation

-Q How about the quality guarantee period?

A:5 Years for whole machine

-Q How can you guarantee the production quality ?

A:We have 15years experience of QC team; strictly quality control system in our production process.

-Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
