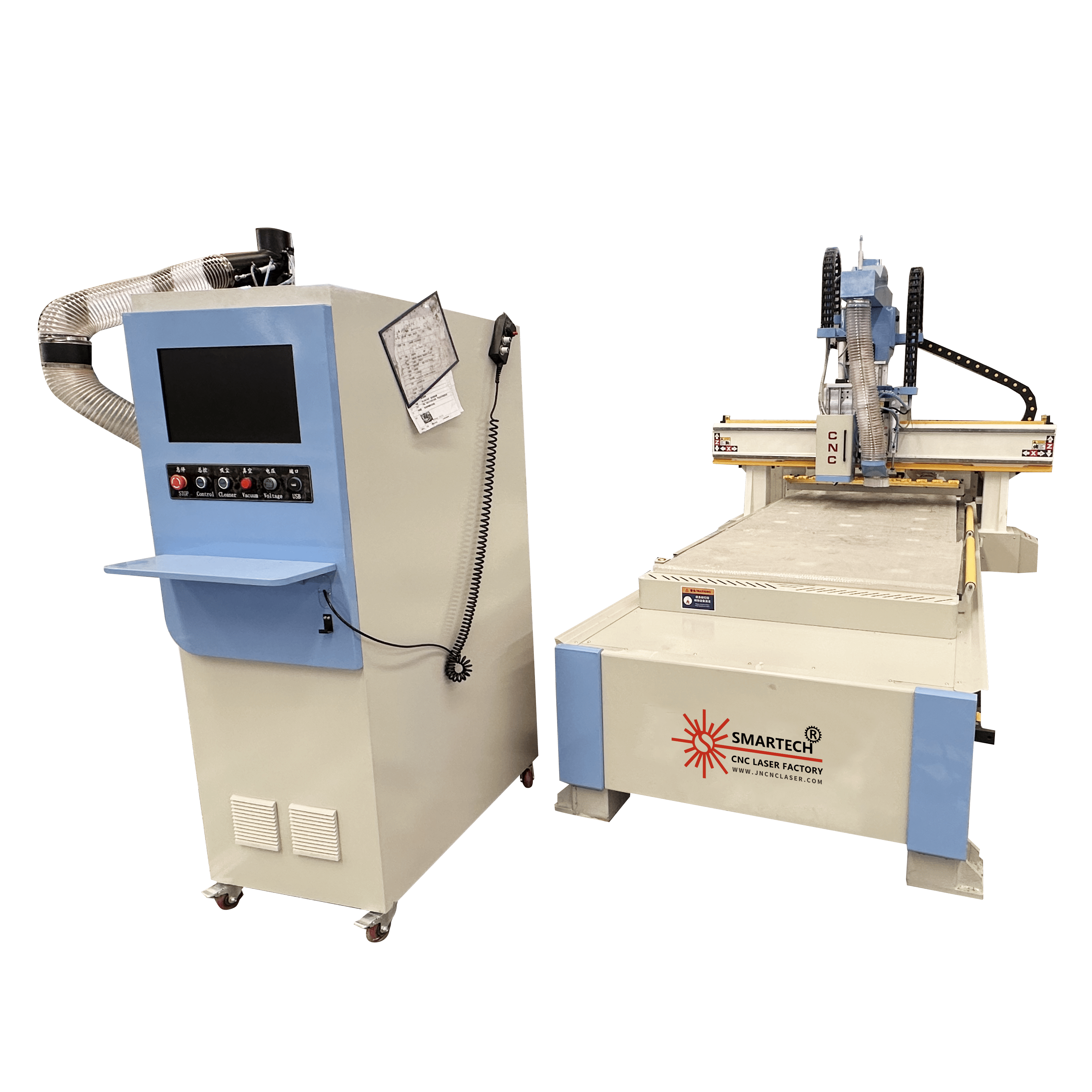

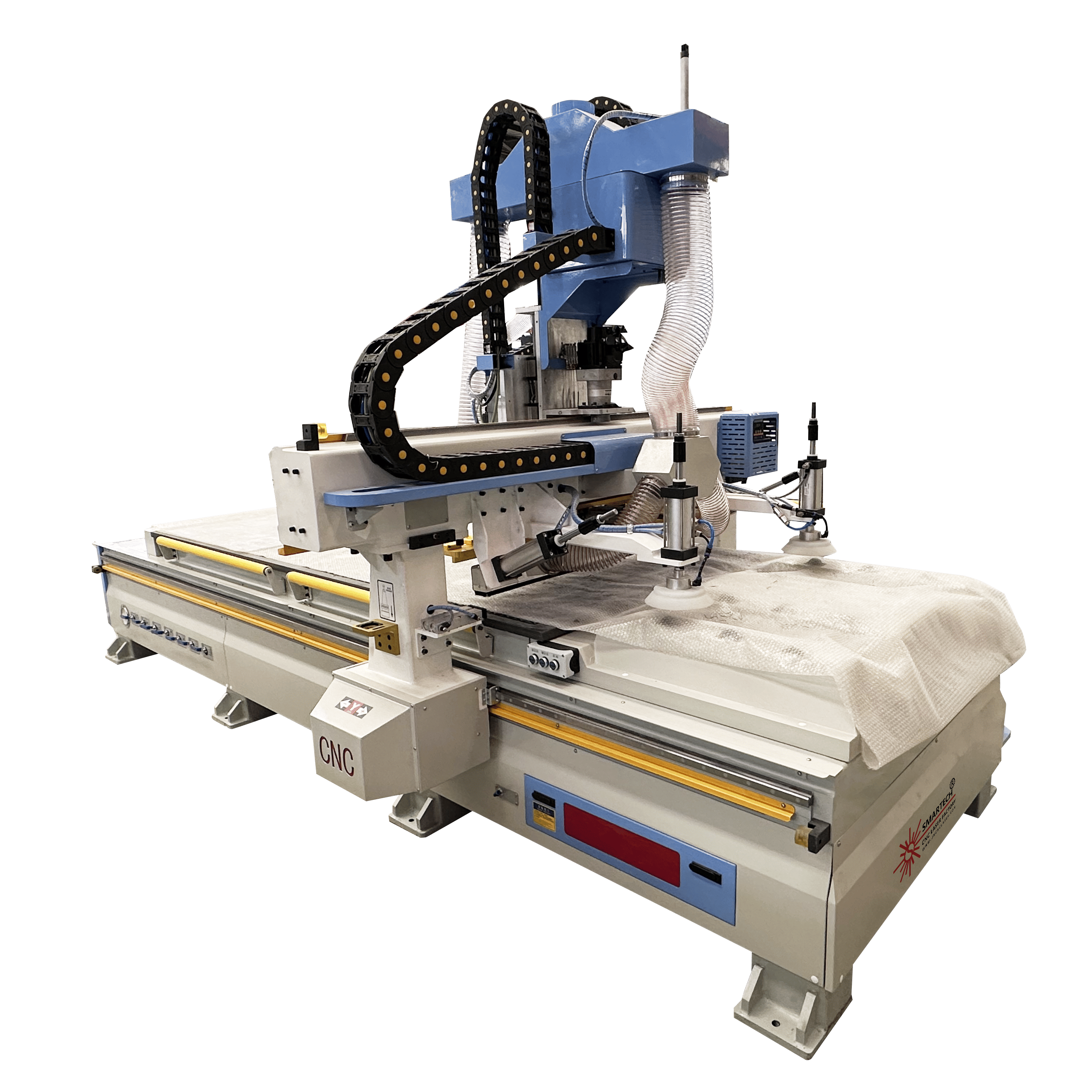

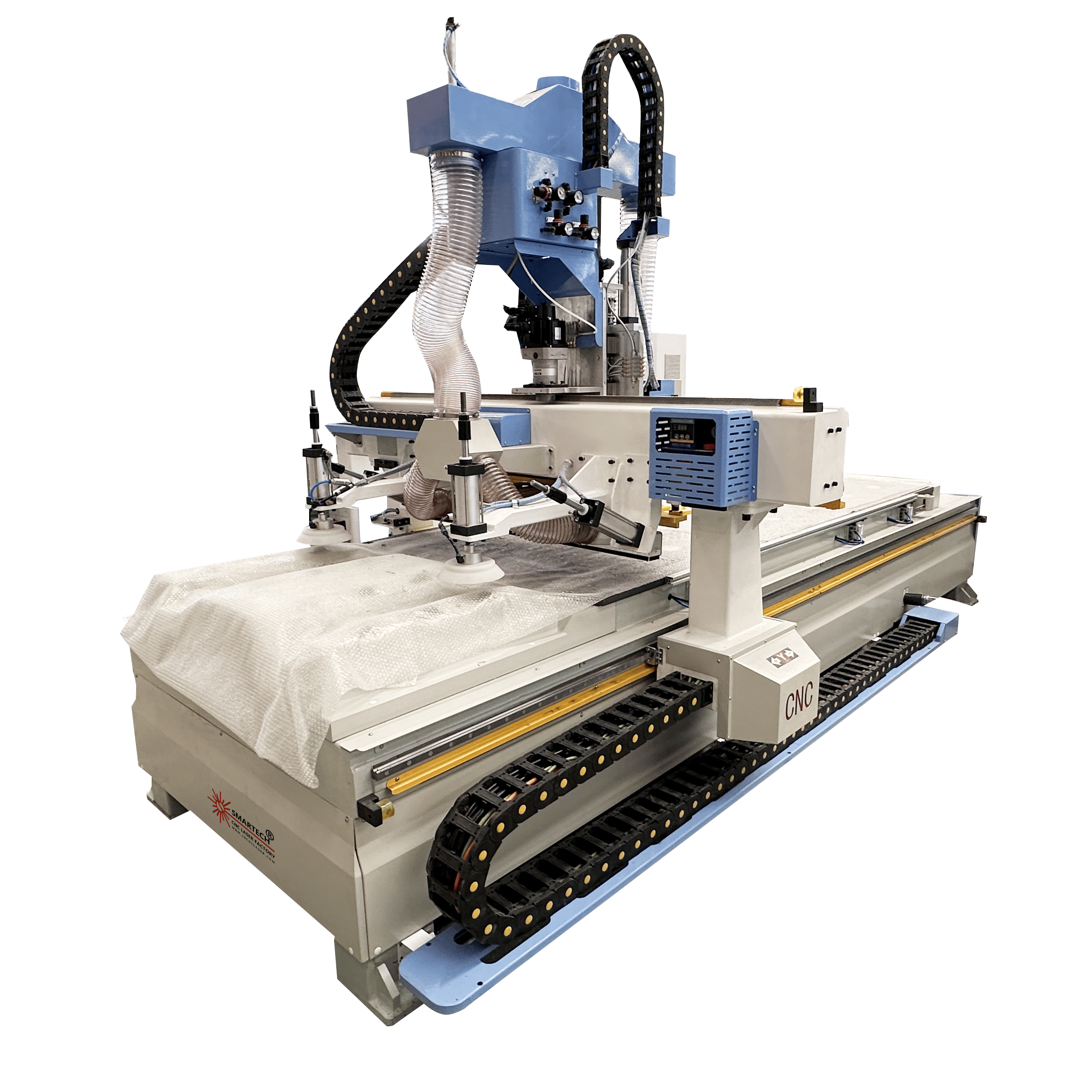

Industrial ATC CNC Cutting Machine for Wood Aluminum Automatic Tool Change CNC Router for Precision Woodworking Metal Fabrication

Availability:



Inquire Add to Basket

Model:
1530
Brand:
SMARTECH
Size:
1500*3000*200mm

Product Description

COMMODITY&DESCRIPTION：

SA Series ATC 1530 Model CNC Router For Furniture Cabinets Making(CE standard)

#Working area:1500*3000*200mm

#9.0KW HQD air cooling automatic tools changer Spindle+ Banking Boring Head 5+4 drills

#12 magazine tools holder

#Control system:Taiwan LNC WM2200 with hand wheel(easy to adjust bits)--Industrial system

#1500W Servo motor and driver FOR X Y Z AXIS.

#Reducer: Japan shimpo for X,Y-axis

#Gear-wheel transmission imported from Taiwan for X,Y,ball screw transmission for z axis

#1.5 M high precision gear rack pinions.

#Rack and Rails With full anti dust professional structure.

#Advanced vacuum table with new valves map(one of our machine features.)

#Vacuum pump 7,5KW #Best inverter

#Origin point for table protection.

#Safety sensor (protect human safety)

#Feeding roller system (for materials loading unloading) Both side and back side.

#Unloading pusher #Auto lubricating system for machine maintenance

#Automatic tool sensor+POP PIN Position cylinder:(used for board calibration)

#Press Roller For high precision works

#Special Anti dust covers for Rails Racks

#Rollers for pushing down panel

#Famous brand Delix/CHNT/ schneider electrical components, high flexible shielded cable

Model	SW1530-A Woodworking Machines
X,Y,Z Working Area	15003000200mm Bigger or smaller(customized)
Traveling Positioning Accuracy	±0.03/300mm(X,Y,Z Axis)
Table Surface	T-slot and Vacuum Working Table
Frame	New type thicker and bigger heavy duty frame gantry
X, Y Structure	Helical Rack gear, Taiwan PMI/ABBA Linear Square Rail
Z Structure	Taiwan TBI Ball Screw, Taiwan PMI Linear Square Rail
Spindle	6kw HQD Italy HSD air cooling spindle for option
Max.Speed	0-60000mm/min
Max. Working Speed	0-40000mm/min
Inverter	7.5kw Chinese Inverter Taiwan Delta for option
Lubrication system	Manual lubrication system
Working Voltage	AC380V, 3Ph, 50Hz 220V
Command	G Code, uoo, mmg, *plt
Operating System	DSP mach3 /nc studio System for option
Interface	USB
Flash Memory	512MB
Running Circumstance	Temperature: 0℃～45℃ Relative humidity: 30%～75%
Packing Size Integrated	3200x2250X1950mm Separated: 3200X2250X1404mm
Net Weight	1900KG
Gross Weight	2100KG

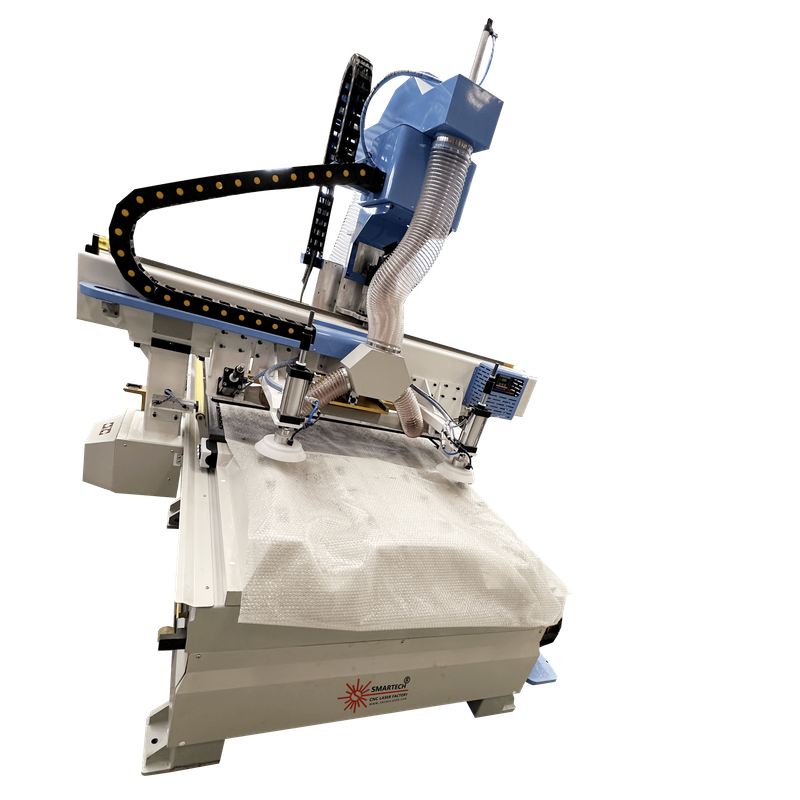

Machine details

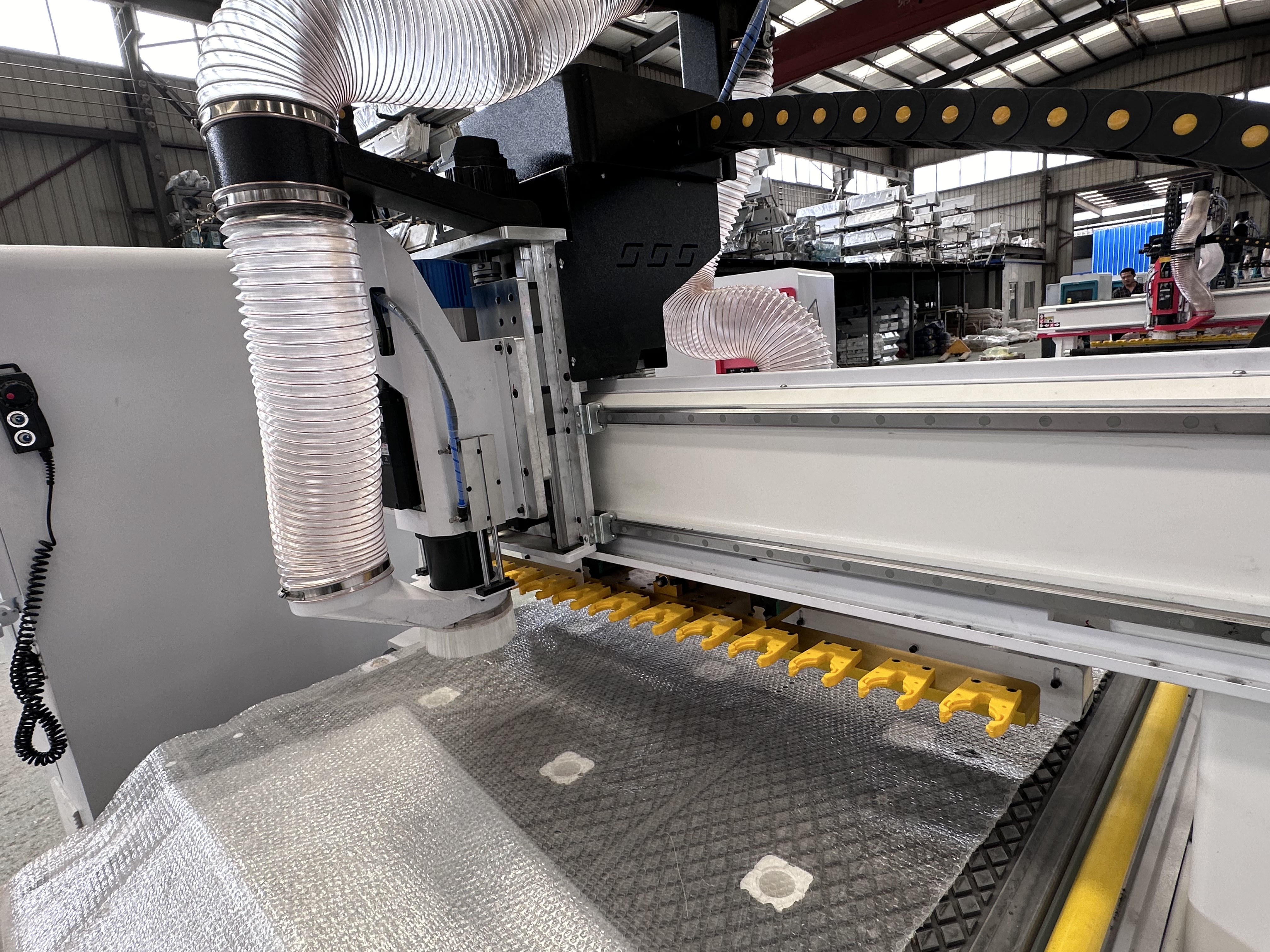

1. Spindle Motors - High-speed rotary spindles for precision milling/drilling in wood, plastics, and metals.Available in air- or water-cooled configurations.

2. ATC Spindles - Automatic tool-changing systems that enable uninterrupted multi-process machining with different cutting tools.

3. Laser Cutting Heads - For non-contact processing of thin materials (acrylic, fabrics, metals) with exceptional edge quality.

4. Plasma Cutters - High-temperature torches for fast metal cutting, ideal for steel, aluminum, and copper. 5. Waterjet Heads - Ultra-high pressure water that cuts virtually any material(stone,glass,composites)without heat distortion.

微信截图_20250424094800

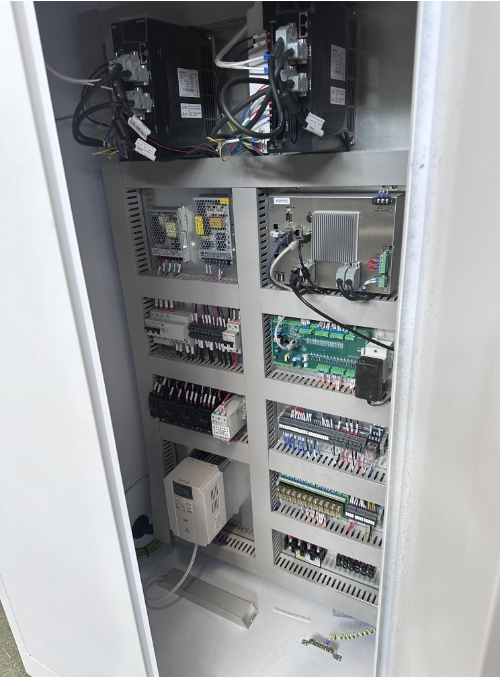

Electricity box

To ensure maximum operator safety and machine reliability, our CNC routers are equipped with a high-sensitivity leakage protector
that instantly cuts off power in case of electrical faults, preventing electric shocks and equipment damage. For superior motion
control and precision, we use original servo drivers from leading global brands (such as Yaskawa, Delta, or Siemens), ensuring
smooth acceleration, minimal vibration, and long-term durability. Anti-Interference Grounding System: Every machine undergoes
strict ground wire connection testing before delivery, eliminating electromagnetic interference for stable signal transmission and
improved machining accuracy. User-Friendly Control Interface: Features an ultra-clear LED screen on the control box for real-time
monitoring of cutting parameters, error alerts, and operational diagnostics. Premium Electrical Components: All critical
electrical parts are sourced from reputable manufacturers to guarantee consistent performance under heavy workloads.

微信截图_20250424094257

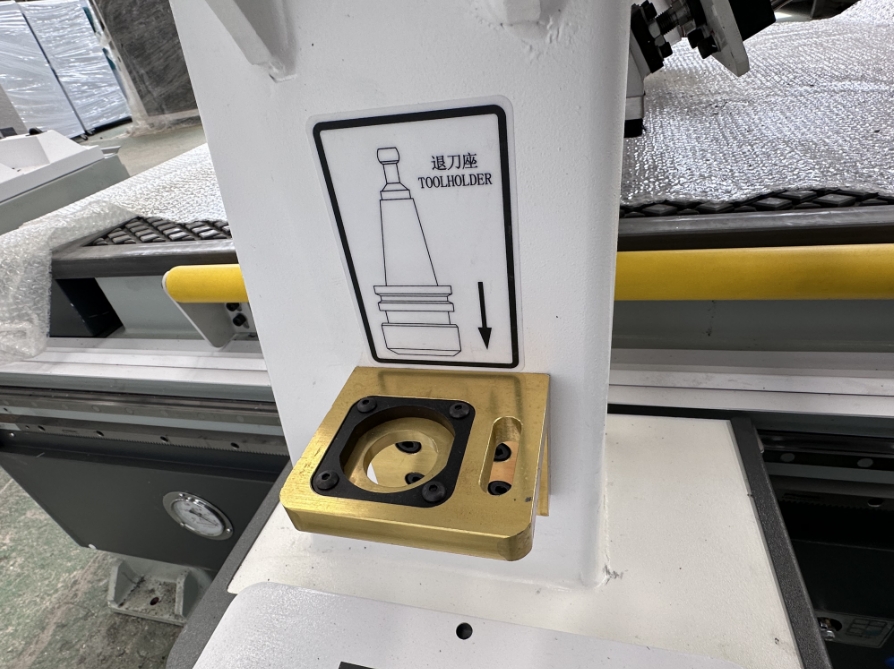

Backing seat

The Tool Retraction Unit is one of the key components of the Automatic Tool Changing CNC (ATC CNC Router). It is used to safely retract the spindle tool during the tool changing process to avoid collision between the tool and the workpiece, fixture or machine tool structure.

Functions and effects of tool retraction seatProtect tools: When changing tools, the spindle tool must be completely retracted to a safe position to prevent interference with the workpiece. Improve tool change accuracy: Ensure the repeat positioning accuracy of the tool after each tool change Reduce wear: Avoid friction between the tool and the tool magazine and fixture, and extend the tool life. Compatible with a variety of tools: Support tools of different lengths and diameters

微信截图_20250424094858

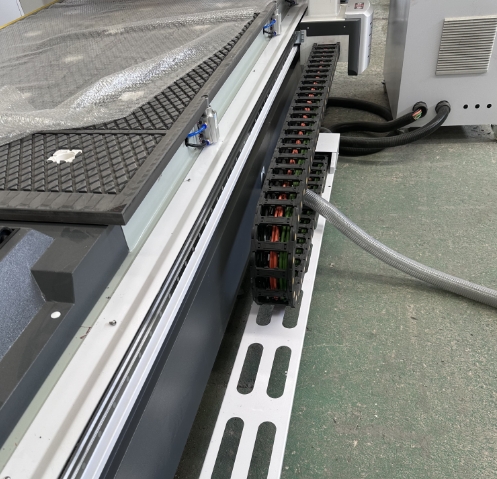

The core role of the guide rail

High-precision guidance: ensure that the linear motion error of the X/Y/Z axis is ≤0.01mm/m. Carrying cutting force: resist radial/axial loads during processing Long-term stability: avoid loss of accuracy due to wear

微信截图_20250424094906

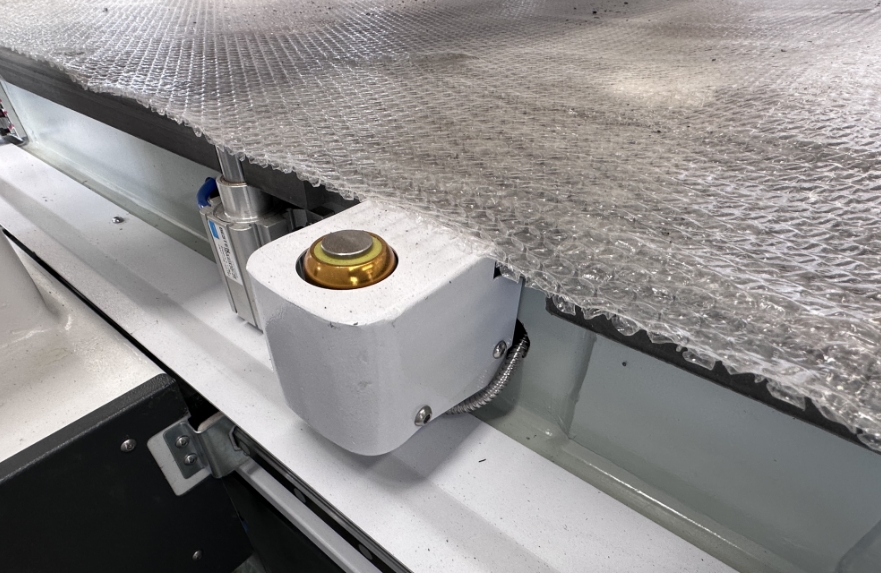

Core functions of the limit system

Mechanical travel protection: prevent the X/Y/Z axis from exceeding the physical limit, avoid motor blocking or mechanical damage. Origin positioning: provide a reference point to ensure that the CNC can be accurately reset after powering on Safety emergency stop: stop all movement immediately after the limit is triggered to protect the equipment and operators. Soft limit assist: set the virtual travel range in the CNC software, and double protection with the hardware limit.

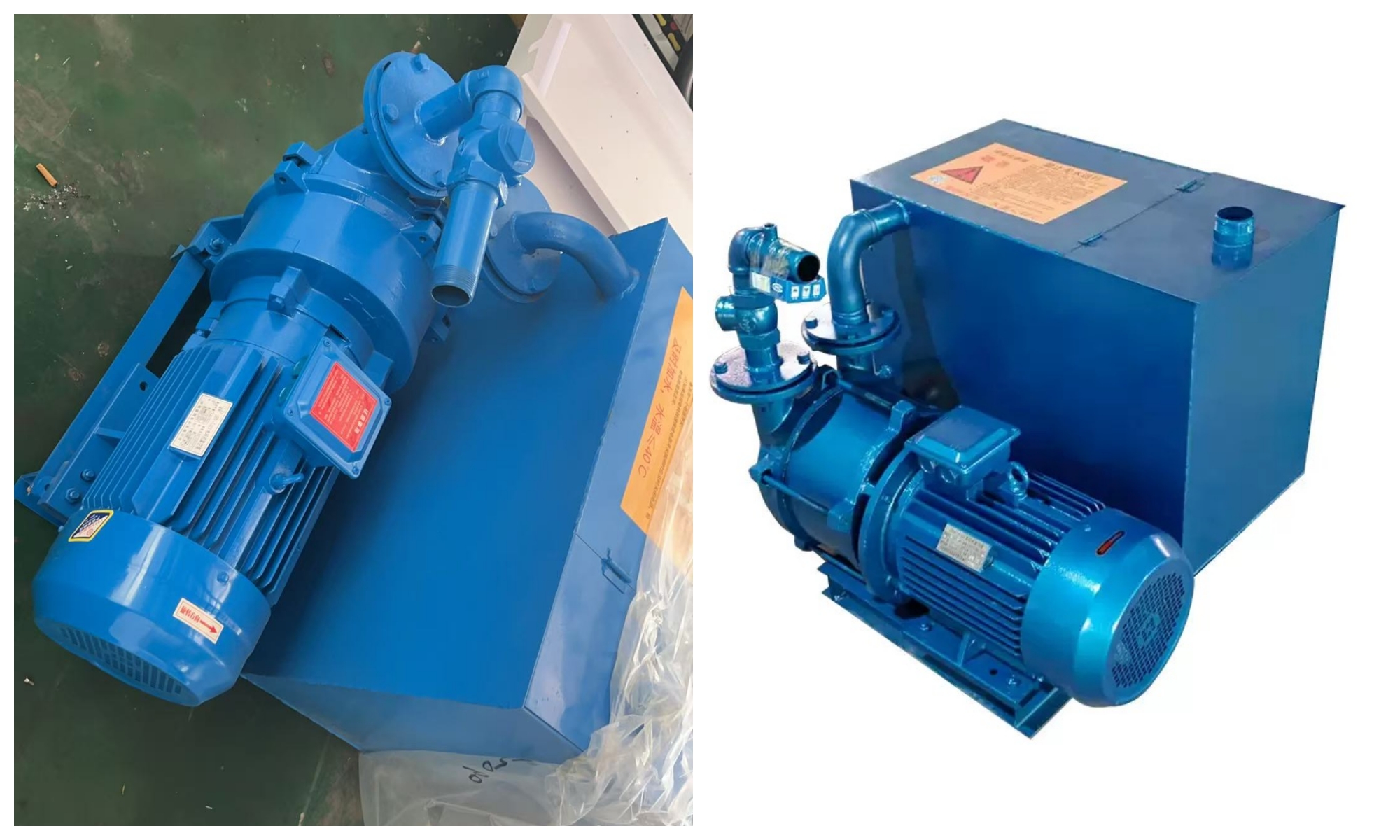

vacuum pupm

Vacuum pump for vacuum table

The vacuum pump is a critical component of a CNC router's vacuum table system, providing strong and consistent suction to securely hold workpieces during cutting, drilling, or engraving. These pumps create negative pressure across the table surface, ensuring materials like wood, plastic, acrylic, or composite sheets remain flat and stable during high-speed machining.

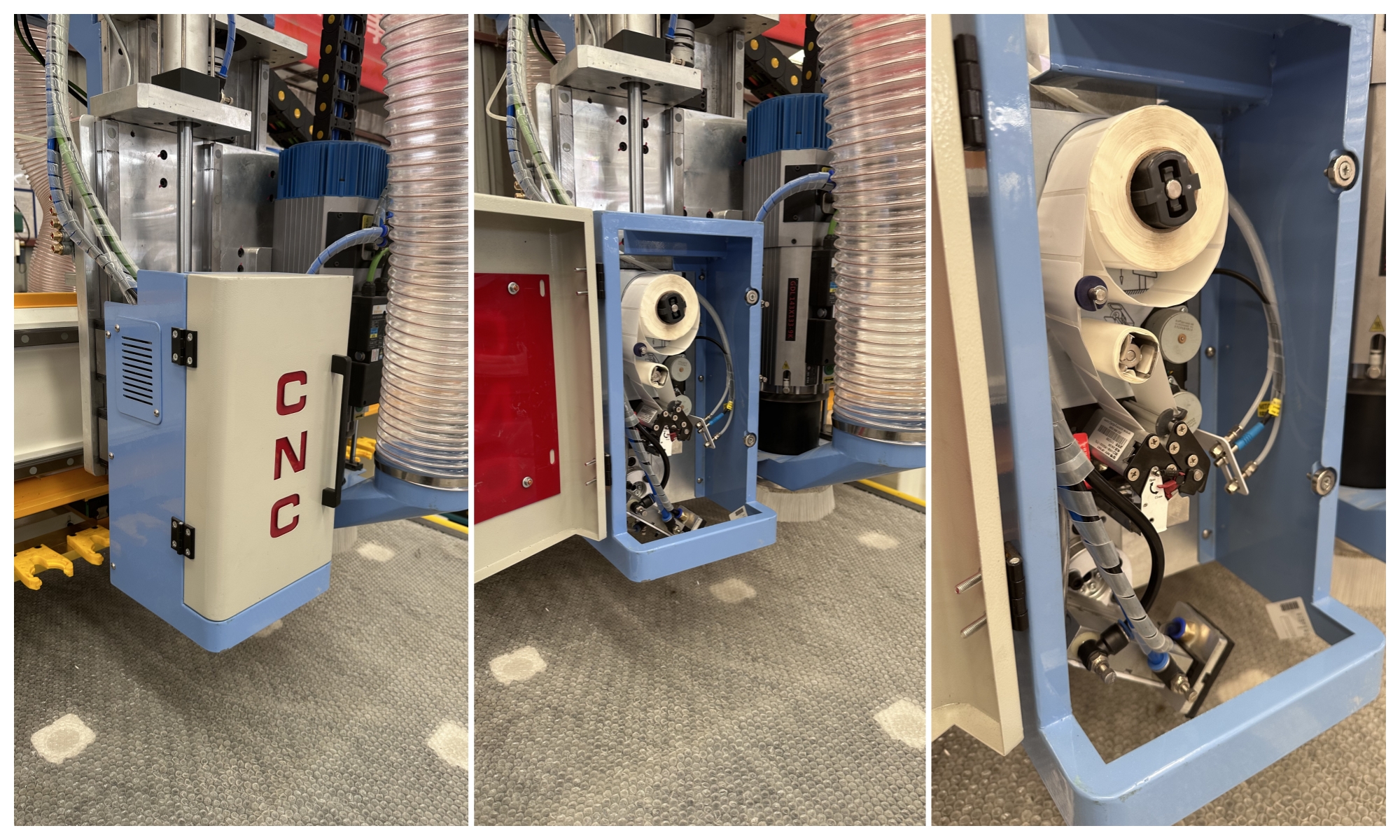

The labeling system is an additional function module of the ATC CNC router for automatically applying labels during the processing 未命名

The labeling system is an additional function module of the ATC CNC router for automatically applying labels during the processing.

The system can be integrated with CNC master control to achieve high-precision, automated label attachment, and is suitable for industries such as woodworking, metal processing, and electronic product manufacturing.

111
