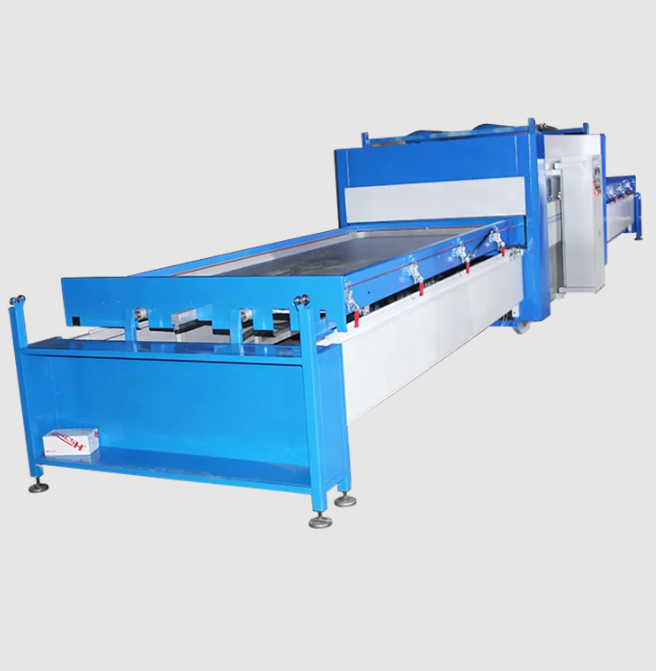

Woodworking Door PVC Film Vacuum Membrane Press Machine From China Best Price

  • 2,550 x 1,250 (1,300) x 50mm(3000x1250/3500*1250mm for options)

  • 2,550 x 1,250 (1,300) x 50mm(3000x1250/3500*1250mm for options)

  • 20kW

  • as your preference

Product Overview

Woodworking heat vacuum membrane hot press machine features

1. This SMARTECH Laminating pvc vacuum membrane machine has 2 work table,The electronic part is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving. 3. This machine uses integrated movement electro motor. It produces less noise and seldom breaks down. 4. This machine uses top 2X series vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also adopt for German-made vacuum pump, which is strong and tough). 5. Large volume vacuum tank. It charges with double channels so that it can work with strong power. 6.Stable heating could heat more quickly and save time. 7.Double pumps more powerful. 8.Touching screen instead of the switches, more easy for operation and no potential cost for maintenance. 9.Double observing windows help operators notice the pvc situation more conveniently. 10.Double Edge heating lights to help heat the pvc corners edges to assure a complete beautiful efficiency.
1) External dimensions:
7,900x1,400x1,800 mm 2) Worktable dimensions: 2,550 x 1,250 (1,300) x 50mm(3000x1250/3500*1250mm for options) 3) Max. processing height: 80mm 4) PVC thickness:0.1-0.45mm; 5)Max vacuum press:-0.1Mpa; 6) Total power: 20kW 7) Actual power:5kW 8)Total weight: 1,500kg
Right elevation
Left elevation
Front elevation
Overall Dimension           9000mm*1400mm*1800mm(Double Table) Platen Size                        2,550 x 1,250 (1,300) x 50mm(3000x1250/3500*1250mm for options)
Plated working pressure  Negative pressure ≥-0.095 Mpa
Max processing height:   80mm
PVC thickness:                  0.1-0.45mm;
Max vacuum press:         -0.1Mpa
Number of worktable       One or two Working speed                  2-4min/piece PVC thickness                  0.10-0.60mm Machine wight                 1500kg The total power                20kw Power Consumable         5kw Top temperature             180°C Voltage                          380V, 50Hz,3phase         Vacuum pump              Double vacuum pump Control system             PLC LED Touching Screen Temperature control   Themo couple Heating system            heat preservationPacking Size               3150×1940×1920mm(12CBM)

PLC Control panel touching screen
heating system
Control box which is easy for maintenance
Observing window for production process
Limit Switches

furniture pvc membrance wooden door vacuum press machine

  1.advantages of laminating machine: 1. Green environmental protection and low power consumption. 2. one removable work table, semi-automatically. 3. The work table surfaces are made of high strength steel plate which is not easy to be deformed in high temperature environment. 4. Aluminum plate is used to reheating. There is auxiliary heater on the inner wall of the heating box. 5. Laminating, temperature setting &controlling and pressure automatically. 6. The pump with German technology is small in size and powerful and quiet.


Widely ues in funiture ,indoor , Kitchen Cabinet Door ,window,lath,sliding door and so on.
Successful Project
Vacuum membrane machine efficiency
pvc vacuum membrane machine sample
pvc laminating machine efficiency
machine recommendation






-Q What is the payment terms?

A:Western Union,Cash,T/T

-Q How long is the delivery date?(After getting the deposit)

A: Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.

-Q How about the shipping ways? A:By sea or by air

-Q Is on site training is available ?

A: Yes, we could provide training in our factory or at your workshop after machine arrival.

-Q Where is your factory located? How can I visit there?

A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai.

-Q Can I arrange sample for cutting test?

A:Yes, always welcome.

-Q How about your laser machine package?

A: Standard export wood package with free fumigation

-Q How about the quality guarantee period?

A:5 Years for whole machine

-Q How can you guarantee the production quality ?

A:We have 15years experience of QC team; strictly quality control system in our production process.

-Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
