SW1325 1-A
SMARTECH
1300x2500mm
3.0/3.5/4.5/6/7.5kw
as your preference

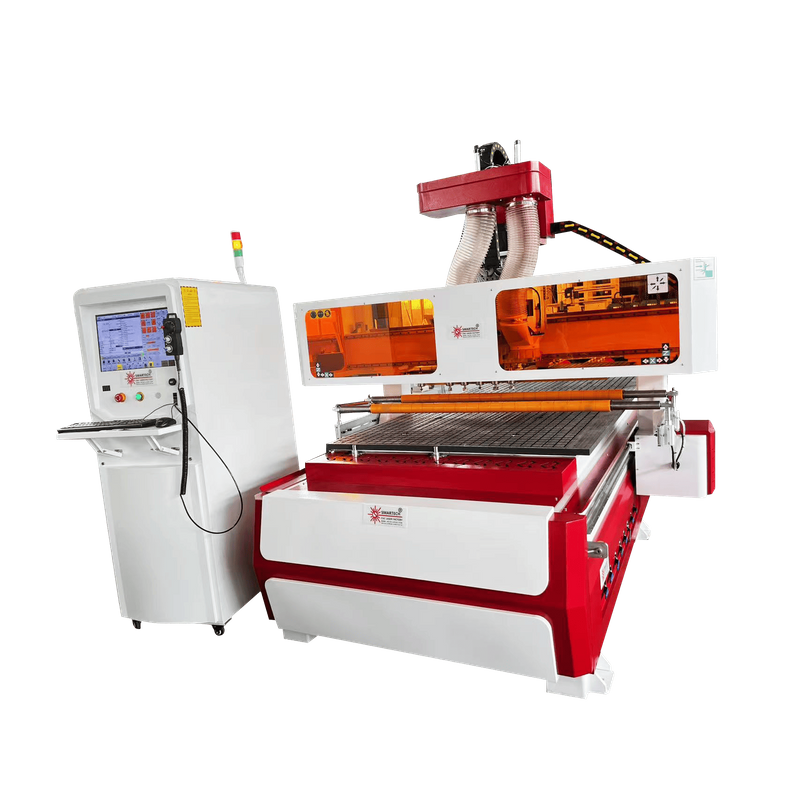

Good Price 1325 Wood Cnc Router Applications:
1) Mould: wood,wax, wood, gypsum,foams,wax. |
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | Table Size | 1800×3000mm |
3 | X,Y,Z Traveling Positioning Accurate | ±0.03/300mm |
4 | X,Y,Z Repositioning Accurate | ±0.05mm |
Locating precision | Locating precision | |
5 | Lathe Structure | Cast Iron Structure |
6 | X, Y Structure | Gear Wheel Transmission,Shaft Linear Bearings |
7 | Z Structure | Ball Screw, shaft Linear Bearing |
8 | Max. Consume power | 6.5Kw |
9 | Max.Speed | 0-60000mm/min |
10 | Max. Working Speed | 0-40000mm/min |
11 | Spindle Power Motor | 3.7 kw spindle |
12 | Spindle Speed | 0-24000 RPM/0-18000 RPM |
13 | Motor | Stepper |
14 | Working Voltage | AC220V/50/60Hz,1PH (Option: 380V,3PH) or as your factory voltage |
15 | Command | G Code, *uoo, *mmg, *plt *.nc |
16 | Operating System | nc studio |
17 | Interface | USB/PC |
18 | System support | WINDOWS XP/ windows 7/8/10 |
19 | Min shaping character | Character:2x2mm,letter:1x1mm |
20 | Flash Memory | 525MB |
21 | Collet | ER25,ER20 |
22 | X,Y Working Delicate | <0.01mm |
23 | Software | Artcam software, UCANCAM ,Type3 and other CAD or CAM software |
24 | Running Circumstance | Temperature: 0℃～45℃ |
25 | Packing Size | 3100X2250X1700mm |
26 | Net Weight | 1100 KG |
27 | Gross Weight | 1200 KG |
