Factory Supply Low Price Portable Laser Handheld Welding Machine 1KW/1.5KW/2KW/3KW

Availability:



Inquire Add to Basket

Model:
SMART-1000/SMART-1500/SMART-2000/SMART-3000
Brand:
SMARTECH
Code:
Continuous fiber laser
Size:
1200*600*1300mm 680*590*1140mm
Power:
2000w

Product Description

Product Description

 Laser is a new light source, its coherence, monochromaticity, direct and high output power characteristics, which are unmatched by other light sources. Focusing the laser to a point, the power density on the focal plane can reach 105-1013w/cm2. Laser welding uses the excellent direct high power density of the laser beam to work. The laser is generated by the laser, by Flexible fiber optic light Road transmission, after focusing by the focusing lens in the welding head, it acts on the welding seam between the processed materials, and with the assistance of shielding gas (to prevent the material from being oxidized), the material is liquefied to form a specific molten pool, thereby achieving the purpose of welding.

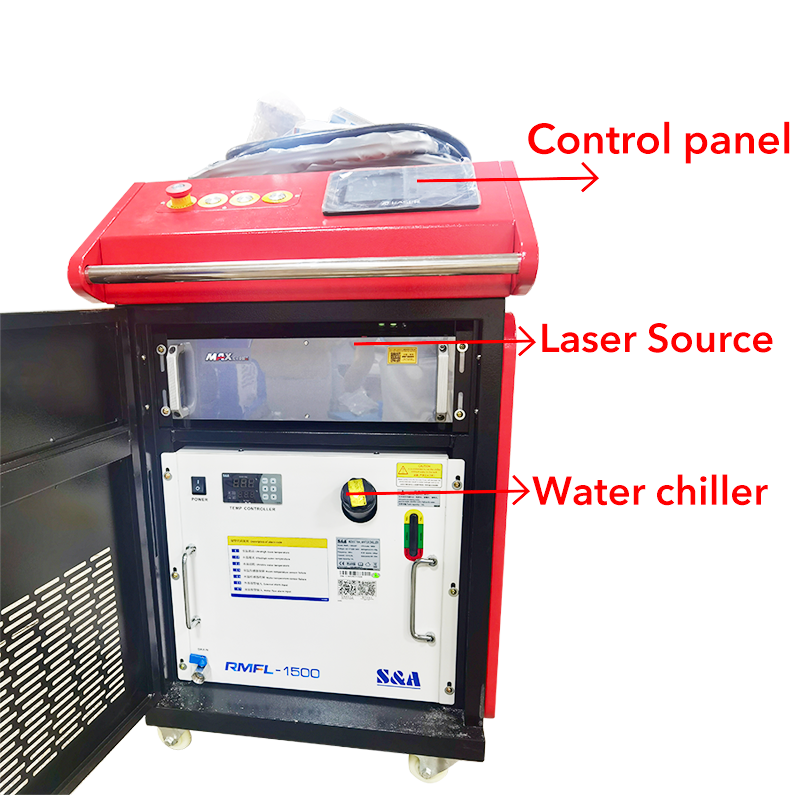

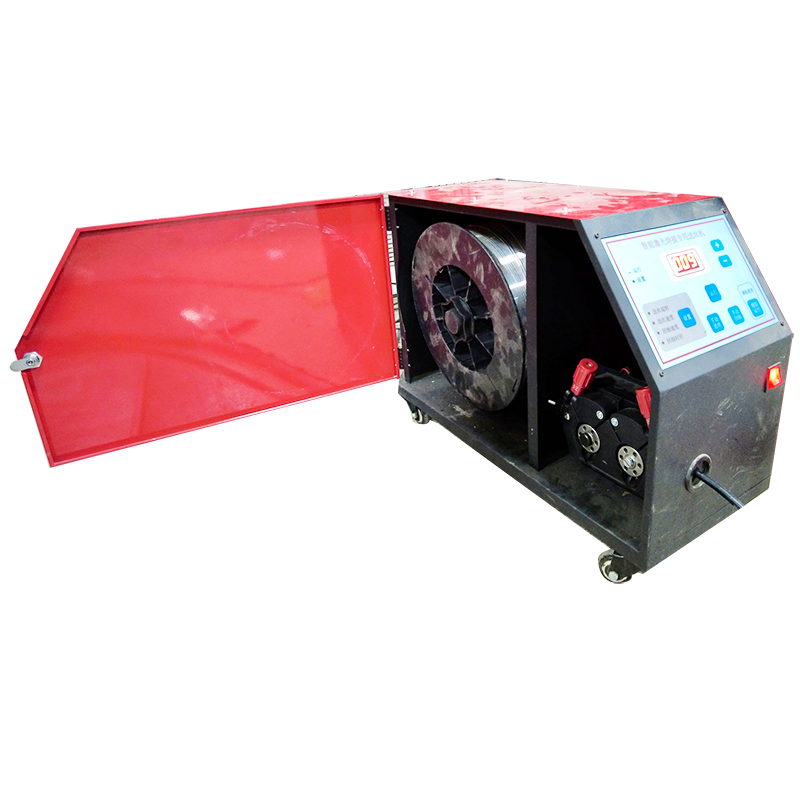

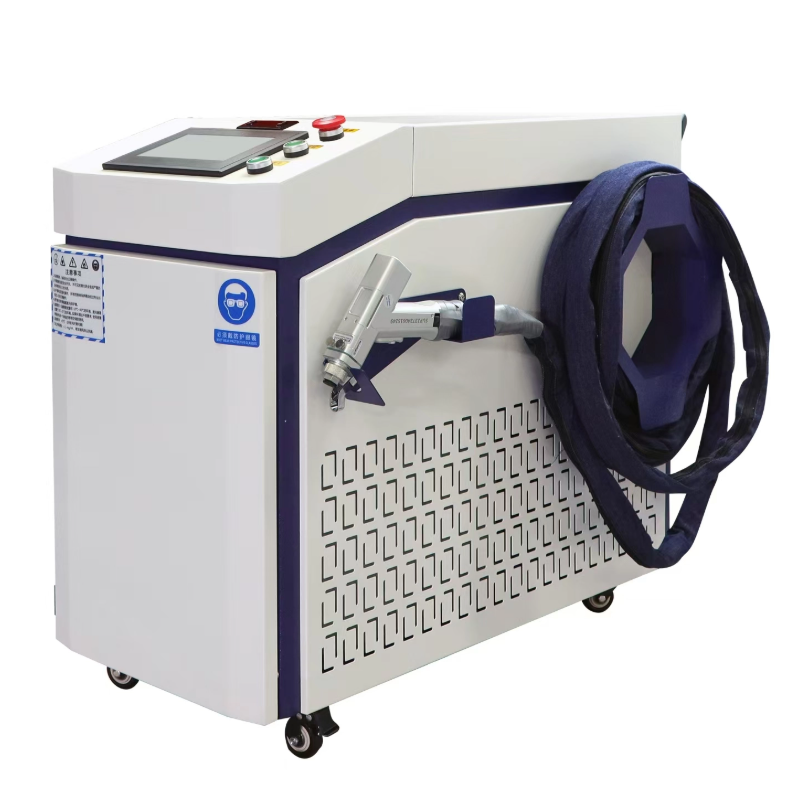

 The complete set of hand held fiber laser welding machine is mainly composed of continuous fiber laser and transmission fiber,Hand held laser welding head,Wire feeding system, chiller, control system and cabinet.It consists of several parts.It has many new ideas based on humanization and work effectiveness in terms of equipment shape, structure and man-machine interface suitable for operation. The equipment adopts integrated design, compact and beautiful structure, with good beam pattern, stable energy, stable performance, reliable use, fast welding speed, wide range of suitable welding, long service life of consumables and consumable parts, etc., while fully considering the equipment In the various parameters of mass production, the key parameters can be adjusted in detail and the data is displayed in a closed loop.

Model	SMART-1000	SMART-1500		SMART-F2000
Laser type	Continuous fiber laser
Rated output power	1000W	1500W		2000W
Power adjustment range	10%～100%
Laser center wavelength	1080±3nm
output method	Continuous/modulation
Maximum modulation frequency	50kHz
Power instability	<3%
Fiber output interface	QBH
Indicating system	Red light
Fiber core	20μm	30μm			50μm
Fiber length	15mm
Torch cable length	10m
Torch type	Swing galvanometer welding head left and right
Collimated focal length	50mm
Focus focal length	80mm/120mm
Wire feed diameter	0.8, 1.0, 1.2, 1.6
Torch weight	1.1kg
Protective gas method	Coaxial protection
Adjustable weld width	0～6 mm
Water flow	>12L/min		>15L/min	>25L/min
product structure	All-in-one			Split
Product size LDH	12006001300mm			12006001300mm 6805901140mm
product weight	160kg			250kg
Working temperature	10～40℃
Working environment humidity	<70%
Operating Voltage	Single phase 220VAC			Three-phase five-wire 380VAC Single phase 220VAC
Total power	<5kw	<7kw		<9.5kw

Parameter item	Typical value
model	FSC 1000	FSC 1500	FSC 2000
Maximum output power	1000W	1500W	2000W
Power adjustment range	10%-100%
Beam output	1 beam
optical fiber	Core diameter20/30/50um length 15m Connector QBH
Energy instability	≤±3%
Laser wavelength	1080nm±10nm
Spot quality	≤2mm.mrad
Continuous working time	24 Hour
Control mode	External RS232/External AD/Hyper Terminal
Cooling medium	Water cooling
Cooling water flow	>12(L/min)	>15(L/min)	>25(L/min)
Calibration system	Red light indicator
powered by Voltage	twenty two0V		Three-phaseAC380V
Maximum power consumption	4KW	6KW	8KW
Environmental requirements	Temperature 10-40℃ Humidity 10-70%
External dimensions mm	483191740mm		483214850mm
weight	60Kg		80Kg

 Product Advantage

●hand Sustain operation Welding, flexible&convenient,It can be welded in any shape &any angle; ●The device is small and easy to move. Not only convenient Long distance for large workpieces Welding, also Can outdoor welding; ●Simple operation, easy to get started, no need for professional welders; ●The welding speed is fast, and the efficiency is more than 5 times that of arc welding; ●The weld seam is beautiful and the deformation is small, saving the cost of subsequent grinding and shaping;Performance characteristics ●Adapt to welding of various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials； ●The light can be emitted continuously or pulsed, not only for thermal conductivity welding, but also for continuous deep penetration welding. It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, etc. ●Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%, and the service life of the pump source is greater than 100,000 hours; ●Fast processing speed; ●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials); ●It can process parts with complex shapes and small parts, and can also be processed in vacuum; ●and Robotic arm and other automated institutions Combined, the processing can be automated; ●Can realize filler wire welding,Due to advanced processing methods, existing product structures and materials can be improved.
