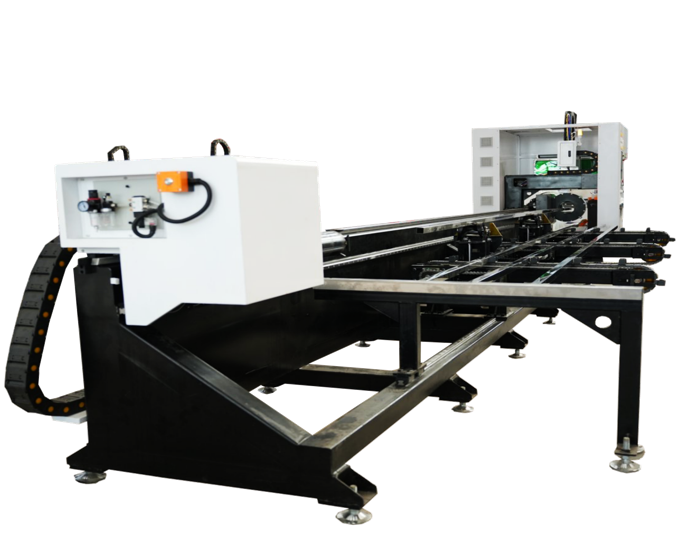

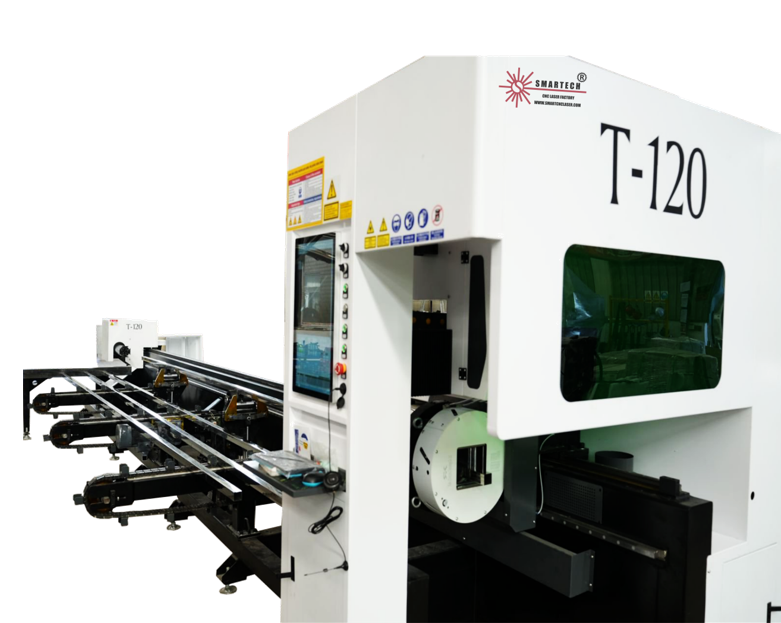

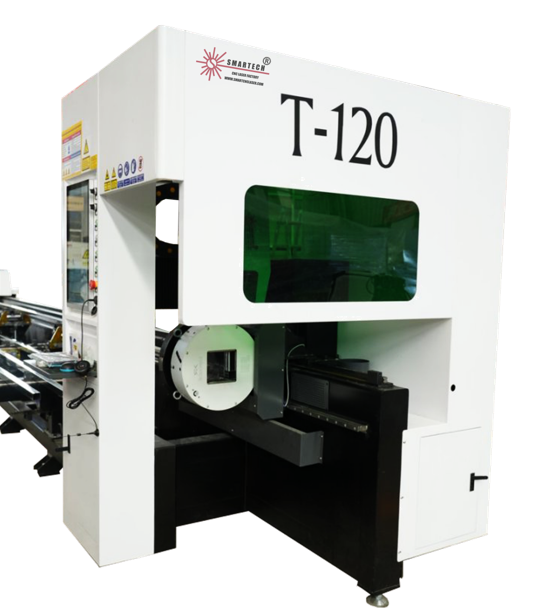

SFT1260
SMARTECH
Technical data 1.
Model | SFT1260 |
Working Area | Chuck size 8-120 mm |
Effective Cutting Length | 6000mm |
Fiber Laser Source | MAX (Options: RAYCUS / IPG ) |
Laser Power | 1500W 2000W 3000W 4000W 6000W 8000W 10000W 20000W |
Maximum acceleration | 1.5G |
Chuck speed | 2-6 seconds/rev |
Beam Quality M2 | < 0.373 |
Positioning Accuracy | ± 0.01 mm/m |
Re-positioning Accuracy | ± 0.01 mm/m |
Max Movement Speed | 0-6000mm/min (depending on material and thickness) |
Max Cutting Speed | 0-2000mm/min (depending on material and thickness) |
Power Supply Voltage | 3-phase 380V/50Hz |
Model | SFT1260 |
Working Table | Rack working platform |
Control System | Fangling |
Reducer | beto |
Minimum Clamping Wall Thickness | Red dot indicator |
Compatible Software | CorelDraw/AutoCAD/Photoshop/AI Support Graphic Format |
Support Graphic Format | LXD/.DXF/.PLT/.AI/.Gerber/.DWG |
Water Cooling System | Constant temperature water chiller |
Machine Weight | 2300 kg |
Auxiliary Gas | oxygen,nitrogen,air |
Electrical components | Schneider made in France |
Automatic feeding time | First feeding time ≤13s，Next feeding time ≤7s |
Total load-bearing capacity of automatic loading | 1200KG |
Parts Specifications 1.
Machine parts | Brand | Origin | |
Structure Section | Annealing anti vibration heavy duty | SMARTECH | China |
Optical Section | Laser Generator | Max /Raycus for option | China Top Brand |
Laser Head | 3.2D | china | |
Control Section | Control System | Fangling | china |
Up and down follow-up dual-function tug wheel | Dairuike | China | |
IPC | High stability industrial PC | ||
Mechanical Section | Reducer | Beto | China |
Linear Guide | PEK | Italy | |
Rack pinion | YYC | Taiwan | |
Ball screw | THK | Japan | |
Motor Driver | Leadshine | Japan |
Electrical Section | Valves | SMC | Japan |
Pneumatic system | SMC | Japan | |
Electricity parts | Schneider | France | |
Limit Switch | Omron | Japan | |
Accessories Section | Exhaust fan | SMARTECH | China |
Lubrication system | SMARTECH | China | |
Stabilizer | SMARTECH | China | |
Air Compressor | SMARTECH | China | |
Cooling System | Water Chiller | S&A | China |

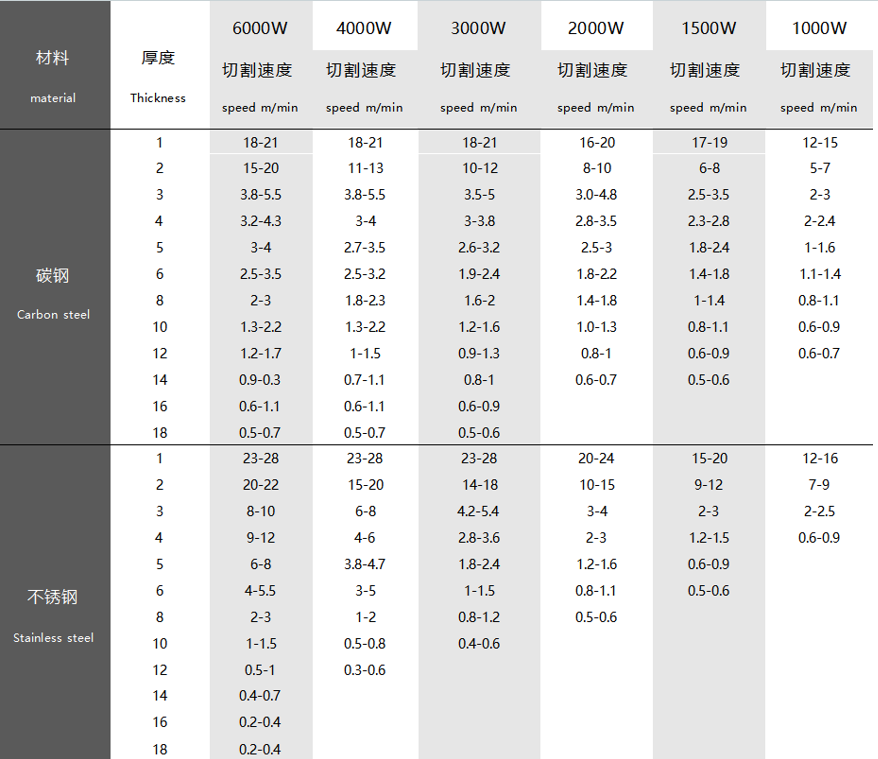

Cutting Data

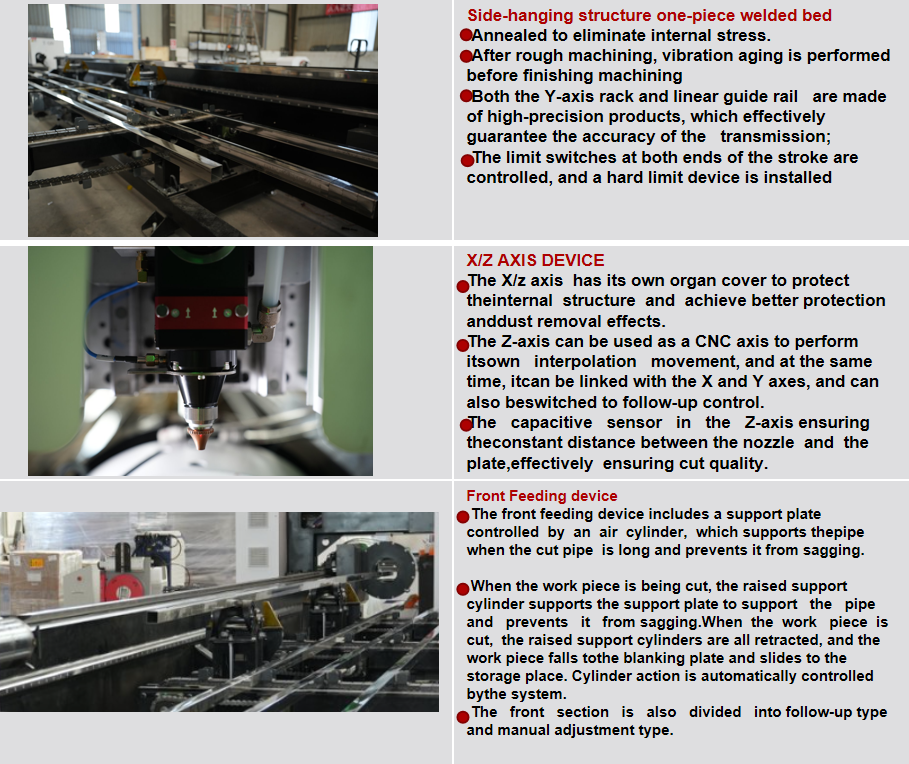

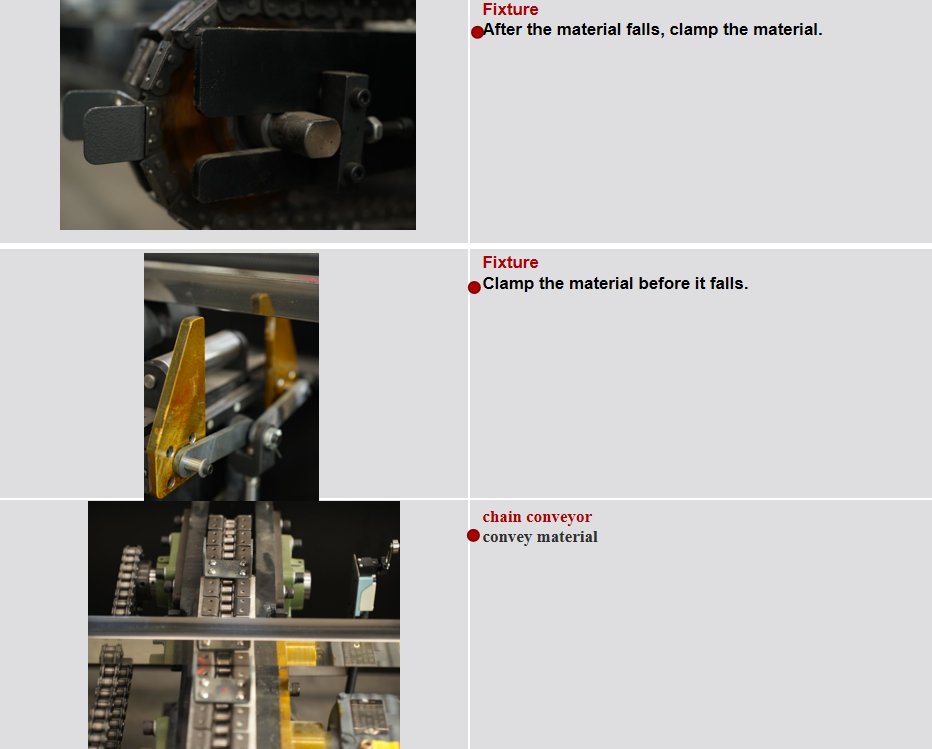

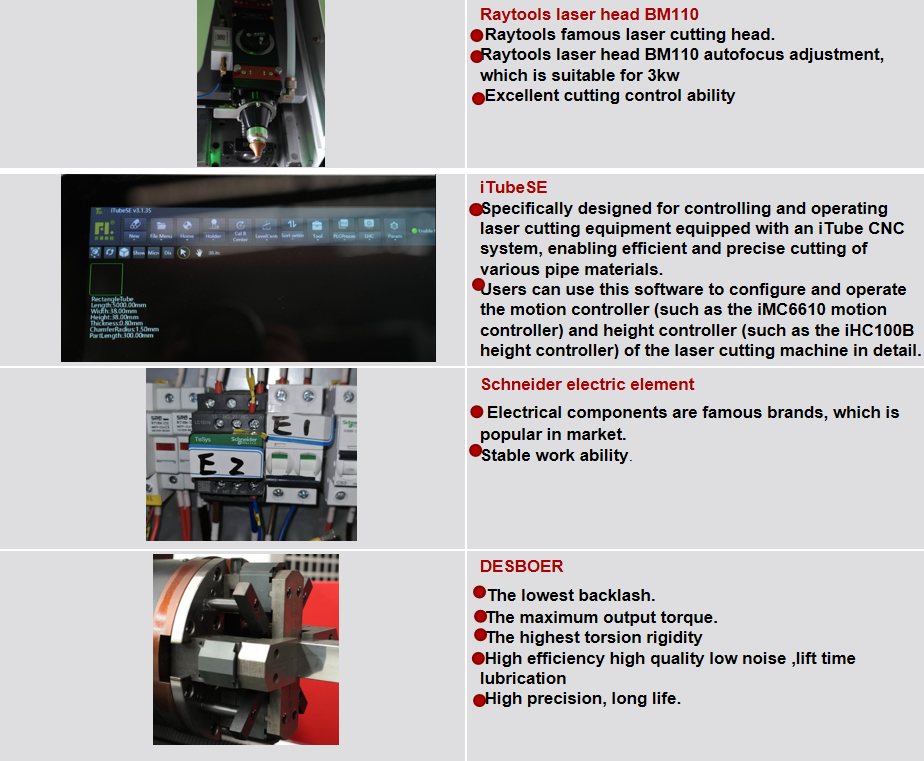

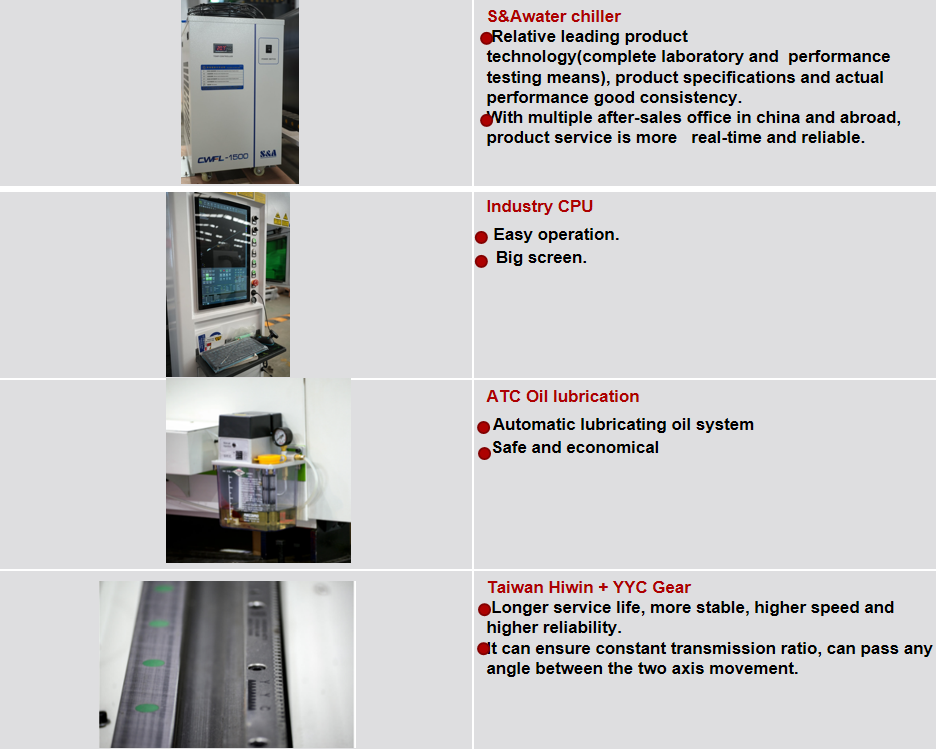

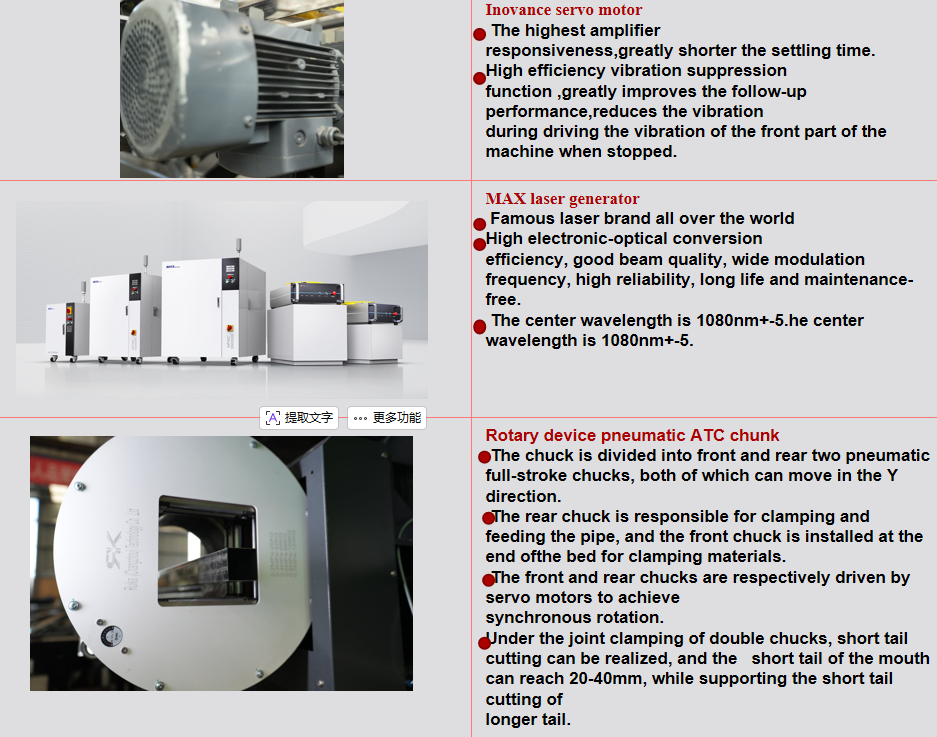

Main Parts

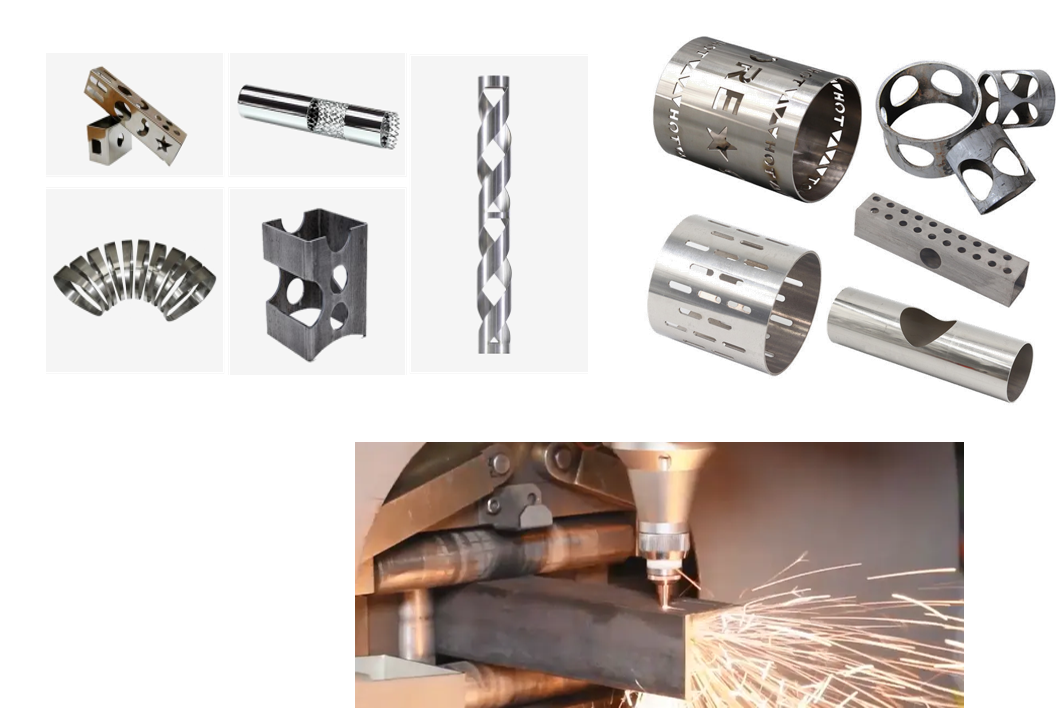

Working samples
ABOUT US
