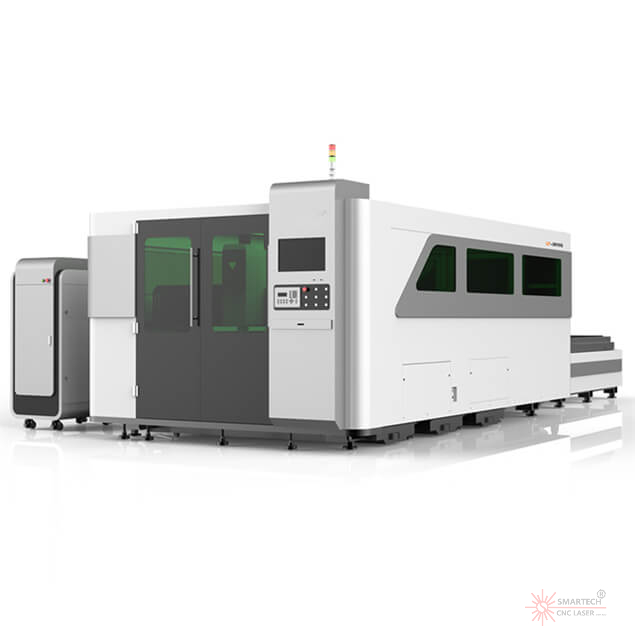

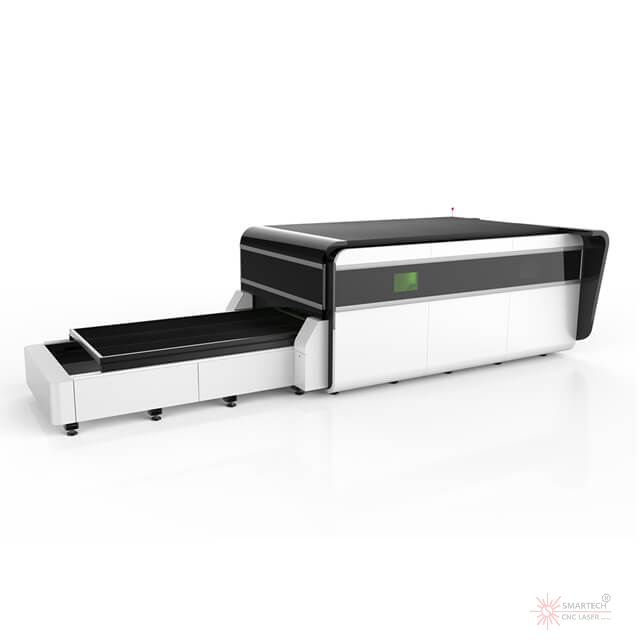

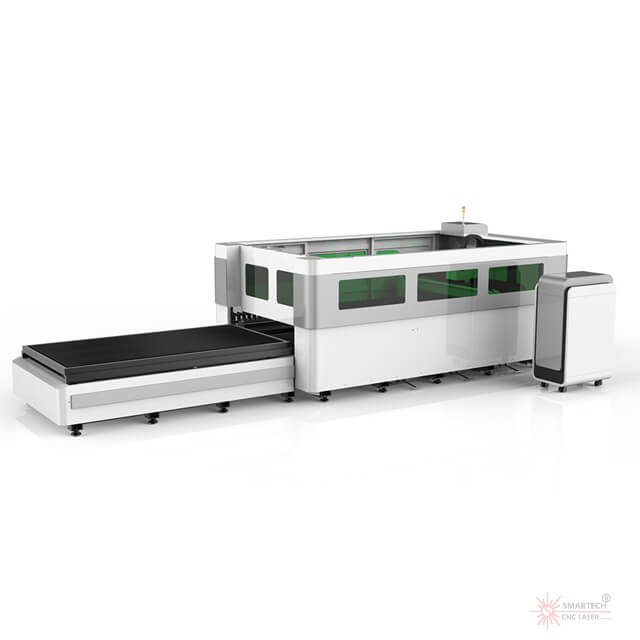

Fiber Laser Cutting Machine 2000W/2500W/3000W/6000W

Fiber laser cutting machine 1.5 times acceleration high precision fast speed cutting. fiber laser cutting machine is professional for metal cutting works.especially for the high precision works.while CO2 laser cutting machine is for nonmetal materials cutting works.Click the left play button for carbon steel 16 mm cutting video.

  • SJH-1530
  • SMARTECH
  • 1500x3000mm(5x10 feet)
  • 2000W/2500W/3000W/6000W
  • as your preference
  • 3000*1500mm working area;

  • Raytools laser cutting head;

  • X,Y axis Japan YASKAWA servo motor;

  • Z axis Japan Panasonic servo motor;

  • Taiwan HIWIN guide rail;

  • Taiwan APEX gear rack;

  • France MOTOREDUCER reducer;

  • Taiwan TBI ball screw;

  • Japan SMC /Taiwan AirTac pneumatic components;

  • France Schneider electrical components;

  • Tongfei Teyu water chiller;

  • Cypcut control system;

  • Gross weight 3500kg;

Fiber Laser Cutting Machine Application

Application Industry: Manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware,Advertising Letters,Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing,Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc


Available Materials: Stainless Steel SheetMild Steel PlateCarbon Steel SheetAlloy Steel PlateSpring Steel Sheet, Iron PlateGalvanized IronGalvanized SheetAluminum PlateCopper SheetBrass SheetBronze PlateGold PlateSilver Plate,Titanium PlateMetal SheetMetal PlateTubes and Pipes etc

Material
thickness
(mm)
Speed
(meter/min)
Pressure
(mpa)
Focus
SS 201
1
9
0.8
-4
SS 201
2.2
2
1.2
-4
SS 304
1.3
7
0.9
-4
SS 304
1.8
3
1
-4
Carbon Steel
1.1
9(10)
0.8
-1
Carbon Steel
2.4
2.2
0.4
-3
Carbon Steel
2.8
1.5
0.4
-3.5
Carbon Steel
4
1.5(1.2)
0.4
-4
Model
SJH-1530 metal fiber laser cutting machine
Cutting Tube maximum diameter
200mm
Auxiliary Gas
oxygen,nitrogen,air
Rotary Attachment
For both sheet and tube cutting option
Maximum Idle Running Speed
1400mm/s
Control System
Cypcut
Working life of fiber module
More than 100000 hours
Laser Power
Domestic 500W Raycus
Fiber laser cutting head
Domestic Worthing
Position Type
red dot
Working Area
1500*3000mm
Liner guider system
PMI made in Taiwan , (Option THK made in Japan)
Power Consumption
≤12KW
Transmit system
Dual Rack & Pinion type
Laser Wave Length
1064nm
Chain system
Igus made in Germany
Working Voltage
380V/50Hz
Rack system
Herion made in Germany
Warranty time
Whole machine for 36 mouths
Delivery time
15 days
Gross weight
4000kg


SMARTECH-fiber-laser-cutting-machine-japan-fiber (4)fiber laser cutting samples
