Laser Marking
SMARTECH
Laser Marking
200mm*200mm
grey

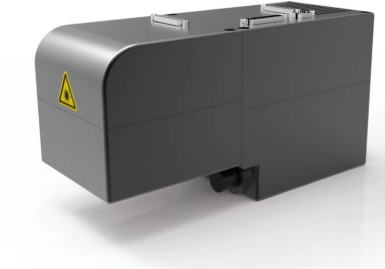

3D Fiber Laser Marking Systems In a 3-axis sub module the laser beam first enters a moving lens – the Linear-Translator-Module. A moving lens diverges the beam rapidly before it passes one or two focusing lenses. Then the beam hits a deflection unit that directs the laser towards any x-y position inside the marking field.
*Application:
1.Aluminium sheet stripped surface: No deformation, fine marking, color marking.
2.Metal depth marking. 3.Stainless steel color marking: marking different colors by setting the parameters. 4.PCB, ABS, Plastic without yellow color. 5.Light transmission paint keyboard: easy to make it previous to light. 6. Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance 7.color marking and black marking on stainless steel. 8.Black marking and deep marking on nonferrous metal,like copper,alumina,aluminum. 9. Excellent marking effect on plastic or other sensitive material 10. Semi-conductor&electronics industry applications 11.Customade converyor belt for pen marking with much more high efficient work. Metal materials:stainless steel,aluminium,copper,silver, gold, carbon steel etcNon-metal materials :plastic,pvc,rubber,glass,stone,wood,feather,jewelry etc
Advantages of SMARTECH laser comparing with normal fiber laser marking machine
1.For short pulses and lower pulse energy, the material is e.g. heated less and the area of the heat affected zone is reduced. This results in more advantages and possibilities for laser marking metals and plastics:
2.No light leaking, safe marking 3.Less heat development during annealing markings on metal, which leads to a better corrosion behavior 4.Excellent beam quality, excellent processing performance 5.First pulse availability and quicker pulse response speed, good choice for highly precise & fine marking 6.More homogeneous and sometimes higher-contrast markings on some plastics 7.The advantages of the conventional fiber laser sources remain unchanged: 8.maintenance-free 9.long service life 10. 1ns ~ 250ns wide adjustable pulse width, wider application range of material 11.Wide repetition rate for diverse application12.High output power, high optical quality and compact size 13.Cleaner mark edges and faster marking speeds 14.Reliability and a lower cost of ownership 15.Plus, you’ll get the very best in efficiency. Fiber lasers are up to ten times more efficient than traditional YAG laser systems, and they use little to no energy in standby mode. Lenmark software:Large field marking,3D surface marking, engraving,3D printing.Support customized development
Software characteristics
Large field marking,3D surface marking, engraving,3D printing.Support customized development
- Support the import of kinds of vector files and bitmap files. - Support network port, serial port data reading, can facilitate automatic production line data interfaction. - Self-developed software, support further development. Optimization for application, open interface, can be customized to requirements. - Support multi correction methods: fast and high precision correction on high precision ideal platform and free adjustment of each position focal point under the non-ideal plane, and finally achieve full format focus consistency. - Provide production line marking, visual positioning marking,automation marking,other solutions to meet the diverse needs of the customer. - Support 3D application, support importing of STL model,self-developed model, etc. Support 3D data editing rapid realization of 3D surface marking, relief processing.- Support expansion of 3D scanning requirement, it can realize the rapid localization and reverse processing of 3D workpieces, and the rapid marking of workpieces can be realized without the workpiece model.
Dual-scan head markingThe unique FEELTEK dual dynamic focus system, independently distributes the light source and processing parameters of the two systems through one set of software control. The motion coordinates of the two systems coincide completely in the processing space.It can be used in the application scenarios of laser heat treatment, additive manufacturing which require different light sources to act on the workpiece in order to meet the requirements of processing technology and efficiency.
The customizable system API interfaceLenMark provides a rich API interface for supporting the user to realize the secondary development, including the control card API and the software API, which can meet the needs of the users from the development of hardware-based control to the application-level-based process development.
Path optimization for real-time previewingBy implementing the preview function, users can adjust the order of marking the path to meet the needs of industrial field efficiency and process to the greatest extent.
GUARANTEE AND WARRANTYNew CNC router/laser machines sold by SMARTECH carry a 3-years warranty (fiber laser cutting machines carry a 5 years warranty) effective from the date of shipping. CNC machines sold through dealers must be registered with SMARTECH within 30 days of purchase to be covered by this warranty. We would send new parts or repair for you during warranty period for free.
Quality ControlSkilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
All finished machine we delivered are 100% strictly tested by our QC department and engineering department.We will provide detailed Machine pictures and Test videos to customers before delivery.
OEM ServiceCustomized and OEM orders are welcome due to our abundant experiences.All the OEM services are free, customer only need to provide us with your logo drawing. function requirements, colors etc.
No MOQ required.
PrivacyNone of your personally identifiable information ( such as your name, address, email address, bank info, etc ) will be disclosed or shared with any third parties.
Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to call us if you have any emergency questions.
Payment termsAlibaba Trade Assurance ( New,safe and popular payment terms)
30% T/T paid in advance as deposit, the balance paid before shipment. LC at sight. Other payment terms: Paypal,Western Union and so on.
Documents SupportCertificate support: CE,ISO,CO,FORM A,FORM E,FORM F ,FTA,CCPIT
Certificate and so on. All Documents for clearance customs support : Contract ,Packing list,Commercial Invoice,Export declaration and so on.
About SMARTECH & Certificate
SMARTECH brand Comes from Smart Technology.In order to protect the trademark, we have registered and applied for the SMARTECH & ISMARTECH trademarks from China government.
SMARTECH based in Jinan, China, has been leading the industry in woodworking innovations since 2002 years and continues to challenge the industry with new advancements. We provide our clients advanced and original, high-tech products, as well as solutions in the field of CNC laser-based production for different material processing applications.Our core business is design and production of CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers, 4 axis CNC routers, and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines, laser cutting machines, and laser welding machines), CNC milling machines, CNC plasma cutting machines, CNC machining centers, CNC wood turning lathe machines, CNC spare parts, and other CNC machines. Welcome to visit our factory when you are convenient !3D Fiber Laser Marking Systems In a 3-axis sub module the laser beam first enters a moving lens – the Linear-Translator-Module. A moving lens diverges the beam rapidly before it passes one or two focusing lenses. Then the beam hits a deflection unit that directs the laser towards any x-y position inside the marking field.
