Applicable industry
Furnitures manufacturing,cabinets/closet wood doors,woodworking customized furnitures,Full house customization furnitures or decorations making etc.

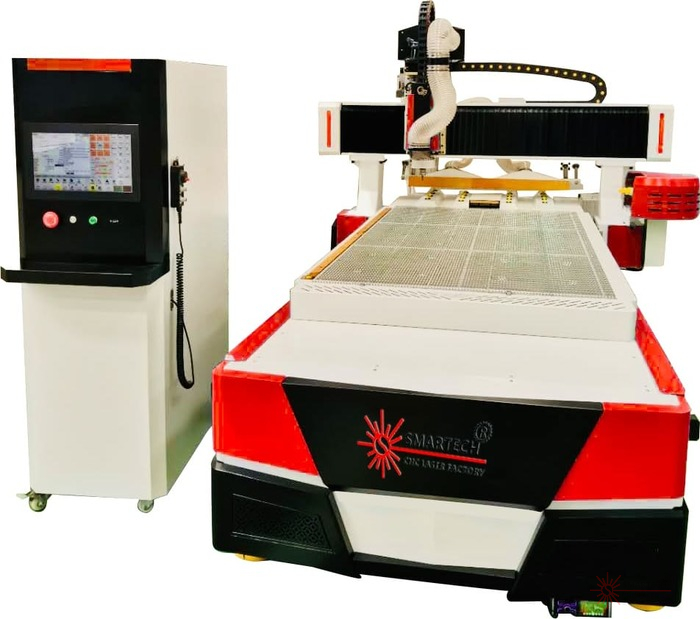

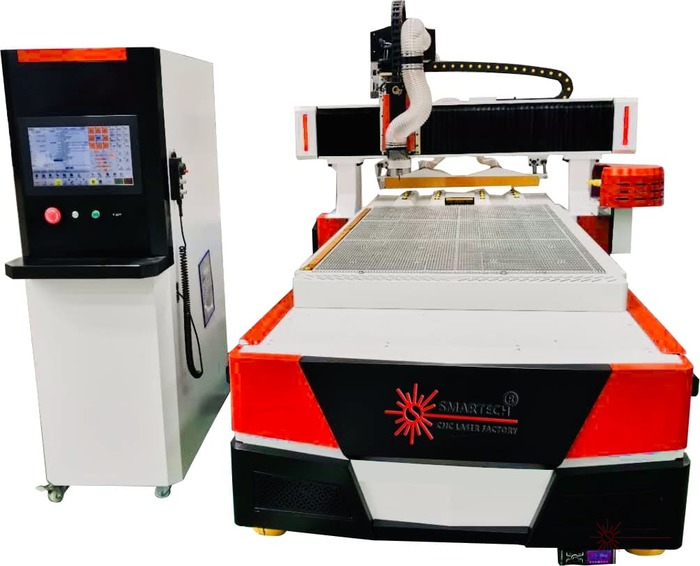

5'x10' Woodworking CNC Router with Automatic Disc Tools Changer features:
*With LED and voice system which could play music and lights,especially beautiful at nights.
*Italy 12 HP 9KW HSD Spindle (Standard)
*Fixed Cast Aluminum Table with Moving Gantry
*10 Position Rotary Disc Automatic Tool Changer (Standard)
*Automatic CNC Labeling System (Optional)
*Automatic Load/Unload System (Optional)
*Spindle 5+4 Vertical/Horizontal Drill Bank (Optional)
*Automatic Tool Sensor/Length Measurement (Standard)
*Automatic Lubrication System (Standard)
*Three-Dimensional Laser Compensated Axis Alignment (Standard)
*Control Nesting (Standard)
*Japan Yaskawa Servo Drives Throughout (Standard)
*Taiwan Baoyuan/Syntec Control system (Standard)
*Machine Training and Installation (Available)

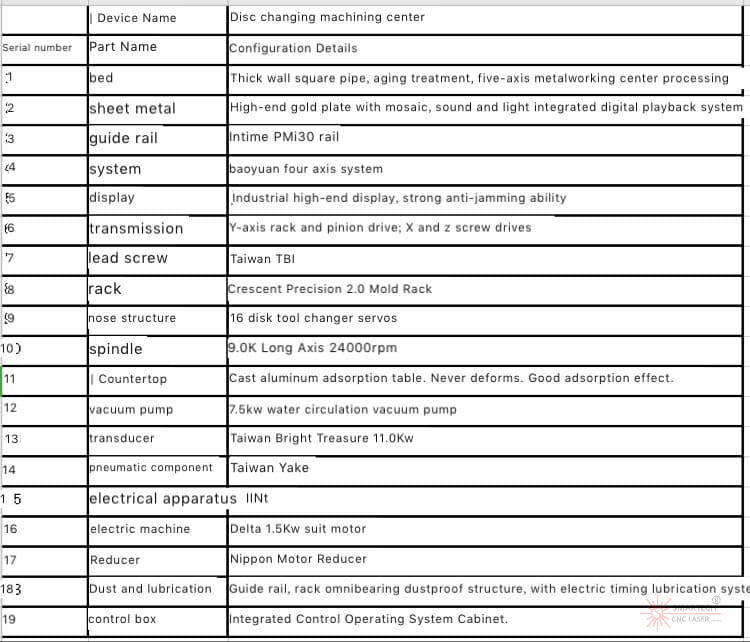

5'x10' Woodworking CNC Router with Automatic Disc Tools Changer main configurations
5'x10' Woodworking CNC Router with Automatic Disc Tools Changer more detailed specifications
No. | Configurations | OPTION |
Equipment | CNC Router With Automatic disc tools changer | Linear tools changer |
Machine Body | Thickening of lathe bed,high temperature heat treatment,machining center,high precision, long life | |
Working area | 1500*3000*200mm | 2000x3000mm/custom |
Weight | 2500Kg | |
Speed | Idling 60-80m/min Working speed:20m/min | |
Rail | Y axis 3.0 X,Z Axis 2.5 | |
Rack | screw rack | |
Main parts | Yaskawa Servo servo motor and drivers | |
11KW/380V Inverter from Taiwan | ||
Syntec Controller imported from Taiwan | Baoyuan | |
Standard huge control box | ||
9KW Air cooling ATC Spindle Italy ISO30ER32 | HQD | |
8 pieces tools holder | ||
HIWIN /PMI Rail for 3 axis Helical tooth rack | ||
Original TBI Ball screw | ||
Electricity parts: Original Schneider | ||
Table | Double thickening mesa, suction bigger and more uniform | |
Automatic tool sensor,Automatic lubricating system | ||
Ancillary attachment | Dust collector double bags、Brush、Dust pipes、Dust holder | |
Vacuum pump 7.5KW*2 sets | ||
ISO30 ER32 Collet 12.7 8 pieces | ||
Collet 6 2 pieces;Collet 4 2 pieces;Spanners 2 sets | ||
Voltage | 380V 3 phase | 220V-240V |
Woodworking cnc router machine details pictures:

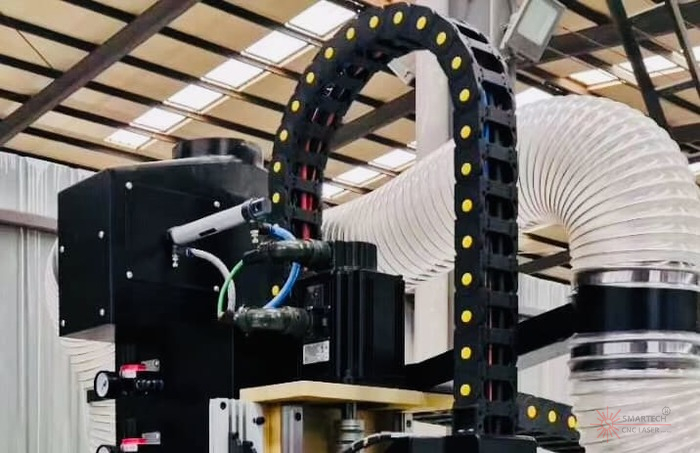

Japan yaskawa motors with reducer

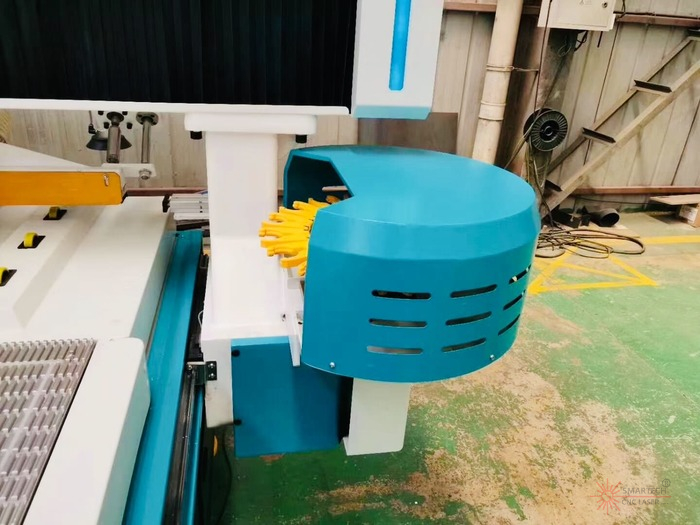

Disc tools changer magazine

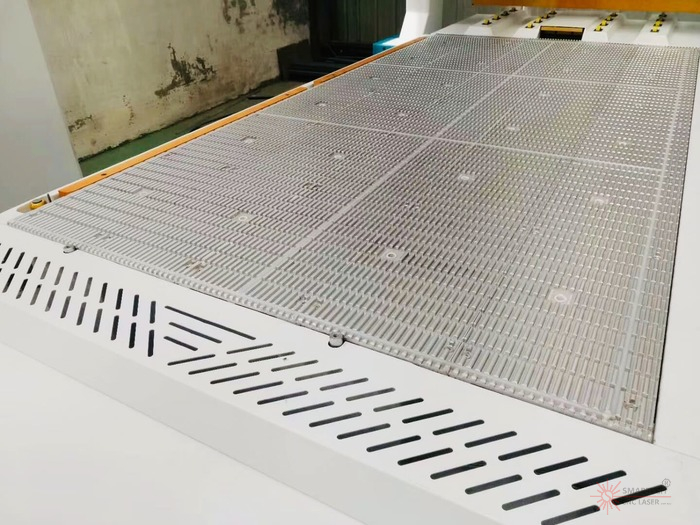

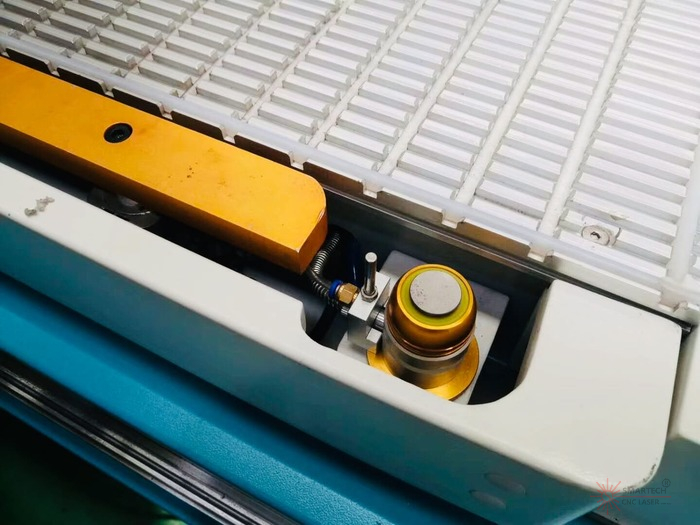

Cast aluminium table with automatic tools sensor/length measurement

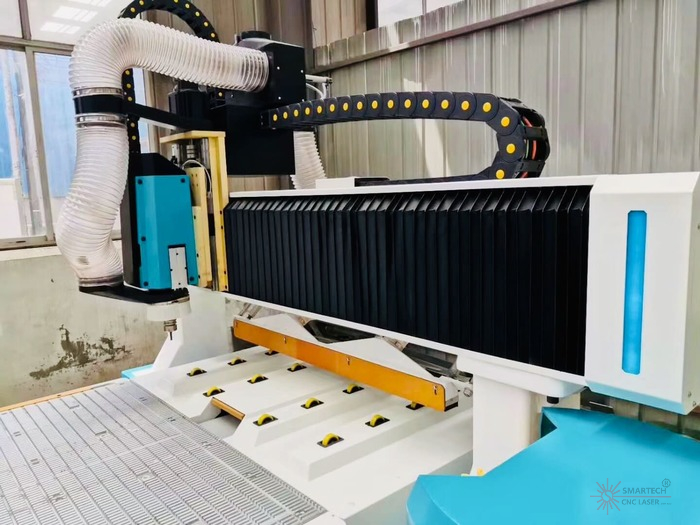

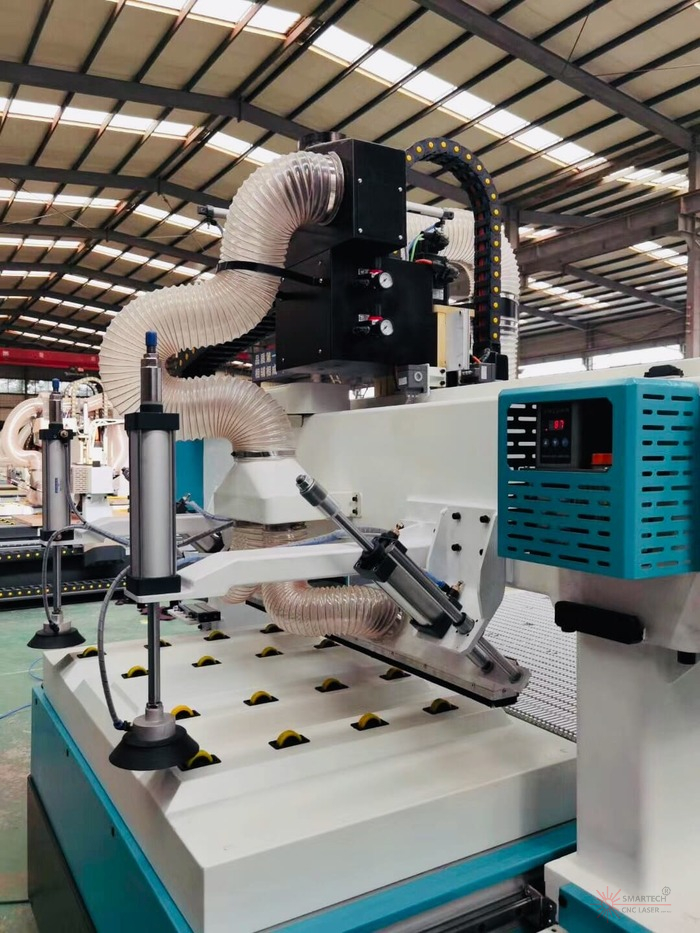

Automatic materials pushing system,automatic feeding roller,dust collection system,automatic oil system
Italy HSD spindle 12 HP
New Cast Aluminium table instead of cast iron table

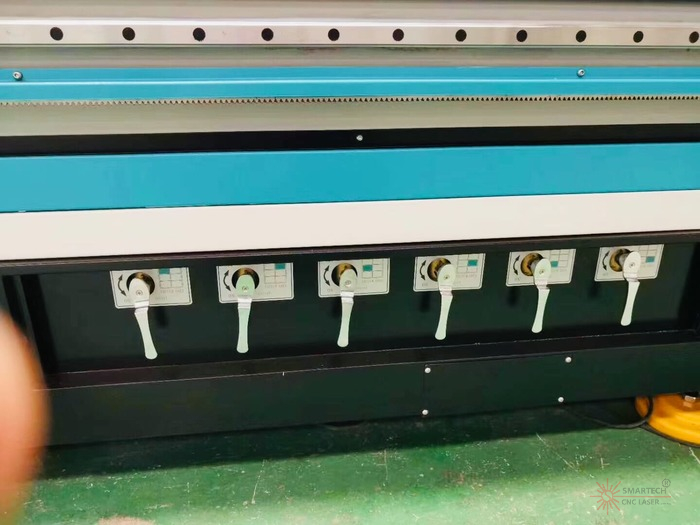

New vacuum table control valves with lights.
FAQ
1.How about your service after sales ?
We offer the service from you got the machine, including how to install the machine, how to use machine.
2. How should I pay for my order ? What is the procession of this purchase ?
We accept TT by bank. You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the balance. Credit card and Alibaba trade assurance is also acceptable. western union and paypal is also accetable.L.C payment is also acceptable for the big amount orders.
3. What kind of company is your company?
Our company is a professional CNC router manufacturer with many years’ experience. We specialize in the development and production of CNC router, with over 10 years cnc router manufacturing experience, our products have been exported to over 50 countries and districts. OEM and other special customized solution are also available.
4. Can we go to your factory to visit?
Of course, we warmly welcome customers to visit our factory, test the machine and learn more about us. You will feel our sincerity, service and our professionalism.
5. Are you a factory or a trading company?
We are factory, manufacturer. We have a strong production capacity.We could also help you buy any items together with cnc laser machines for free and load together with machines.
