English
 |
SS1530
SMARTECH
1500x3000/2000x3000mm/1300x2500mm
3/4.5/5.5/6/9kw
as your preference
CNC Router For marble stone granite Engraving.
CNC Router For marble stone granite Engraving specifications
NO. | Description | Parameter | Optional |
1 | X,Y,Z Working Area | 1500x3000x200mm | 1325/2030/2040 etc |
2 | Table Size | 2250×3800mm | |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | |
4 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm | |
5 | Lathe Structure | Steel Structure | |
6 | X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings | |
7 | Z Structure | Ball Screw, Shaft Linear Bearings | |
8 | Max. Consume power | 6 Kw(not include spindle) | |
9 | Max. Speed | 0-32000mm/min | |
10 | Max. Working Speed | 0-20000mm/min | |
11 | Spindle Power Motor | 3.0 KW spindle | Bigger power / Multiheads |
12 | Spindle Speed | 0-24000RPM | 0-18000RPM |
13 | Working Mode | Stepper | Servo |
14 | Working Voltage | AC220V/50/60Hz,1PH
| (Option: 380V,3PH) |
15 | Command | G Code, *uoo, *mmg, *plt | |
16 | Operating System | DSP | NC Studio with computer |
17 | Interface | USB | |
18 | Flash Memory | 8GB | |
19 | Collet | ER25 | |
20 | X,Y Working Delicacy | <0.01mm | |
21 | Software | Artcam software | |
22 | Running circumstance | Temperature: 0℃～45℃ | |
23 | Packing Size | Integrated: 4000X2250X1870mm | |
24 | Net Weight | 2800KG | |
25 | Gross Weight | 3000KG |

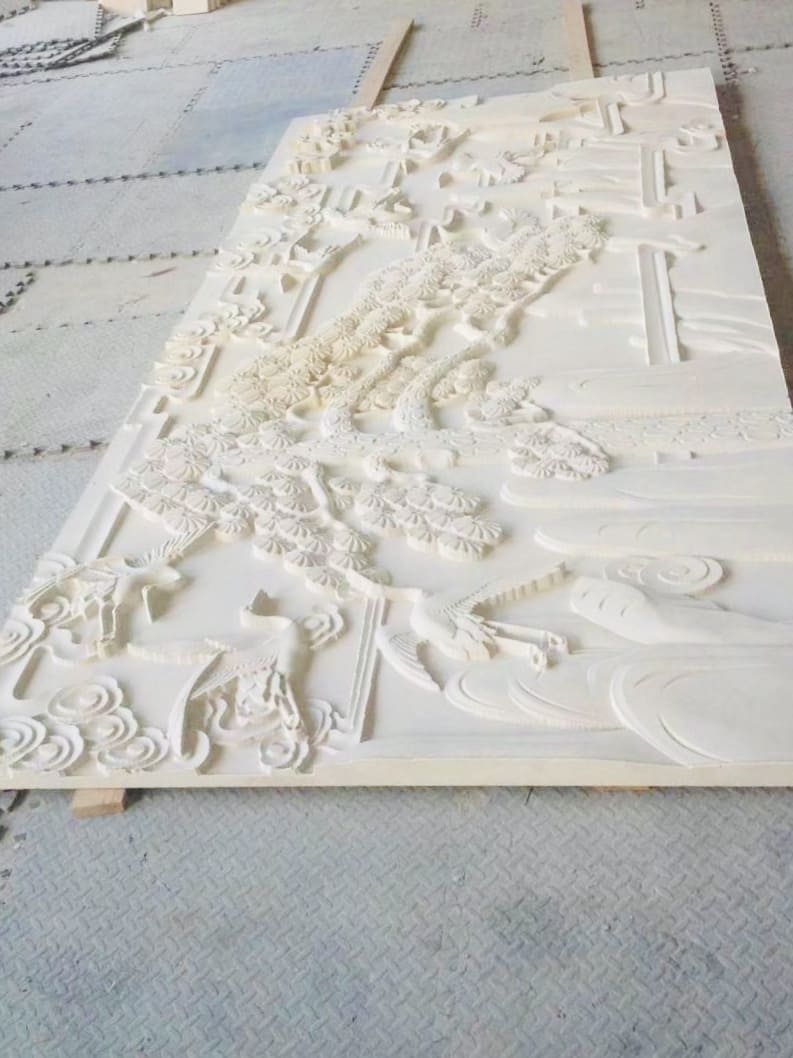

CNC Router For marble stone granite Engraving samples
FAQ
-Q What is the payment terms?
A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A: Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping ways?
A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai.
-Q Can I arrange sample for cutting test? A:Yes, always welcome.
-Q How about your laser machine package? A: Standard export wood package with free fumigation
A:5 Years for whole machine
-Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality control system in our production process.
Contact us for more information ~~
