Availability: | |
---|---|

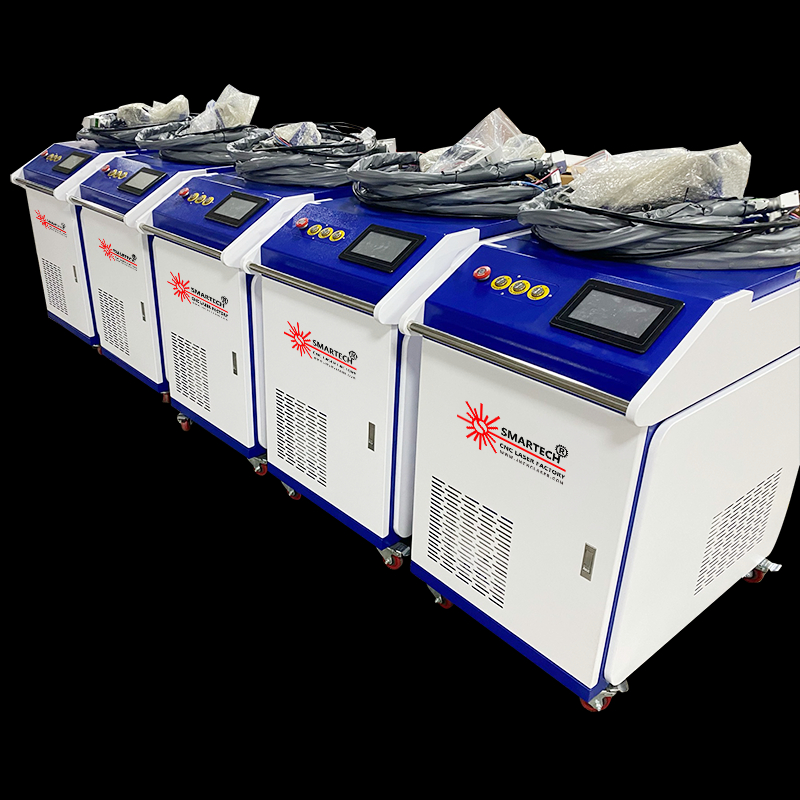

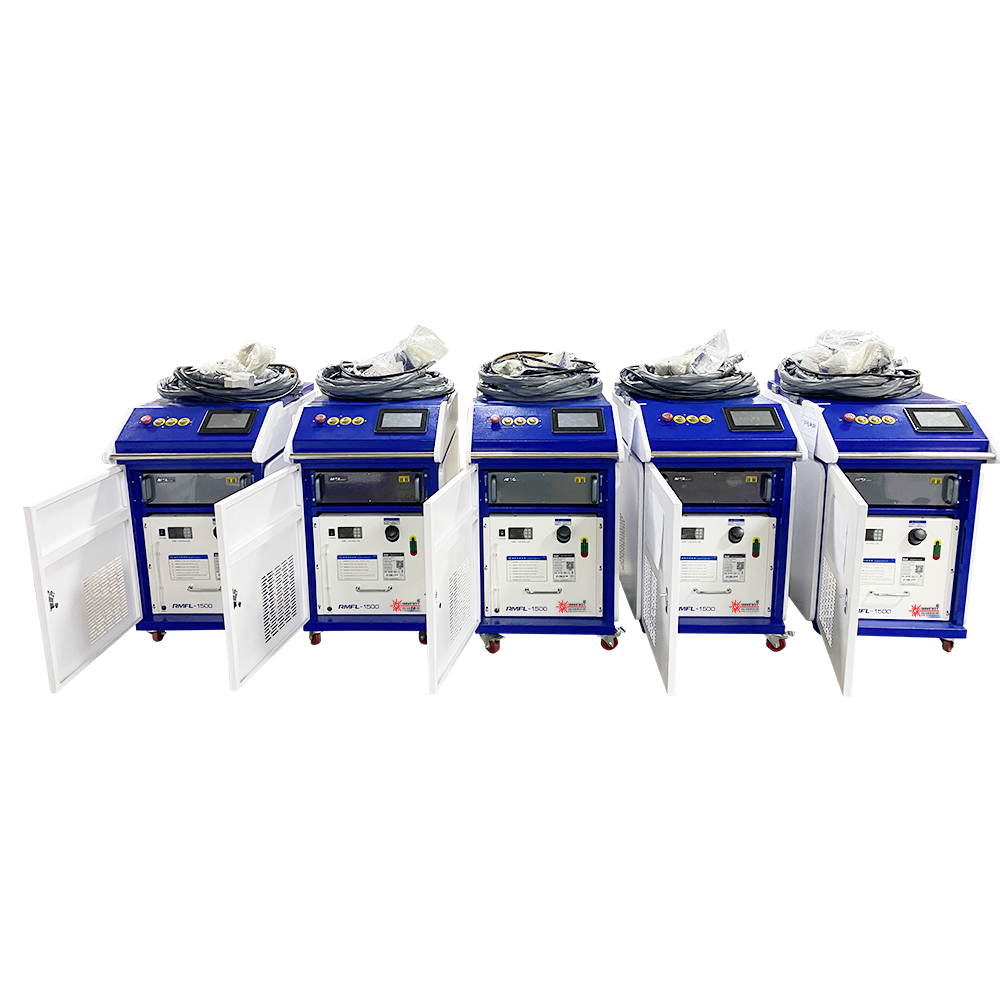

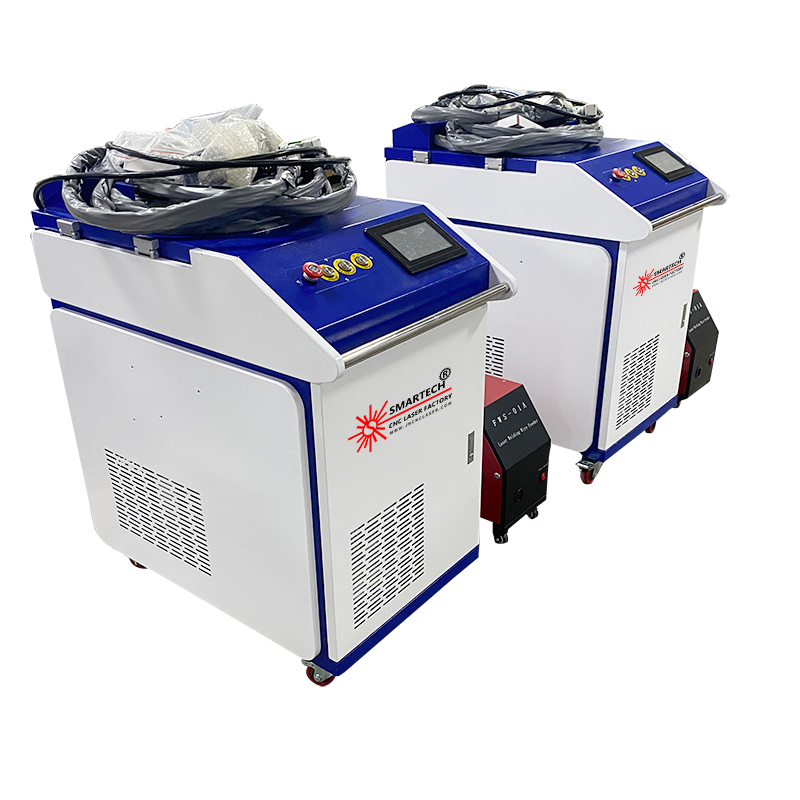

SMART-1000/SMART-1500/SMART-2000/SMART-3000
SMARTECH
Continuous fiber laser
1200*600*1300mm 680*590*1140mm
2000w
Model | SMART-1000 | SMART-1500 | SMART-F2000 | ||
Laser type | Continuous fiber laser | ||||
Rated output power | 1000W | 1500W | 2000W | ||
Power adjustment range | 10%~100% | ||||
Laser center wavelength | 1080±3nm | ||||
output method | Continuous/modulation | ||||
Maximum modulation frequency | 50kHz | ||||
Power instability | <3% | ||||
Fiber output interface | QBH | ||||
Indicating system | Red light | ||||
Fiber core | 20μm | 30μm | 50μm | ||
Fiber length | 15mm | ||||
Torch cable length | 10m | ||||
Torch type | Swing galvanometer welding head left and right | ||||
Collimated focal length | 50mm | ||||
Focus focal length | 80mm/120mm | ||||

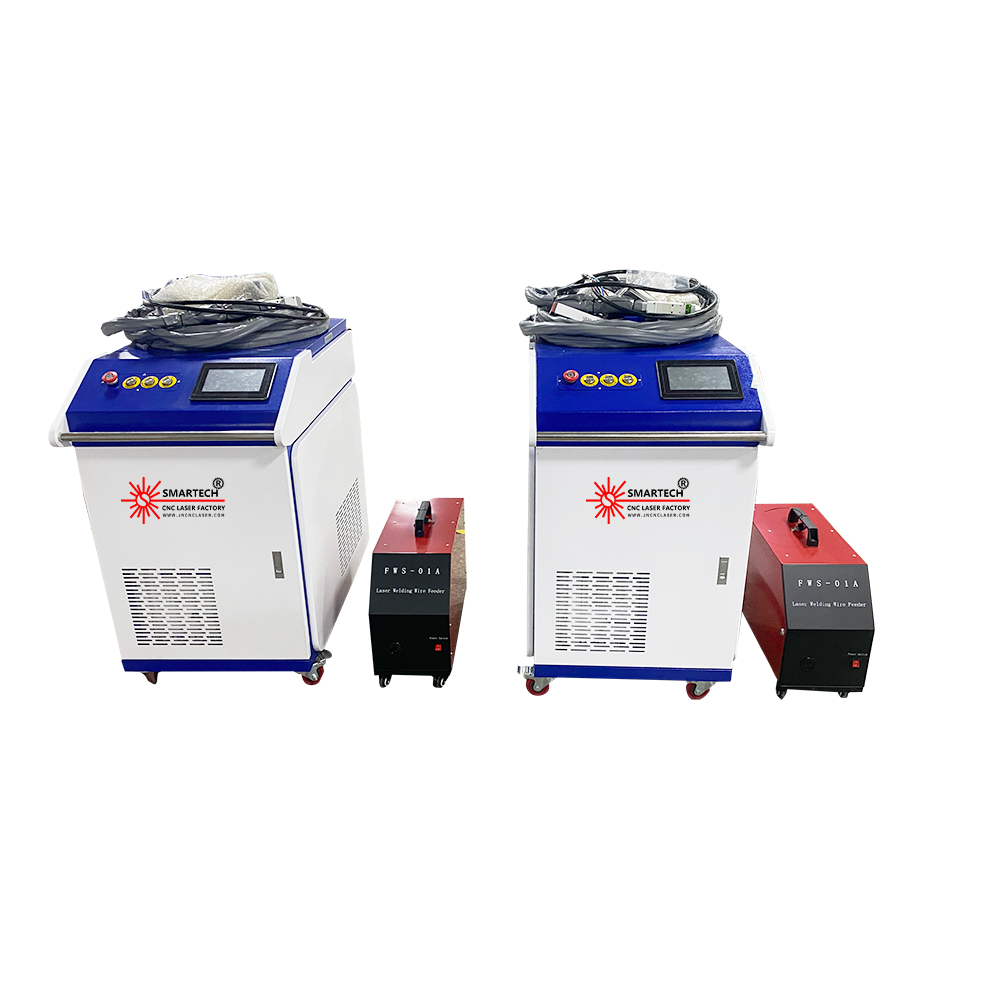

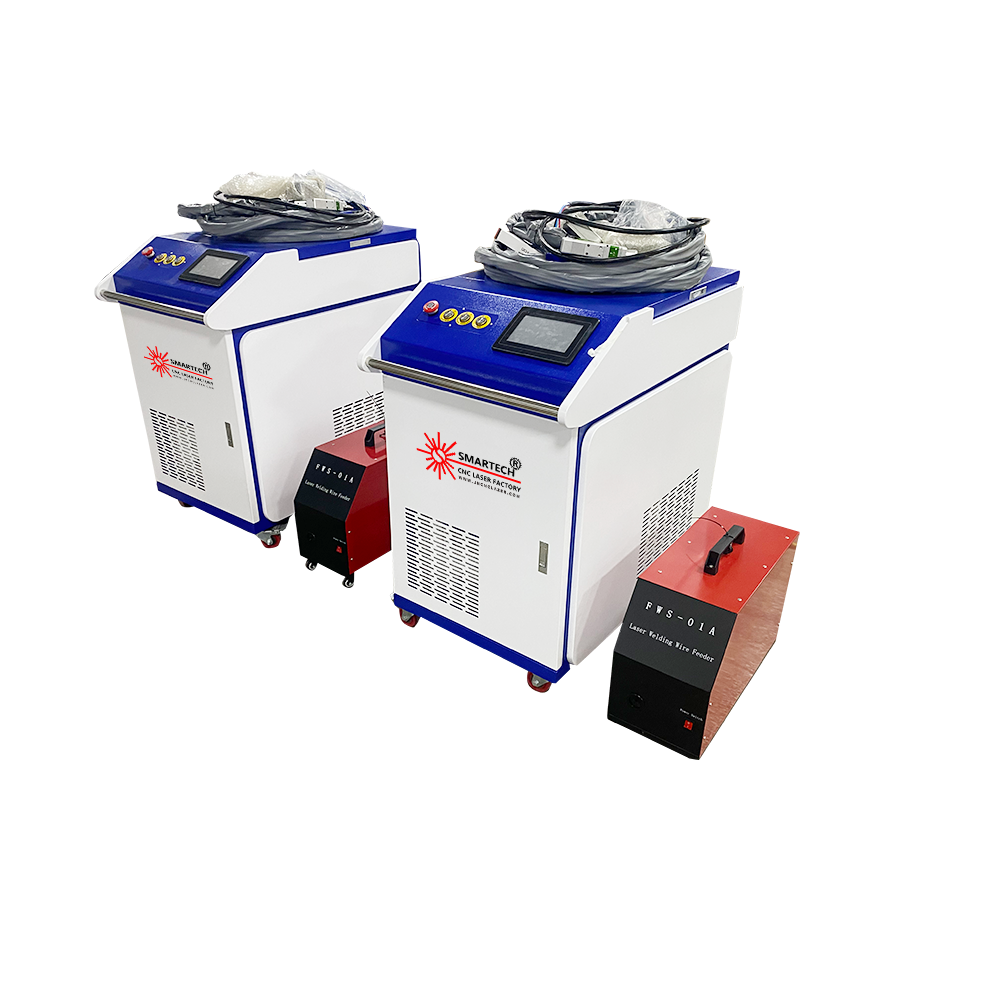

Wire feed diameter | 0.8, 1.0, 1.2, 1.6 | ||||
Torch weight | 1.1kg | ||||
Protective gas method | Coaxial protection | ||||
Adjustable weld width | 0~6 mm | ||||
Water flow | >12L/min | >15L/min | >25L/min | ||
product structure | All-in-one | Split | |||
Product size L*D*H | 1200*600*1300mm | 1200*600*1300mm 680*590*1140mm | |||
product weight | 160kg | 250kg | |||
Working temperature | 10~40℃ | ||||
Working environment humidity | <70% | ||||
Operating Voltage | Single phase 220VAC | Three-phase five-wire 380VAC Single phase 220VAC | |||
Total power | <5kw | <7kw | <9.5kw |
Parameter item | Typical value | ||
model | FSC 1000 | FSC 1500 | FSC 2000 |
Maximum output power | 1000W | 1500W | 2000W |
Power adjustment range | 10%-100% | ||
Beam output | 1 beam | ||
optical fiber | Core diameter20/30/50um length 15m Connector QBH | ||
Energy instability | ≤±3% | ||
Laser wavelength | 1080nm±10nm | ||
Spot quality | ≤2mm.mrad | ||
Continuous working time | 24 Hour | ||
Control mode | External RS232/External AD/Hyper Terminal | ||
Cooling medium | Water cooling | ||
Cooling water flow | >12(L/min) | >15(L/min) | >25(L/min) |
Calibration system | Red light indicator | ||
powered by Voltage | twenty two0V | Three-phaseAC380V | |
Maximum power consumption | 4KW | 6KW | 8KW |
Environmental requirements | Temperature 10-40℃ Humidity 10-70% | ||
External dimensions mm | 483*191*740mm | 483*214*850mm | |
weight | 60Kg | 80Kg |
Product Advantage
●The weld seam is beautiful and the deformation is small, saving the cost of subsequent grinding and shaping;
Performance characteristics
●Adapt to welding of various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials;
●The light can be emitted continuously or pulsed, not only for thermal conductivity welding, but also for continuous deep penetration welding. It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, etc. ●Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%, and the service life of the pump source is greater than 100,000 hours; ●Fast processing speed; ●Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials); ●It can process parts with complex shapes and small parts, and can also be processed in vacuum; ●and Robotic arm and other automated institutions Combined, the processing can be automated; ●Can realize filler wire welding,Due to advanced processing methods, existing product structures and materials can be improved.welding gun
cleaning gun
cleaning modes

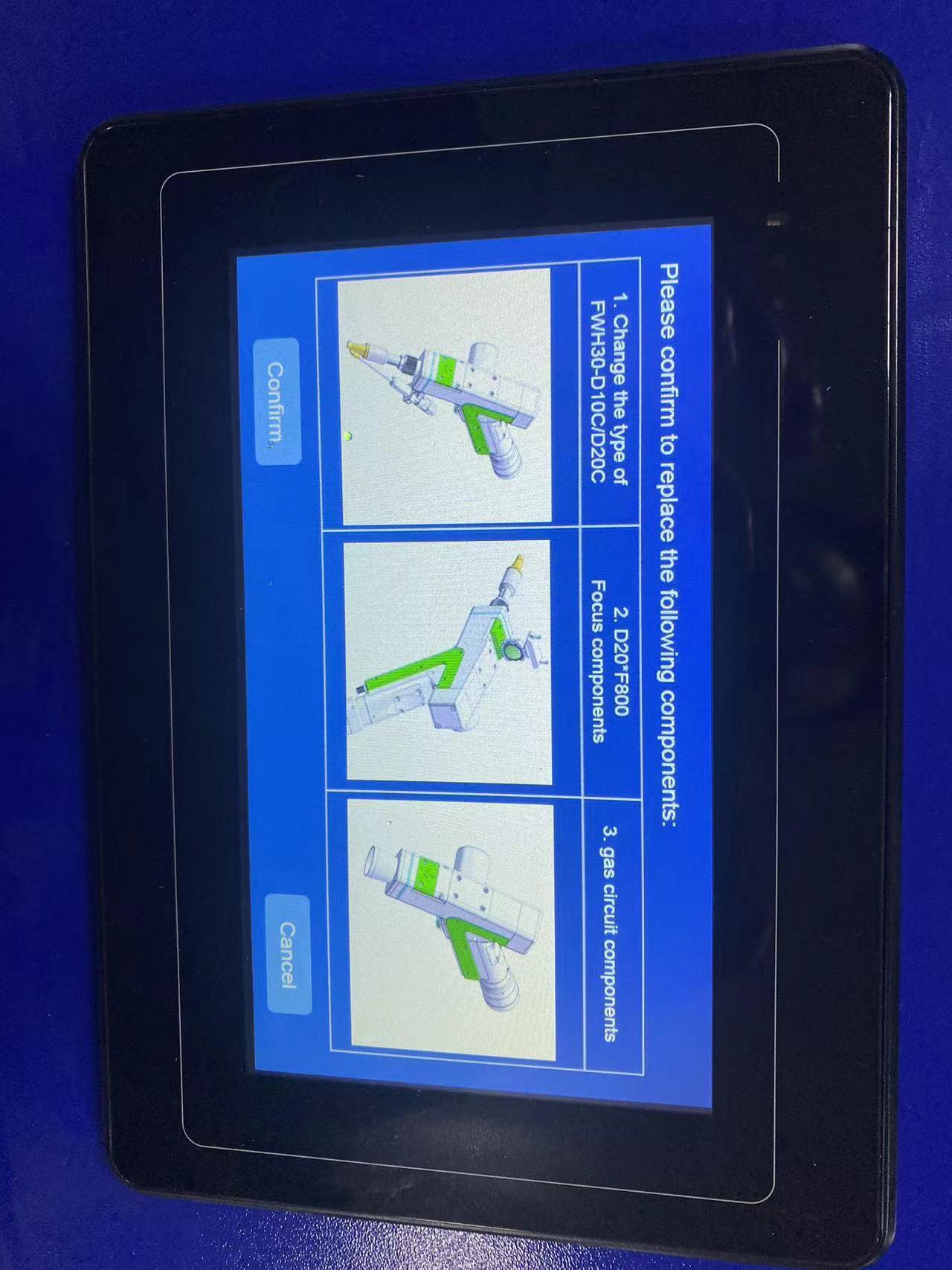

gun options

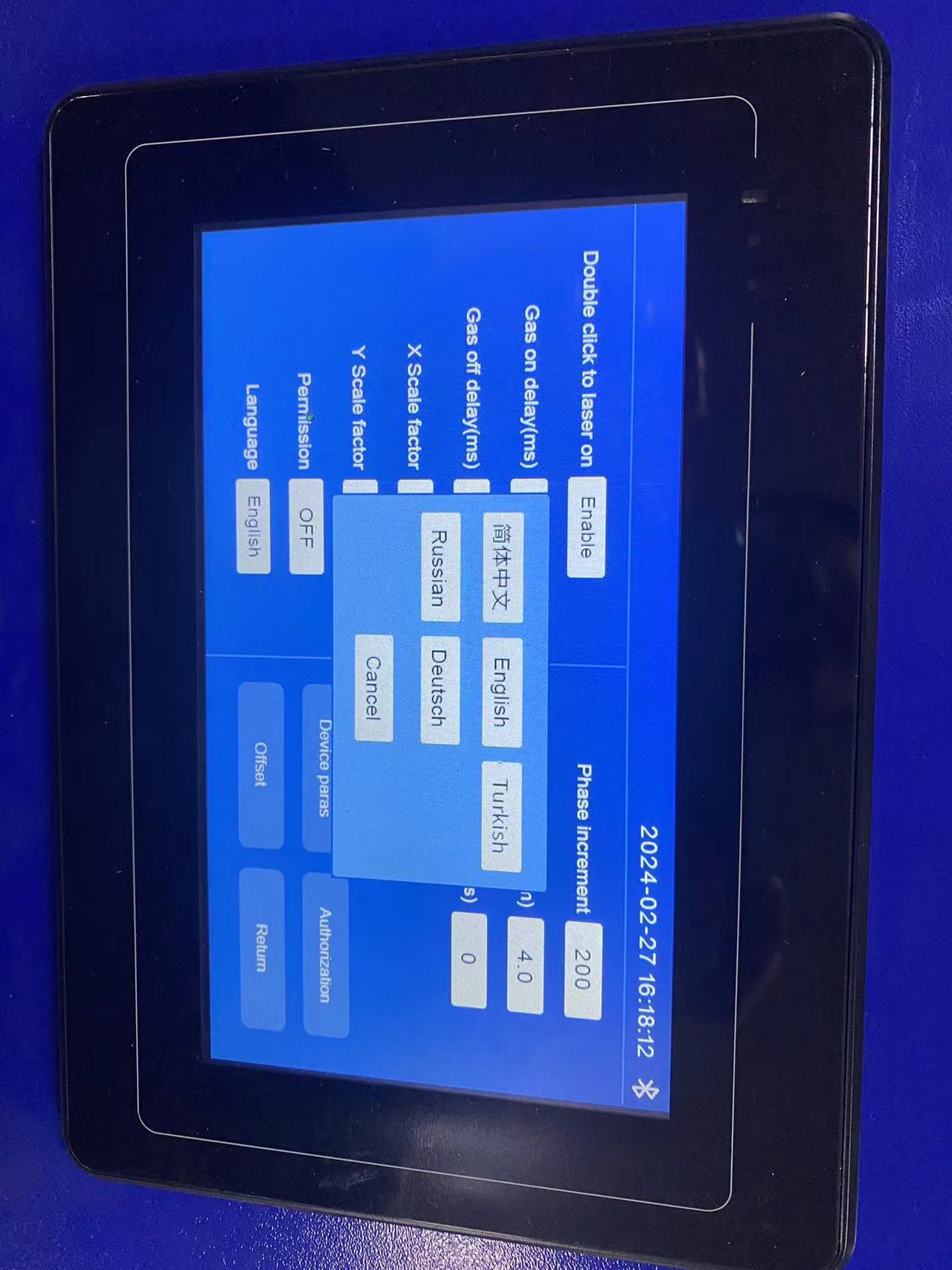

Language interface
