English
 |
Smart-130T/160T-3200/3000
SMARTECH
Technical description
No. | Item | numerical value | unit | |
1 | Nominal pressure | 100 | KN | |
2 | Workbench length | 3200 | mm | |
3 | distance between columns | 2500 | mm | |
4 | throat depth | 350 | mm | |
5 | Slider stroke | 180 | mm | |
6 | maximum opening height | 580 | mm | |
7 | Slide stroke speed | Get off quickly | 120 | mm/s |
Work progresses | 9 | mm/s | ||
Return trip | 100 | mm/s | ||
8 | main motor power | 7.5-6 | kw | |
Main product parameters
project | unit | Accuracy requirements |
1. Slider Y1, Y2 axis accuracy | ||
Repeat accuracy | mm | ≤0.05 |
positioning accuracy | mm | ≤0.08 |
2. Back gauge X-axis working accuracy | ||
Repeat accuracy | mm | ≤0.05 |
positioning accuracy | mm | ≤0.08 |
3. Machine tool working accuracy | ||
Test piece bending angle accuracy | mm | +0.5°mm/3000mm |
Test piece straightness accuracy | mm | ±0.15/1000 mm |

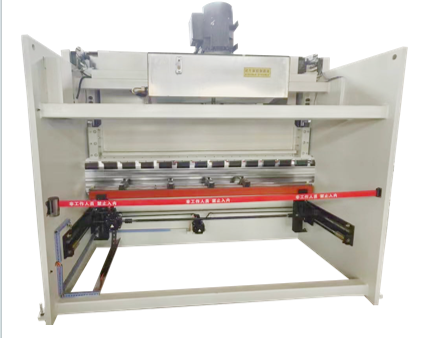

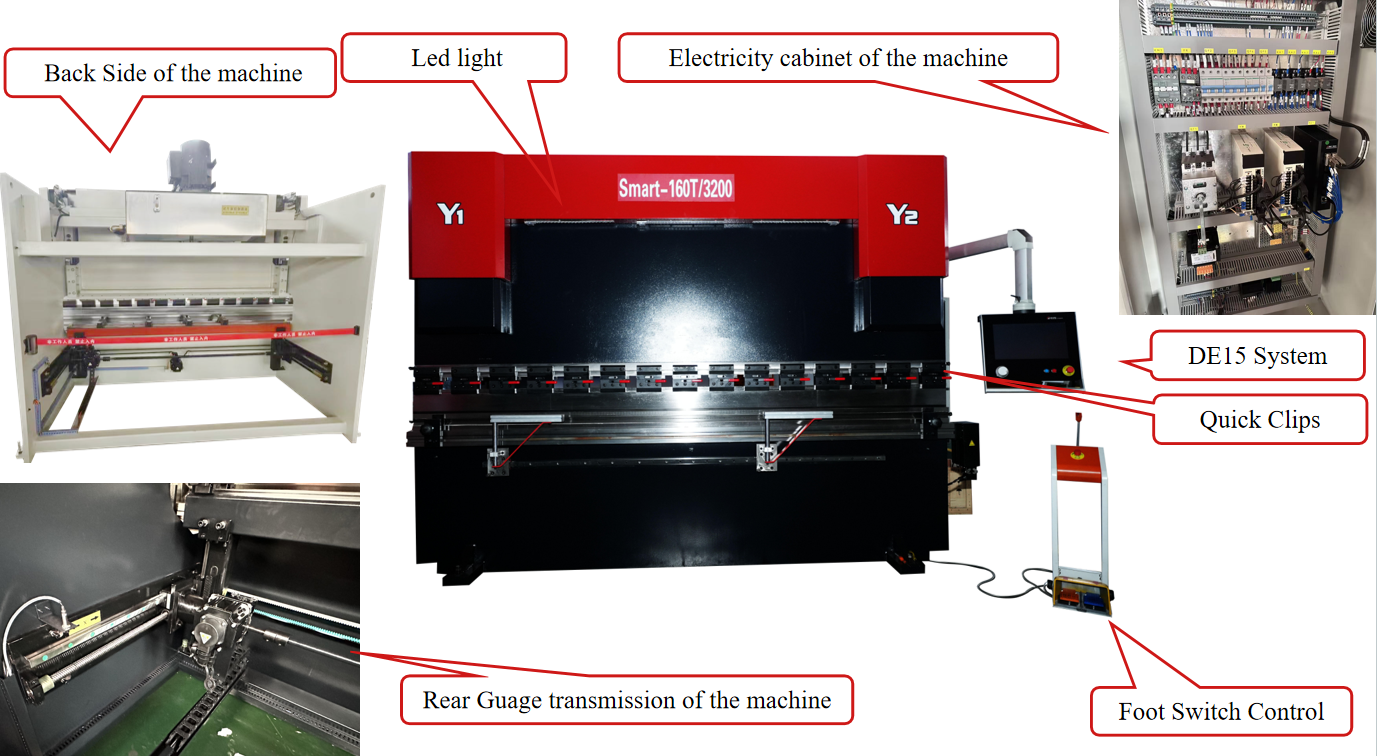

Machine parts
This machine is assembled from a frame, slider, workbench,
oil cylinder, hydraulic proportional servo system,

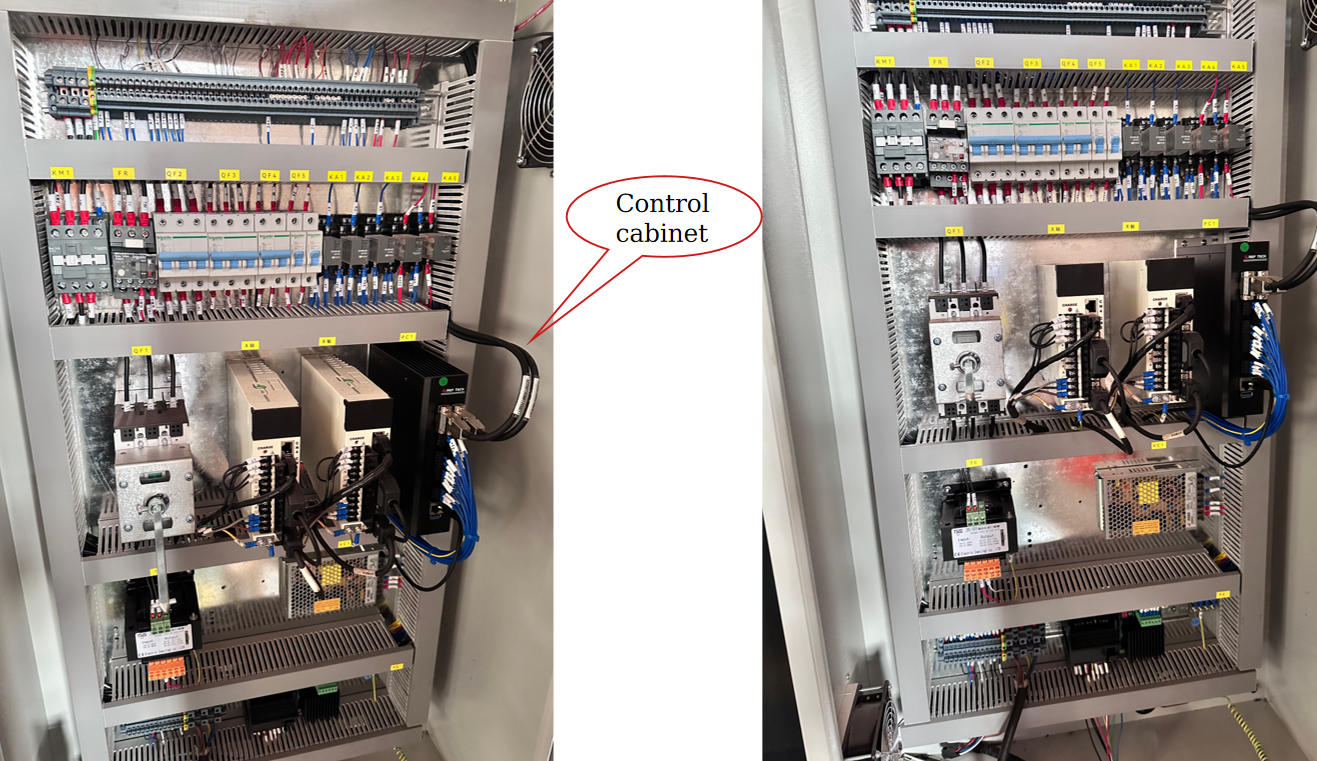

position detection system, numerical control system and electrical system.
The transmission structure of this machine tool
is an upward-moving design;
1. The mechanical structure of this machine tool mainly consists of the frame, workbench, slider, main cylinder, and back gauge. Perfect design and manufacturing technology can effectively ensure the manufacturing and use accuracy of machine tools.
2. The rack adopts frame structure, the all-steel overall welded structure eliminates internal stress through
normalizing and high-frequency vibration aging to ensure the overall accuracy of the machine tool, has excellent stiffness, and has excellent anti-twisting and anti-tilt capabilities. The thickened worktable and slider make the whole machine highly rigid, so the slider and worktable deform very little during bending, and the workpiece has excellent straightness and angle consistency.
●Use a large floor-standing boring and milling machine to perform precision processing using the overall one-time processing method., to ensure the overall processing accuracy of the machine tool.

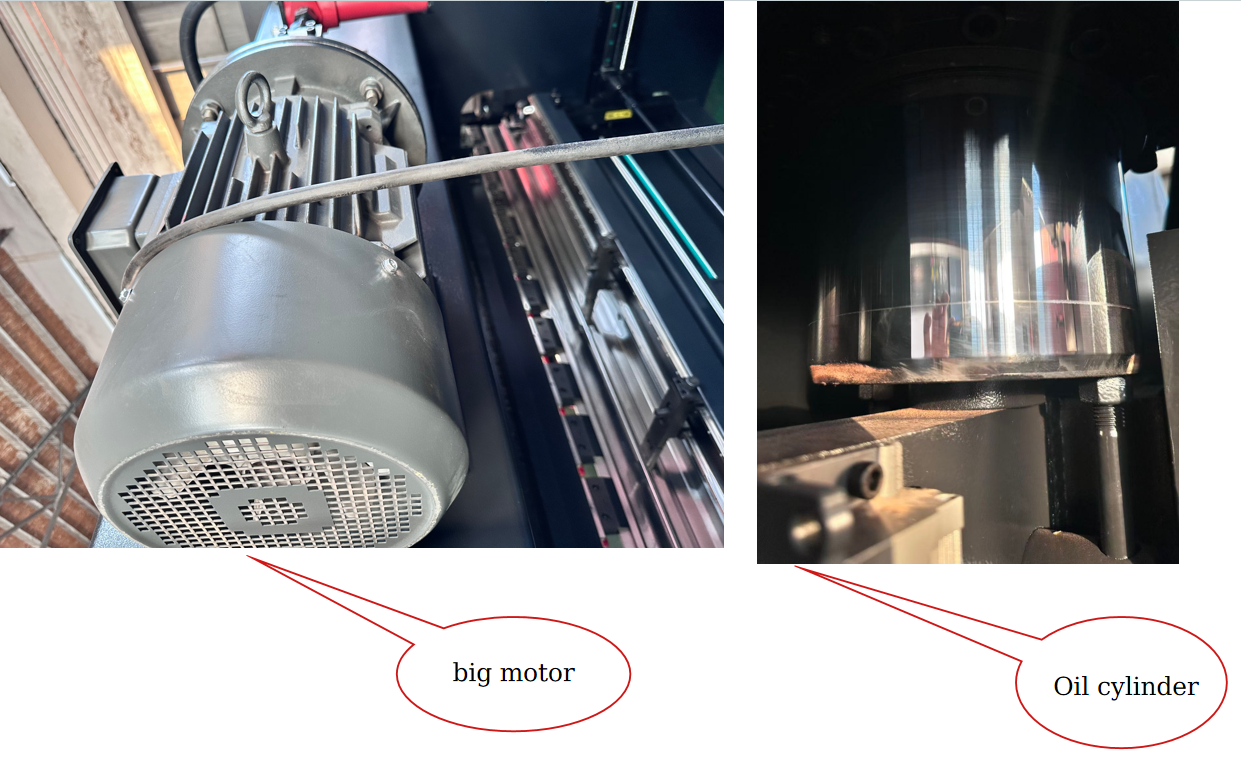

●The up and down movement of the slider is controlled by two oil cylinders. The slide synchronization mechanism adopts CNC electro-hydraulic servo control synchronization, which is stable and reliable.

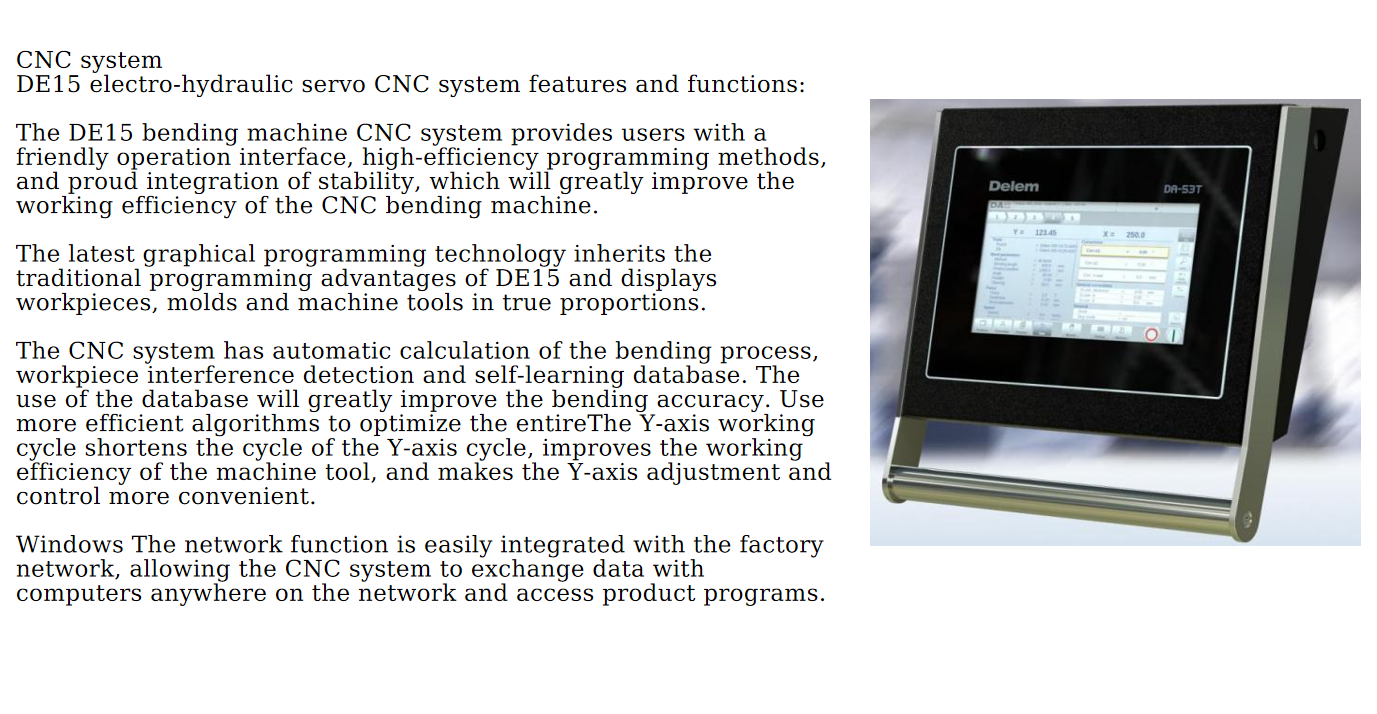

●showThe current position and target position of Y1 axis, Y2 axis, X axis and R axis.
●There are adjustment, semi-automatic and fully automatic modes.
●The backgauge device has the functions of automatically retracting materials and delaying action.

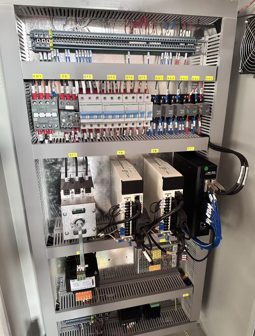

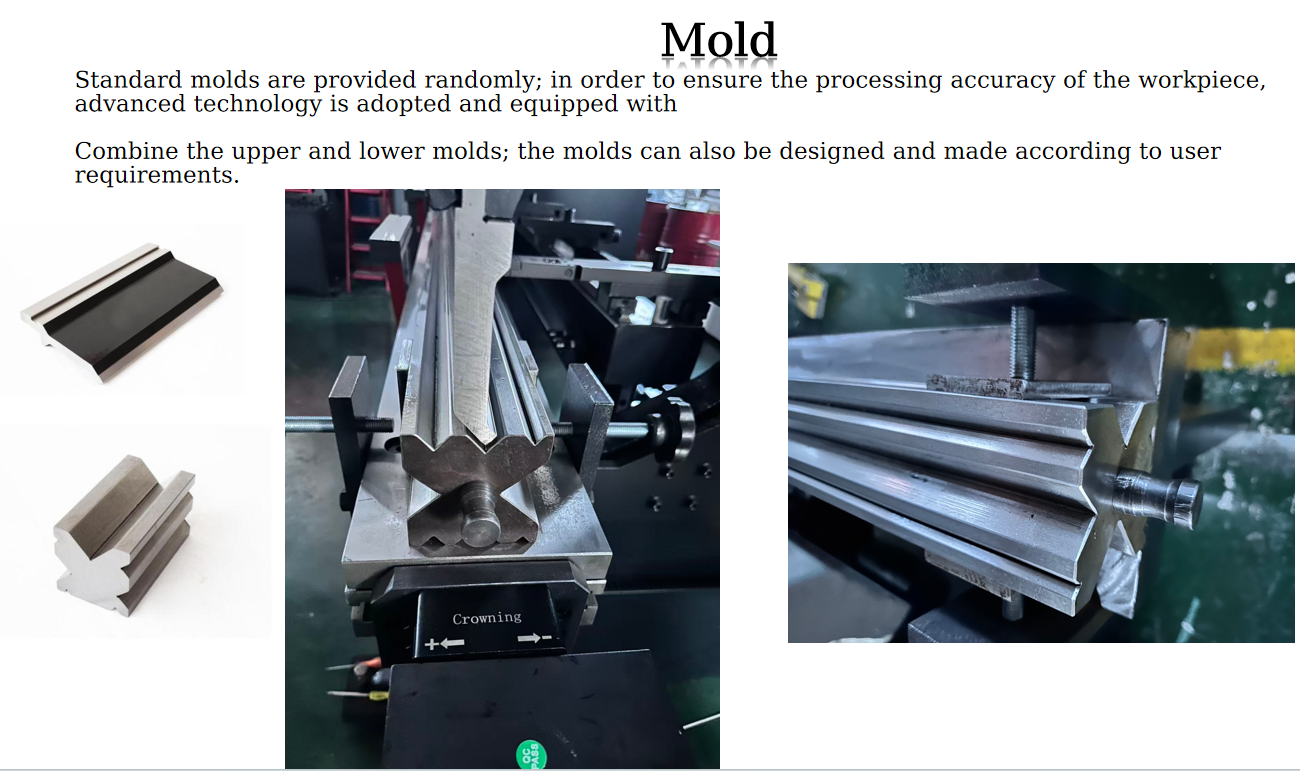

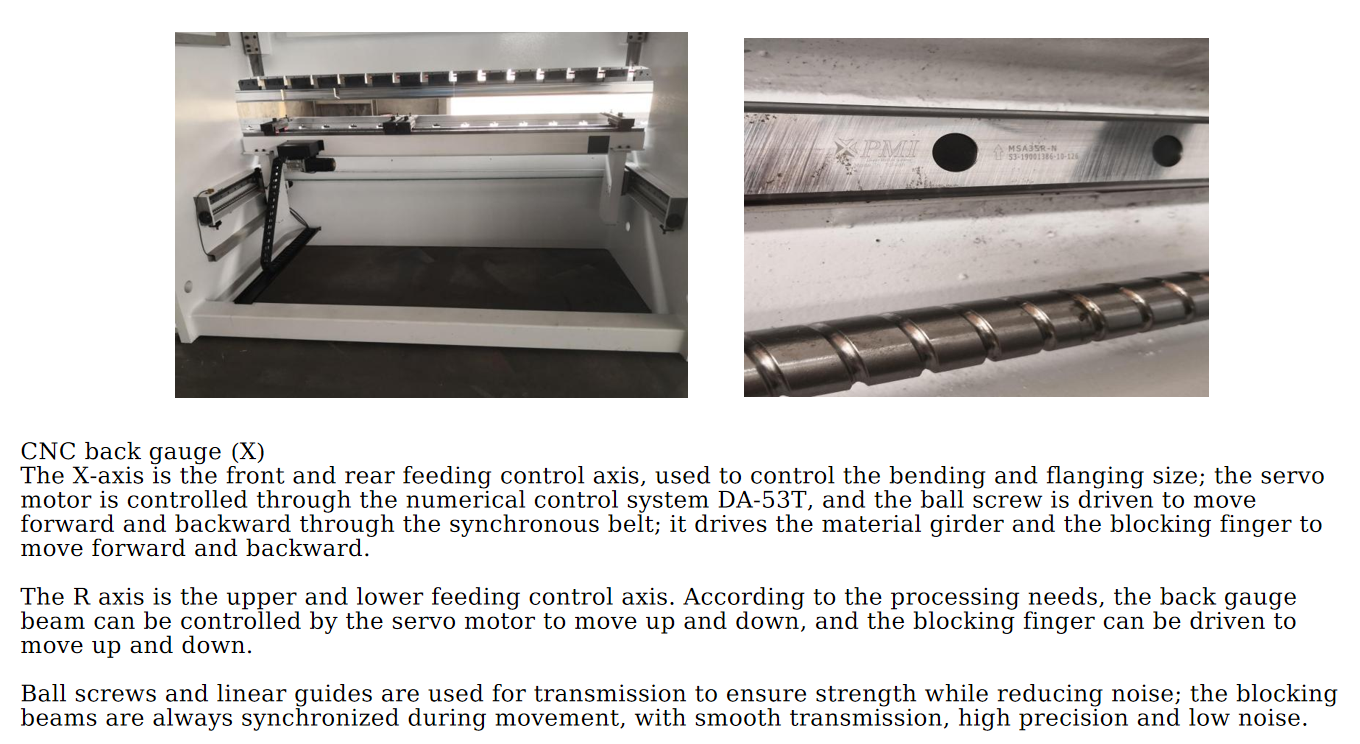

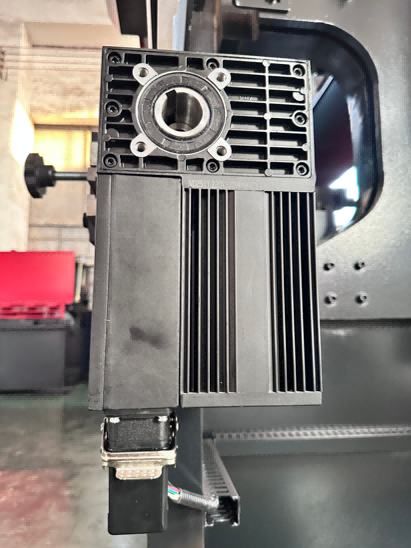

●The backgauge device adopts Mitsubishi servo motor and Taiwan Intime ball screw and linear guide rail.X axis Transmission positioning accuracy and repeat positioning accuracy are reliably guaranteed.
