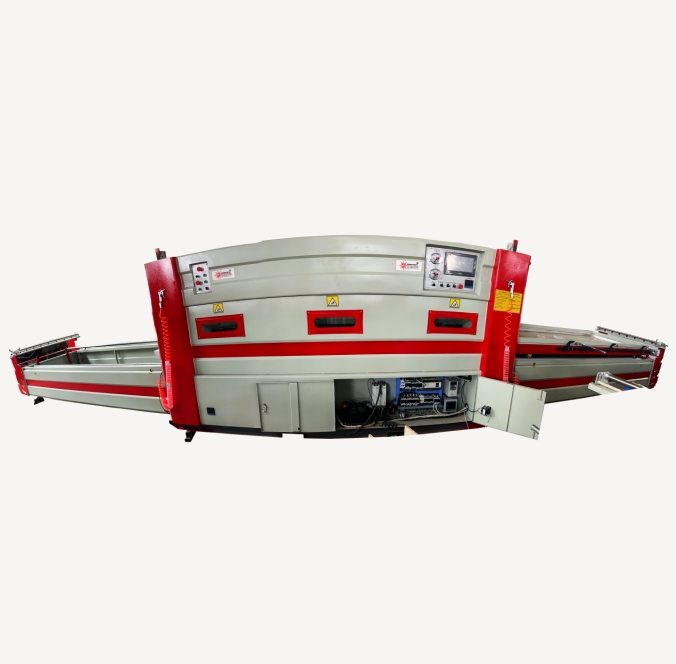

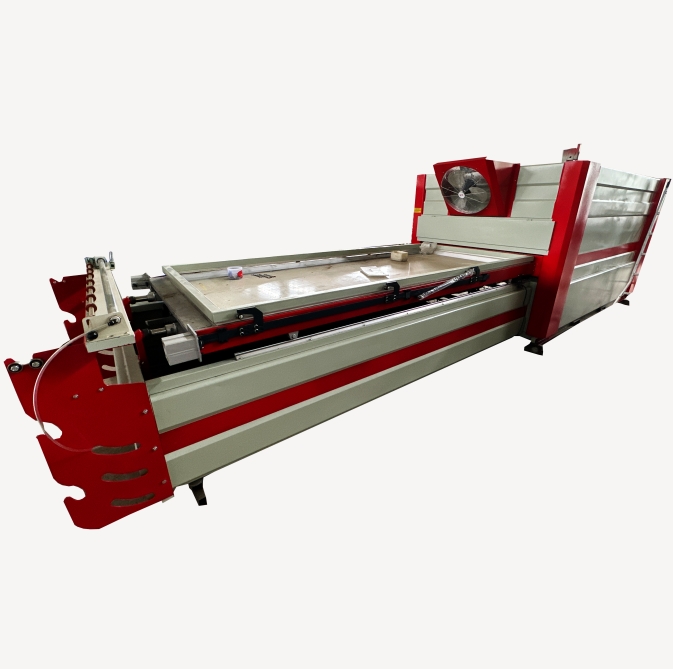

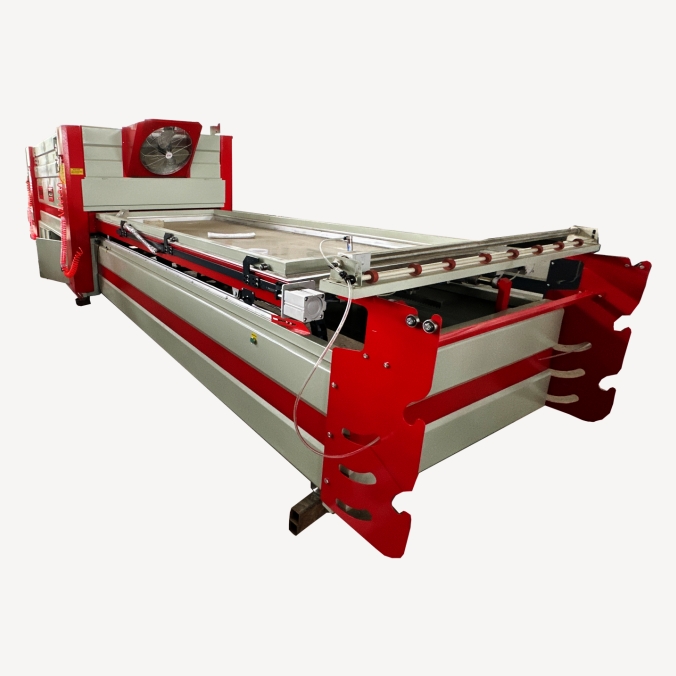

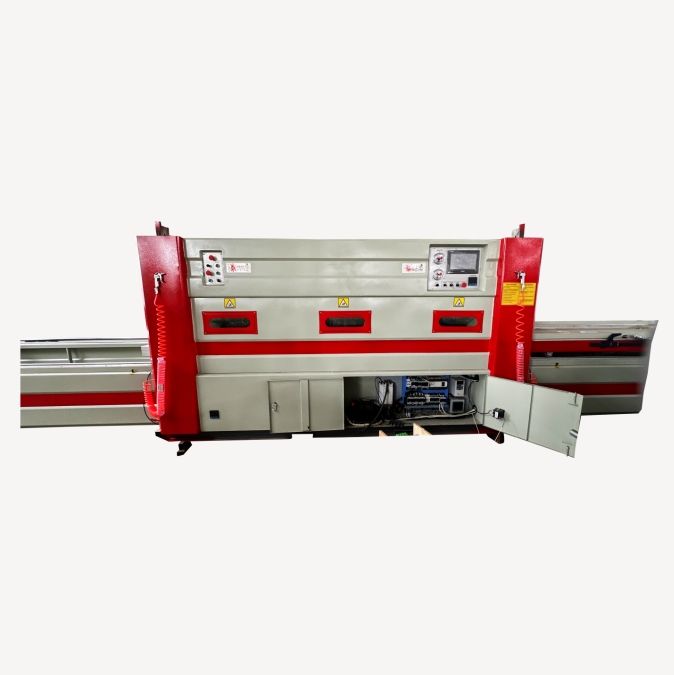

Fully Automatic Heated Vacuum Membrane Press Touch Screen Control Laminating Machine
1) External dimensions: 8,000 x 1,850 x 1,350mm
2)Worktable dimensions: 2,500 x 1,300 (1,400) x 60mm * 2 Packing Size 3550×1940×1920mm(13 CBM)
3) Max. processing height: 80mm
4) PVC thickness:0.1-0.45mm;
5)Max vacuum press:-0.1Mpa;
6) Total power: 20kW
7) Actual power:5kW
8)Total weight: 1,500kg
9)Upper heating and down Double heat preservation
10)140 m3/h vacuum pump
11)PCL(microcomputer control system) touching panel
12)Schneider electrical parts
13)Double Observation windows
14)Trimming knife
15)Positioning plate
16)Automatic Locks (no need to lock table by hands)
17)Automatic cutting knife for pvc film(no need to cut from rollers manually)
1.The machine has two functions of manual and automatic operation,simple and convenient operation and high production efficiency,
2. Use infrared heating system and high quality heat preservation material,which can ensure even heating and energy saving.
3. This machine uses integrated movement electro motor. It produces less noise and seldom breaks down.

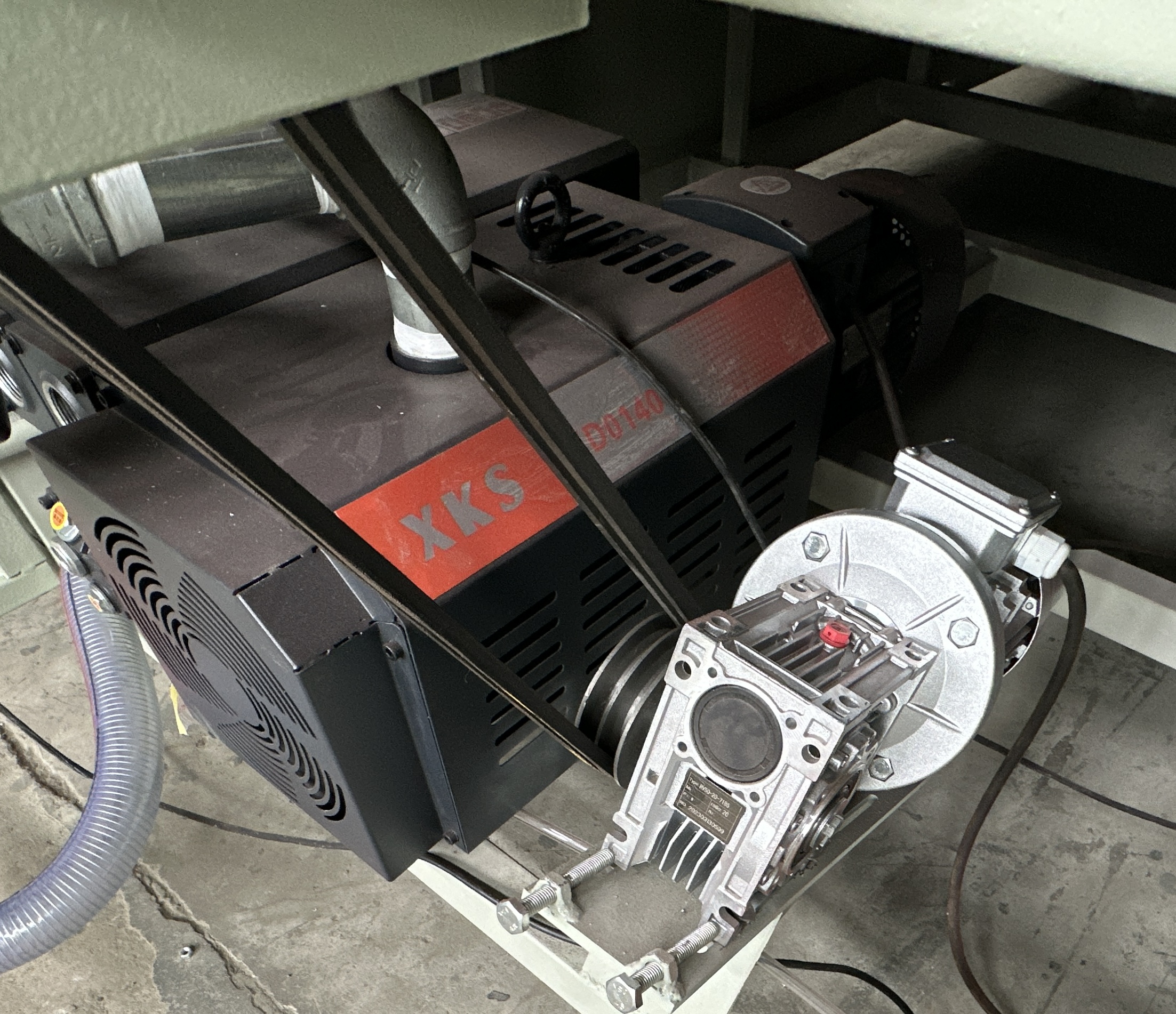

4. This machine uses top 2X series vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also adopt for German-made vacuum pump, which is strong and tough).
5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.
6. Full computer 10-inch touch screen, PLC intelligent computer control, easy to operate by workers. Automatically save the program.
7. With alarm system.after heating reached,it alarm to remind for next step or accident happen, we can stop in time and the light inside can be visible for see the PVC film or veneer changing.
8.Suitable for various high-grade wood. The PVC surface film, such as the simulated skin, is matched with the special hot-pressing rubber to decorate the surface of various plate-type furniture, sound and decorative materials, and is especially suitable for the surface-convex pattern line and the coating of various shape edges. Its main features are fire-proof, water-proof, acid and alkali-resistant, especially in-house decoration, no pollution, no peculiar smell, quick installation, and beautiful appearance, it is the ideal equipment for home decoration industry.
9.Imported nano louver heating, stable temperature control, the basic error is one point one degree, instead of aluminum row heating.
10.High and low pressure, three-heating machine (upper heating, bottom heating, second heating), high and low pressure reduce the probability of film holes, the second heating system, the surface is particularly well formed, suitable for handle-free, high Line artifacts.
11.The zero-pressure start function means that the pressure is discharged to 0-minus 0.2kg before each suction and covering, and the pressure gradually increases with the suction and covering process, and finally reaches minus 0.09-0.07Mpa. (This function is developed to meet the needs of a small number of customers, wasting electric energy, and wearing vacuum pumps, generally not recommended to use this function.
12.After the external rotor cooling fan makes the workpiece come out, the PVC film will cool down quickly without rebounding or opening the glue.
13. Automatic film cutting knife makes PVC cutting more neat and efficient.
14.The pressure frame of the workbench is automatically locked, saving time and effort, and the working chamber has better sealing performance
15.You can use multiple suction and cover, and you can also use the one-time suction and cover function, which can be switched at will, and the suction and cover speed can be easily controlled.
16.The workbench uses Shanghai Heavy Duty frequency conversion, the workbench runs more smoothly, and the workpiece does not shift
17.This machine can be used for multiple suction and cover, and it can also be used for one suction and cover function, which can be switched at will, and the suction and cover speed can be easily controlled.
18.14. It has a manual suction and covering alarm function. When the manual function is suction and covering, it does not focus on the softening process of the film, which greatly liberates the labor.
19. Ultra-thick aluminum silicate rock wool insulation, the thickness is as high as 25 cm, which saves electricity by 3-4 degrees per hour compared with ordinary models.
20.Plastic-sprayed bottom plate, plastic-sprayed pressing frame, bottom plate thickness 4mm, no deformation under high temperature.
21.Exclusive telescopic vacuum tube with 36*2mm diameter, with better sealing. Eliminate the replacement of frequently moving steel pipes every year
22. It has the function of thickening the pipe to inflate, so that the PVC film can stretch more evenly without wrinkles.
23. The machine is equipped with a surrounding heating system to make the heating more uniform, and the Foshan tungsten halogen lamp assists the heating.
24. The gas strut adopts aviation-grade black rod double-sealed configuration.
25. Aluminum seat chrome-plated bearing stainless steel linear guide rail, low noise.
26. The electrical appliance adopts CHINT, which has low failure rate and long life.
27.High flexible cable, PU air pipe, chrome-plated high temperature wire, resistant to burning and not easy to aging. Use black gas connection (black inner component is zinc alloy system), and avoid using blue gas connection (blue inner component is plastic system).

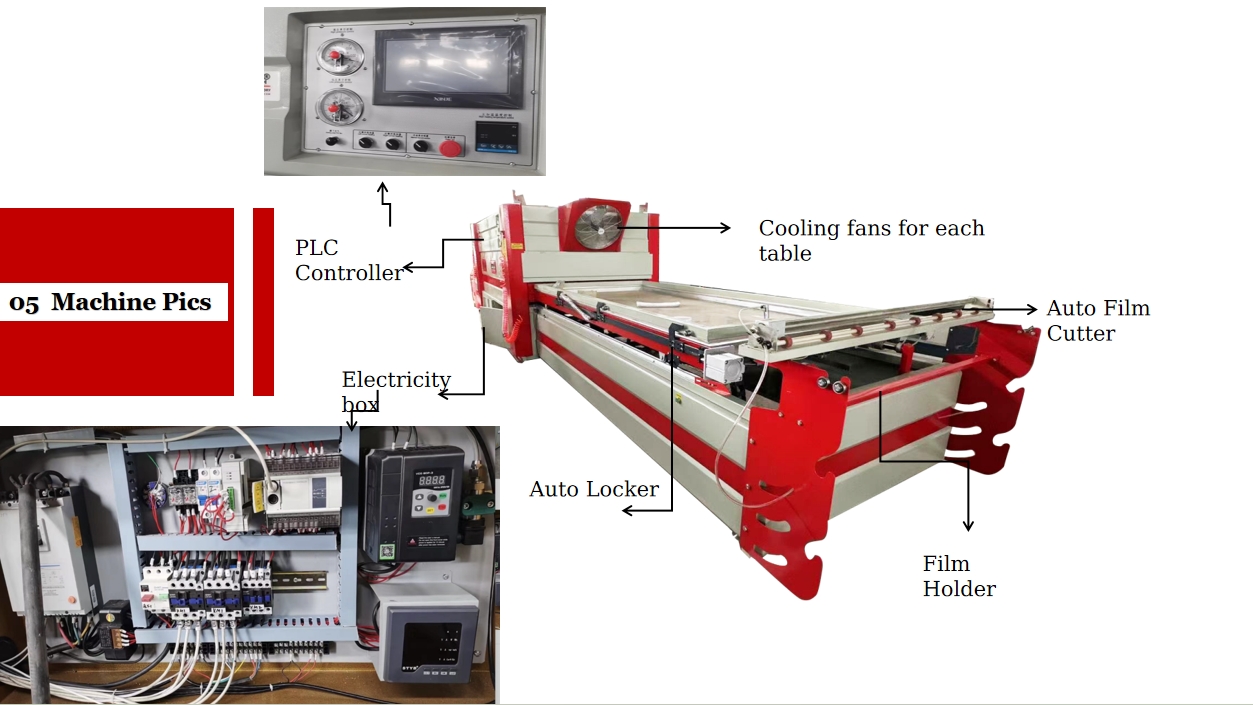

English Language Control Screen

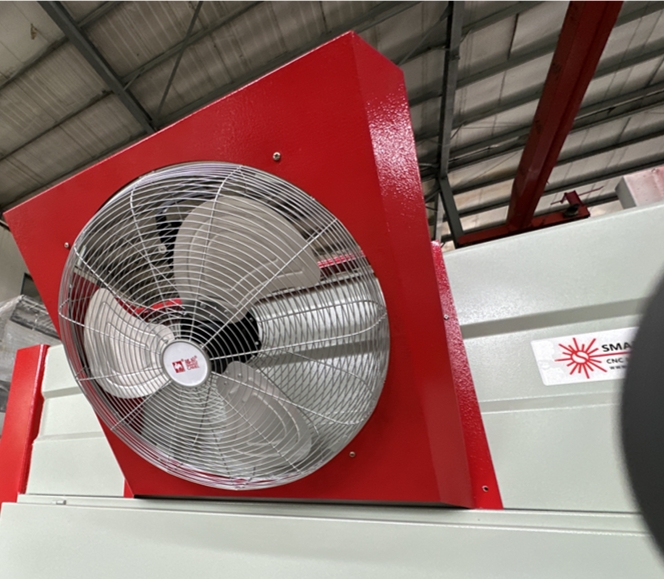

Double cooling fans
