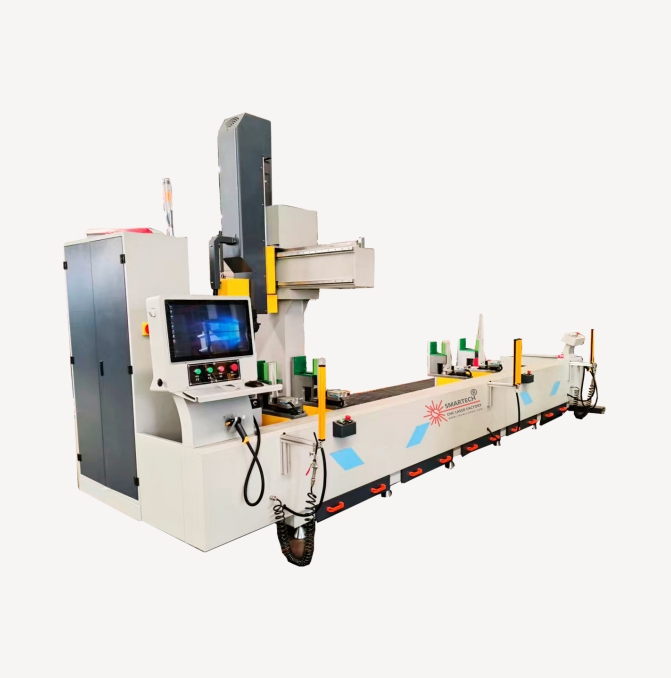

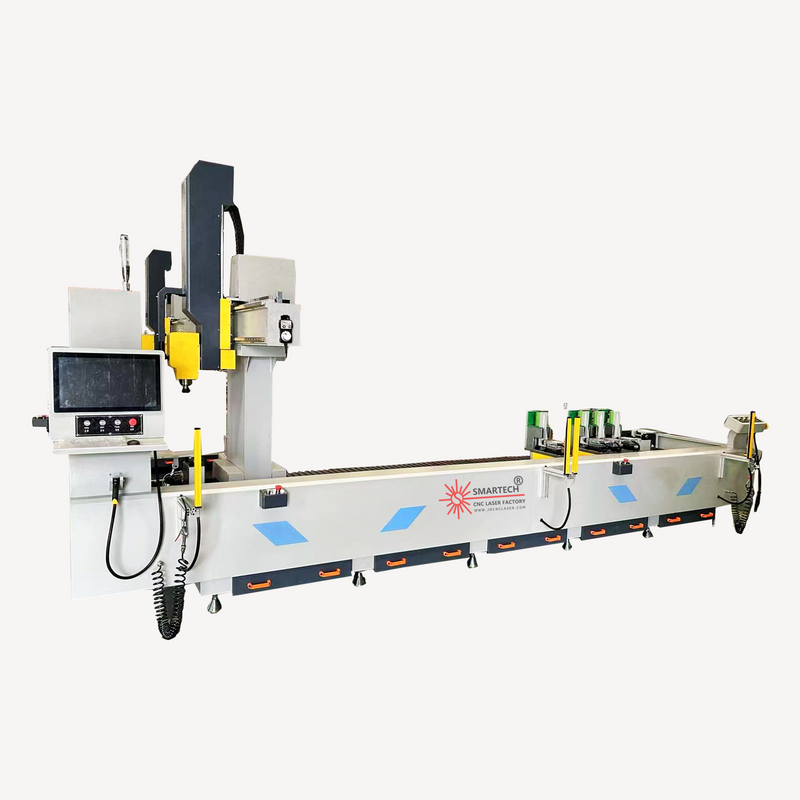

4 Axis Aluminium Profile CNC Drilling Milling Router Machine for Door and Window

1.Suitable for milling various types of holes & slots in aluminum door & window profiles, especially for door locks

2.Adopt high-precision linear guides, ball screws, gear racks and imported servo motors to ensure smooth movement.With higher positioning and processing accuracy.

3. X and Y shaft is driven by gear rack.Z shaft is driven by a lead screw

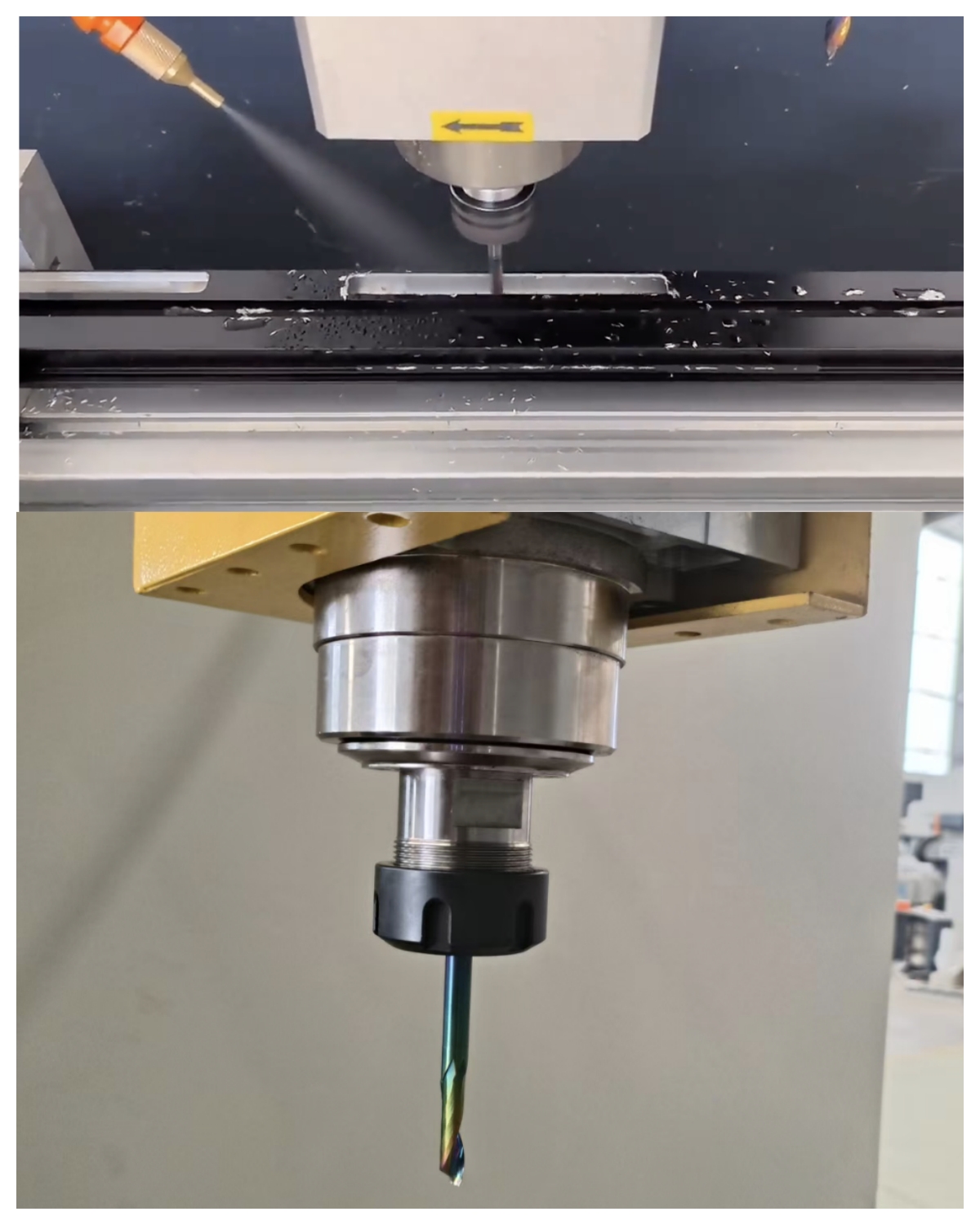

4.Spindle can be rotated and switched at -90°,0°, +90°, this three surfaces can be processed at one time.

5.The spindle rotates through the servo motor and the reducer to achieve precise positioning

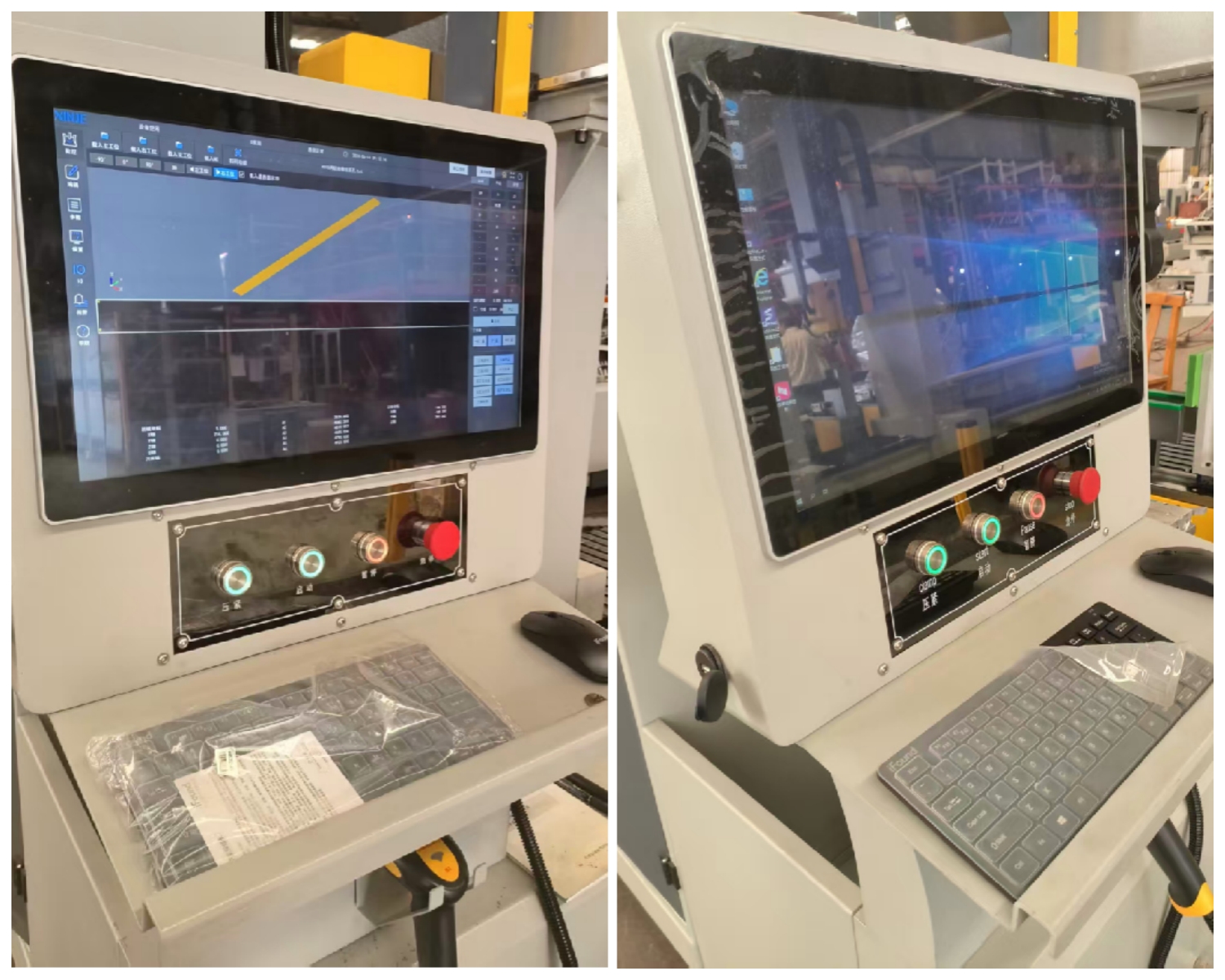

6.Adopting CNC control system, intuitive human-machine interface make operation more intelligently

7.High processing efficiency, high processing precision, stable and reliable performance, easy operation, etc.The must-have product for automating the milling of various types of holes and slots in materials

8.The servo motor drives the workbench to avoid collision with the cutter, which is more labor-saving &convenient. 9.The processing mode of this machine can be divided into single-zone processing or double-zone processing, making the processing efficiency more efficiently.

10.The machine is equipped with a light curtain system. During the processing, if a worker enters a dangerous area, the machine will automatically stop, which is safer.

11.Equipped with automatic lubrication system, lubrication time can be set,no manual oiling operation is required 12.Equipped with automatic tool setting instrument, enable this function to automatically enter the tool length into the system
