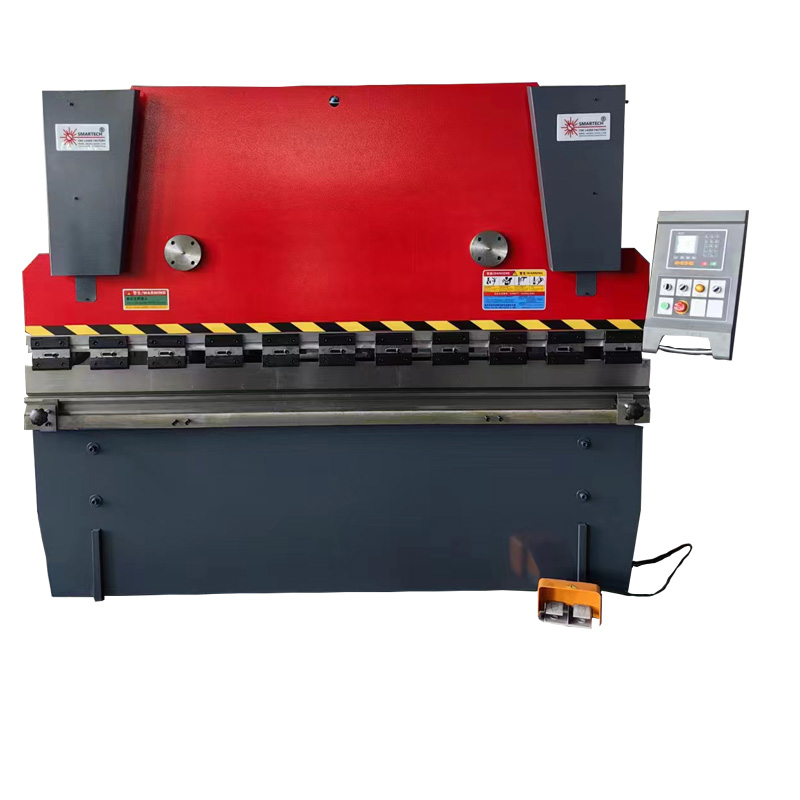

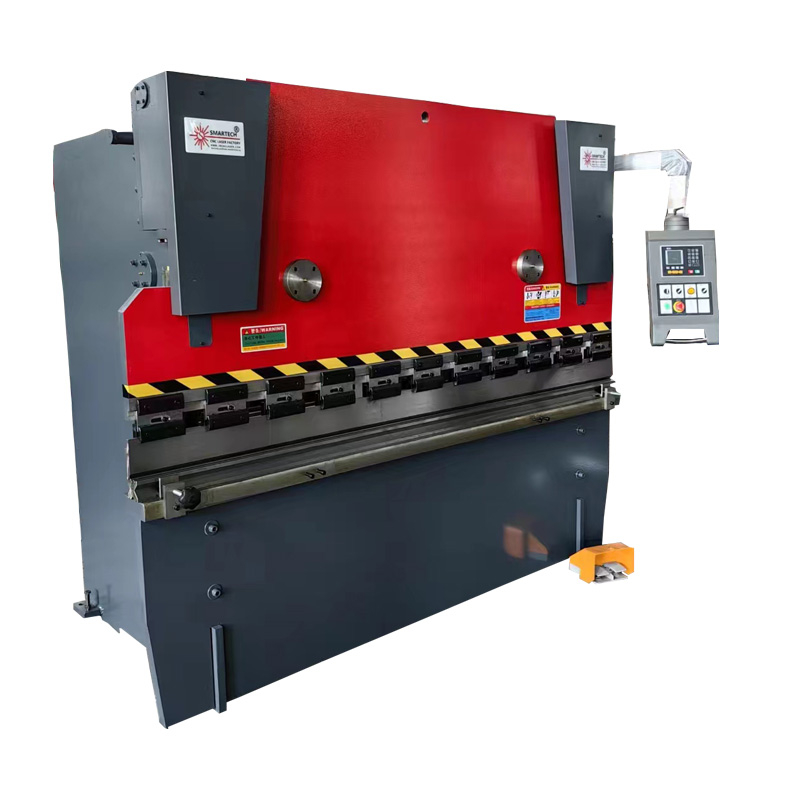

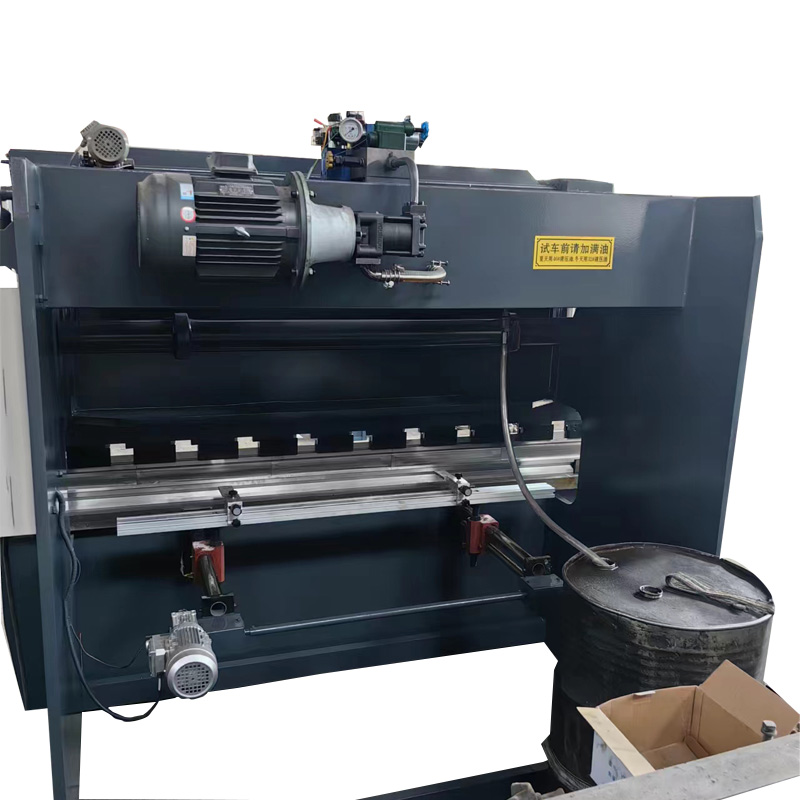

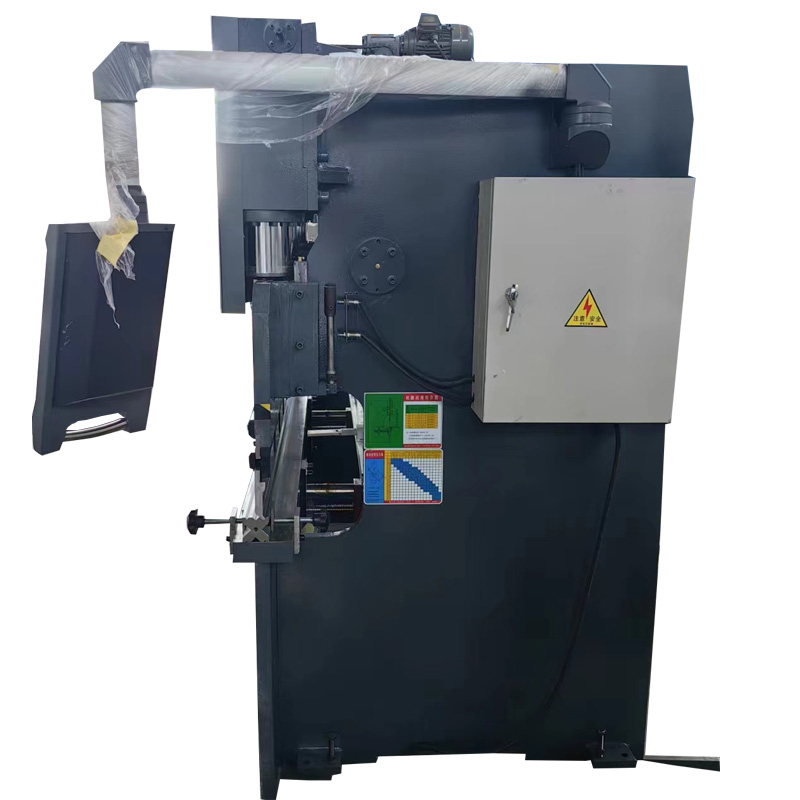

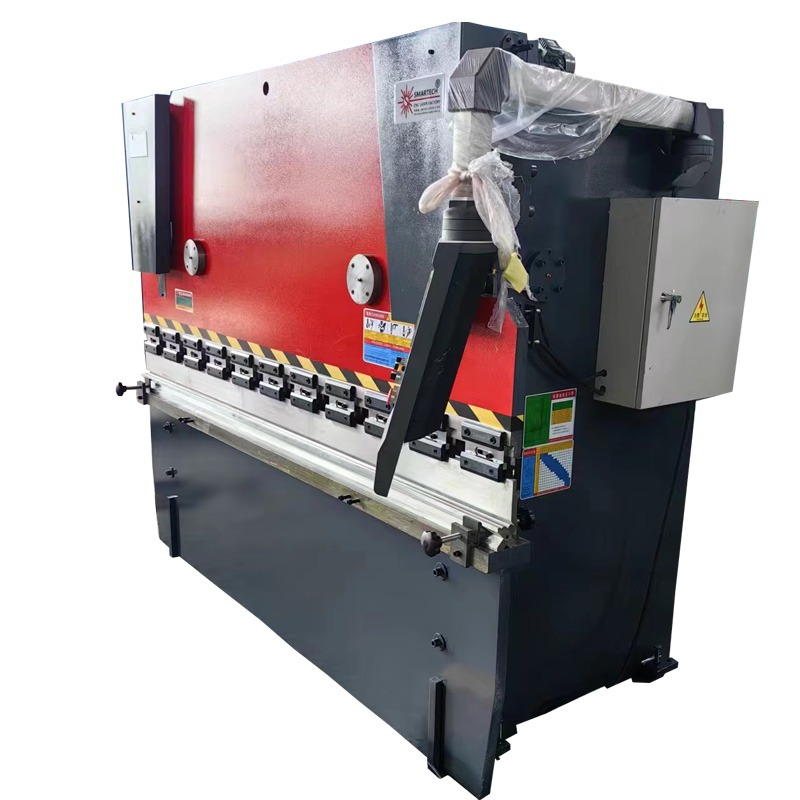

Electro-hydraulic servo CNC bending machine
Main Configuraitons:
Model:Smart-100T-3200
Pressure:100T
bending Length :3200mm
DE15 electro-hydraulic servo synchronous
Control Axis:control4+1 axis (Y1, Y2, X, R) + V
1). Product detailed configuration
No. | Item | numerical value | unit | |
1 | Nominal pressure | 100 | KN | |
2 | Workbench length | 3200 | mm | |
3 | distance between columns | 2500 | mm | |
4 | throat depth | 350 | mm | |
5 | Slider stroke | 180 | mm | |
6 | maximum opening height | 580 | mm | |
7 | Slide stroke speed | Get off quickly | 120 | mm/s |
Work progresses | 9 | mm/s | ||
Return trip | 100 | mm/s | ||
8 | main motor power | 7.5-6 | kw | |
2) Main product parameters
project | unit | Accuracy requirements |
1. Slider Y1, Y2 axis accuracy | ||
Repeat accuracy | mm | ≤0.05 |
positioning accuracy | mm | ≤0.08 |
2. Back gauge X-axis working accuracy | ||
Repeat accuracy | mm | ≤0.05 |
positioning accuracy | mm | ≤0.08 |
3. Machine tool working accuracy | ||
Test piece bending angle accuracy | mm | +0.5°mm/3000mm |
Test piece straightness accuracy | mm | ±0.15/1000 mm |

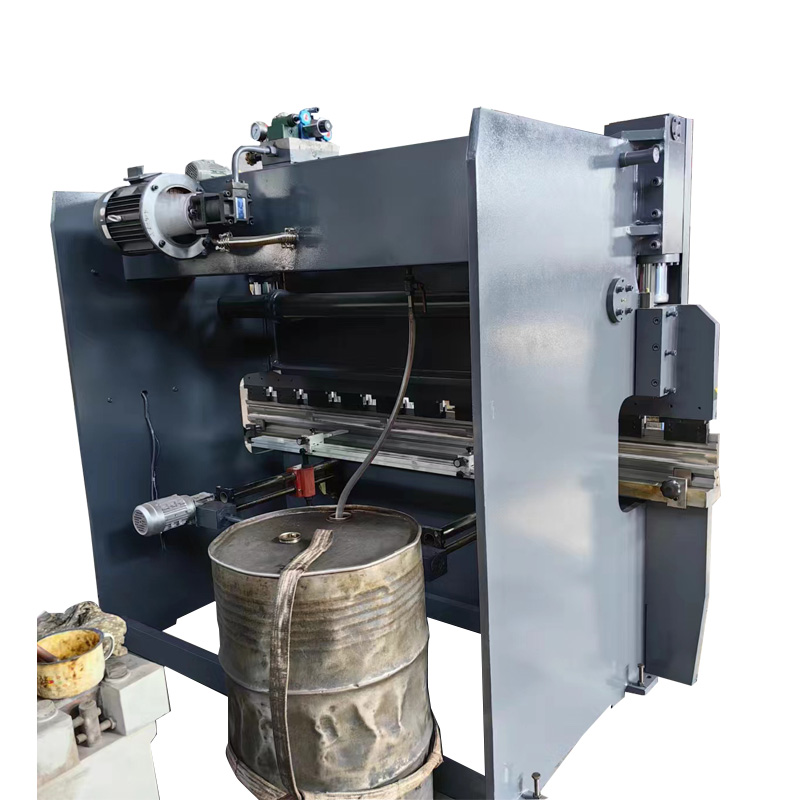

Machine Tool Structure
This machine is assembled from a frame, slider, workbench, oil cylinder, hydraulic proportional servo system, position detection system, numerical control system and electrical system.
The transmission structure of this machine tool is an upward-moving design;
1. The mechanical structure of this machine tool mainly consists of the frame, workbench, slider, main cylinder, and back gauge. Perfect design and manufacturing technology can effectively ensure the manufacturing and use accuracy of machine tools.
2. The rack adopts frame structure, the all-steel overall welded structure eliminates internal stress through normalizing and high-frequency vibration aging to ensure the overall accuracy of the machine tool, has excellent stiffness, and has excellent anti-twisting and anti-tilt capabilities. The thickened worktable and slider make the whole machine highly rigid, so the slider and worktable deform very little during bending, and the workpiece has excellent straightness and angle consistency.
●Use a large floor-standing boring and milling machine to perform precision processing using the overall one-time processing method., to ensure the overall processing accuracy of the machine tool.
●The up and down movement of the slider is controlled by two oil cylinders. The slide synchronization mechanism adopts CNC electro-hydraulic servo control synchronization, which is stable and reliable.
●showThe current position and target position of Y1 axis, Y2 axis, X axis and R axis.
●There are adjustment, semi-automatic and fully automatic modes.
●The backgauge device has the functions of automatically retracting materials and delaying action.
●The backgauge device adopts Mitsubishi servo motor and Taiwan Intime ball screw and linear guide rail.X axis Transmission positioning accuracy and repeat positioning accuracy are reliably guaranteed.

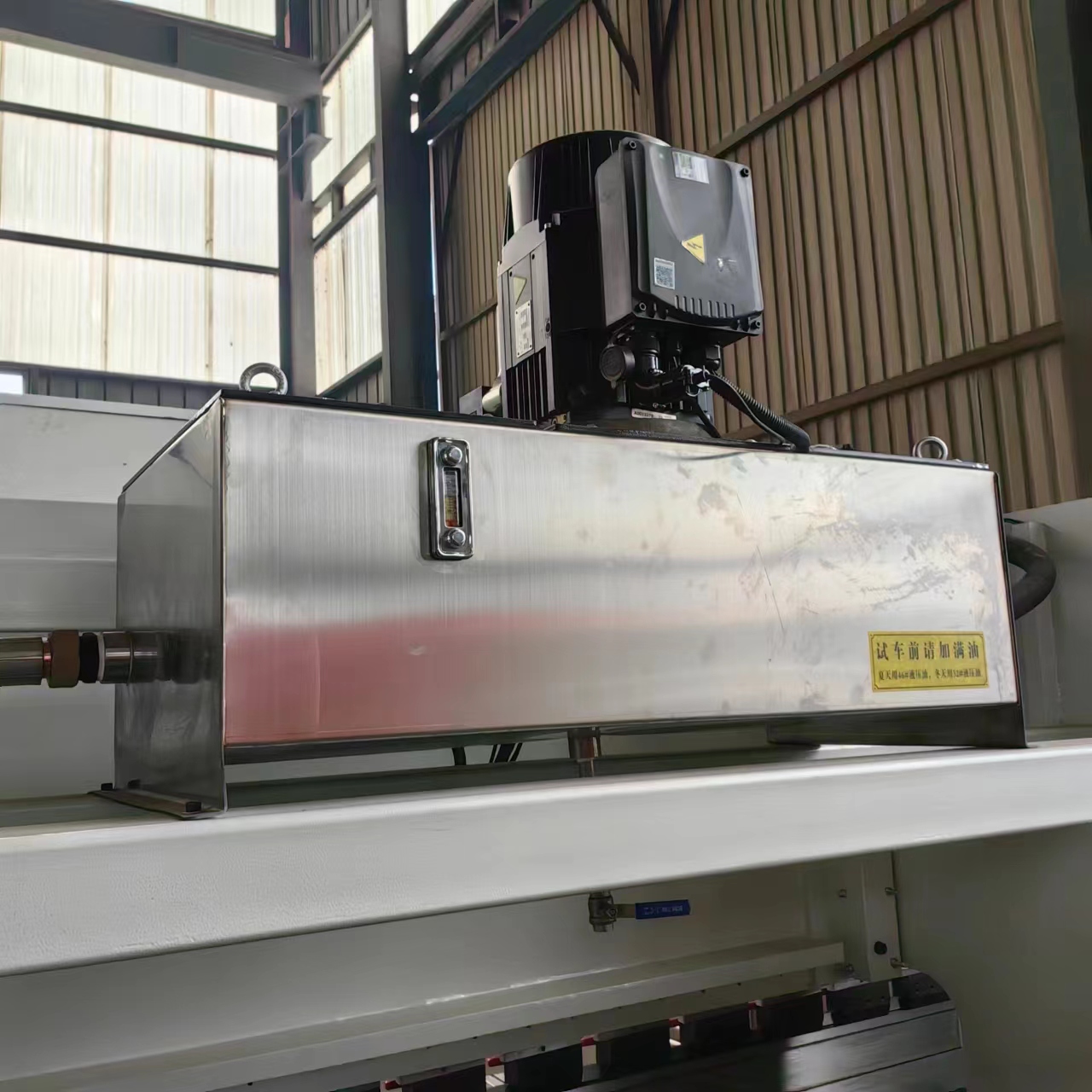

3) Hydraulic system
The machine tool's hydraulic system and hydraulic components are original imported systems, and the hydraulic system is specially developed for CNC bending machines.
The system has the following characteristics:
1. Electro-hydraulic servo valve group drive, compact structure, strong sealing performance, high synchronization accuracy and long life
2. External large-diameter liquid filling valve, high speed and low loss.

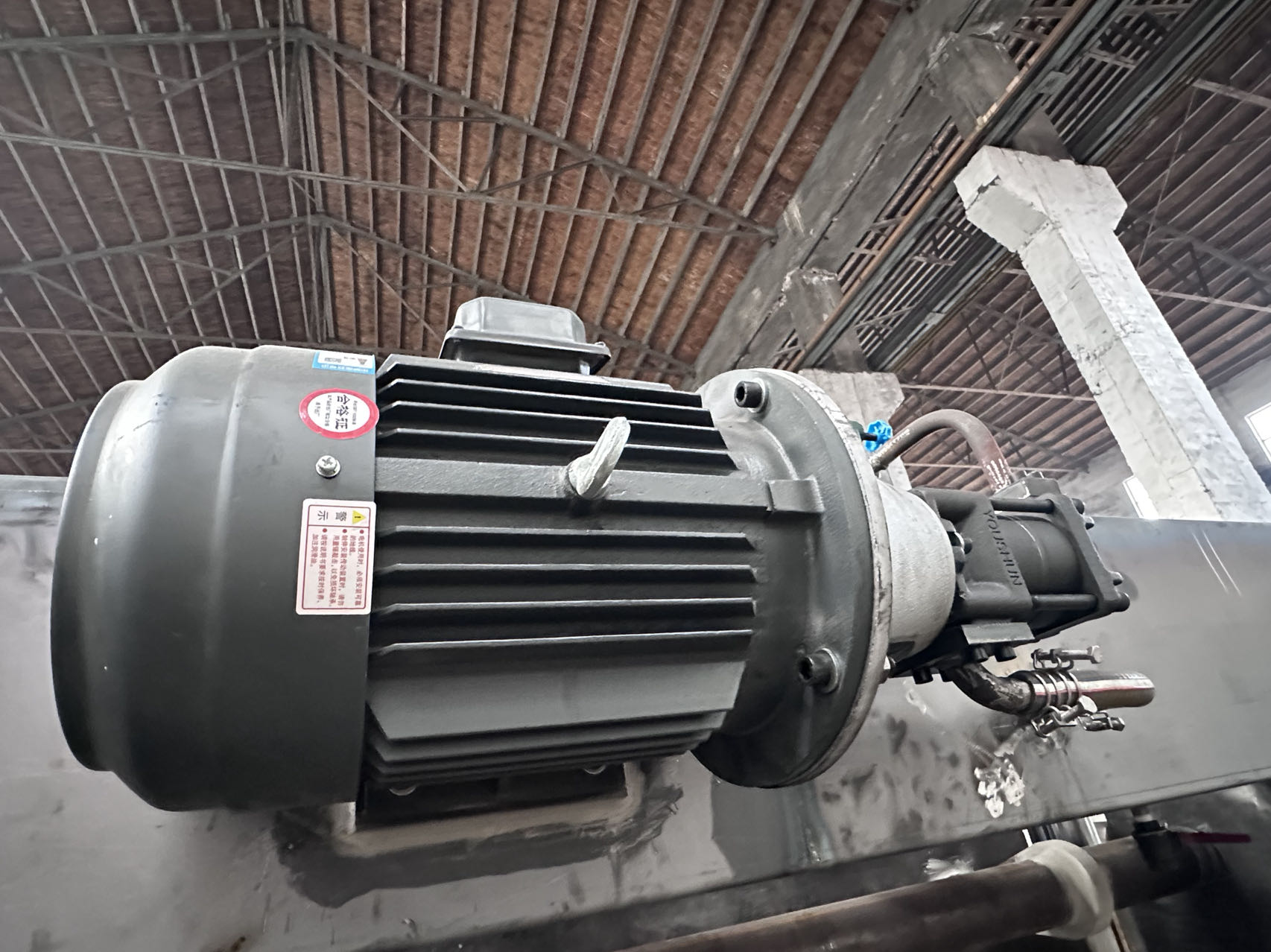

3. The internal gear high-pressure pump can withstand high pressure and has low noise.
4. The cylinder seal adopts sealing components, which has low wear and no leakage.
5. The hydraulic system has overload overflow safety protection.
6. The oil level has a clear and intuitive display.
7. High-precision guidance system, position measurement system and hydraulic balancing function can meet the needs of full-length processing.
8. The machine tool can work continuously under rated load. The hydraulic system has no leakage and is continuously stable and has high precision.
9. The hydraulic oil cooling circulation system should be able to meet the requirements of the equipment’s working environment.
Slider synchronization control
◆Machine tool slider synchronous control (Y1, Y2axis),Using German Rexroth/Hoerbigger maleSpecial digital closed-loop hydraulic system for bending machines (electronic-Liquid proportional servo synchronous control system), this system is a position control system, which is composed of① Drive assembly, ② Pressure control valve unit, ③ Closed-loop control
It is composed of valve unit, ④ closed-loop proportional valve amplifier, ⑤ hydraulic cylinder, ⑥ position detection system, ⑦ CNC system, ⑧ electrical system, etc. The position synchronization of the two piston cylinders during the stroke process and the positioning of the stroke end point are achieved through an electro-hydraulic synchronous servo system, which has high synchronization accuracy and repeatable positioning accuracy.
It allows the slider to always remain parallel to the workbench during rapid approach, working stroke, end positioning and return. When the slider tilts under various disturbances and unbalanced loads, it dynamically detects the synchronization error of the slider through the grating ruler and feeds it back to the CNC system. The electro-hydraulic servo valve of the CNC system corrects the synchronization error of the slider. It controls the proportional servo valve to adjust parameters such as the flow and pressure of the oil entering the cylinder, so that the two pistons maintain position synchronization, so that the slider and the workbench remain parallel. Single machine slider synchronization accuracy≤±0.05mm.
◆Y1, Y2 axes - the left and right sides of the slider are equipped with Spanish FAGOR/Italian GIVI high-precision linear grating rulers (Y1-Y2). They are used to measure the exact distance between the slider and the workbench. The grating ruler and the column are made of soft connection so that column deformation does not affect positioning. The position data is immediately fed back to the CNC system, which can then calculate the output servo valve control signal (S1-S2). Therefore, the positioning accuracy of the single machine slider
±0.05mm, the repeatable positioning accuracy of the slider is 0.05mm.
Offset load capacity
Offset loading refers to carrying out load work on the left or right side of the slider. This machine tool has strong anti-eccentric load ability.
Under the action of the eccentric load force, an inclination occurs between the workbench and the slider. The grating detection mechanism located at both ends of the slider detects the deviation and feeds it back to the CNC system. The CNC system controls the electro-hydraulic proportional servo valve to adjust the flow rate entering the cylinder. The amount of oil keeps the two pistons synchronized and maintains a small parallelism error between the worktable and the slider.
If you need to process special parts, you should understand the above-mentioned eccentric load conditions. In general, bias should be avoided load work.
Workbench compensation
Long workpieces will undergo deflection and deformation during the lifting and processing process, making it difficult to guarantee the processing accuracy of the workpiece. In order to ensure that the workpiece meets the processing requirements, a hydraulic compensation workbench is selected, with the following features:
1. This mechanical compensation workbench has a two-way wavy strip adjustment structure, which can meet the compensation structure of the machine tool in the horizontal and vertical directions;
2. The dense point compensation method is adopted to make the bending accuracy more accurate;
3. The compensation for bending materials with the same plate thickness is in place at one time. Different from the structure of hydraulic compensation that keeps moving back and forth, mechanical compensation greatly reduces the fatigue deformation of the machine tool table and increases its service life;
4. It adopts special reducer and high-precision potentiometer control, and automatically adjusts through the instructions programmed by the CNC system to accurately control the compensation accuracy value.
5. Different from the three-plate structure of the hydraulic compensation workbench, this device adopts a single-plate workbench design, which can effectively prevent interference in the bent workpiece.
CNC back gauge (X)
The X-axis is the front and rear feeding control axis, used to control the bending and flanging size; the servo motor is controlled through the numerical control system DA-53T, and the ball screw is driven to move forward and backward through the synchronous belt; it drives the material girder and the blocking finger to move forward and backward.
The R axis is the upper and lower feeding control axis. According to the processing needs, the back gauge beam can be controlled by the servo motor to move up and down, and the blocking finger can be driven to move up and down.
Ball screws and linear guides are used for transmission to ensure strength while reducing noise; the blocking beams are always synchronized during movement, with smooth transmission, high precision and low noise.
Mold
Standard molds are provided randomly; in order to ensure the processing accuracy of the workpiece, advanced technology is adopted and equipped with
Combine the upper and lower molds; the molds can also be designed and made according to user requirements.

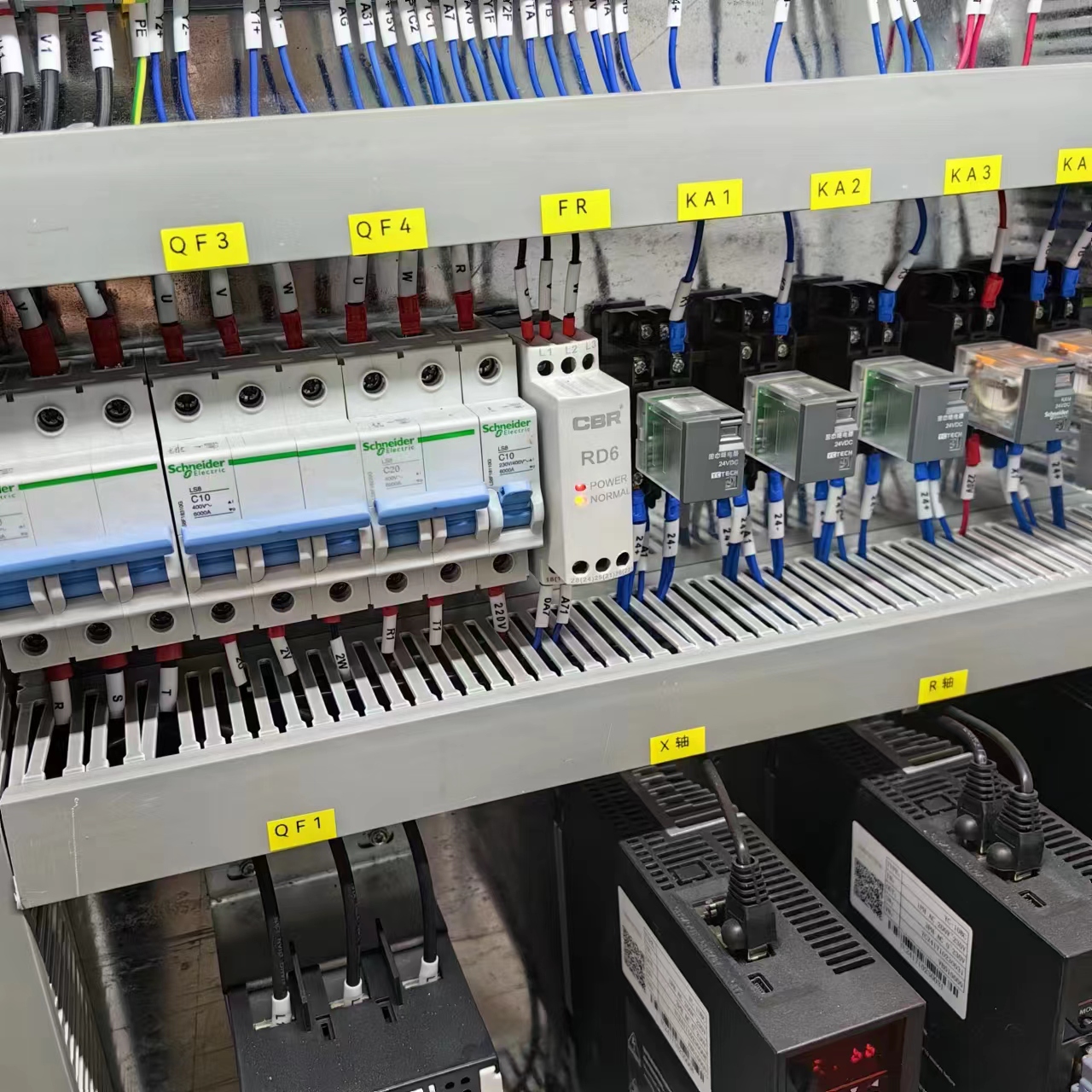

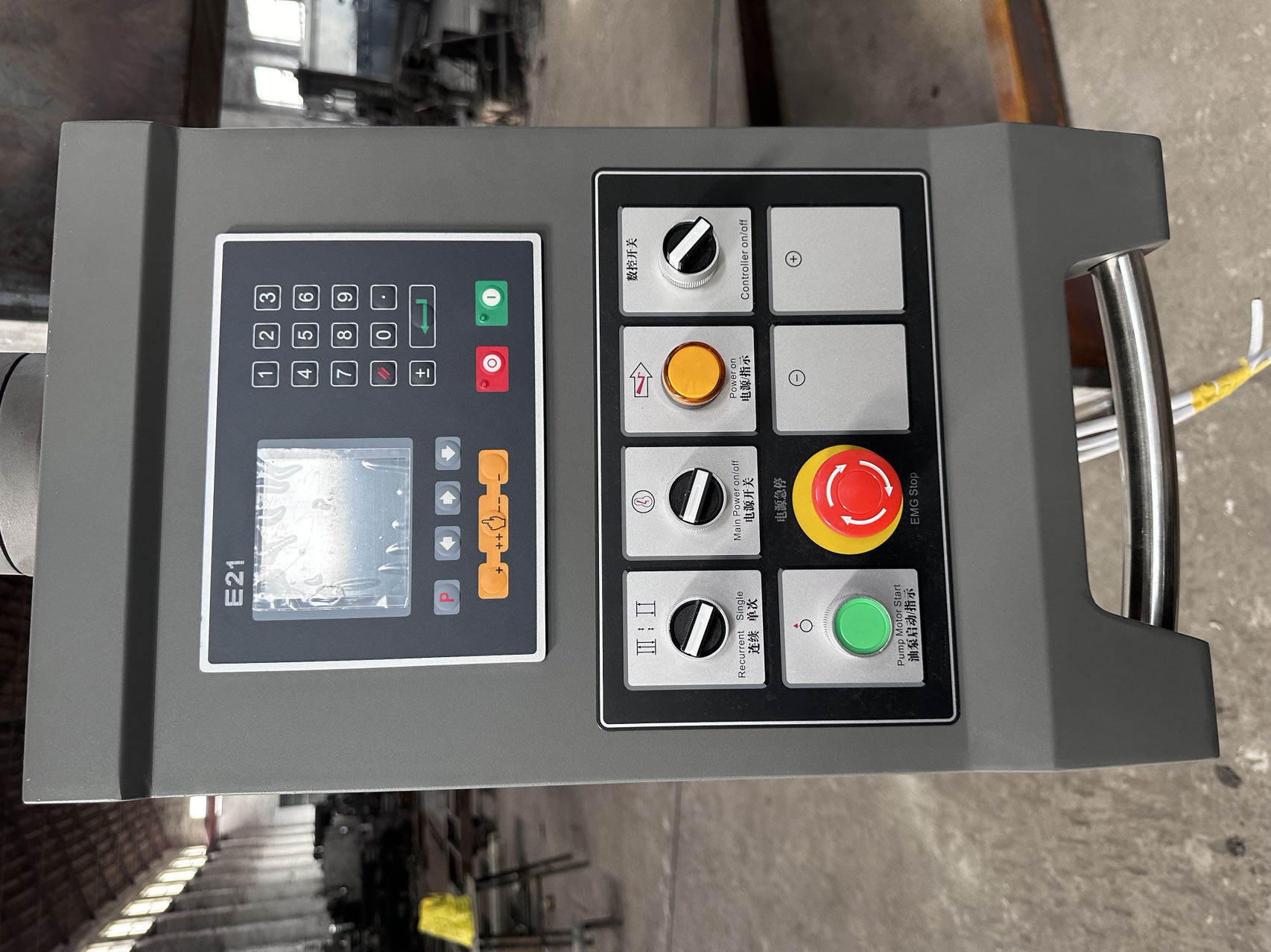

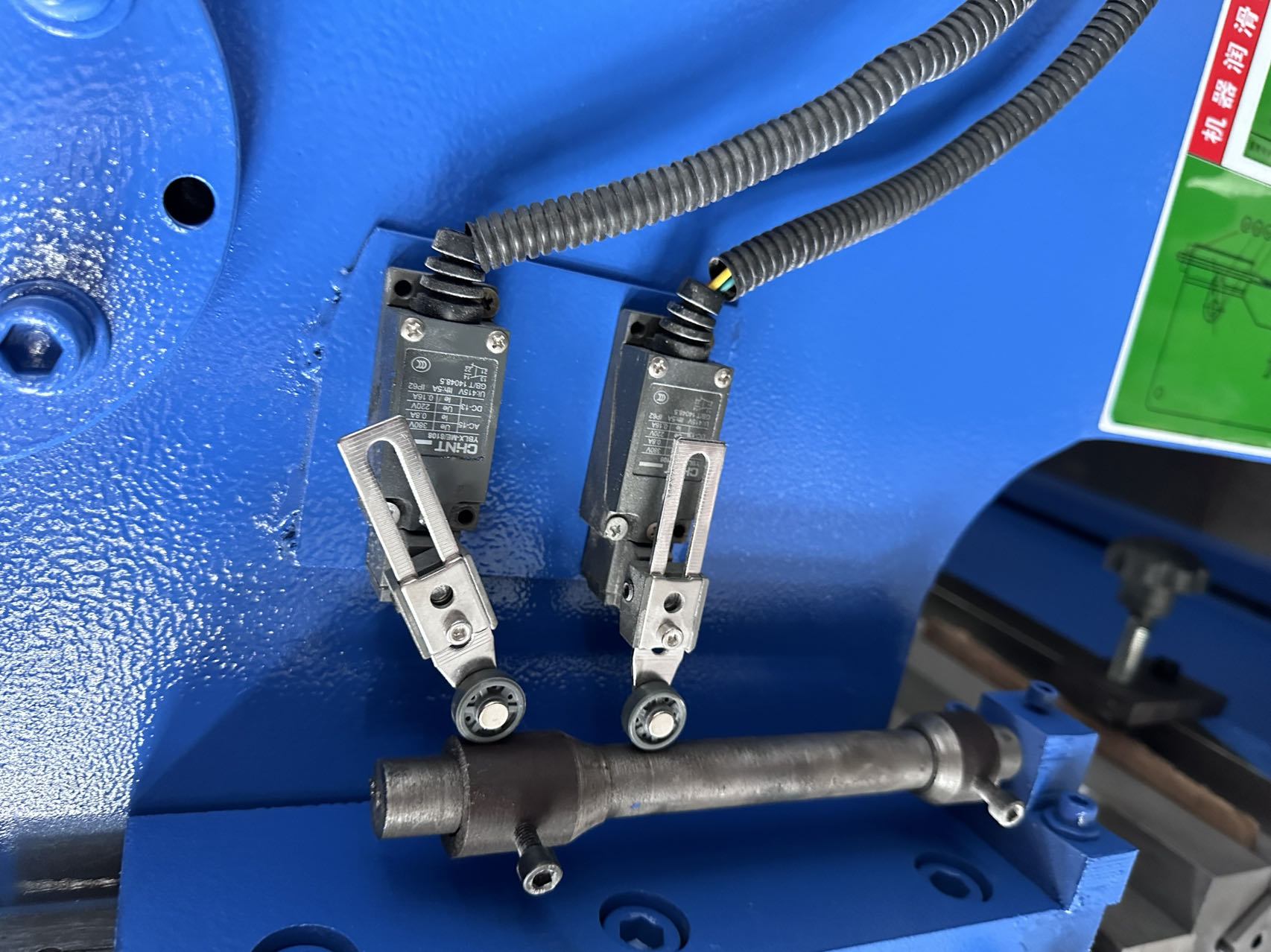

Electrical system
This machine tool adopts the DE15 electro-hydraulic servo CNC system produced in Nanjing, and the position feedback adopts Spain FAGOR/Italy GIVI grating ruler and all electrical components adopt Schneider electrical components.
◆The electric control cabinet is manufactured by Nanjing Estun Automation Co., Ltd., a professional manufacturer, and adopts the latest button station form.
◆Powered by a three-phase 380V/50HZ power supply, the control circuit is provided by a control transformer
AC 220V/50Hz power supply provides regulated DC24V power supply to the CNC system and bridge rectifier circuit for the solenoid valve DC 24V power supply. The machine tool is operated with a movable foot switch and has an emergency stop function.
◆The power supply adopts three-phase four-wire system; the electrical control has anti-electromagnetic interference function.
CNC system
DE15 electro-hydraulic servo CNC system features and functions:
The DE15 bending machine CNC system provides users with a friendly operation interface, high-efficiency programming methods, and proud integration of stability, which will greatly improve the working efficiency of the CNC bending machine.
The latest graphical programming technology inherits the traditional programming advantages of DE15 and displays workpieces, molds and machine tools in true proportions.
The CNC system has automatic calculation of the bending process, workpiece interference detection and self-learning database. The use of the database will greatly improve the bending accuracy. Use more efficient algorithms to optimize the entireThe Y-axis working cycle shortens the cycle of the Y-axis cycle, improves the working efficiency of the machine tool, and makes the Y-axis adjustment and control more convenient.
Windows The network function is easily integrated with the factory network, allowing the CNC system to exchange data with computers anywhere on the network and access product programs.
DE15main feature:
·"Shortcut" touch navigation
·10.1′ high resolution true color TFT display
·4-axis control (Y1/Y2+2 auxiliary axes)
·Deflection supplementary control
·Have mold/Materials/Product Library
·Support servo or frequency conversion control
·Advanced Y-axis control algorithm can control both closed-loop and open-loop valves
·USB peripheral interface
·Profile-53TL offline programming software
12. List of random technical documents
