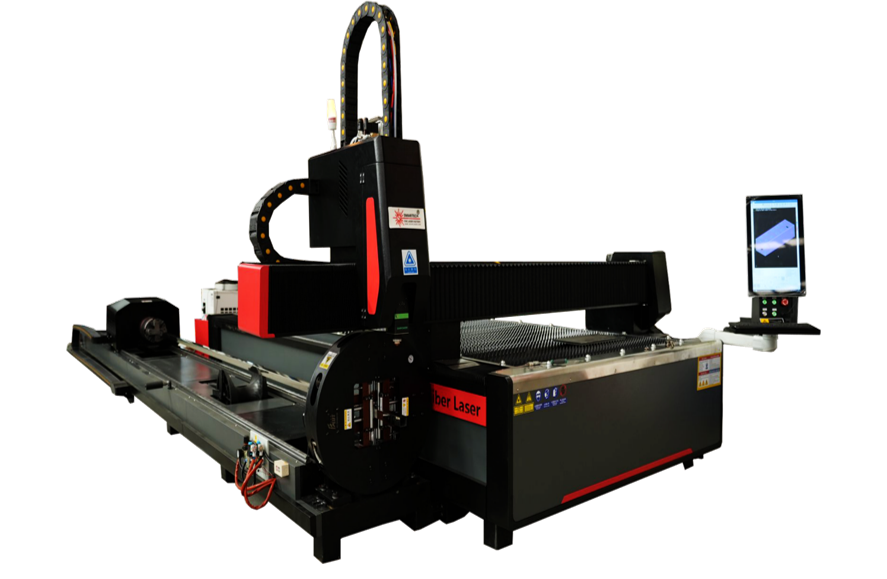

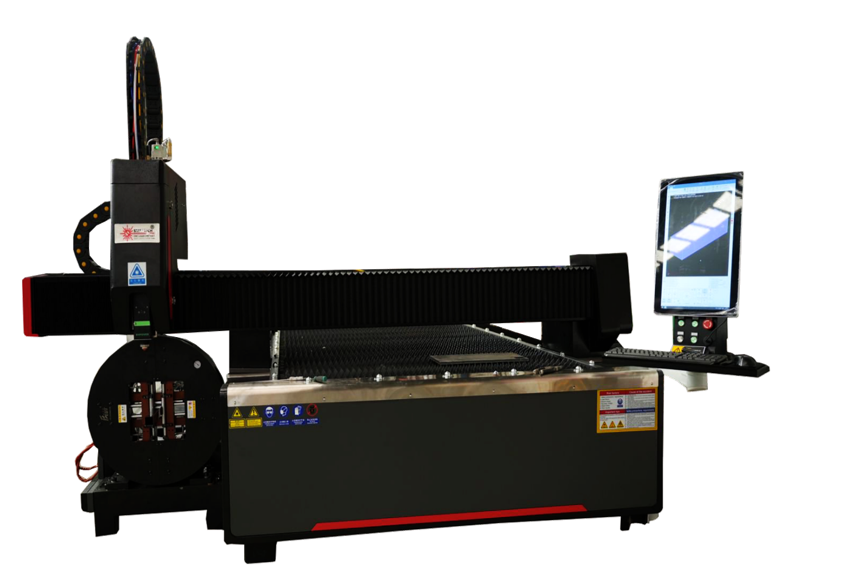

Fiber Laser Cutting Machine SFT1530-R 3000w

Working Area

2500 ×1300 mm

3000 × 1500 mm

4000 × 2000 mm

Laser Type

Germany IPG /Chinese fiber laser generator Raycus /Max

Laser Power

1000/1500W/2000W/3000W

Complete machine power

52/55 KW

Maximum XY axis Acceleration

2.0 G

Beam Quality M2

< 0.373

Positioning Accuracy

≤ ± 0.03 mm/m

Re-positioning Accuracy

≤ ± 0.02 mm/m

Max Cutting Speed

0-40 m/min (depending on material and thickness)

Power Supply Voltage

3-phase 380V/50Hz

X-axis Stroke

2500 mm

3000 mm

4000 mm

Y-axis Stroke

1300 mm

1500 mm

2000 mm

Z-axis Stroke

120 mm

Working Table

Rack working platform

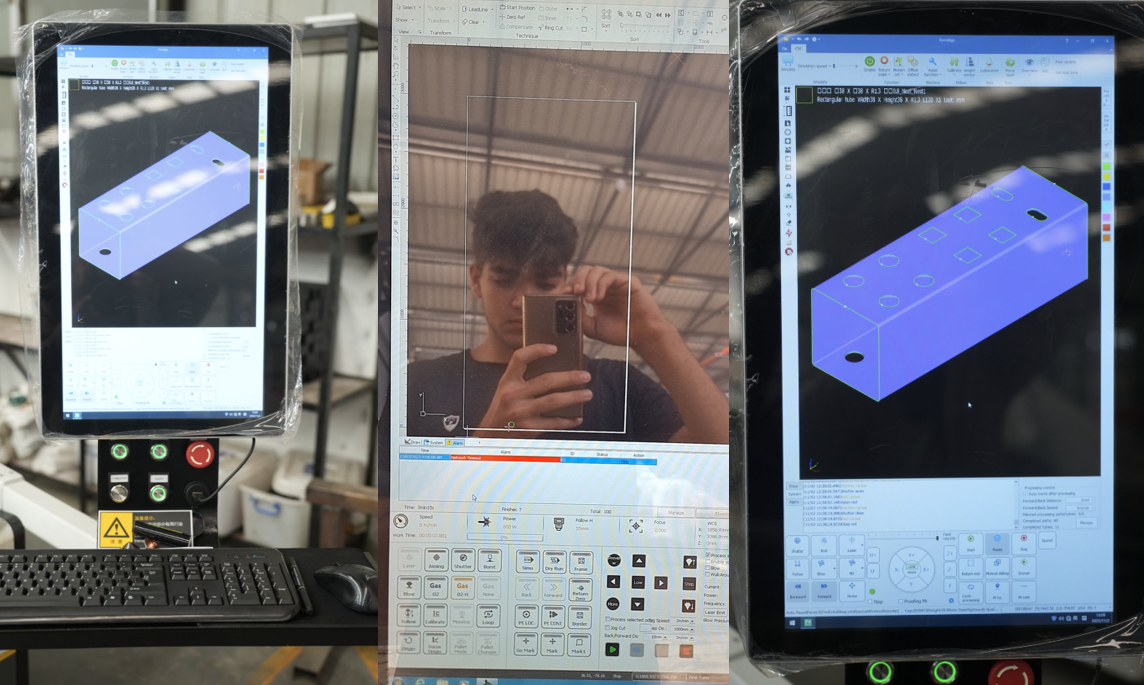

Control System

Raytools/Cypcut/Au3tech control system

Location System

Red dot indicator

Water Cooling System

Constant temperature water chiller

Machine Weight

2000-12000 kg

X-axis Stroke

2500 mm

3000 mm

4000 mm

Machine Dimension (m)

7.4×2.45×19+1.2×0.8×1.2

7.9×2.95×1.9+1.2×0.8×1.2

8.6×3.45×1.9+1.2×0.8×1.2

Remark

Automatic exchange worktable, cover(option)

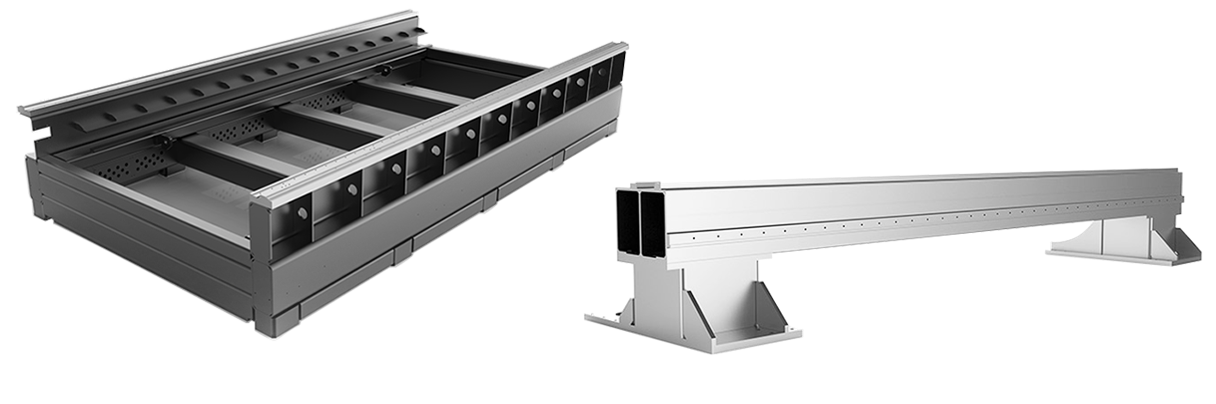

Structure Section

Annealing anti vibration heavy duty

SMARTECH

China

Optical Section

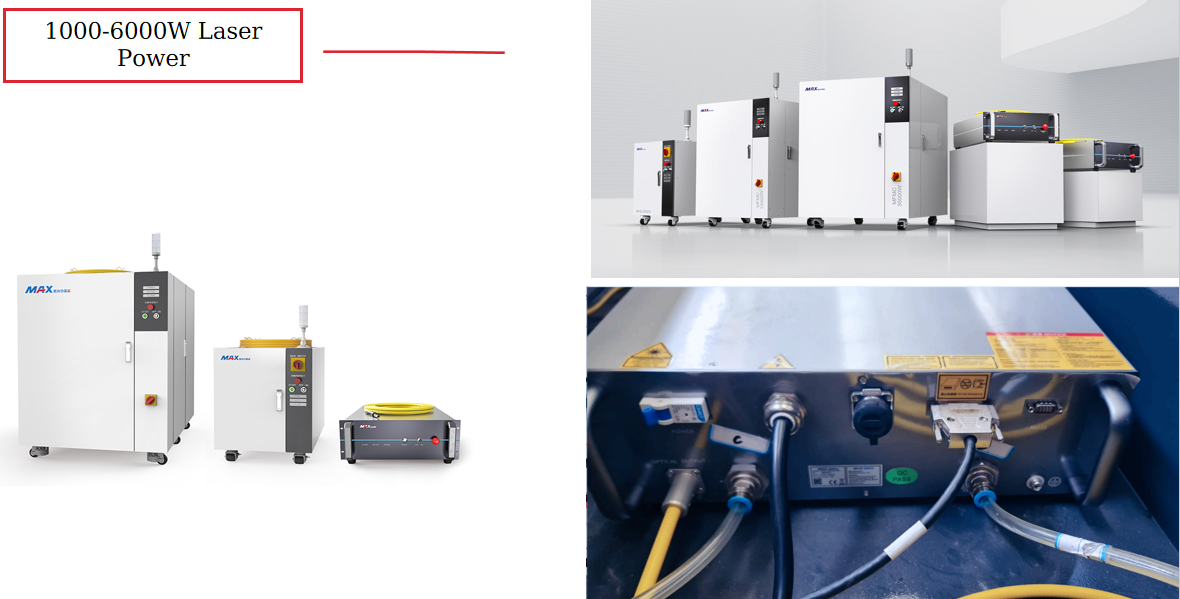

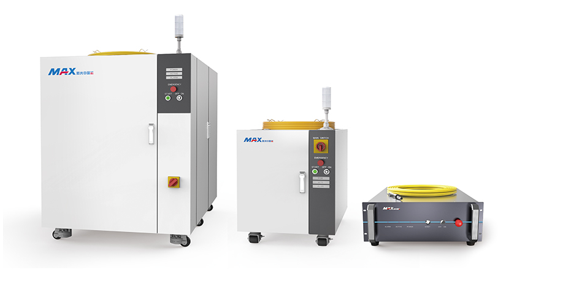

Laser Generator

Raycus/Max

 China Top Brand

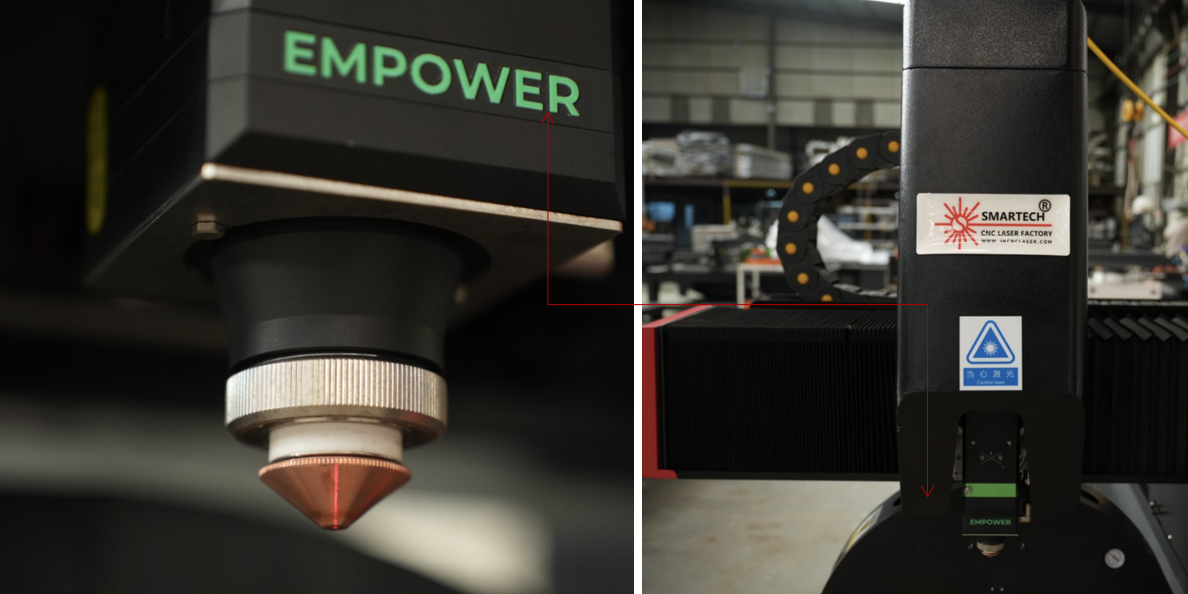

Laser Head

Raytools/Au3tech

china

Control Section

Control System

Cypcut/Au3tech

china

Height Controller

BCS100 V3.0

independent height controller

IPC

High stability industrial PC

Mechanical Section

Reducer

Shimpo

Japan

Linear Guide

THK/HIWIN

Japan

Rack pinion

YYC

Taiwan

Ball screw

THK

Japan

Motor Driver

Yaskawa/Delta/Fuji

Japan

Electrical Section

Valves

SMC

Japan

Pneumatic system

SMC

Japan

Electricity parts

Schneider

France

Limit Switch

Omron

Japan

Accessories Section

Exhaust fan

SMARTECH

China

Lubrication system

SMARTECH

China

Stabilizer

SMARTECH

China

Tools

SMARTECH

China

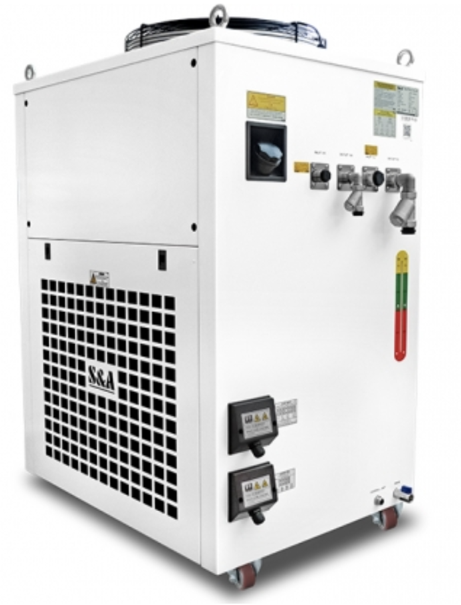

Cooling System

Water Chiller

S&A

China
