SMO1325-4
SMARTECH CNC LASER
1300*2500MM
AS YOUR PREFERENCE

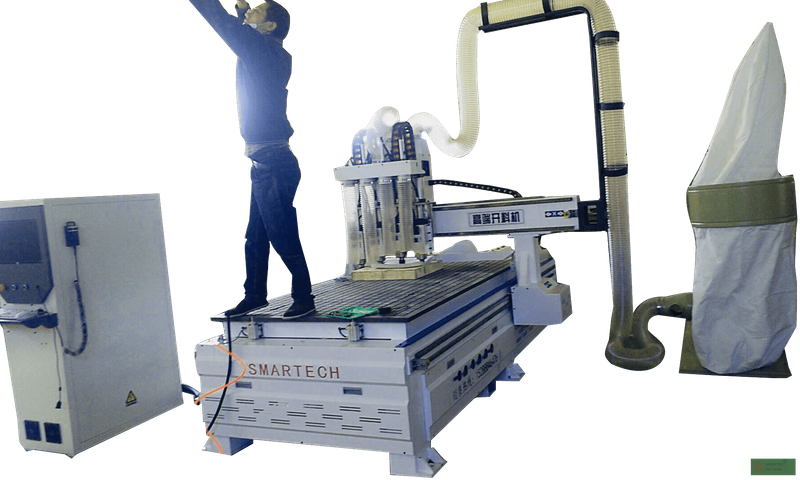

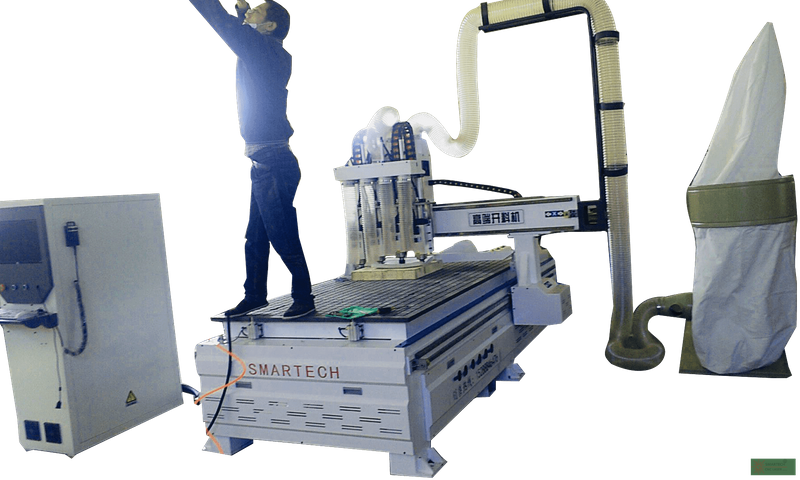

Multi heads wood cnc router machine for wood cutting engraving
Product Description
This Multi heads wood cnc router machine for wood cutting engraving has a good reputation among customers. It can be comparable to the ATC cnc router to some extent. It has many functions such as cutting, engraving and punching.This model cnc router machine is the best choice for furnitures cutting,it is quite suitable for the customer who need tool changer but has limited budget.Because it has a high degree of automation and is designed for multi-functional application. It also has high efficiency and accuracy in woodworking area with fast working speed and widely used in furniture industry. Two heads and four heads are available, other special requirements can be customized.
Applicable materials
Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Applicable industry
furniture manufacturing, cabinet wood doors, three-dimensional processing, solid wood furniture, etc
Description | Parameters |
Model | SMO1325-4 |
Working area | 1300×2500mm |
Working precision | 0.05mm/300mm |
Repeated positioning accuracy | 0.01mm |
Feeding height | 200/300mm |

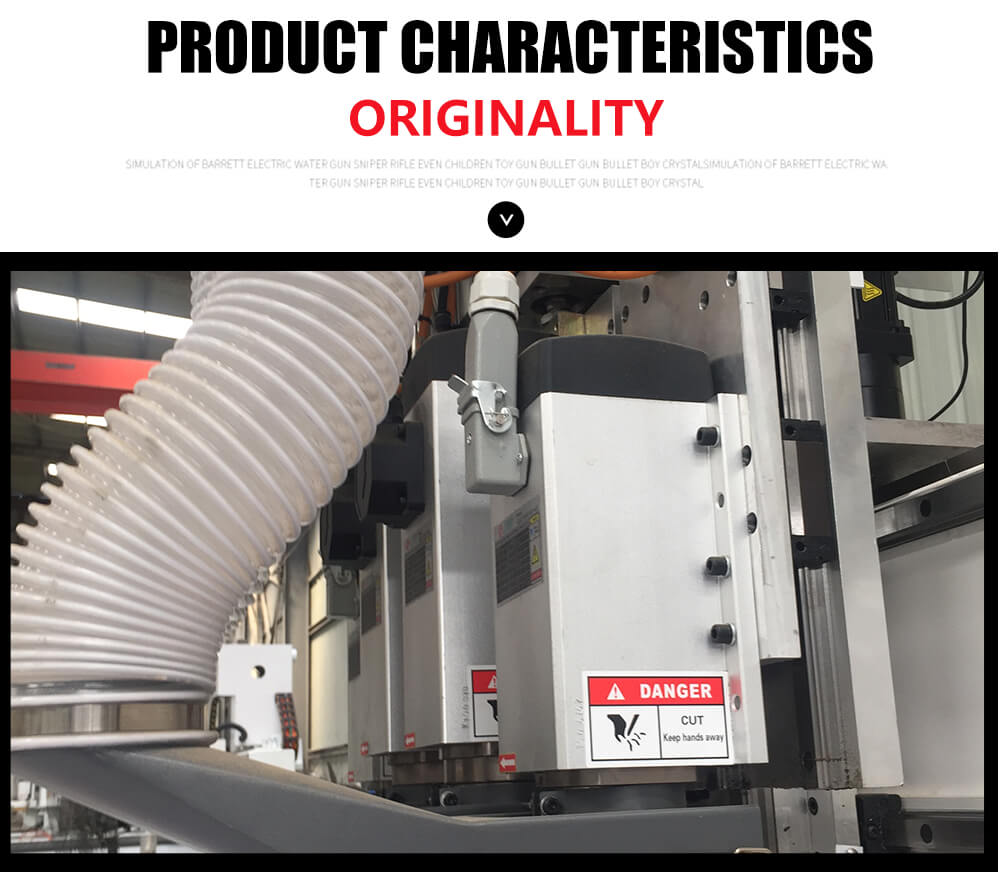

Spindle power | Chinese HQD 6KW air cooling spindle *2/3/4 pcs |
Spindle Speed | 0-24000 RPM |
Rail type | Taiwan PMI/ original Japan THK |
Control system | SYNTEC / NC Studio/BAOYUAN/SHANLONG |
Drive type | YASKAWA / Delta / WEIHONG/ Stepper |
Inverter | Delta/ Fuling inverter |
Transmit | Chinese Helical |
Table type | vacuum table/ vacuum T slot clamping |
Max travel speed | 50000mm/min |
Max working speed | 25000mm/min |
Power | AC380V±10%/50~60Hz |
Compatible Software | Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc |
Command code | HPGL, G code |
Machine/packing size | 3200*2000*1750mm |
Net/Gross weight | 1100kg/1400kg |
Sample & Package
FAQ
1.How about your service after sales ?
We offer the service from you got the machine, including how to install the machine, how to use machine.
2. How should I pay for my order ? What is the procession of this purchase ?
We accept TT by bank. You can do 30% prepayment at first, then we will start to make production. When the machine is ready , we will take pictures to you, and then you can do the balance. After we got your payment. I will send the machine to you.
3. What kind of company is your company?
Our company is a professional CNC router manufacturer with years’ experience. We specialize in the development and production of CNC router, with over 10 years cnc router manufacturing experience, our products have been exported to over 50 countries and districts. OEM and other special customized solution are also available.
4. Can we go to your factory to visit?
Of course, we warmly welcome customers to visit our factory, test the machine and learn more about us. You will feel our sincerity, service and our professionalism.
5. Are you a factory or a trading company?
We are factory, manufacturer. We have a strong production capacity. We are a more affordable option than trading companies.
