Machine features:
*1.Laser Cutting Machine Processing materials is very widely,could be used for both metal and nonmetal materials cutting
*2.Fast Processing speed, high precision, less waste, high efficiency.

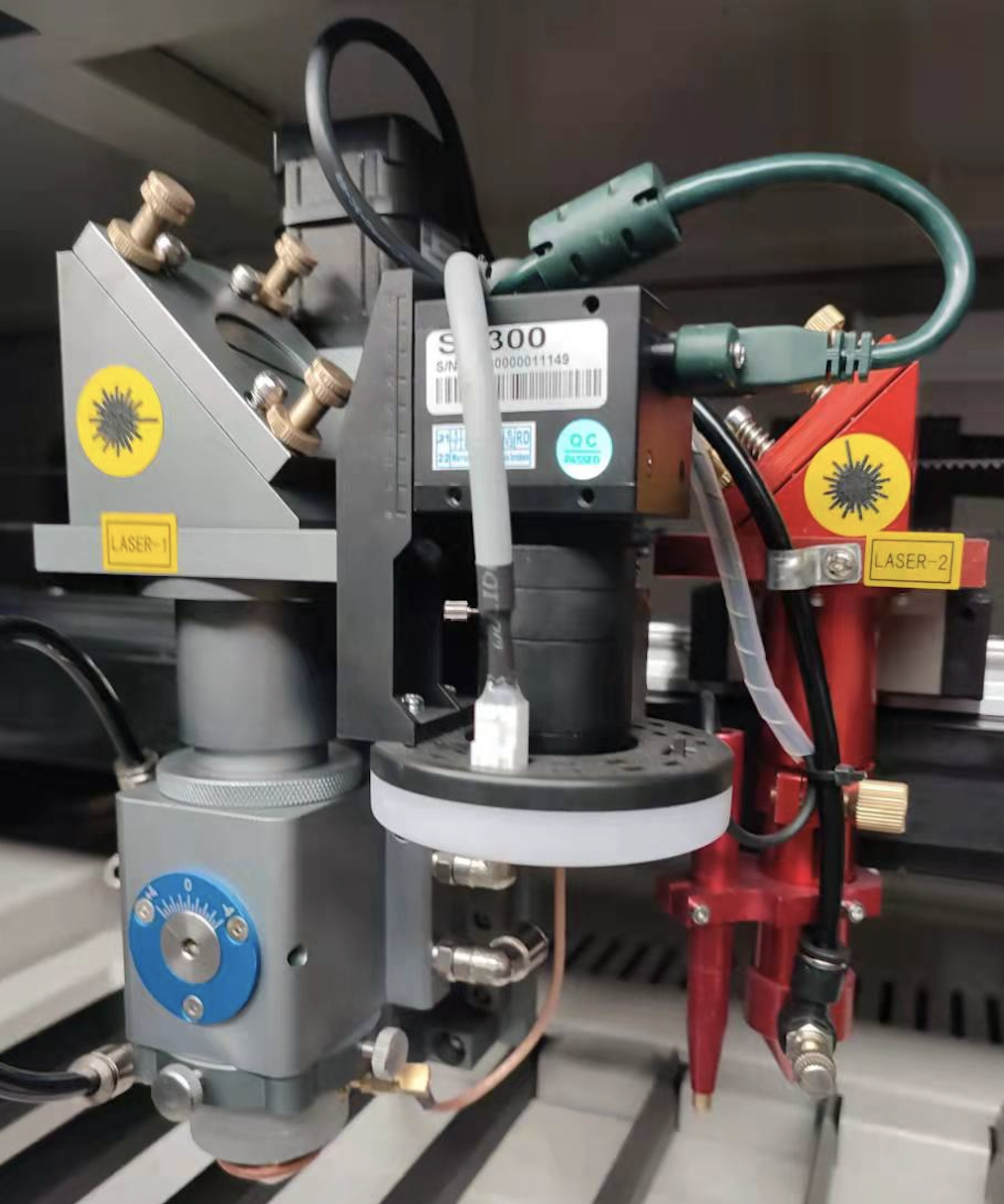

*3.Optional double-head laser cutting machine, make work efficiency more exponentially
*4.Suitable for the mass production of the enterprise, can meet the production demands of small enterprises & individual processing
*5.A new unique structure design,support the high speed cutting,meet different control requirements from the low-end to high-end
*6.The high-performance laser engraving cutting control platform - DSP control system
*7.Adopt unique intelligent prediction algorithm and improved control algorithm,to ensure processing stability and Efficiency
*8.Running speed and the laser power could be adjusted anytime,make operation more conveniently. Cutting power is with automatic compensation function, cutting efficiency is improved significantly
*9.Cutting edge is smooth, no burr, no need to be polished again;
*10.Optional CCD camera could be used for auto registration patrol edges cutting.
*11.Fiber Laser Cutting Machine is used for Metal Cutting,CO2 laser is used for nonmetal cutting.But if you have both of this two demands for metal and nonmetal materials cutting,budget is lower,and only want one machine then mix laser is your best choice.

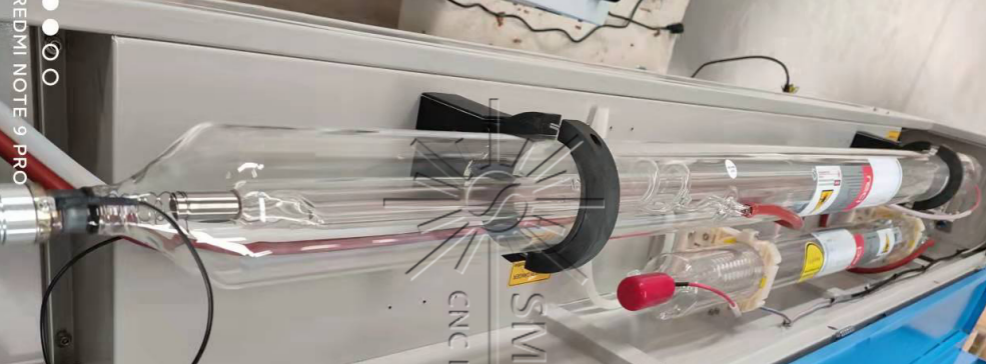

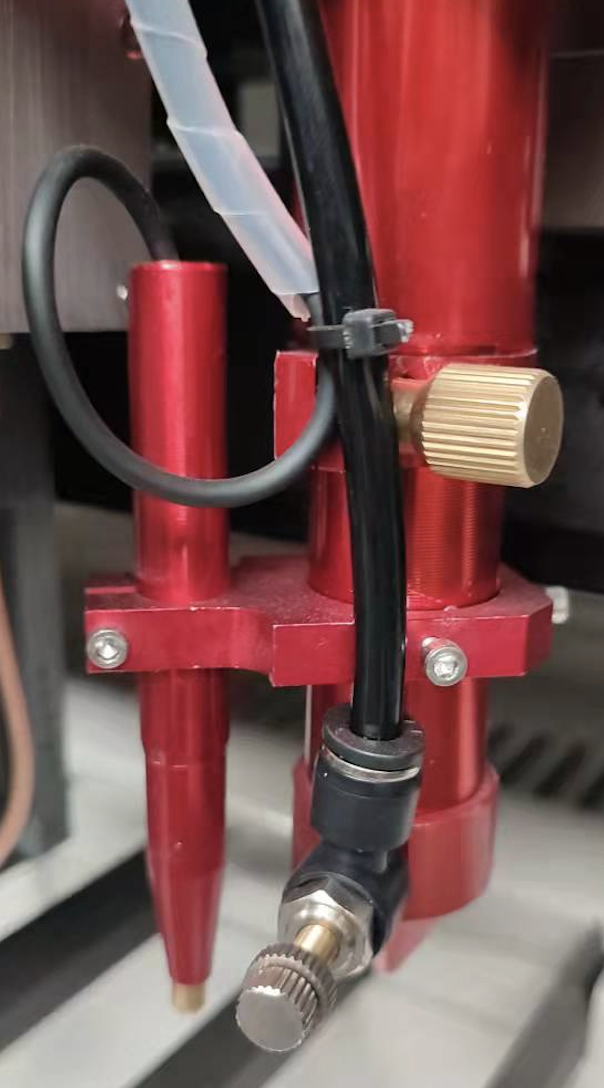

150W TUBE

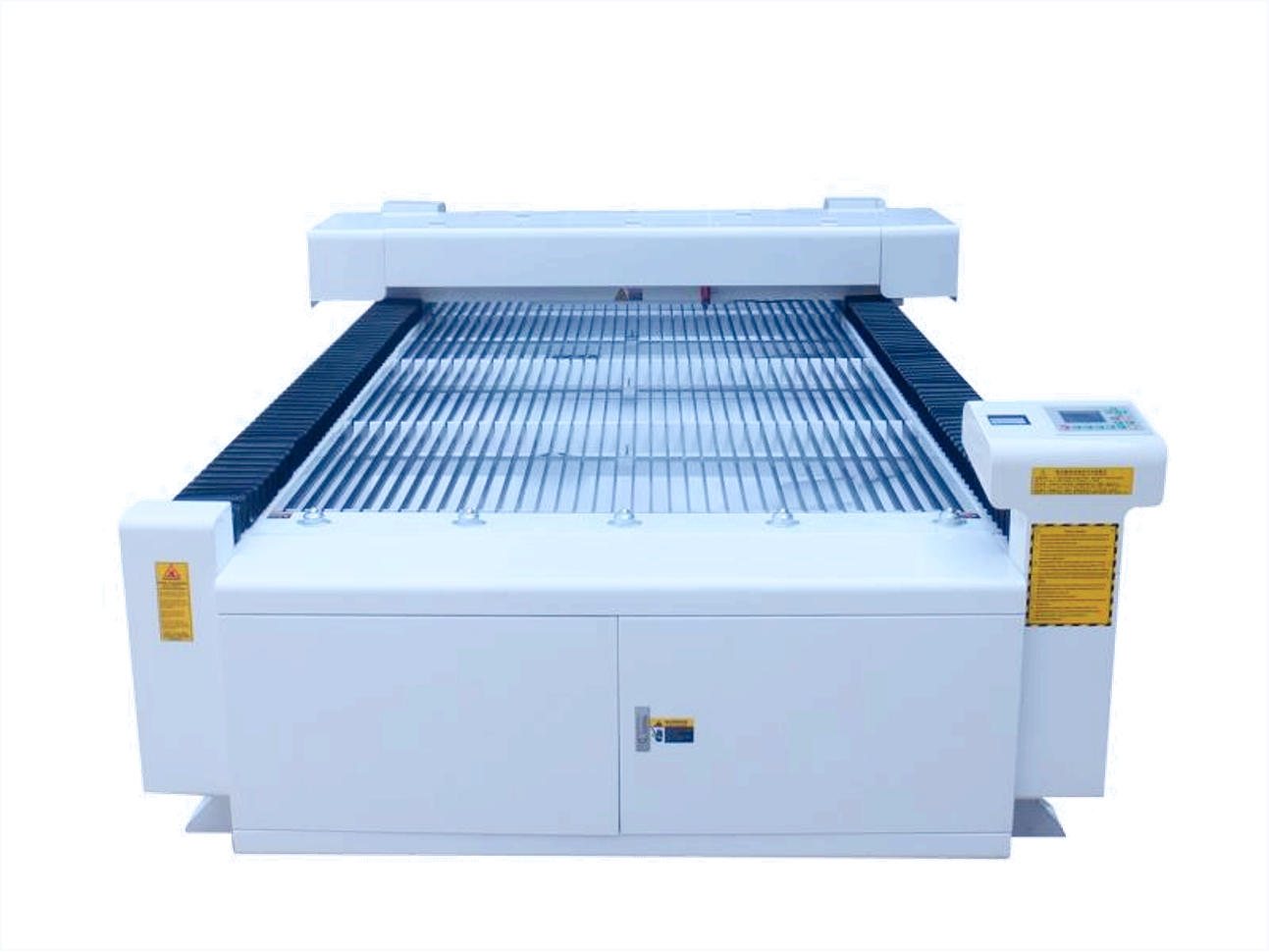

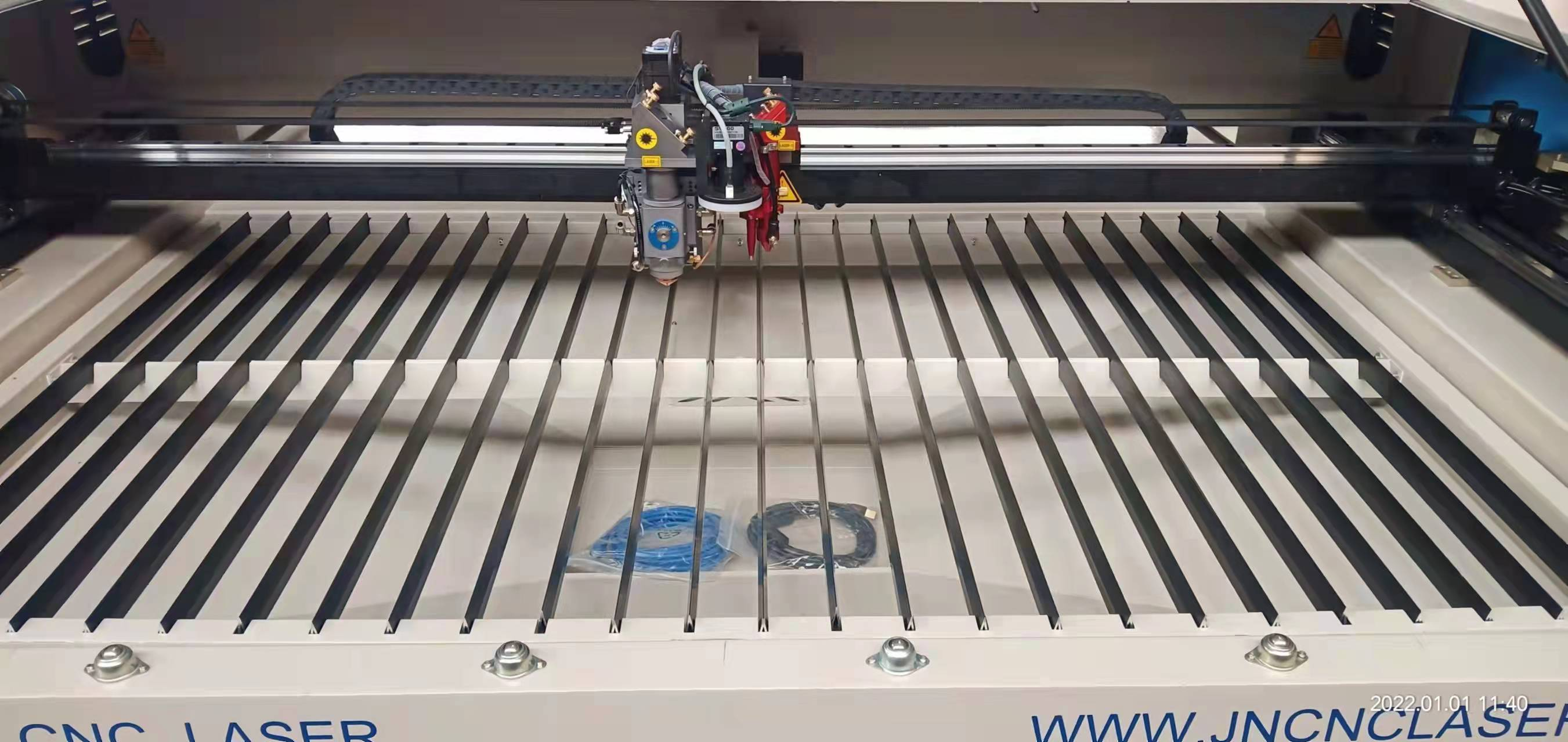

Blade Table With Feeding Rollers

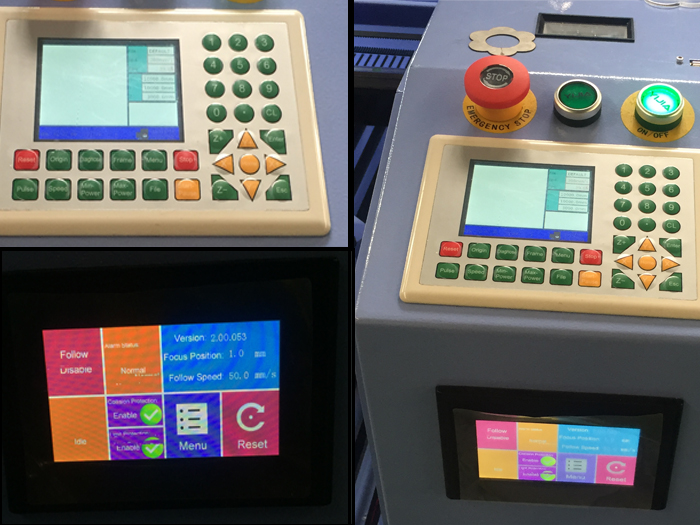

Control System
| Description | Parameter |

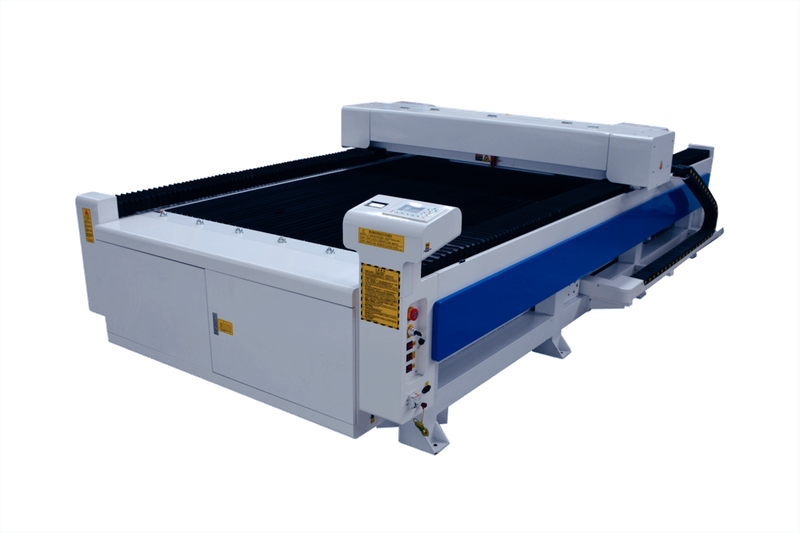

| Machine Model | SJ1325 |
| Laser power | 180W |

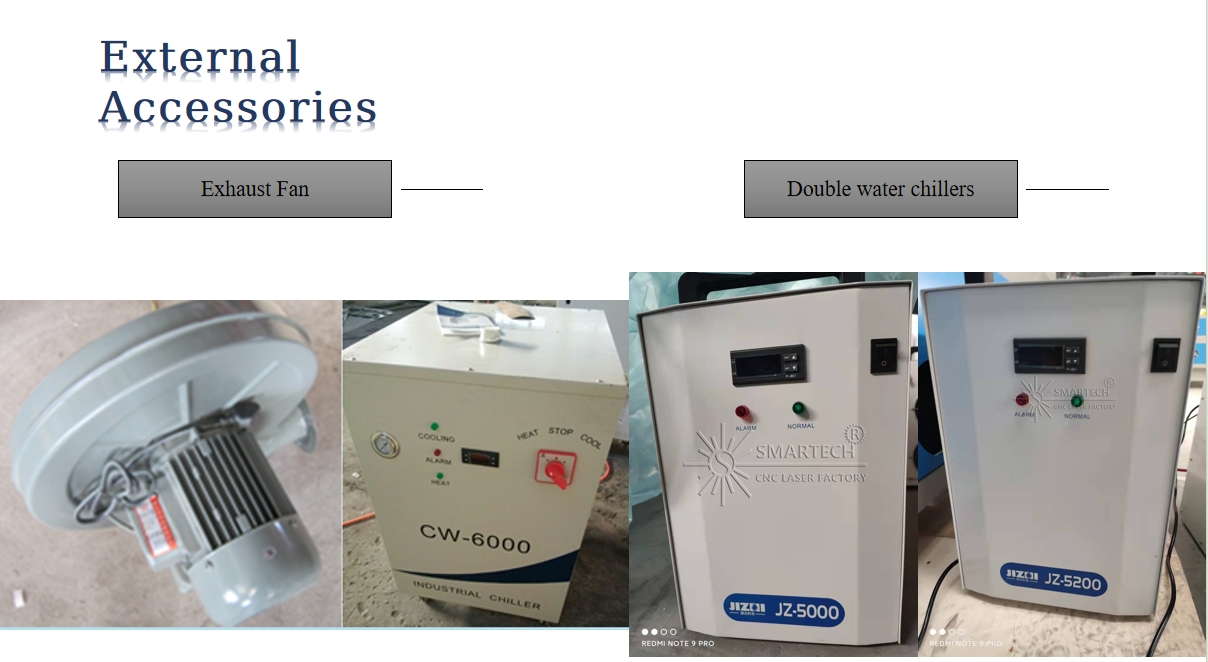

| Cooling Mode | Circulating-water-cooling |
| Power Adjustment | 0-100% controlling, no segment and adjusting by software |

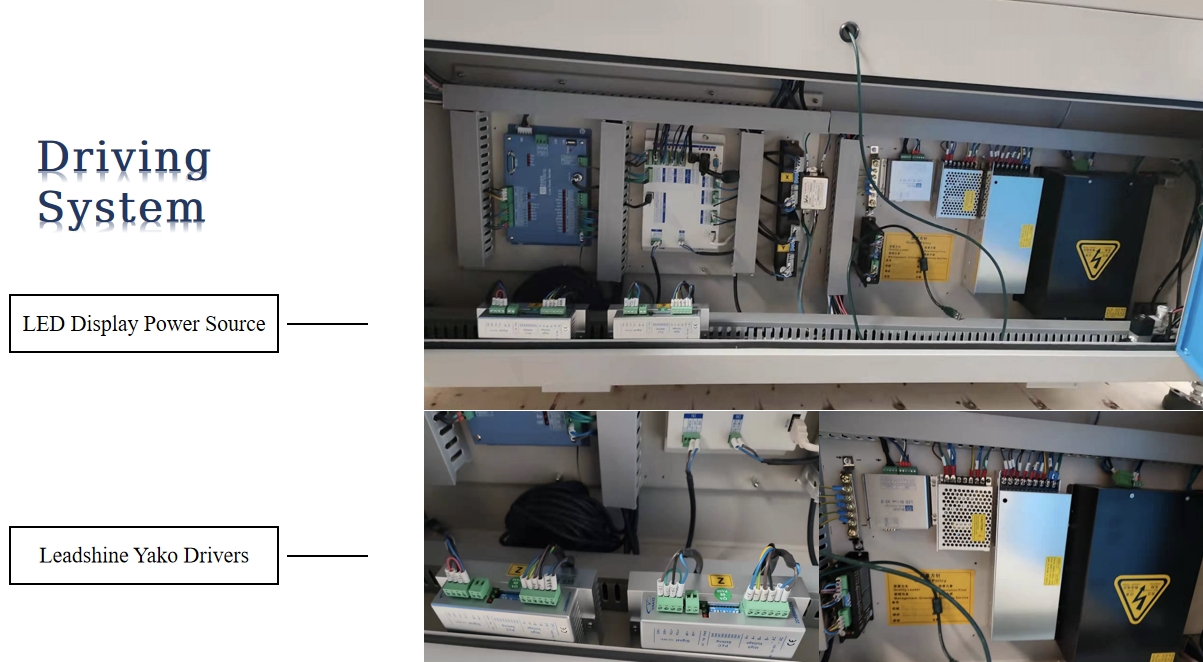

| Machine Control and Drive | Ruida controller with WIFI internet,Leadshine stepper |
| Repeating Location | 0.01mm |
| Max Power | 750W |
| Adjustable Up-down Distance | 30mm |
| Max Cutting Speed | 500mm/min(when cutting 10mm thick of acrylic) |
| Engraving speed | 0-60000mm/min |
| Engraving Depth | 0-3.5mm |
| Minimum shaping character | " Chinese: 0.2×0.2mm English: 0.05×0.05mm" |
| Controlling Software Language | English,Simplified Chinese |
| Resolution ratio | 0.025mm |
| Power supply | AC220V± 15%，50Hz or as your workshop demands |
| Resetting positioning accurate | ＜0.01mm |
| Number of hanged line | 68 Line |
| Operating system | RD Works |
| Gross Power | 1.6Kw |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-80%(free of condensed water) |
| Graphic format supported | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw |
| Packing | *Firstly Packed the machine with plastic sheet for clearing and damp proofing.*Secondly put the machine in the plywood case for safety.*Thirdly Transport the plywood case into the container. |
| Machine Size | SJ1325(3000*1500*1270MM) |
| Package size(In plywood carton) | SJ1325(1800*3000*1270MM) |

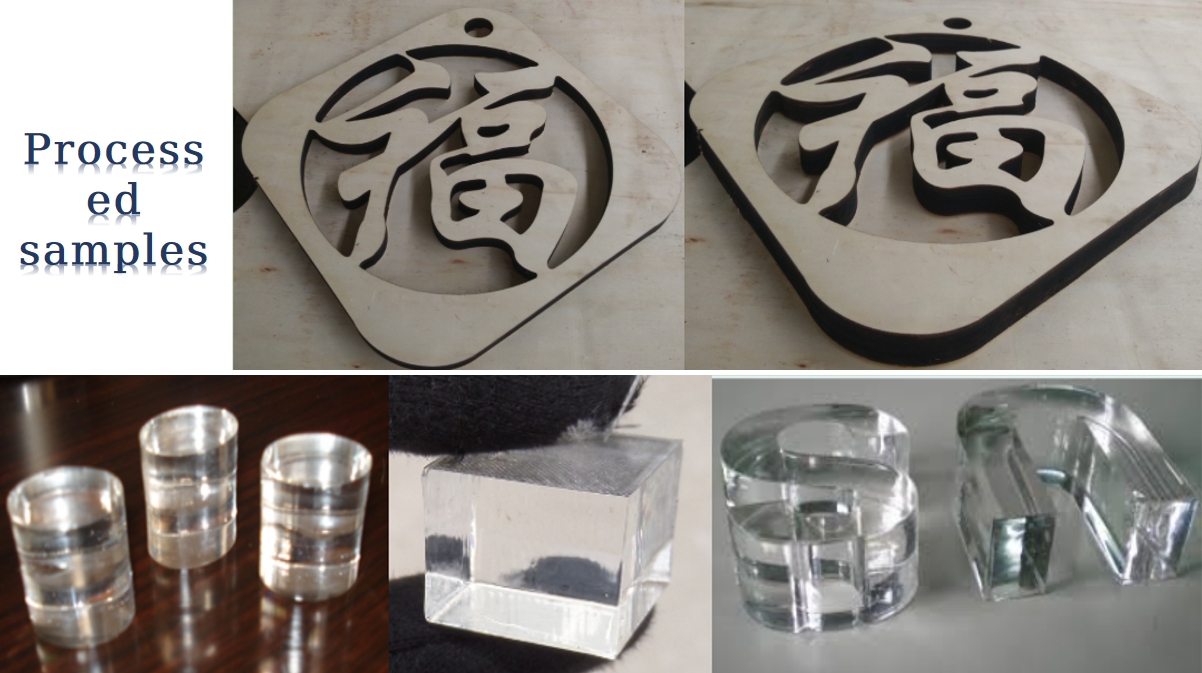

Sample
