Fiber Laser Cutting Machine Precision Stainless Steel Aluminum Laser Cutter

Highly dustproof.The dustproof grade is IP65, and the light path is completely enclosed, so the possibility of lens
contamination is almost zero.

Availability:



Inquire Add to Basket

Model:
1530
Brand:
SMARTECH

Product Description

Main Configurations:

Model: SFT1530-R

#Working area:6000x2000mm

#Rotary device for pipes cutting chuck 220mm*6000mm

#Laser Source:- Max- 6000W

#Head- RayTools Autofocus BM110 BM06K

#Japan-Servo-yasakawa 1300W

#Controller- cypcut 4000C

#Height controller-BCS100 V3.0

#Reducer--Wanxin-From Taiwan

#Rack- YYC

#Rails - Taiwan PMI

#Germany ball screw transmission

#Support DXF,DXP,NC,G,etc

#Water chiller -Hanli

#Annealing , anti vibration heavy bed.

#Chuck size:220mm

#Cyp tube software

#exchange table

Model	S-Fiber-1325	S-Fiber-1530	S-Fiber-2060
Working Area	2500 ×1300 mm	3000 × 1500 mm	6000 × 2000 mm
Laser Type	Germany IPG /Chinese fiber laser generator Raycus /Max
Laser Power	1000/1500W/2000W/3000W
Complete machine power	52/55 KW
Maximum XY axis Acceleration	2.0 G
Beam Quality M2	< 0.373
Positioning Accuracy	≤ ± 0.03 mm/m
Re-positioning Accuracy	≤ ± 0.02 mm/m
Max Cutting Speed	0-40 m/min (depending on material and thickness)
Power Supply Voltage	3-phase 380V/50Hz
X-axis Stroke	2500 mm	3000 mm	6000 mm
Y-axis Stroke	1300mm	1500mm	2000mm
Z-axis Stroke	120 mm
Working Table	Rack working platform
Control System	Cypcut/Au3tech control system
Location System	Red dot indicator
Water Cooling System	Constant temperature water chiller
Machine Weight	2000-12000 kg
X-axis Stroke	2500 mm	3000 mm	4000 mm
Machine Dimension (m)	7.4×2.45×19+1.2×0.8×1.2	7.9×2.95×1.9+1.2×0.8×1.2	8.6×3.45×1.9+1.2×0.8×1.2
Remark	Automatic exchange worktable, cover(option)

	Machine parts	Brand	Origin
Structure Section	Annealing anti vibration heavy duty	SMARTECH	China
Optical Section	Laser Generator	Raycus/Max	China Top Brand
Optical Section	Laser Head	Raytools/Au3tech	China
Control Section	Control System	Cypcut/Au3tech	China
	Height Controller	BCS100 V3.0	independent height controller
	IPC	High stability industrial PC	Japan
Mechanical Section	Reducer	Shimpo	Japan
	Linear Guide	THK/HIWIN	Taiwan
	Rack pinion	YYC	Japan
	Ball screw	THK	Japan
	Motor Driver	Yaskawa/Panasonic/Fuji	Japan
Electrical Section	Valves	SMC	Japan
	Pneumatic system	SMC	Japan
	Electricity parts	Schneider	France
	Limit Switch	Omron	Japan
Accessories Section	Exhaust fan	SMARTECH	China
	Lubrication system	SMARTECH	China
	Stabilizer	SMARTECH	China
	Tools	SMARTECH	China
Cooling System	Water Chiller	S&A	China

微信截图_20250611174120

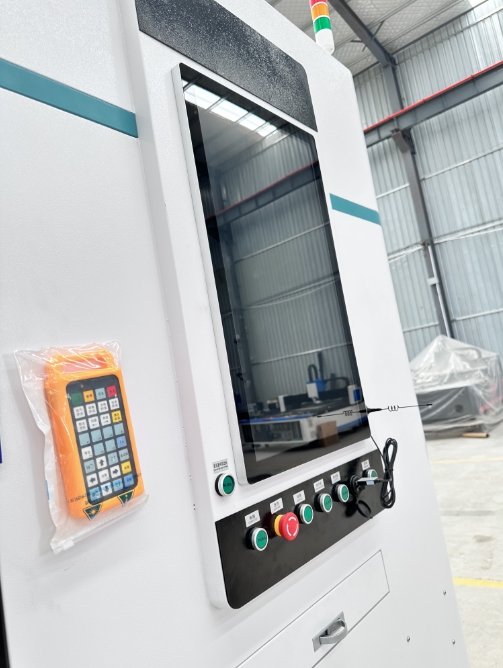

Language Selection

The touch screen supports multi-language switching, and the factory default setting is the customer-specified language

微信截图_20250611174006

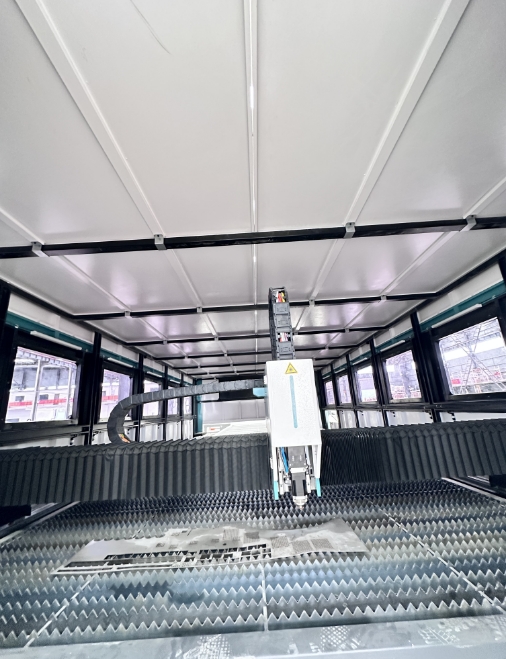

Cutting Head

1.Highly dustproof.The dustproof grade is IP65, and the light path is completely enclosed, so the possibility of lens
contamination is almost zero.

2.Motion picture zero focus The scale can be adjusted flexibly to unify the zero focus position andno longer worry about adjusting the process parameters.

3.Efficient water cooling The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.

4.Optimized structural design Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage, rust and other reasons.

微信截图_20250611174227
