SFT1540-R
SMARTECH

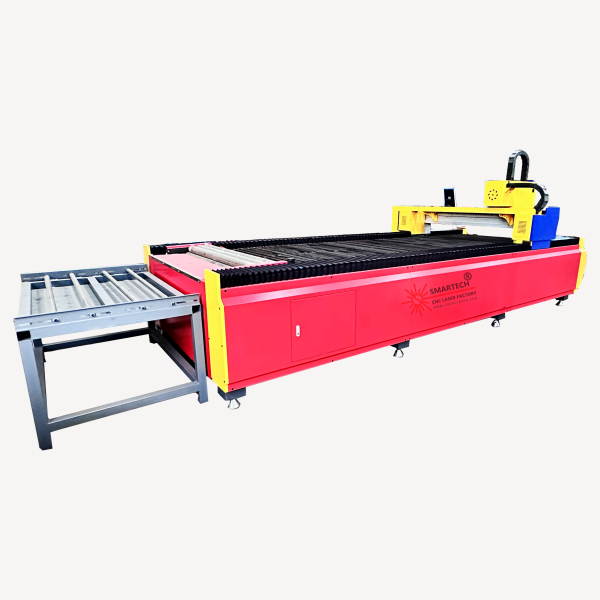

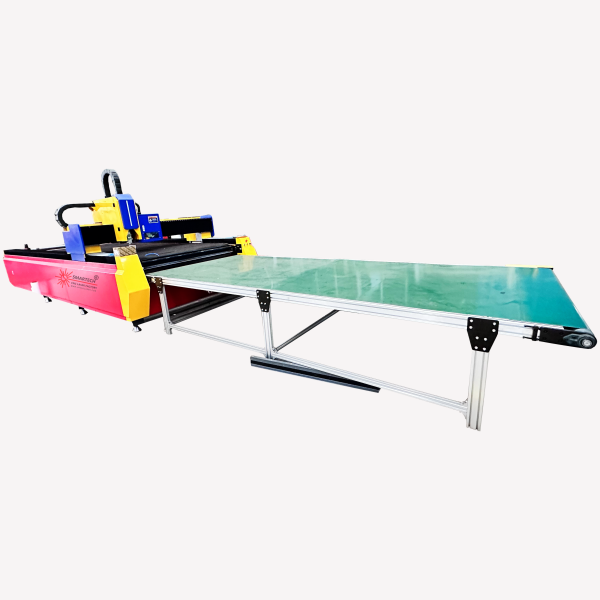

CNC Wire Mesh Cutting Machine
Model: SFT1540-R
#Working area:1500x4000mm
#Source:- Max -1500W
#Head- RayTools
#Servo 750W+750KW+400W

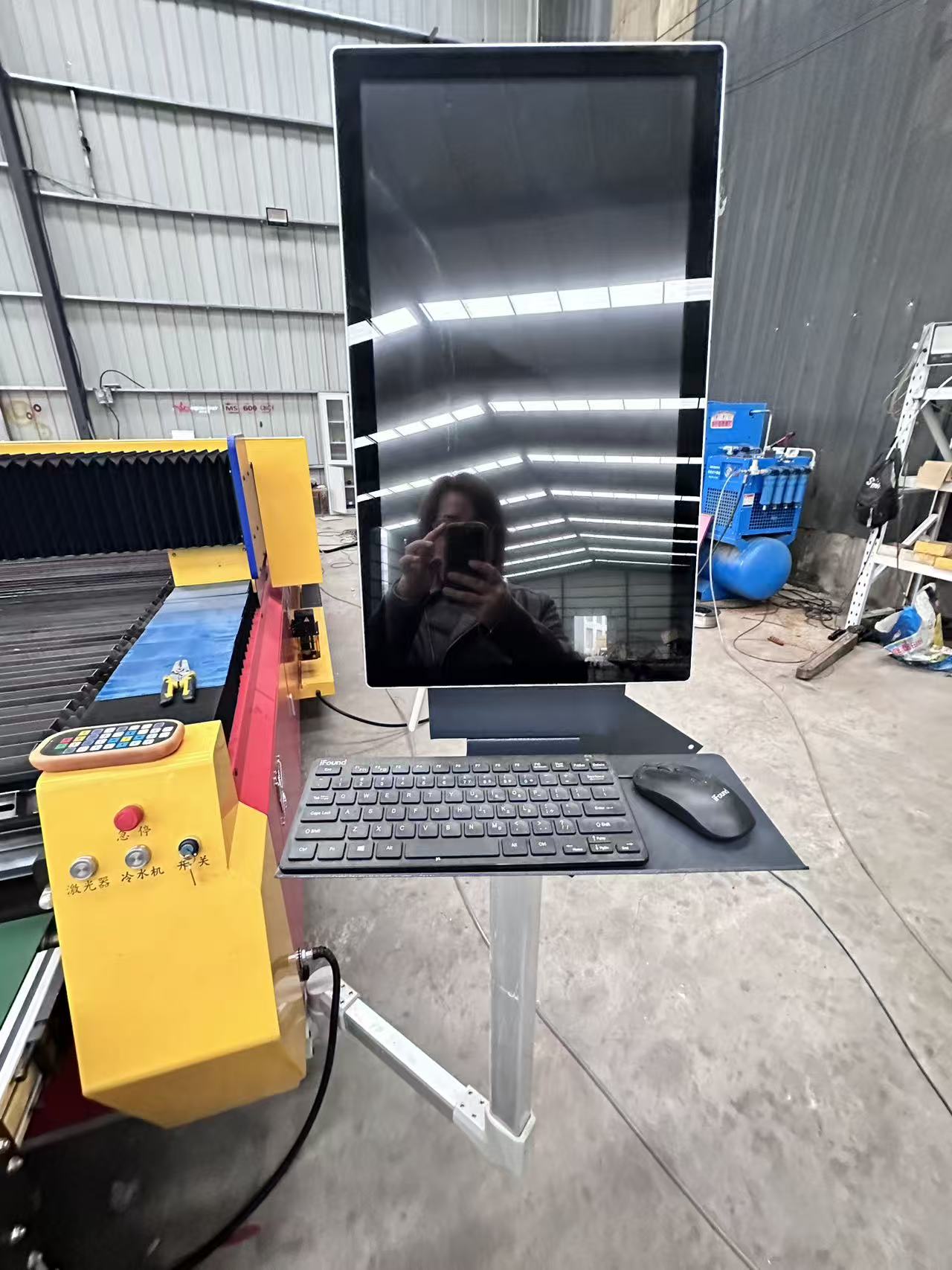

#Controller- WEIHONG control system
#Reducer--Shimpo From JAPAN
#Rack- YYC
#Rails - Taiwan HIWIN
#Support DXF,DXP,NC,G,etc
#Proportional valve SMC
#Water chiller -S&A

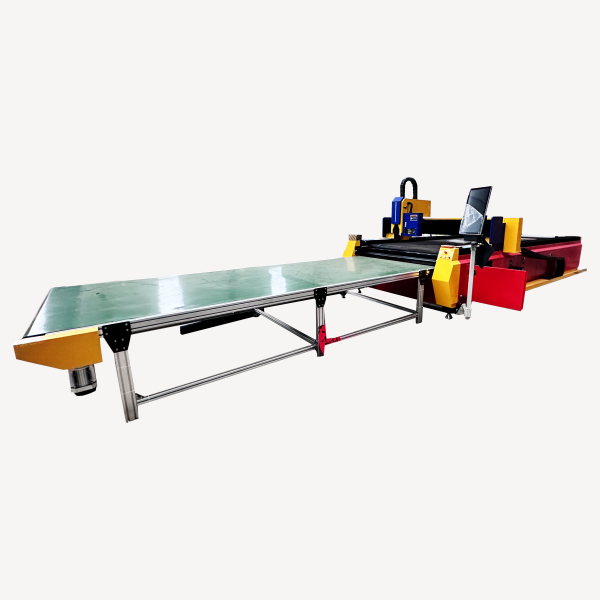

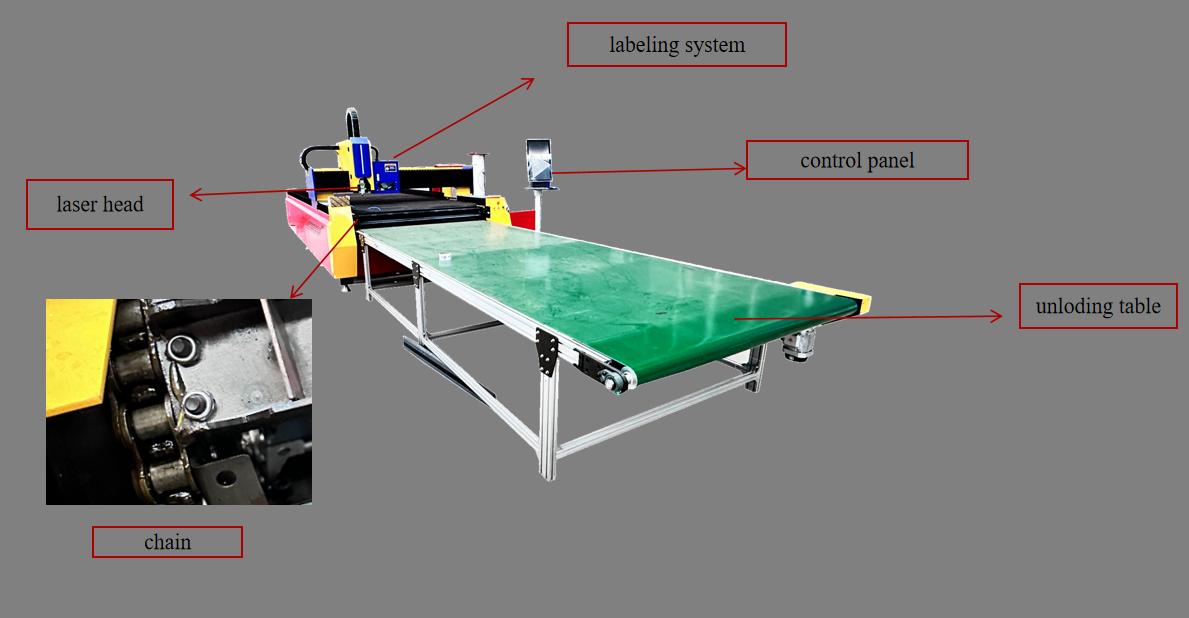

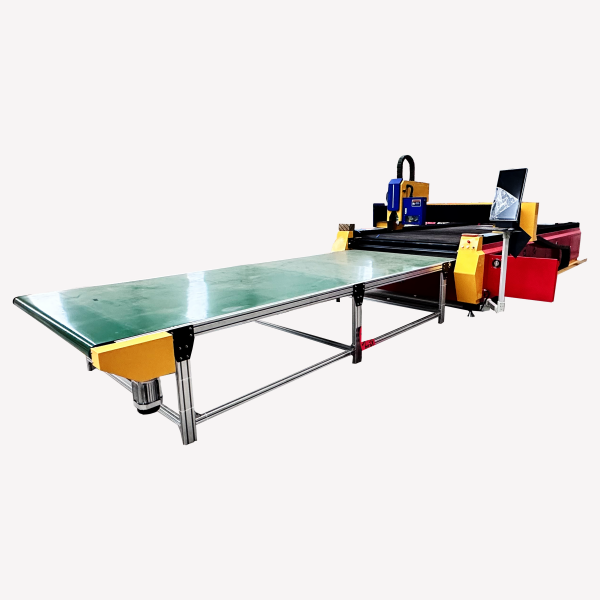

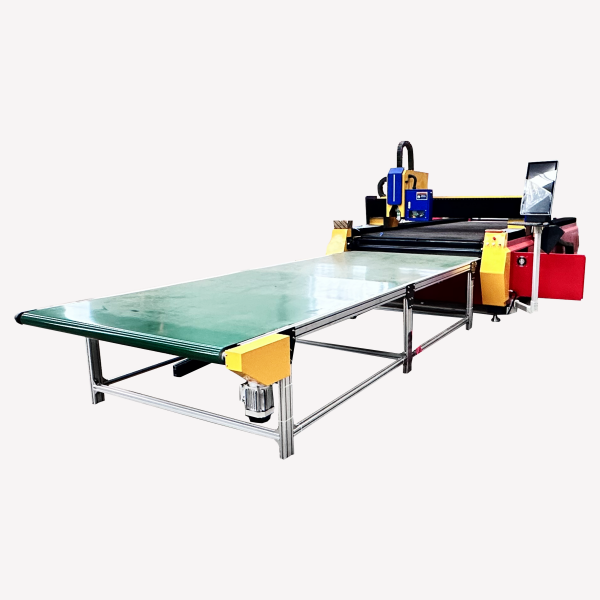

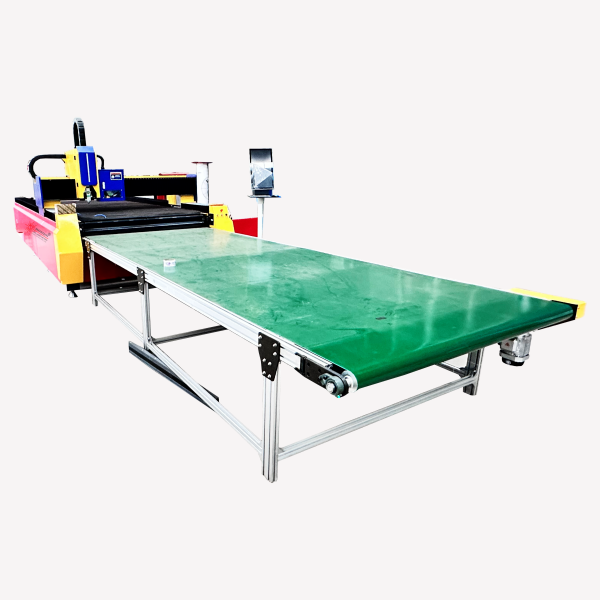

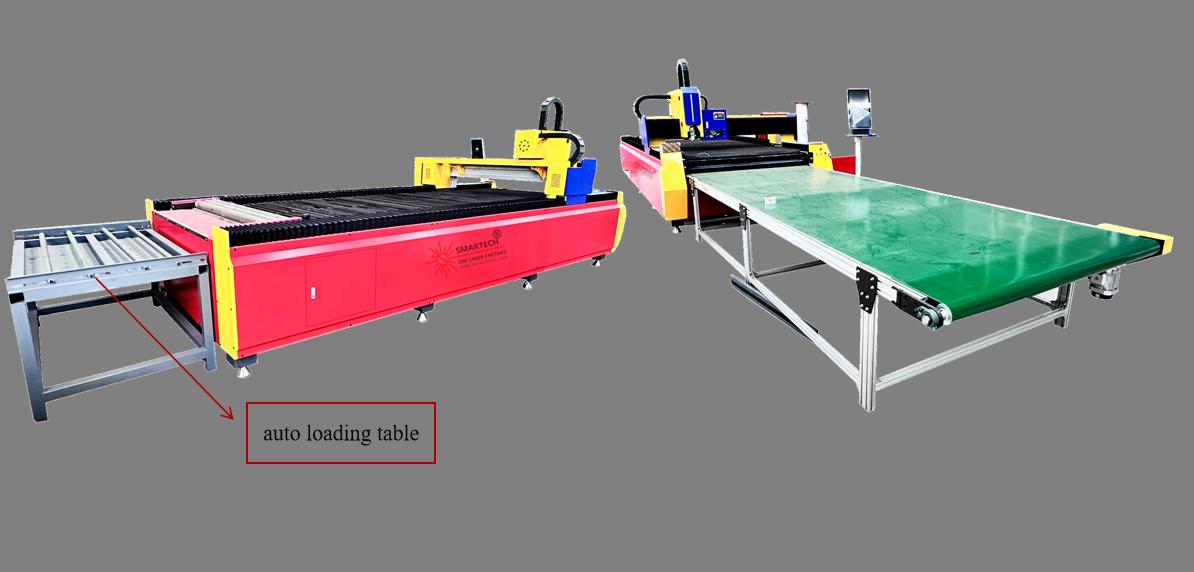

#Auto loading unloding table
#labeling syatem
#Electrical components Schneider
#380V 50HZ Voltage
| Model | S-Fiber-1540 |
| Working Area | 4000 × 1500 mm |
| Laser Type | Chinese fiber laser generator MAX |
| Laser Power | 1500w |
| Complete machine power | 52/55 KW |
| Maximum XY axis Acceleration | 2.0 G |
| Beam Quality M2 | < 0.373 |
| Positioning Accuracy | ≤ ± 0.03 mm/m |
| Re-positioning Accuracy | ≤ ± 0.02 mm/m |
| Max Cutting Speed | 0-40 m/min (depending on material and thickness) |
| Power Supply Voltage | 3-phase 380V/50Hz |
| X-axis Stroke | 4000 mm |
| Y-axis Stroke | 1500 mm |
| Z-axis Stroke | 120 mm |
| Working Table | Rack working platform |
| Control System | WEIHONG |
| Location System | Red dot indicator |
| Water Cooling System | Constant temperature water chiller |
| Machine Weight | 1500-2000KG |
| X-axis Stroke | 4000 mm |
| Machine Dimension (m) | 2200x4300x1800mm |
| Remark | Automatic exchange worktable, cover(option) |
Features
1.Highly dustproof.
The dustproof grade is IP65, and the light path is completely enclosed, so the possibility of lens contamination is almost zero.
2.Motion picture zero focus
The scale can be adjusted flexibly to unify the zero focus position and no longer worry about adjusting the process parameters.
3.Efficient water cooling
The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.
4.Optimized structural design
Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage, rust and other reasons.
