Laser Engraving Cutting Machine 1390/9060

1. Drive system with high precision linear guide and slide block, high precision,wear resistance,small resistance, high speed; arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and low noise. 2. Red Cross accurate positioning, convenient and quick in finding engraving and cutting position. 3. Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect. 4. Equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.
Availability:
  • SJ1390

  • SMARTECH

  • 1300*900MM(51.2''*35.4'')

  • 100W/130W/150W

  • AS YOUR PREFERENCE

1390/9060 laser engraving cutting machine Applicable Industries

Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.

laser engraving cutting machine 1390/9060 Applicable Materials

Materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease,ABS board, lamp shade, etc.

Laser cutting Engraving machine 1390/9060 model pictures:

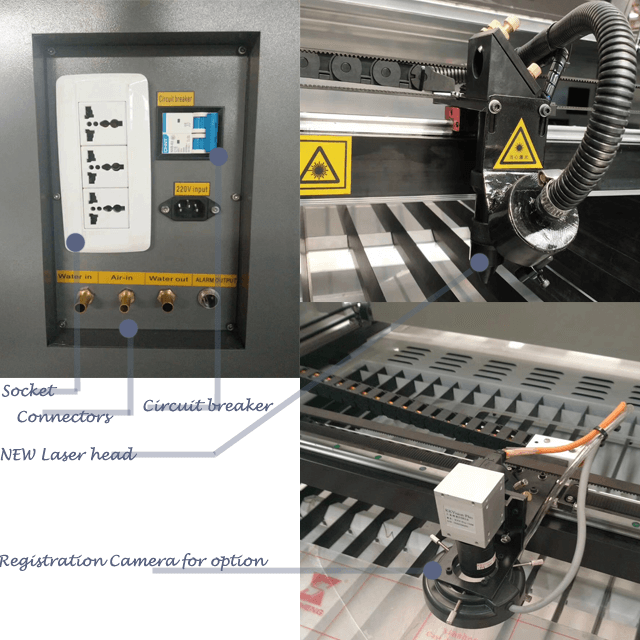

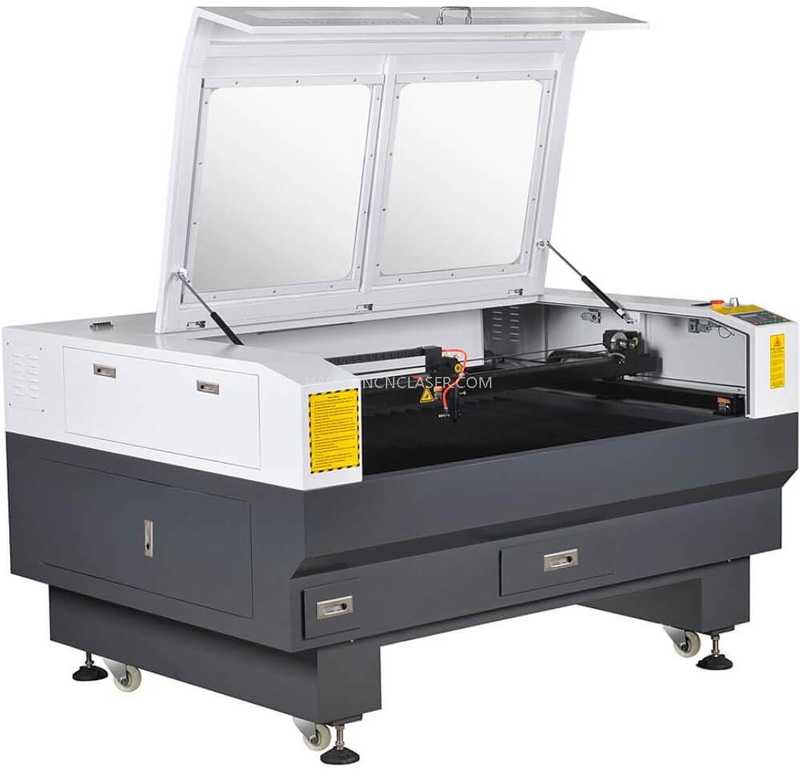

cnc laser engraving cutting machineco2 laser engraver engraving cutting machinelaser engraving and cutting machine for salelaser engraving and cutting machinelaser head with cameralaser cutting engraving machine partscontrolling systemlaser engraving cutting machine controller


machine recommendation

图片103WechatIMG1326WechatIMG3087





Machine Parameters of 1390 laser engraving cutting machine Specifications

Model

SC Series SJ9060

SC Series SJ1309

SC Series SJ1610

SC Series SJ1812

Working Area

900*600mm

1300/1200*900mm

1600*1000mm

1800*1200mm


Laser Power

80W/100w/120w/150w/260W/300W


Laser Type

CO2 Sealed Laser Tube ,10.6μm


Cooling Type

Water Cooling


Engraving Speed

0-60000mm/min


Cutting Speed

0-40000mm/min


Laser Output Control

0-100% set by software


Min. Engraving Size

Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm


Highest Scanning Precision

4000DPI


Locating Accuracy

≤+0.01mm



Controlling system

RUIDA/LEETRO



Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc



Compatible Software

CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.



Color Separation

Yes



Drive System

High-precision 3-phase Stepper Motor



Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe



Power Supply

AC110V/220V+10%,50HZ/60HZ



Working Environment

Temperature:0-45C,Humidity 5-95%(No Condensate Water)




laser cutting engraving application

laser cutting samplelaser cutting machine sample
