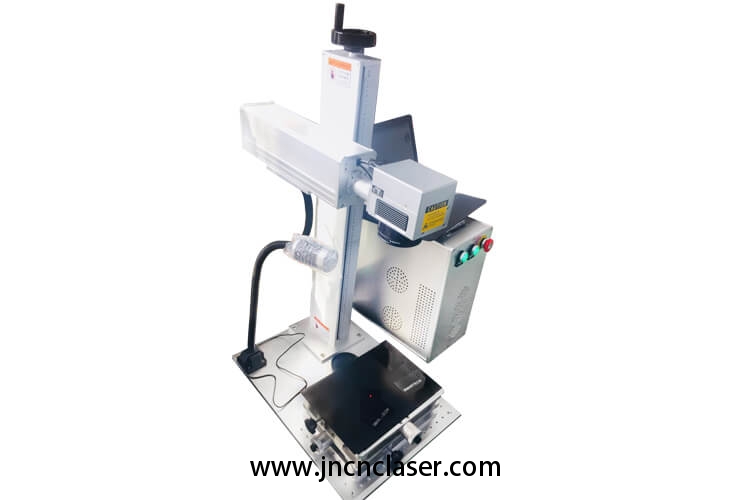

Portable Fiber Laser Marking Machine 30W
For Laser Marking Machine ,There are mainly Cabinet type laser marker and portable type laser marking machine
Also have2D laser marking machine and 3D laser marking machine
There are10W/20W/30W/50W ,Which power should I choose ?
Common Fiber Laser Power 10W/20W/30W/50W
20Wfiber laser engraver is the most pop choice. Basic 20W fiber laser can meet 90% work.
10Wis good for shallow marking work.
30Wfor some deep engraving, or match with big size F-theta lens for big size marking.
50Wfor some deep engraving or high precision thin thickness cutting work(0-0.5mm).
| SF110 | 110X110mm | Small Ssize, Deep engraving |
| SF160 | 160x160mm | Standard device for Smartech |
| SF300 | 300x300mm | For big size engraving |
What is a cabinet type laser marker & what is a portable laser marker ?
cabinet type laser marker:
Portable type laser marker:
What is the difference between the 2D laser marking machine and 3D laser marking machine ?
2D Fiber Laser Marking Systems
The 2-axis deflection units can be used to deflect a laser beam in X and Y directions. This produces a two-dimensional area allowing a laser to be directed at any position. This area is known as the “marking field” as shown in the diagram. Deflection is performed by two mirrors, each of which is moved by a galvanometer scanner. The deflection unit has a beam input, into which the laser beam is fed, and a beam output, through which a laser beam is emitted from the unit after deflection.
3D Fiber Laser Marking Systems
In a 3-axis submodule the laser beam first enters a moving lens – the Linear-Translator-Module. A moving lens diverges the beam rapidly before it passes one or two focusing lenses. Then the beam hits a deflection unit that directs the laser towards any x-y position inside the marking field.
Optional Rotary device for cylinder works:
For fixed cylindrical, annular and irregular shape of object, with marking machine to engraving on the surface. Mainly used for rings, bracelets and special shape metal, nonmetal workpiece inside and outside surfaces engraving.
Do you know which fiber laser marking machine you want to choose now ?
Some pictures of portable laser marker for you here:
Fiber laser marking machine working samples
