Auto Tools Changer Cnc 5 Axis CNC Router Machine With Cover Cnc Router for Moulds Making

Availability:



Inquire Add to Basket

Model:
SMT 1224-5 Axis CNC Router
Brand:
SMARTECH
Code:
New Product 2021

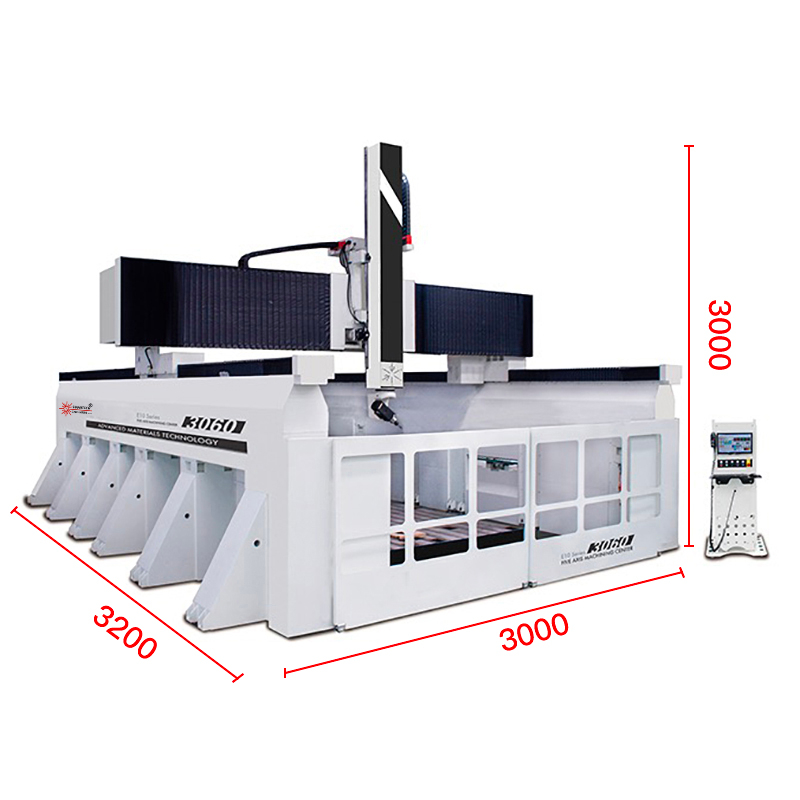

Size:
3200x3000x3000
Power:
220V / 380V
Machine Color:
as your preference

Product Description

Product Overview

Good Price 5 Axis CNC Router With ATC From China Factory

 SMARTECH CNC machining centre guarantees high performance and quality at a price that will make you happy. With a solid and compact structure, it provides reduced setup and restart times. Work table: The standard Grace work table allows you to machine medium size and large work pieces. Work unit: The powerful electro spindle ensures excellent finishing and high speeds on all types of material

Application materials
Various kinds of solid wood, rubber and plastic ABS, polyurethane, glass fiber, carbon fiber and other composite materials for slotting, chamfering, milling, hook groove and other processes and angles of high precision, high efficiency processing. Fields of machine application
Aerospace Technical articles / Insulators Street furniture Motor Caravans Automotive Appliances Sports and leisure Thermoformed products
Product's description:5 Axis Woodworking Engraving Machine1. Easy operation PLC controlling system, steady performance, powerful function,easy operation 2. Well-known Italy Hiteco spindle, and Akemde 5 axis head ,high precision, long life time, steady working 3. Well-designed whole cast steel lathe bed, well welded, no distortion for whole structure. 4. Adopt Taiwan Hiwin linear square guide rail system, working steadily, high precision, long life time. 5. Movable table structure, working more steadily than that with moving gantry, especially while engraving waved plate 6. Diversified control.It can control speed of working,air line&cutter setting speed separately which improves both processing quality/ efficiency 7.8 pcs Automatic tools changer 8.An entry-level five-axis machining center with world top-class controller—designed for the most demanding processing requirements, maximum precision, and all - round excellence. 9.Features world top class components 10.Machine center with 5 synchronizing interpolated axes;Real-Time Tool Center Point Rotation (RTCP),well suited for 3D curve processing. 11.Twin table design doubles the productive efficiency by allowing loading unloading operations on one station without interrupting work cycle.

FEATURES AT A GLANCE

    SMT 1224-5 Axis CNC Router #Working area:1200x2400*950MM #Italy Hiteco spindle #8 Tools Changer holders #Taiwan Delta Inverter #Akemde 5 axis head #Taiwan TBI Ball Screw, Taiwan Hiwin Linear Square Rail (famous) #PLC Controller Panel #Vacuum table #Servo motor driver #lubrication system for machine maintenance #leakage protector(protect operators’ safety) #Famous Schneider electrical parts #Big control box #Tools and tool box

PRODUCT SPECIFICATIONS

   Model SMT I224 5 Axis Maximum working size X Axis:1200mm Y Axis : 2400mm Z Axis: 950mm A Axis: ±120° C Axis: ±245° Table Size 1250x2500mm Table structure Cast Steel Movable Table X,Z Structure Taiwan-made HIWIN Guide rail:X 30, Z 25 Germany-made rolling ball screw Y Structure TaiWan HIWIN Guide rail:30 Helical Rack and pinion Spindle 10kw, Italy Hiteco spindle, air-cooled Magazine Linear-type ATC (with 8 tools) Fast moving speed 55m/min Working speed 20m/min Auto-Tool changers 8 pcs Automatic tool changers Diameter of Cutter φ3.175-φ12.7 Spindle Speed 22000r/min, variable speed Working Voltage AC220V/60Hz 3-phase or AC380V 60HZ 3-phase Motor and driver Japan-made YASKAWA Inverter Taiwan-made Delta inverter Command G code Controller PLC Software Original Alphacam Dust-collect function No Working table Vacuum table as customized Net weight 7500kg Gross weight 7600kg Machine size 3600*3000*3000mm Working voltage AC380V/50HZ or Customized as your workshop voltage

PRODUCT CONFIGURATION

 delta inverter

 optional linear tools changer

 9kw air cooling spindle

 control box

 Servo System

 motor with reducer

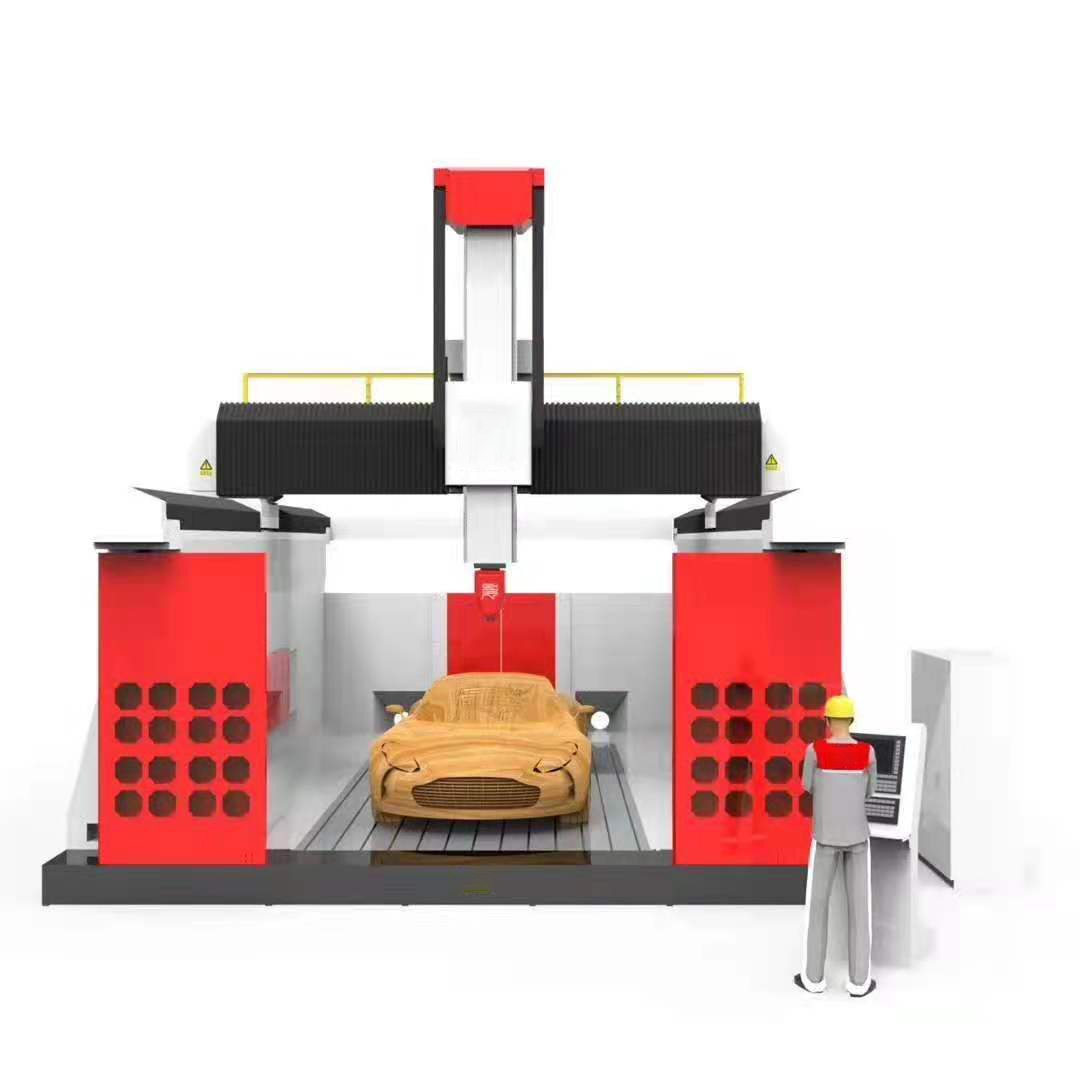

Successful Project

 Application Industry: styrofoam mold, wood mold, large blister mold, large casting mold, lampshade mold, landscape lamp mold, large character mold, etc Applicable materials: styrofoam, wood substitute, wood, resin, aluminum, materials, etc Features: With advanced 5 axis linkage technology, all angles can be accurately carved without special manual trimming.
