Laser Engraving Cutting Machine 1390 with CCD Camera 80W 100W 130 W 150W 180w

Availability:



Inquire Add to Basket

Model:
Laser engraving machine 1390
Brand:
SMARTECH
Code:
New Product 2021
Size:
1860*1350*1100
Power:
80/100/130/150W
Machine Color:
as your preference

Product Description

Product Overview

Laser cutting machine application

 CO2 laser cutting machine application is widely.such as Wood,MDF,leather,plexiglass,acrylic,marble,jade,crystal.acrylic sheet,paper bamboo,paper ,fabric,thin metal etc


FEATURES AT A GLANCE

  Work area: 1300 * 900mm  *Blade table  * EFR laser tube 150W *150W power supply *Ruida (LCD panel, English control board)  *Leadshine motors and drivers *Linear PMI/TRV imported from Taiwan *Red beam dot *USA II-IV Lens and mirrors *water protection switch *emergency stop switch *exhaust fan *Chinese best belt *limit switch (Japan Omron) *air compressor *Standard tool box *Filter to avoid electromagnetic induction *software RDWORKS


 Right elevation

 Left elevation

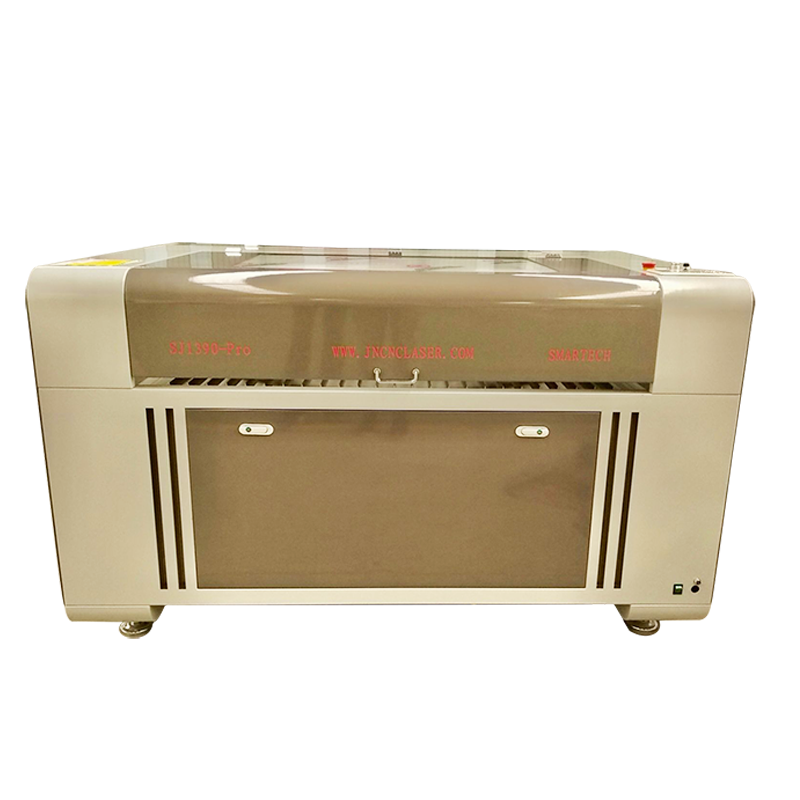

 Front elevation

PRODUCT SPECIFICATIONS

 NO. Description Parameter 1 Engraving area 1300X900mm 2 Laser power        80/100/130/150W 3 Cooling Mode: Circulating-water-cooling   4 Power Adjustment 0-100% controlling, no segment and adjusting by software   5 Machine Control and Drive Ruida controller with WIFI internet, Leadshine stepper 6 Repeating Location 0.001mm   7 Max consumption Power 750W(save your electricity cost) 8 Adjustable Up-down Distance of Laser Head   30mm   9 Max Cutting Speed 800mm/min(when cutting 10mm thick of acrylic) 10 Engraving speed 0-70000mm/min 11 Engraving Depth 0-3.5mm 12 Minimum shaping character " Chinese: 0.2×0.2mm English: 0.05×0.05mm" 13 Working Travel Area 1300x900mm 14 Machine size 1860*1350*1100 15 Up-down Range of Working Table Mechanical 300mm/ 250-300mm for option   16 Controlling Software Language English, Simplified Chinese, Traditional Chinese 17 Resolution ratio 0.025mm 18 Power supply AC220V± 15%，50Hz 19 Resetting positioning accurate <0.01mm 20 Number of hanged line 68Line 21 Operating system RD Works/laser cut 22 Gross Power 1.6Kw 23 Operating temperature 0-45℃ 24 Operating humidity 5-80%(free of condensed water) 25 Graphic format supported *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw   26 Packing weight 320KG/390KGS(Single head/ Double heads) 27 Package Dimensions(mm) 1970*1500*1245mm/2000*1530*1270mm(Single /Double heads) 28 Packing *Firstly Packed the machine with plastic sheet for clearing and damp proofing. *Secondly Then put the machine in the plywood case for safety. *Thirdly Transport the plywood case into the container.

PRODUCT CONFIGURATION

Auto focus

CCD Camera

Rotary device for round materials processing

 leadshine driver

 Control box

 Switches and ground line

 water chiller for tube more than 100W

 efr laser tube

 laser head

 filter

 big torque motor

 Famous delixi electrical parts

 air pump for 9060 laser machine

 laser power supply with led screen

 Mirrors with the USA II-IV lens

Successful Project

 advertising application fields

 moulds application fields

 acrylic cutting engraving samples

machine recommendation

FAQ  -Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
