3D Laser Crystal Engraving Machine
You are here: Home » CNC Laser Machine » Laser Marking Machine » 3D Laser Marking Machine » 3D Laser Crystal Engraving Machine
Share to:

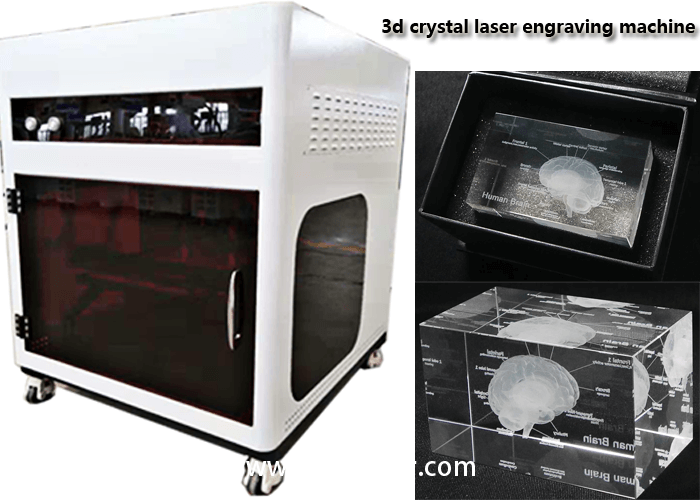

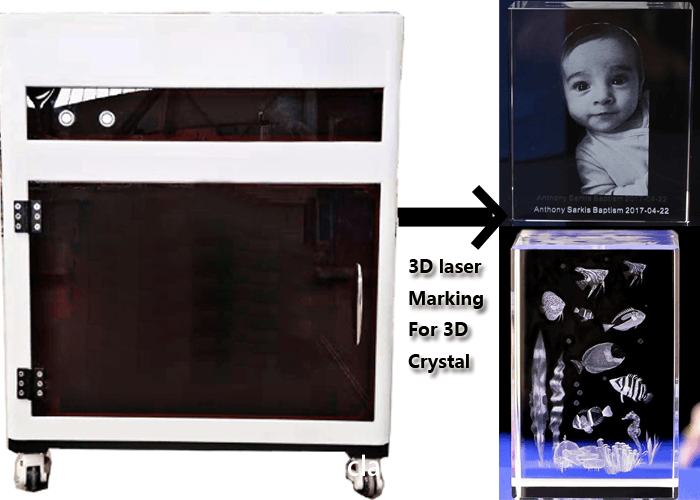

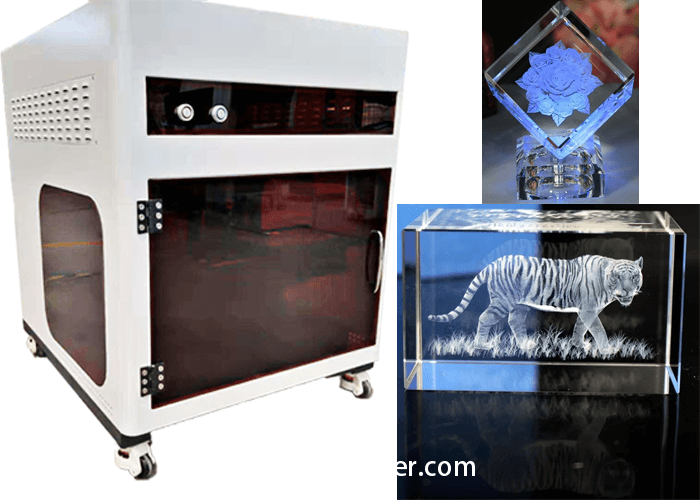

3D Laser Crystal Engraving Machine

3D laser crystal engraving machine is widely used in tourism, hotel, photographic studio, gallery and advertising and other consumption activities industry, urban scenic spots, photo print shops, wedding photo, tourist souvenir and personalized gift shop and other forms of consumption and temporary activity places.

3D laser crystal engraving machine Introduction

3D laser crystal engraving machine is widely used in tourism, hotel, photographic studio, gallery and advertising and other consumption activities industry, urban scenic spots, photo print shops, wedding photo, tourist souvenir and personalized gift shop and other forms of consumption and temporary activity places.

Suitable Materials:

Crystal, glass, acrylic, decoration materials and other apparent materials.

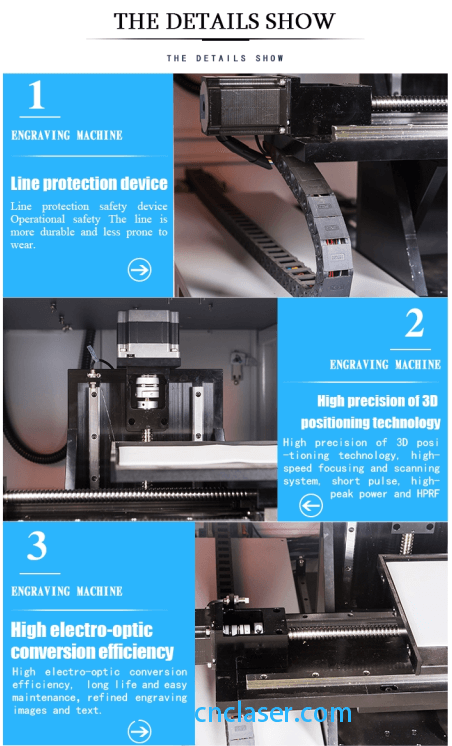

Machine Features:

1.This machine can engrave on both 2D and 3D, (depends on your design).
2. Our machine also good for big size engraving as big as 320*400*150mm (also very suitable for engraving family, friends ..etc).
3. The operation is simple: software friendly interface, easy to learn; Automatic center function, convenient operation and personnel placement crystal.
4. Strong adaptability: Equipped with shockproof system, effectively prevent equipment transport due to accidental impact in use process cause harm to the machine core components.
5. High frequency: Using high-speed galvanometer laser scanning way and 5000Hz Laser source, speed up to 300000 dots/ min, save the time of engraving.Good engrave quality, high solution.
6. High stability Carving effect delicate:using advanced semiconductor side pumped solid state laser technology.
7. Adopt sealed integration design, good beam quality, high stability; fine engraving effect, equipment is good stability, low maintenance.
8.Adopt the imported air cooling laser system Environmental protection, Low noise: no compressor pumps and high power fan, no pollution.

9.Non-touch style laser process ensures that the surface of the crystal engraving machine's crystalline lens keeps its nice appearance.

3D laser crystal engraving marking machine parameters:

Product

2D/3D Crystal Laser Inner engraving machine

Model

SJ3D

Maximum engraving area

320 x400 x150 mm

Machine size

800mm x 900mm x 1000mm

Laser frequence

5000Hz

Maximum marking speed

300,000dots/min(the fastest speed in Chinese market)

Laser

Semiconductor diode

Wavelength

532nm

Resolution

1200DPI

Focus diameter

940mm

Repositioning accuracy

10μm

Gross power

<500W

Cooling way

air cooling

Power requirement

220V±10%, 50Hz/60Hz

File format

JPG,BMP,DWG,DXF etc. File format JPG,BMP,DWG,DXF etc.

Working environment

temperature 5-35℃, humidty 10%-85%, non-condensed

3D laser crystal engraving machine is widely used in tourism, hotel, photographic studio, gallery and advertising and other consumption activities industry, urban scenic spots, photo print shops, wedding photo, tourist souvenir and personalized gift shop and other forms of consumption and temporary activity places. 2d 3d photo crystal laser engraving machine2d/3d crystal laser engraving machine3d crystal laser engraving machine

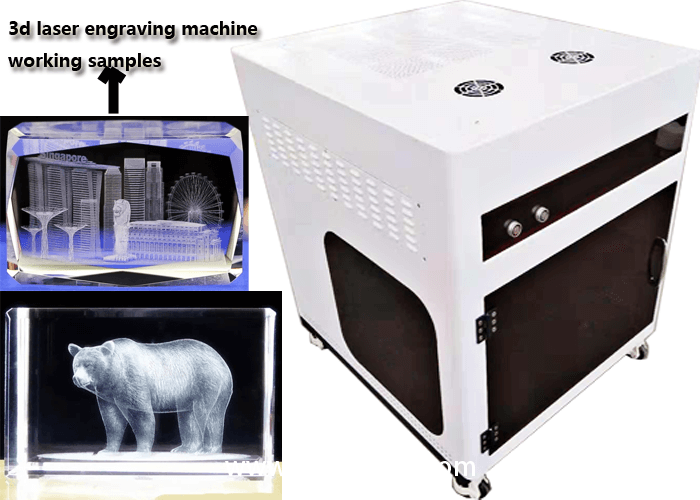

2d 3d crystal laser engraving machine working samples

cost of 3d laser engraving machine3d laser engraving machine
