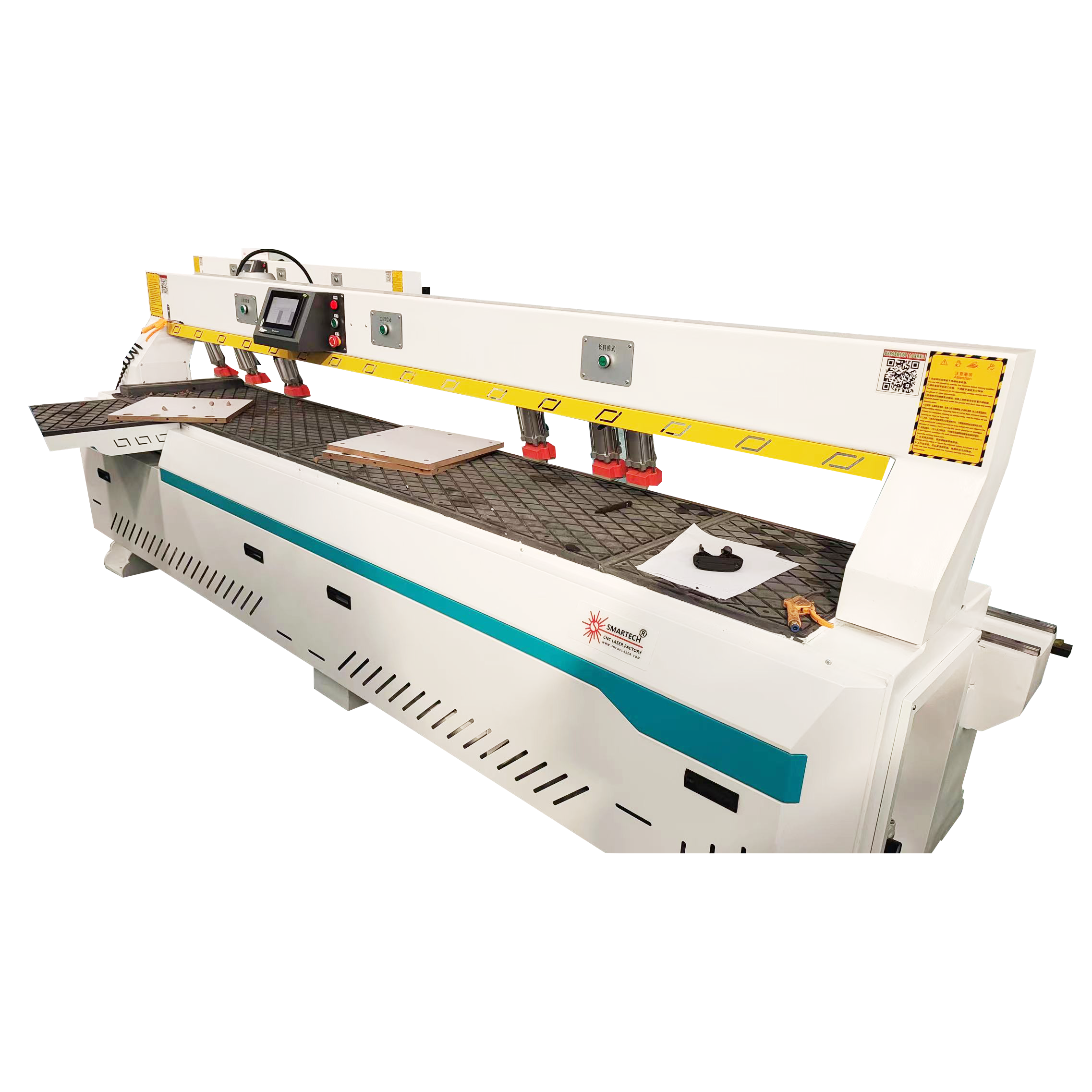

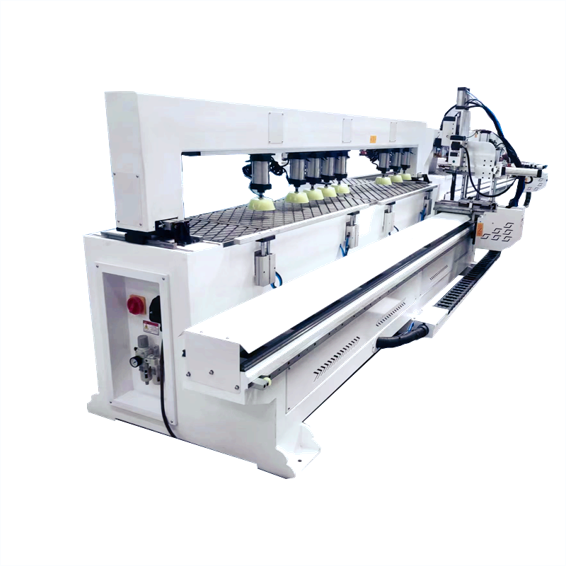

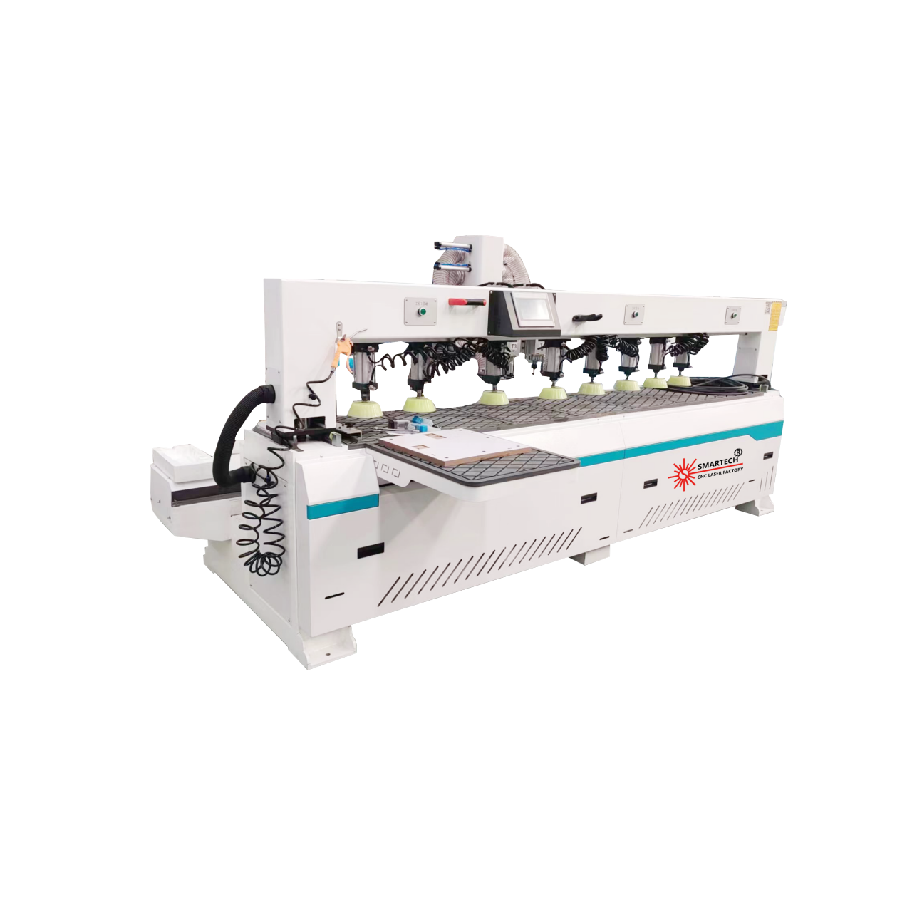

All In One Horizontal Vertical Drilling machine

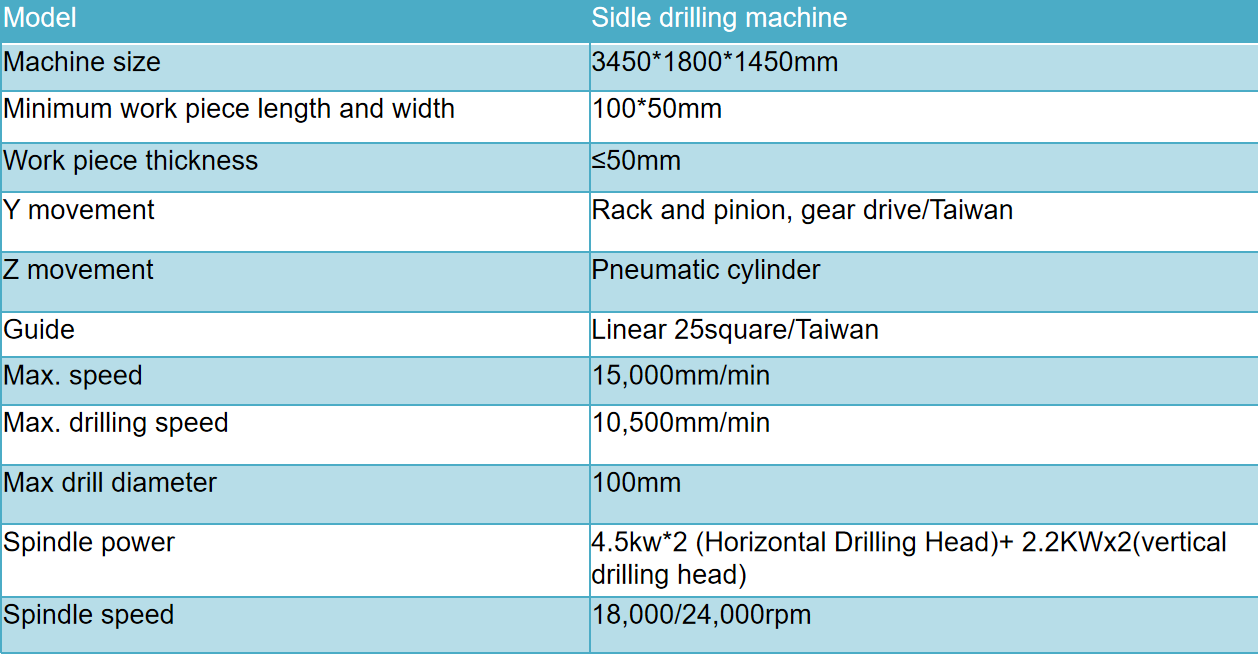

COMMODITY&DESCRIPTION

#Movable beam positioning

#X axis travel size:2800mm

#Machine size:3450X1800X1450mm

#Minimum work piece length and width:100*50mm

#4.5 KW x 2 Horizontal heads + 2.2KWx 2 Vertical Heads

#5.5 KW Inverter

#Touchwin controller (touching panel)

#Automatic positioning

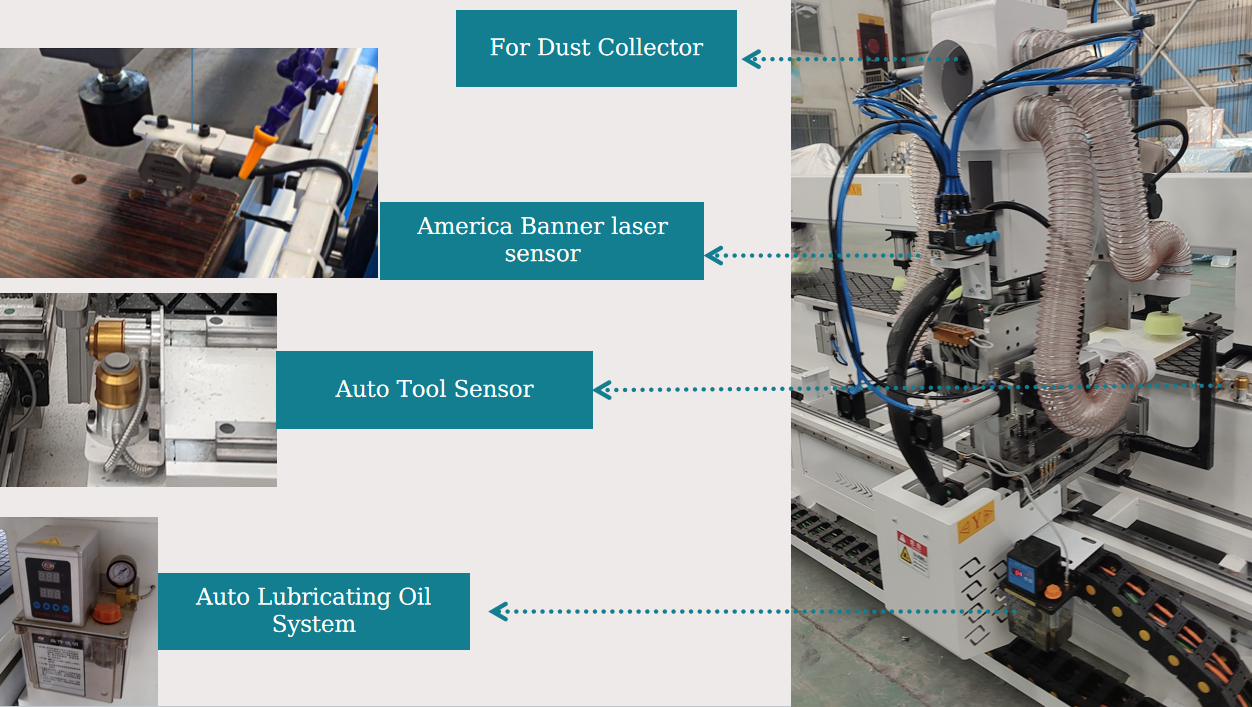

#American original Banner Laser displacement sensor

#Servo motor driver 750W*3 pieces

#Y movement: Rack and pinion, gear drive/Taiwan

#Z movement:Pneumatic cylinder

#Dedicated positioning device

#Oil lubrication system

#Laser Scanner

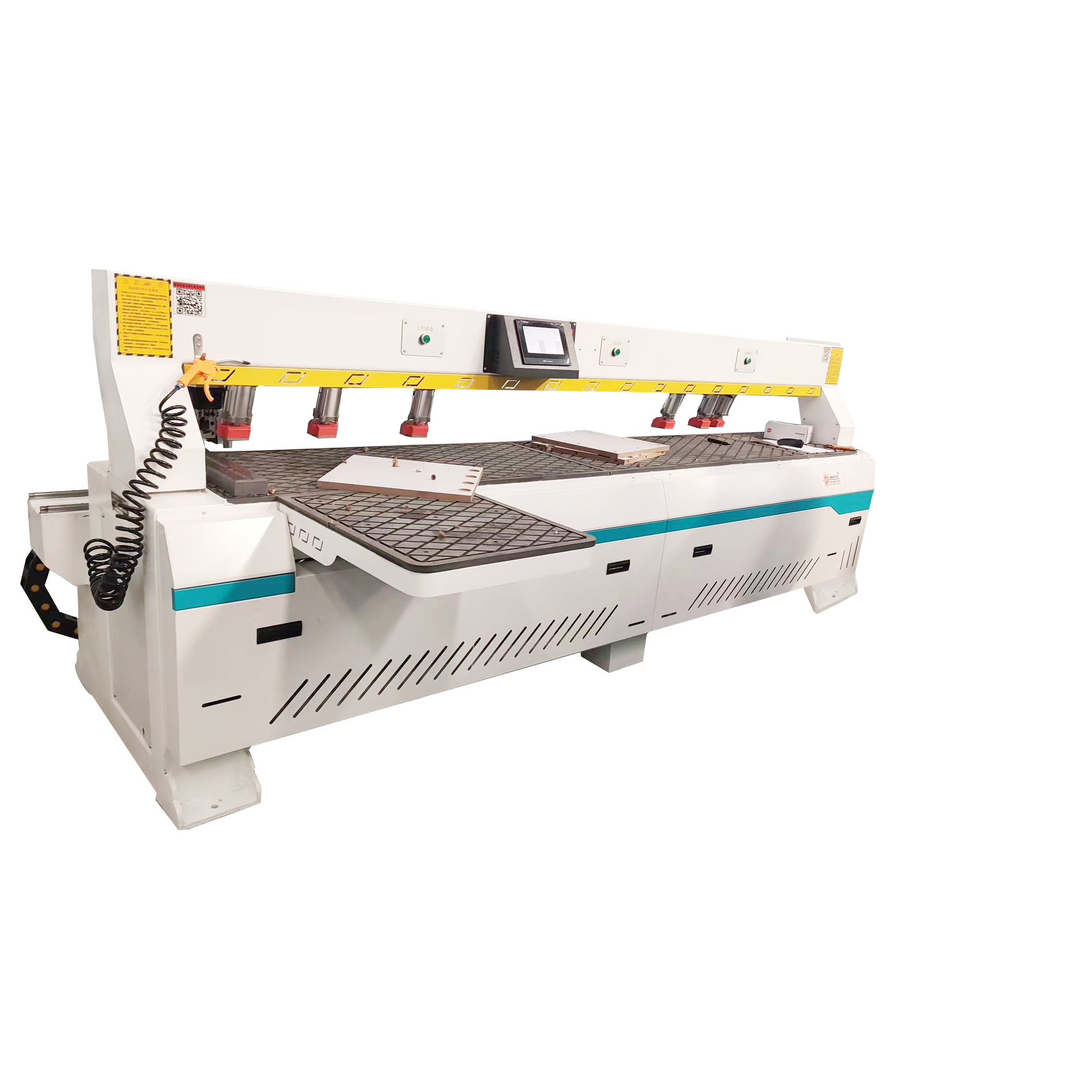

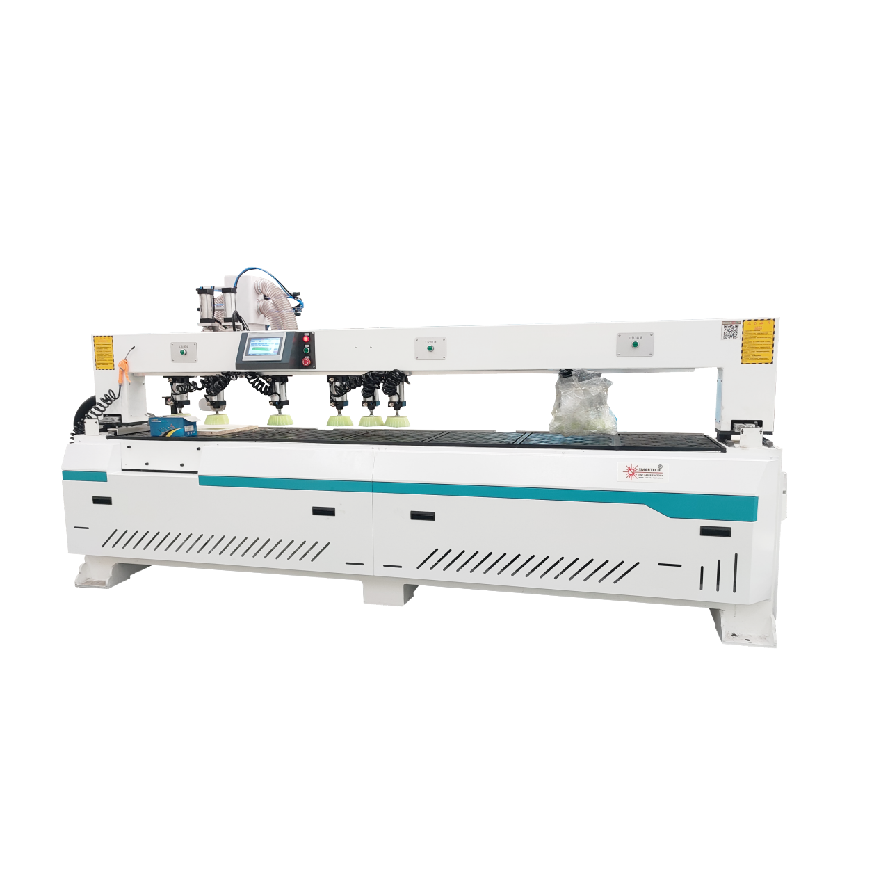

Machine Outline
