Availability: | |
---|---|

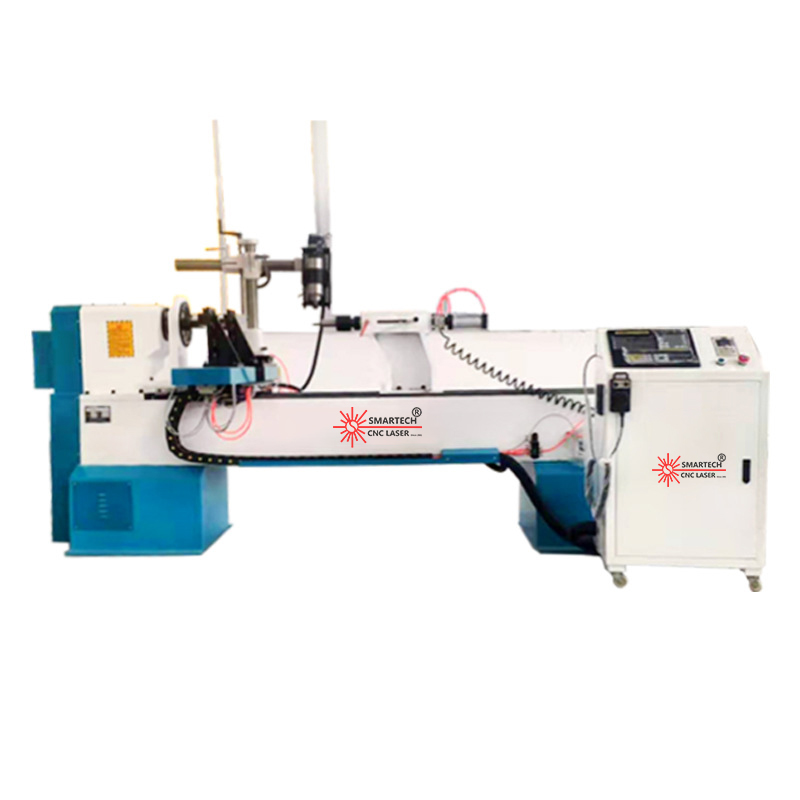

automatic cnc wood lathe machine
Smartech
4kw
FEATURES AT A GLANCE
COMMODITY&DESCRIPTION UNIT PRICE QTY SL1530 Model *Working area:1500MM(L)X300MM(Diameter) *Cast iron body (not easy to be deformed and will not be wobbly after 10 years,better than welded body) *4KW Four grade pure cooper 3 phase asynchronous motor *86 Xinlichuan driver 3 pieces *Motors 3 pieces(XY Axis 450B 10Nm,Z axis 450C 12Nm) *Rails and blocks 25 mm *Y axis Helical rack gear transmission *Fuling inverter *Fuwang blades *Adtech or DSP Controller *Filter/Leakage protector *Helical tooth rails,higher efficiency Optional parts: @1.Electrical blade system for bowls making @2.Change into 4 axis system: @3.Change 1500mm length into 2000mm
PRODUCT SPECIFICATIONS

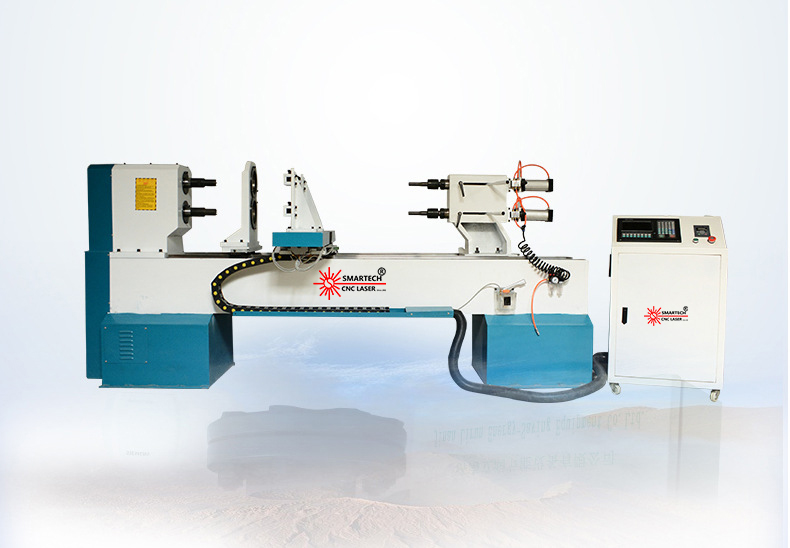

Model SL1530/SL2030/SL2530 Max turning length 1500mm/2000mm/2500mm/Customized Max turning diameter 20mm-300mm for single axis; 20mm-160mm for double axis/Customized Number of axis 1 axis 2 blades/2 axis 4 blades/1 axis 2 blade with spindle/2 axis 4 blades with spindle /with atc electronic plate form Maximum feed rate 200cm/min Minimum setting unit 0.01cm Spindle motor power 4kw Air pressure 0.6-0.8Mpa Power supply AC380v/50hZ or 220v/50hz or option Overall dimensions 300*110*170cm Weight 1600kgs Control Adtech /DSP Driver Stepper motor/Servo for option Inverter Fuling/Delta for option Control box Standard Rail Taiwan made Blades Fuwang cnc wood lathe Detailed Features: 1. Whole machine is cast with seamless steel structure, which is high temperature annealing and vibrating stress relief,so the lathe body is stable and will not be deformed easily. 2.Professional used for wood turning and cylinder engraving,for table legs,stair railing(banisters)etc 3.Adopting advanced Adtech/DSP system with USB connection,operated with the handle,convenient operation.Our engraver can completely work off- line and do not take any computer resources. 4. Adopt Germany ball screw and taiwan PMI helical square rail with high transmitting precision and longevity.Bid module helical/diagonal rack. 5.Compatible with several CAD/CAM design software,e.g. type3, artcam, etc. 6.Rotating speed is adjusted by inverter,and the speed data is shown on controlling cabinet panel. 7. One time tool setting to finish the whole work piece.Save your time.
PRODUCT CONFIGURATION
Successful Project
machine recommendation
FAQ
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
