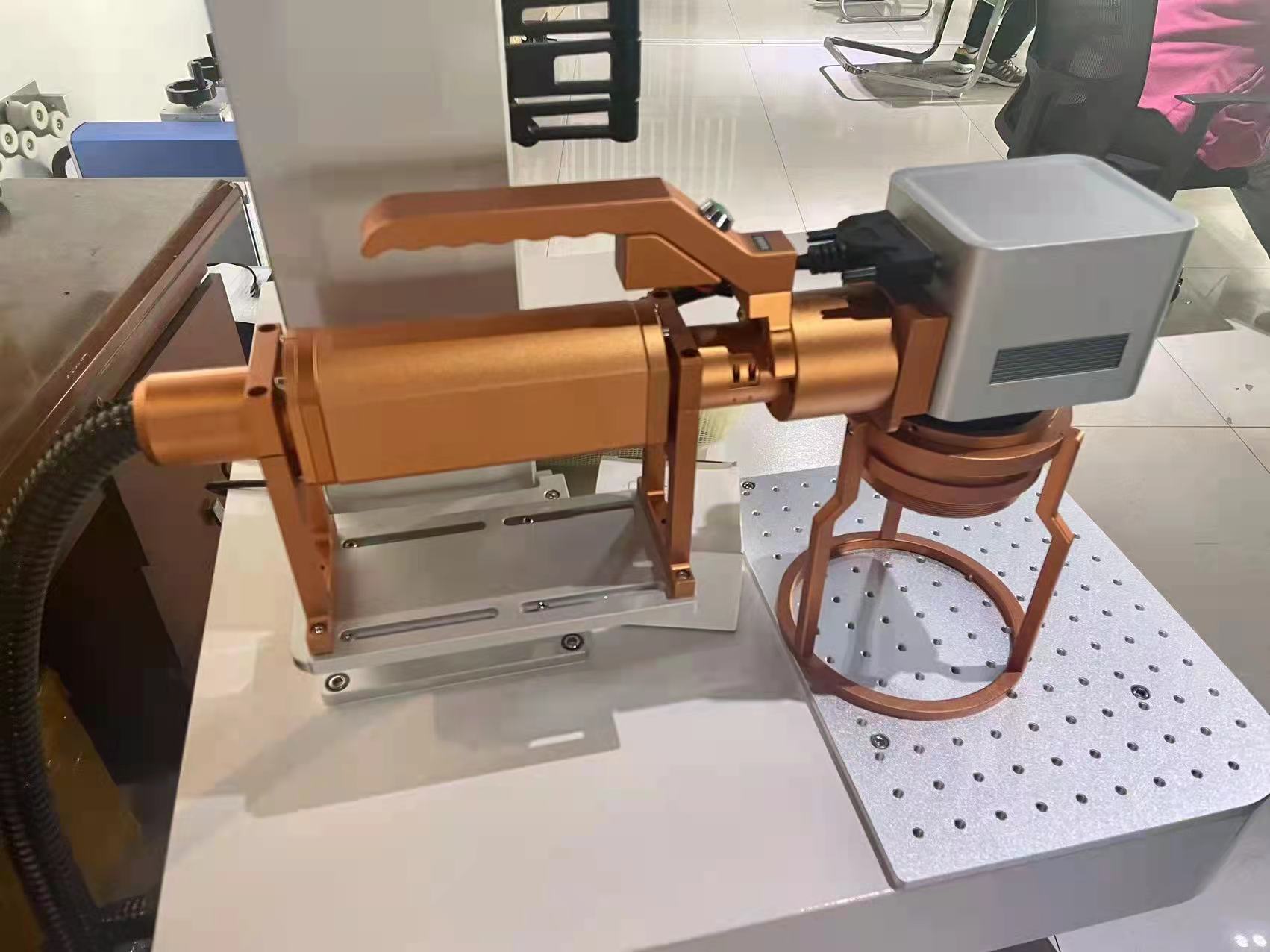

SMARTECH UV Handheld Laser Marking Machine

Availability:
  • Laser Marking
  • SMARTECH
  • Laser Marking
  • 110mm×110mm/160x160mm/200x200mm/300x300mm
  • fiber laser 20W/30W/60W/80W/100W/120W
Product Overview

Mopa Fiber laser marking machine
For starters, MOPA stands for “Master Oscillator Power Amplifier.”meaning a system where the power amplifier is a fiber amplifier.
To keep it simple, it’s what gives our systems the capability and performance that exceeds other lasers. Main feature is its
colorful&deep marking!

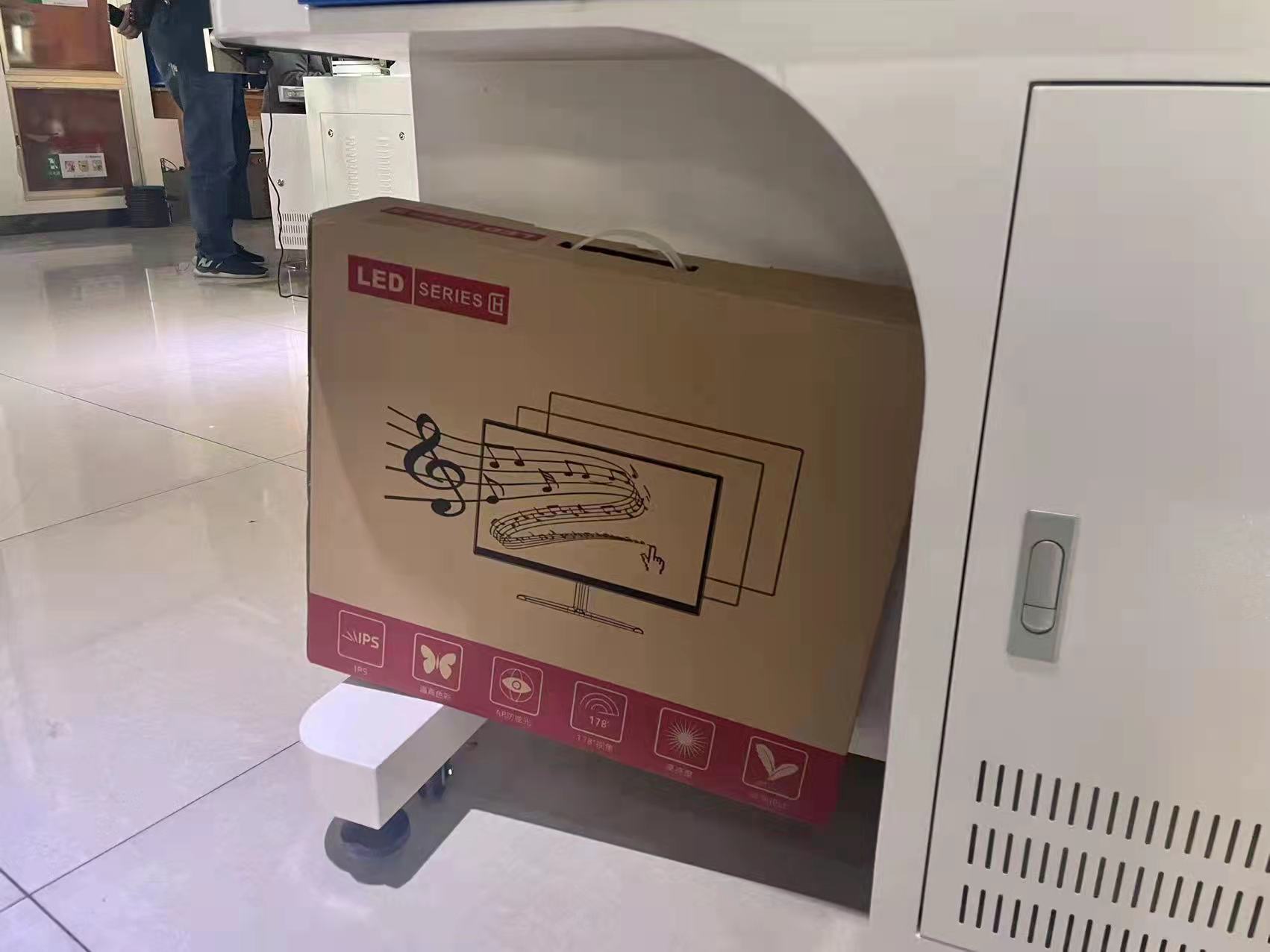

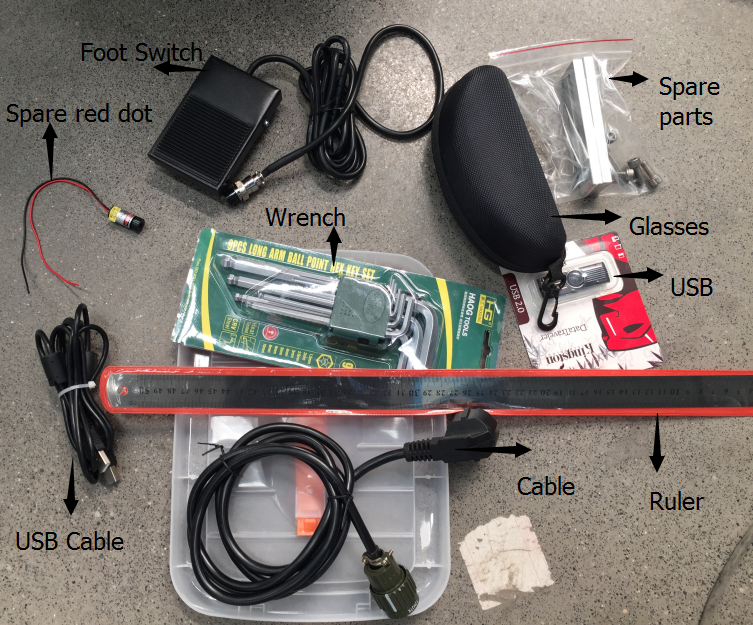

PC for portable type,computer for table type. HP/lenovo/dell brand Memory=4GB.....one set
Digital scanning head&Original Singapore imported high transmissivity wavelength......one set
Original JPT M7 MOPA device,IF copy double refund.................................one set
user manual and CD ………..............................................................................……….one set
data connection…………………...........................................................................……one set
Latest original EZCAD software……..............................................................................one set

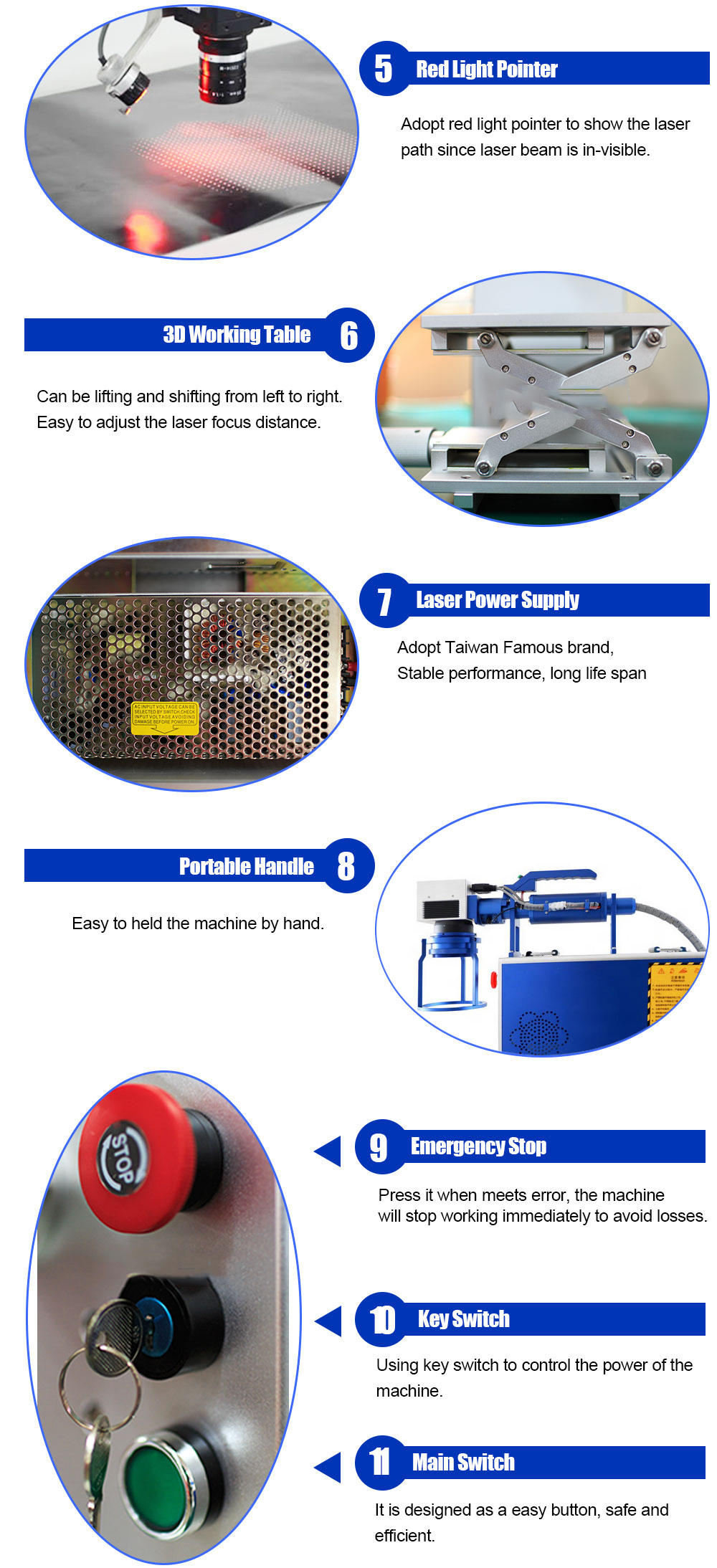

Double red pointer for focusing ,not single ....................................................................one set

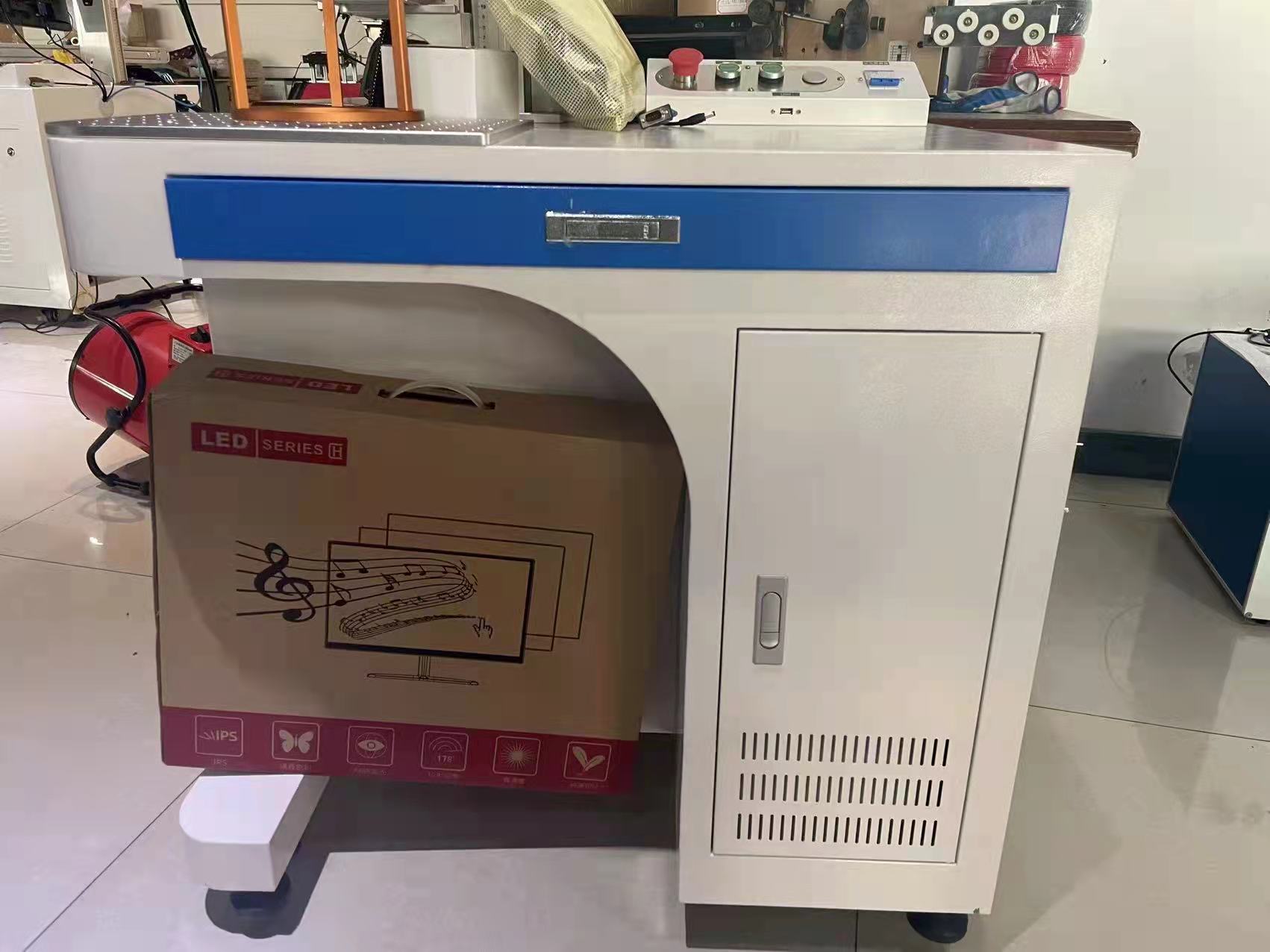

Up down table & controlling cabinet easy to carry.............................................………one set
Tools and tool box comes with machine.........................................................................one set
#Fast speed Galvo galvanometer..........................................................................one set
#Data connection…………………...................................................................…one set
#Foot pedal............................................................................................................one set
#User manual.........................................................................................................one set
#Famous brands Schneider Bulk electrical parts...............................................one set
#Protective glasses for free..................................................................................one set
Include each necessary part,you could use directly after received machine.


FEATURES AT A GLANCE
Applied materials
Metal and a variety of non-metallic materials, copper, iron, steel, aluminum, high hard alloy, oxide, electroplating, coating, ABS, epoxy resin, ink, engineering plastics.It is applied to the fields with high requirements on depth, smoothness and fineness, such as clock, mould industry, bitmap marking and engraving, etc Great improvement has been made on the machine structure, adopting the digital control system, which has the characteristics of high speed and high accuracy.The optical system USES the closed structure, the appearance is more beautiful, the operation is more convenient.The machine is equipped with a new external water-cooling system with low noise and high temperature adjustment accuracy. The special control software can automatically arrange and modify text, symbol, graphics, image, barcode, qr code and serial number automatically increment. Applicable fields It is suitable for some machining occasions which require more details and higher precision.Widely used in electronics, jewelry, glasses, hardware, automobile, communication products, plastic keys, IC and other industries.

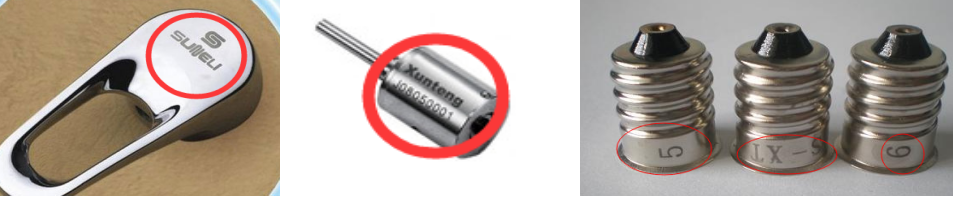

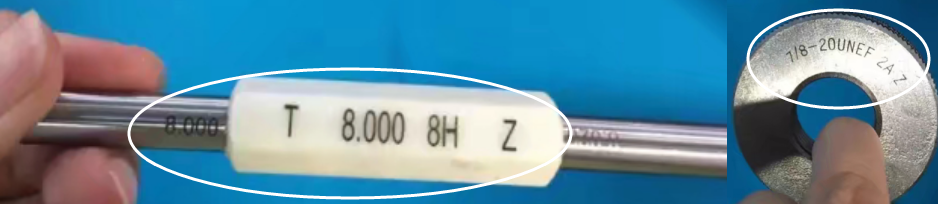

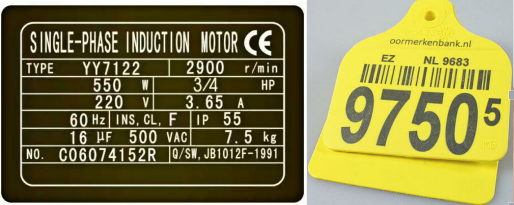

*Application:
1.Aluminium sheet stripped surface: No deformation, fine marking, color marking.
2.Metal depth marking.

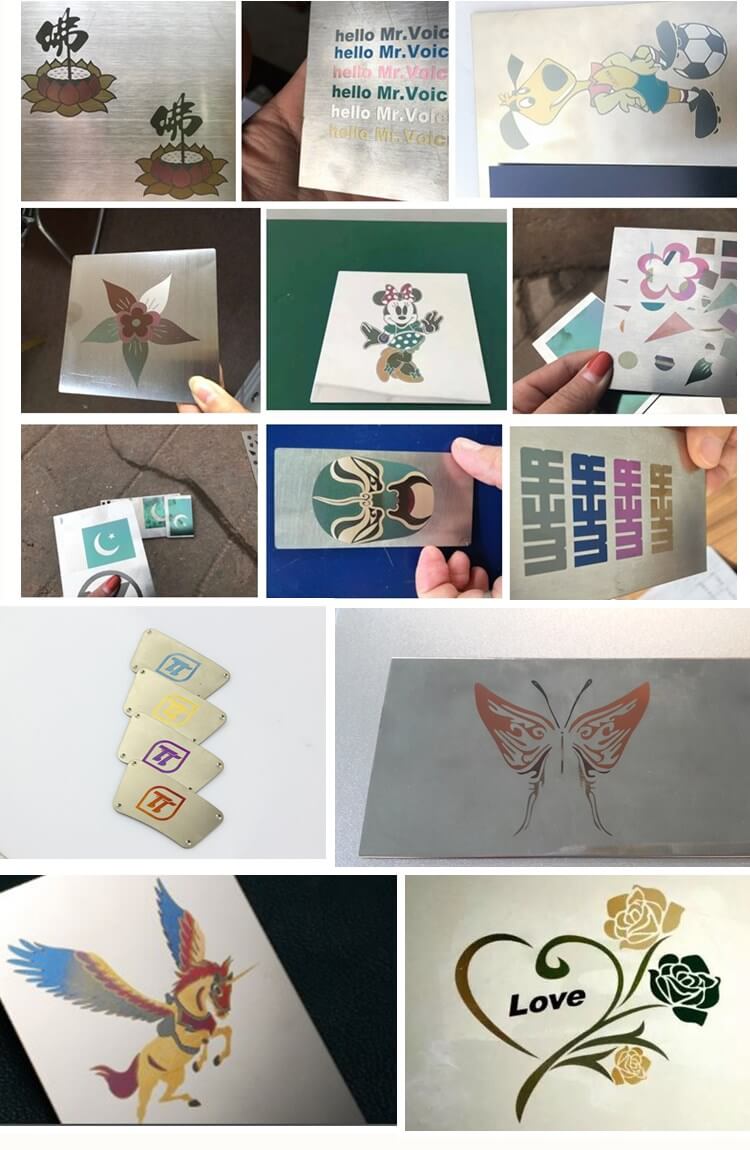

3.Stainless steel color marking: marking different colors by setting the parameters.
4.PCB, ABS, Plastic without yellow color.
5.Light transmission paint keyboard: easy to make it previous to light.
6.  Electronic, semiconductor components, ITO precision machining: the pulse can be adjusted to get best facula, and make the power balance
Metal materials:stainless steel,aluminium,copper,silver, gold, carbon steel etc
Non-metal materials :plastic,pvc,rubber,glass,stone,wood,feather,jewelry etc
Advantages of MOPA laser comparing with normal fiber laser marking machine
1.For short pulses and lower pulse energy, the material is e.g. heated less and the area of the heat affected zone is reduced.
This results in more advantages and possibilities for laser marking metals and plastics:
2.Less burning/melting in the edge area of metal engravings
3.Less heat development during annealing markings on metal, which leads to a better corrosion behavior
4.Controlled melting of plastics
5.Less foaming with plastics
6.More homogeneous and sometimes higher-contrast markings on some plastics
7.The advantages of the conventional fiber laser sources remain unchanged:
8.maintenance-free
9.long service life
10.air-cooled
11.economic purchase price
12.High output power, high optical quality and compact size
13.Cleaner mark edges and faster marking speeds
14.Reliability and a lower cost of ownership
15.Plus, you’ll get the very best in efficiency. Fiber lasers are up to ten times more efficient than traditional YAG laser
systems, and they use little to no energy in standby mode.

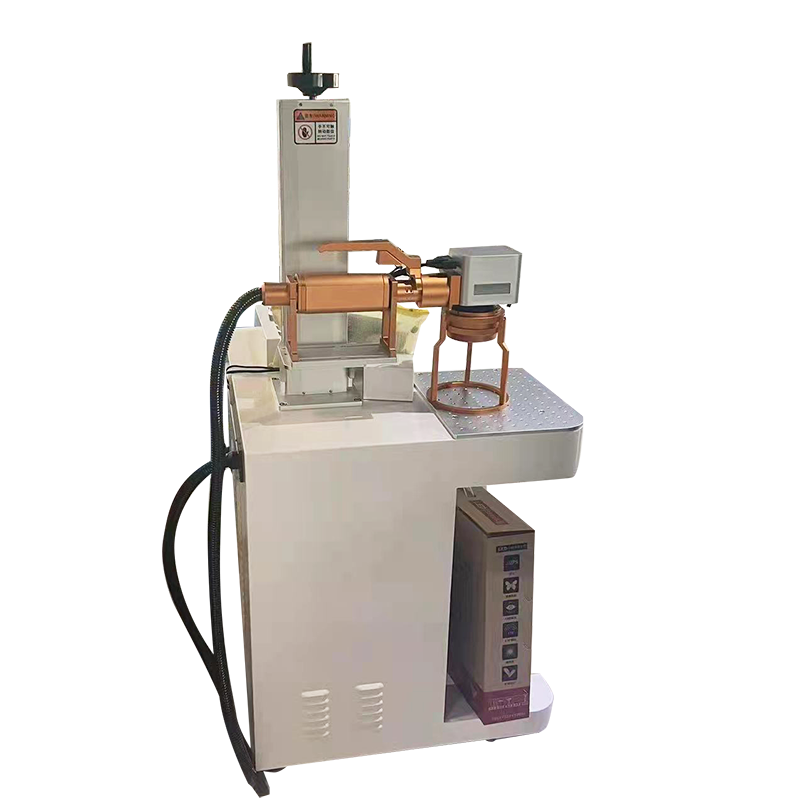

Right elevation
Left elevation

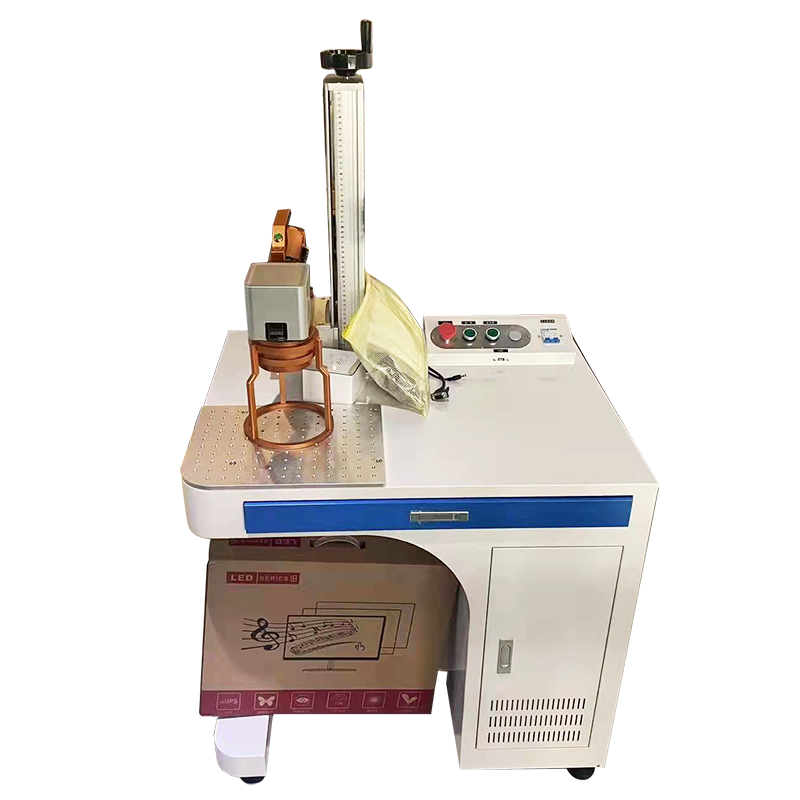

Front elevation
PRODUCT SPECIFICATIONS
SF Series.                                                           Model
Fiber laser type                                                   fiber laser 20W/30W/60W/80W/100W/120W
Pulse Max Single pulse energy                        1mj
Pulse duration                                                     2-350ns
Laser beam quality M2                                      <1.8
Frequency                                                             20-1000khz
Wavelength                                                           1064nm
Marking Area                                                        110mm×110mm/160x160mm/200x200mm/300x300mm
Spot size                                                                27.5μm
Max position speed                                              8μrad
Min. linear width                                                    0.01mm
Min. Character size:                                              0.2mm
Repetition Accuracy                                              0.05mm
Control program                                                    Genuine EZCAD /FEELTEK control system Compatible with win7/8/10
Graphic format supported                                   Jpg,Bmp,dxf,plt etc
working voltage:                                                    AC220V 50HZ /AC110V 60HZ
Cooling type                                                           Air cooling
Operating parameter                                            0-40℃
Power consumption                                             <=500w
Packing size                                                          98*83*182cm
Gross weight                                                          50kg

PRODUCT CONFIGURATION

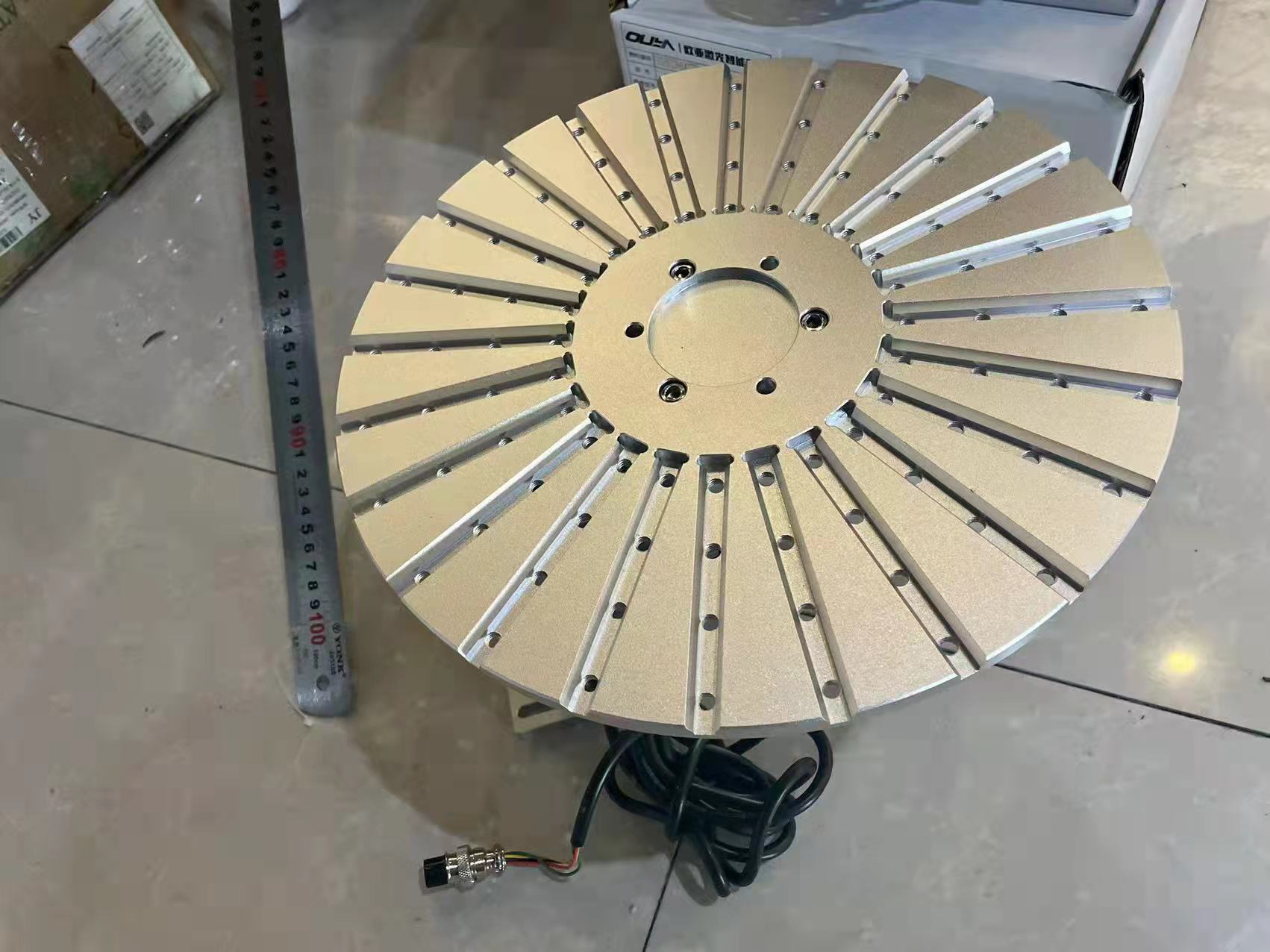

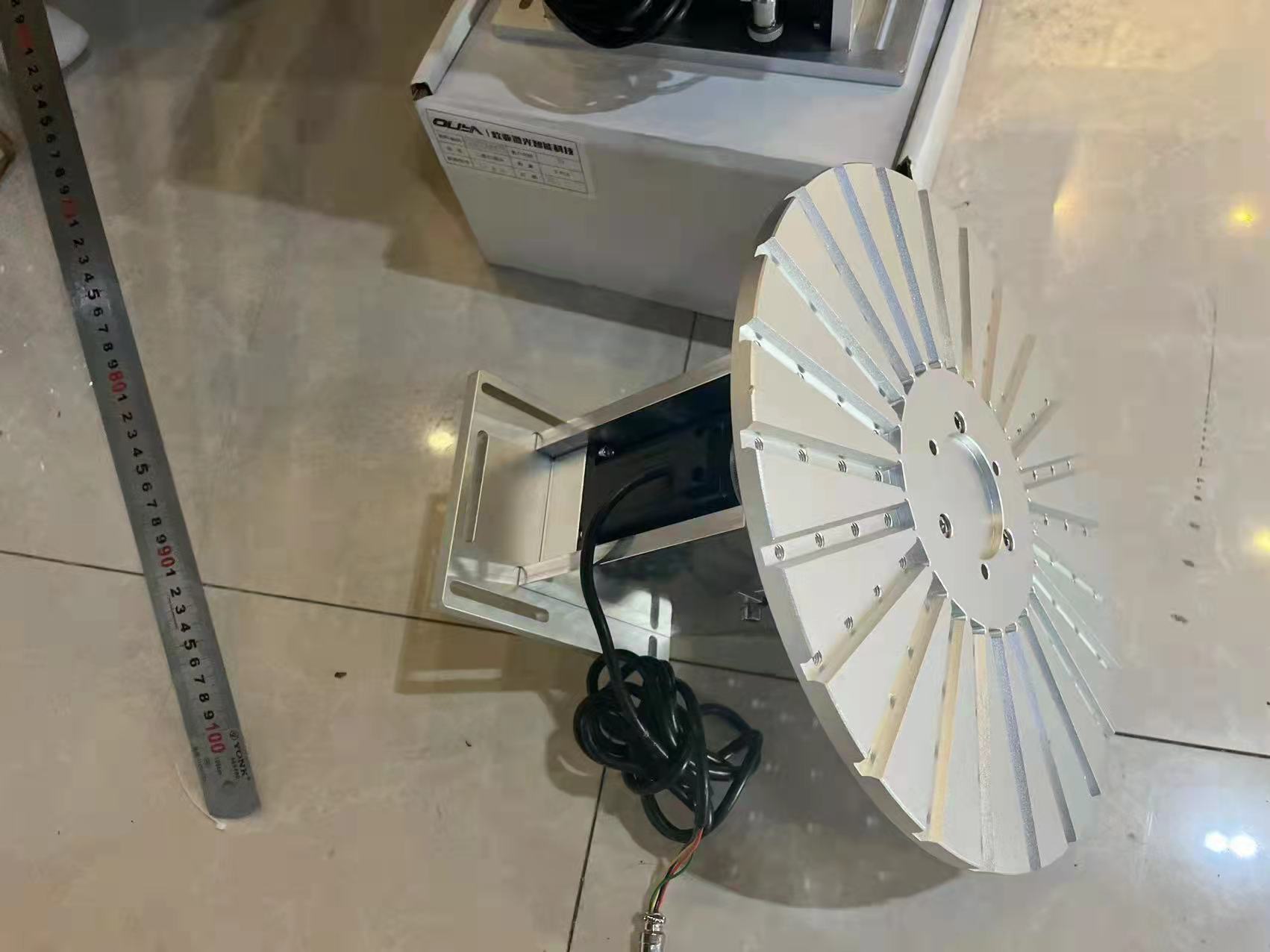

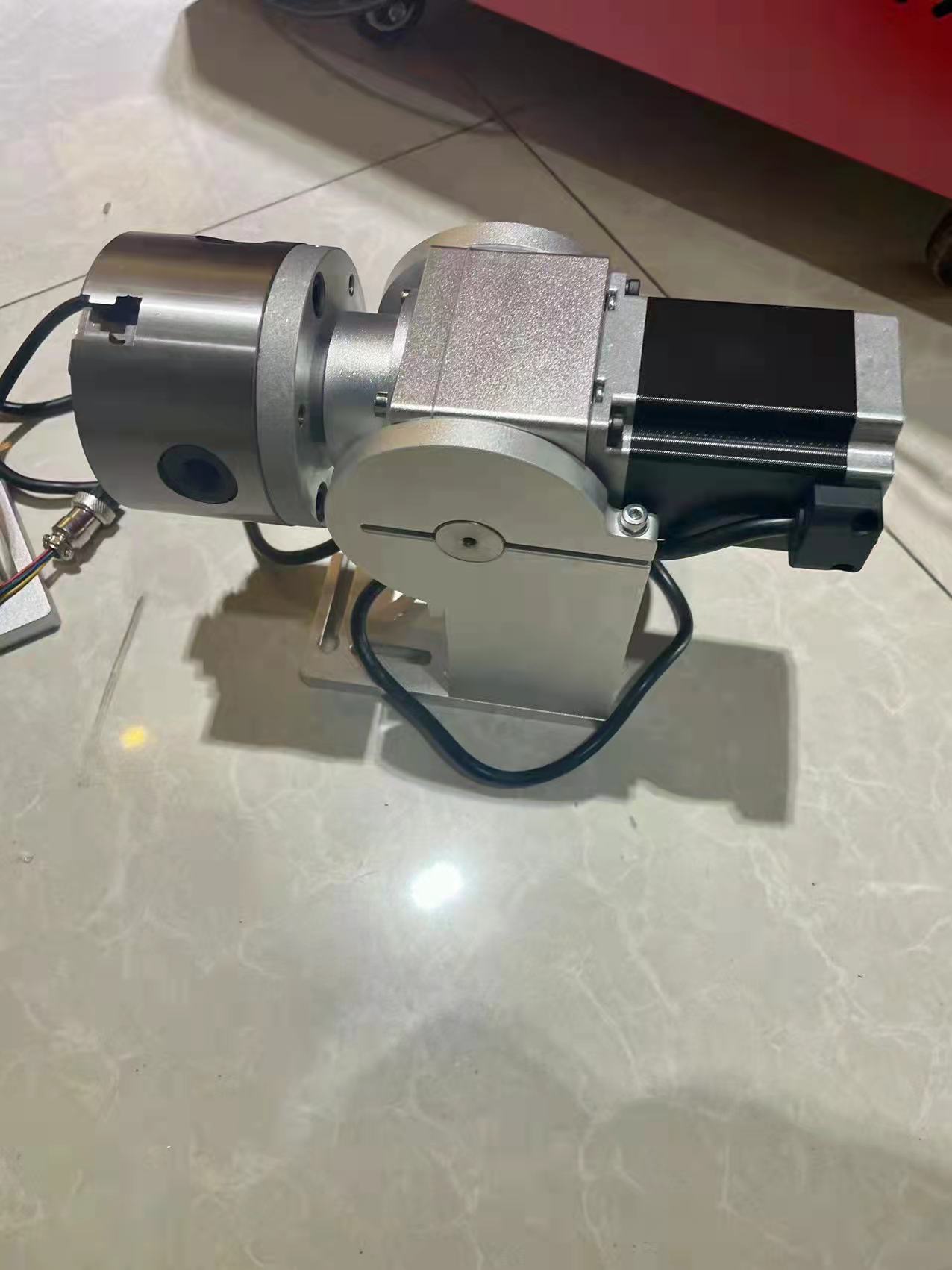

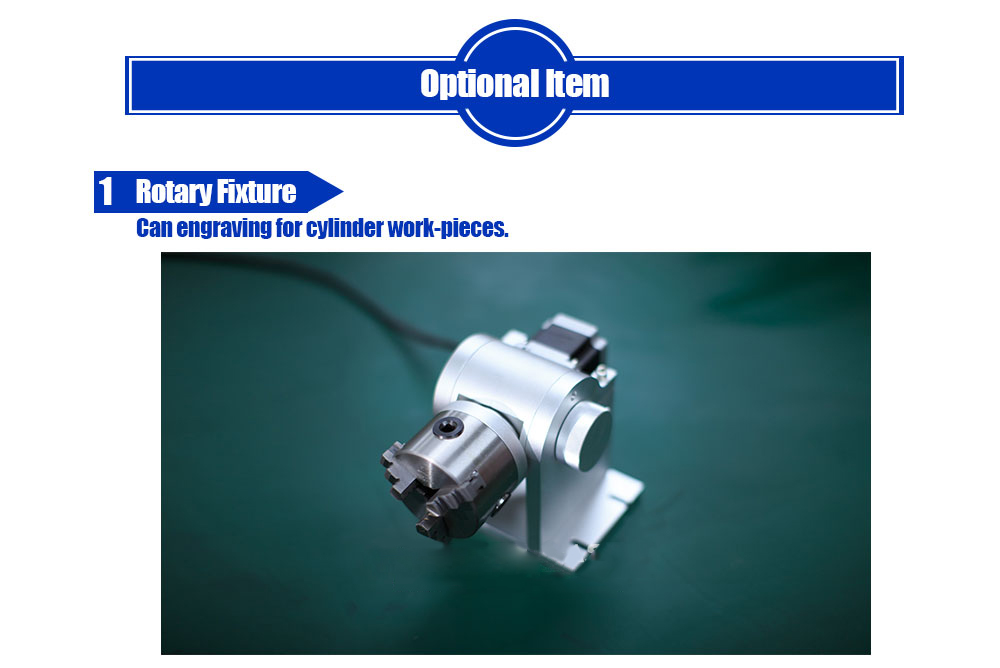

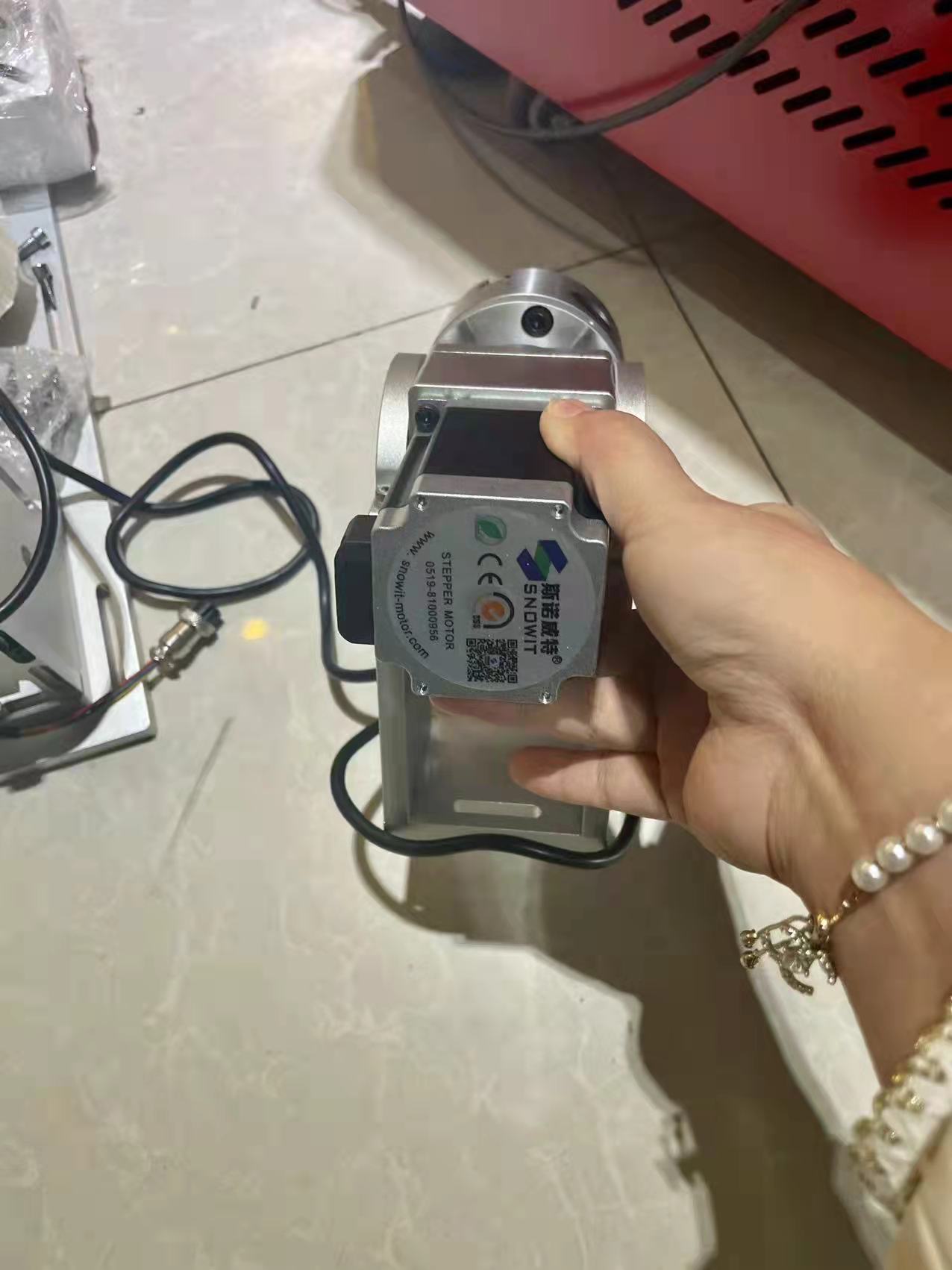

optional rotary devices.

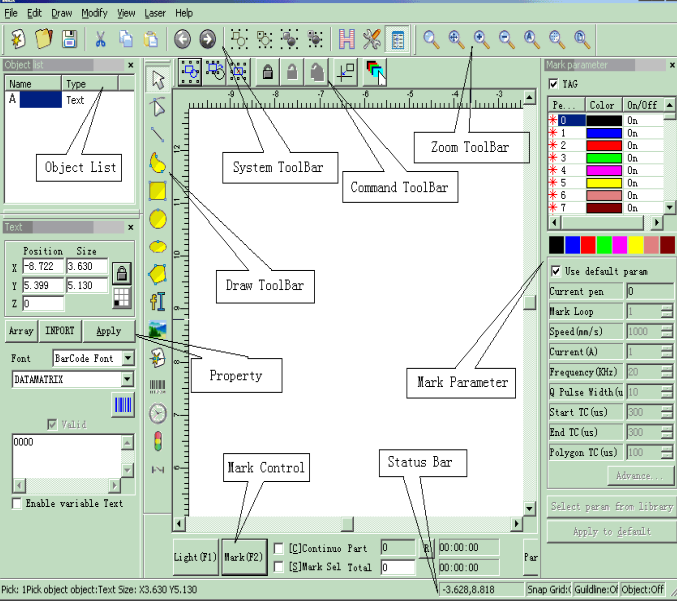

*Main functions of the EZCAD software:
� Users can design their graphics freely.
� Various types of fonts are supported. Such as True Type, SHX, JSF(Single line font defined by EzCad2), DMF(Dot Matrix Font), One-Dimensional bar code, Two-Dimensional bar code, and so on)
� Flexible variable text:changes the text real time while in laser processing. Excel data sheet is supported.
� Can through the serial port direct read text data
� Can through the network direct read text data
� Strong node editing function make the curve modification more easier
� The software can support 265 “pencils”, which used to draw graphic and can be set different processing parameters.
� Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
� Common vector images are supported. (ai, dxf, dst, plt…)
� Image processing (Grayscale, White / Black Transformations)
� Powerful hatching functions, such as support round hatch.
� More convenient IO operations and more easier to harmonize the auxiliary equipments.
� Supports the dynamic focus (3 axis processing system)
� Supports directly the SPI G3 fiber laser and the newest IPG_YLP and IPG_YLPM fiber laser
� An opening language supporting system makes it easy to run the software in various languages platform.

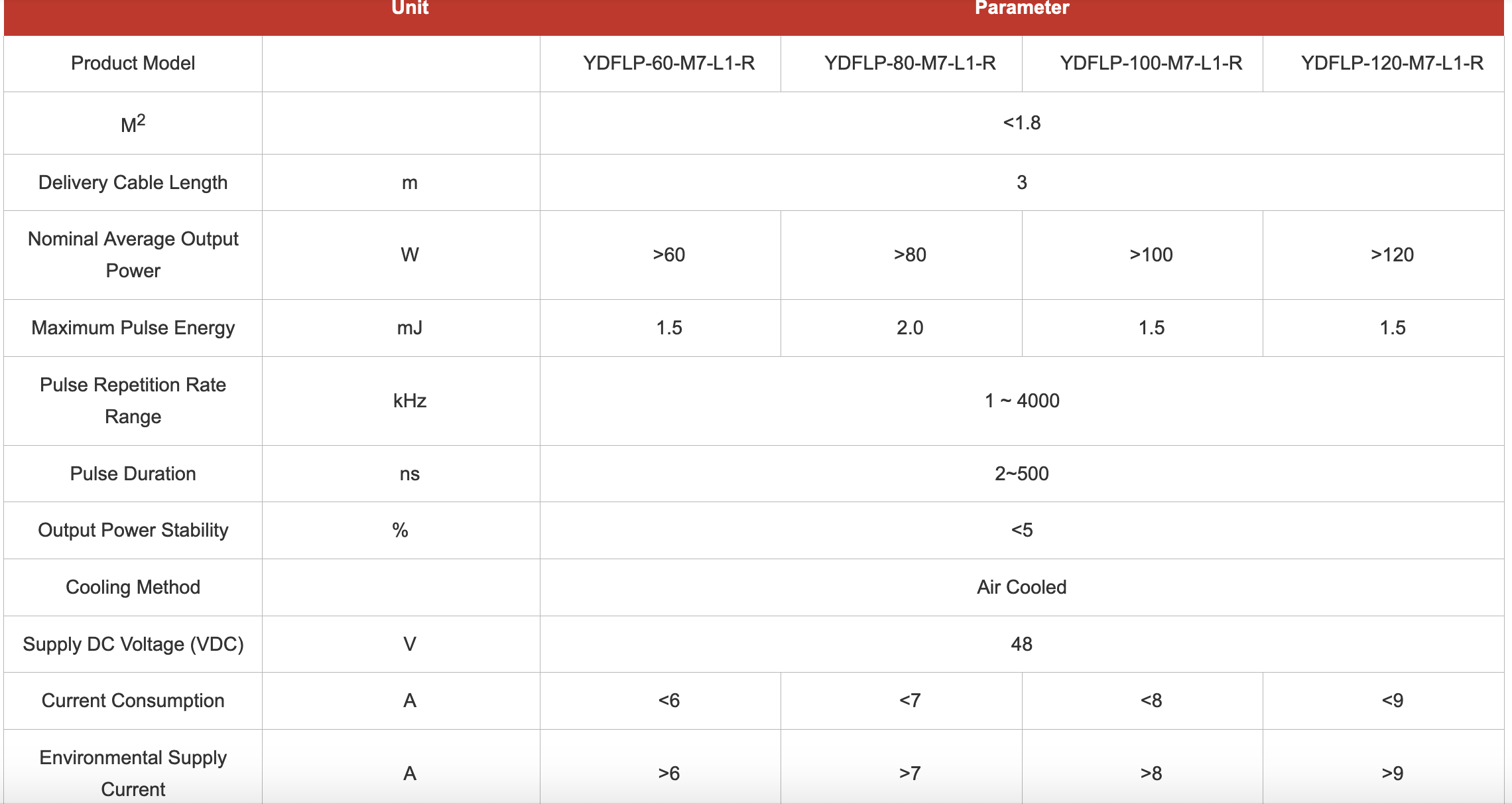

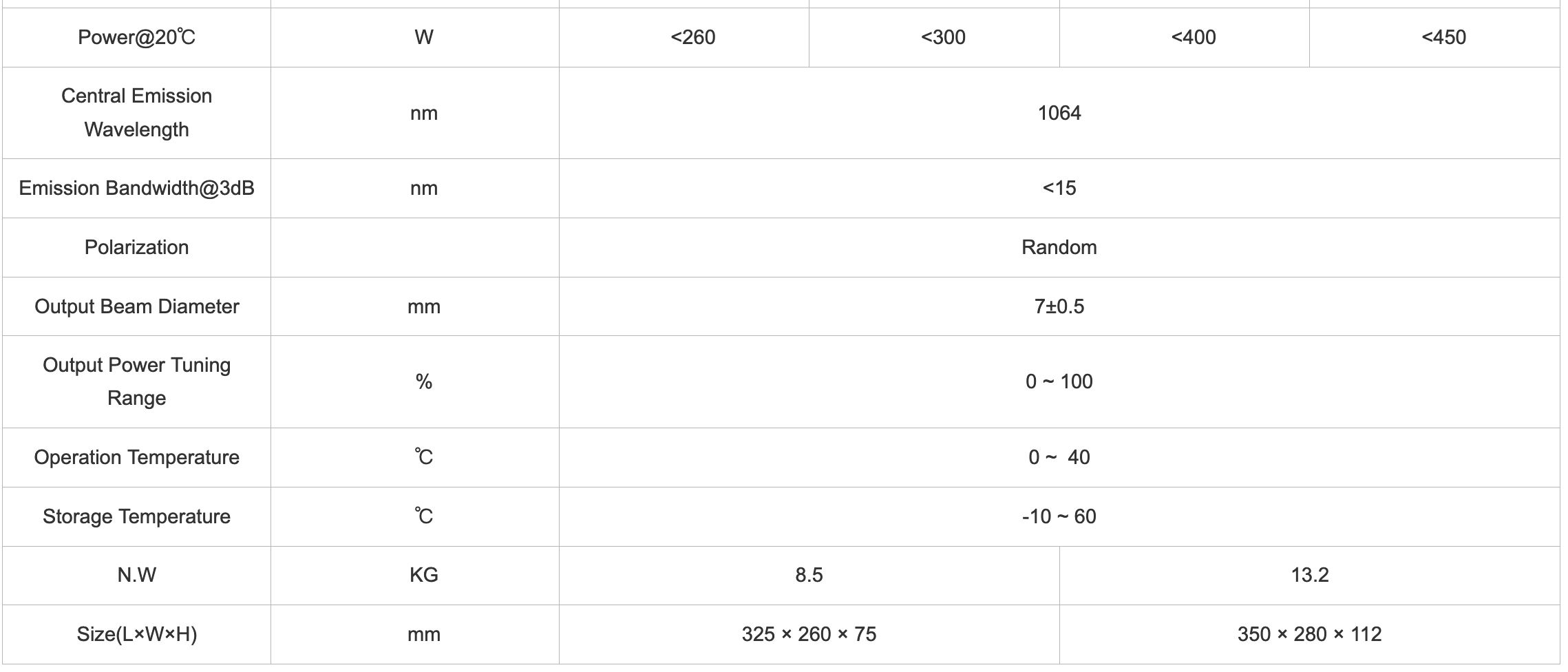

M7 power source for 20/30W
JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: How long is the warranty? is it free or extra ? A: Yes, The warranty is one year, free of charge. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
