Cnc Oscillating Knife Cutting Machine for Packaging Business
You are here: Home » CNC Machines » CNC Digital Cutting Machine » Cnc Oscillating Knife Cutting Machine for Packaging Business

loading

Share to:
sharethis sharing button

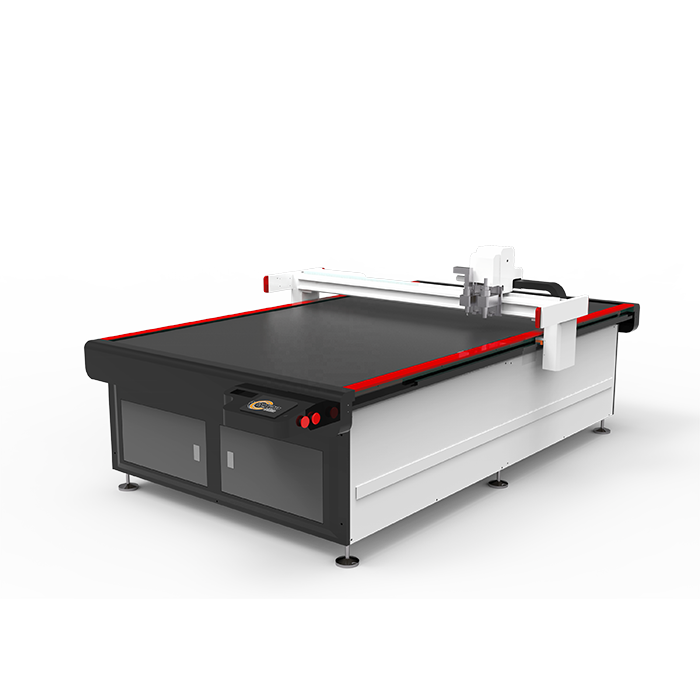

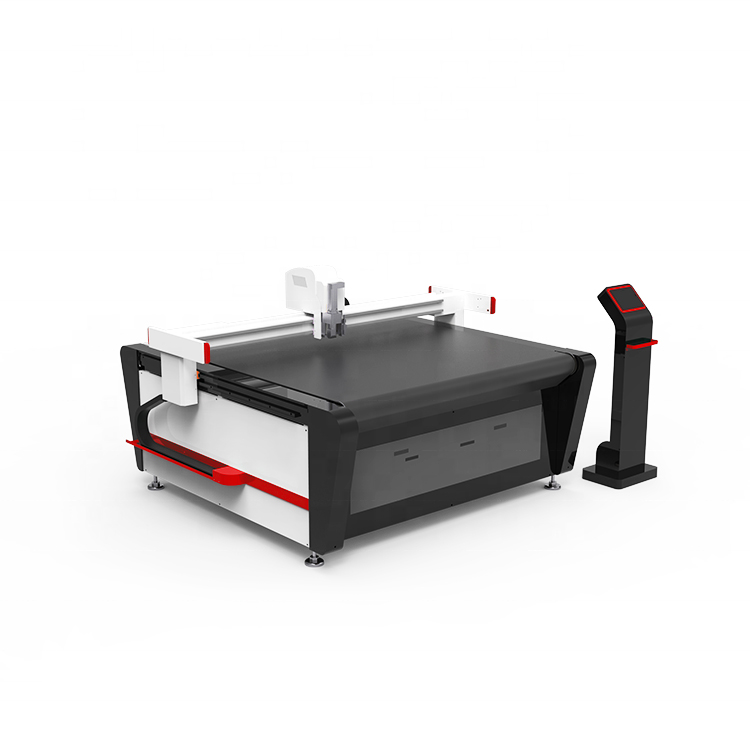

Cnc Oscillating Knife Cutting Machine for Packaging Business

Availability:
  • cnc oscillating knife cutting machine for packaging business

  • Smartech

  • 3600*2280*1600

  • 1100w

Product Overview

CNC knife cutting machine for leather/fabric/clothes/car interior

Applicable materials Leather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, acrylic board, rubber, cloth, fabric, gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, carpets materials, car mat materials, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites. Advantages 1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting. 2. The high precision oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces. 3. multi function,can use many kind knife, Vibration knife,Circular knife,Punching knife,Oblique knife,Pen,Punch roller,Milling knife 4.Projector and camera optional.The anti-collision and the built-in auto-sensing devices ensure the security of oscillating knife leather cutting machine. 5. High efficiency can be realized without making a high-cost knife model. 6. The high precision oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy. 7. Cutting by knife, no pollution gases.
FEATURES AT A GLANCE
Part 4:Payment terms:
30% T/T before payment term,70% T/T after production and before shipment. Part 5:Warranty & Service @1.Warranty: 3 years.
@2.New parts could be sent to you for any unintentional damages.
@3.Online training by videos.
@4.On site training is also available.
@5.Could be remote control if needed.                           @6.Lifetime after sale service! @7.Accept refund unconditionally within 7 days after receiving machine.
222
555
Right elevation
333
Left elevation
111
Front elevation
00:0000:00
PRODUCT SPECIFICATIONS
Quotation for CNC knife cutting machine Model SO-1625 (1600mm*2500mm) (Support visa,credit card,TT,LC Trade assurance etc flexible payment terms.) Knife tools include Oscillating knife;V-cut;Increasing tool;CCD camera; Working table Fixed working table Working area 1600*2500mm Material fixed way Vacuum suction system Control system LED Touching screen Cutting speed 0-1,500mm/s(according to different cutting materials) Cutting thickness ≤25mm Cutting accuracy ≤0.1mm Drive system Yaskawa servo motor and driver Transmission system PMI linear square rail and Megaoyne belt Optional part optional AUTO FEEDING SYSTEM (For soft materials,such as leather,fabric etc) Vacuum pump power 9.0KW Graphic format supported PLT, DXF, AI, etc. Compatible CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. Safety device Infrared sensors and emergency stop devices double protection. Connection Network port Working voltage AC 220V±10%, 50Hz/60Hz Package Wooden case Machine size 3250*2150*1350MM/3050×2100×1350mm(SO1625/SO1325) Packing Size 3600*2280*1600/3200×2180×1600mm (SO1625/SO1325) Net weight 1500/1300KGS (SO1625/SO1325) Gross weight 1700/1500KGS(SO1625/SO1325)
PRODUCT CONFIGURATION
CNC Oscillating Knife cutters
Touching screen                                                   cutter blades for options                       big torque motor
CCD oscillating knife cutting heads
Germany CCD camera
Helical guide rails
SALES AND SERVICE NETWORK
Successful Project
machine recommendation


1(22(1)3(2)

FAQ
-Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
