Applications of CNC Router with Double Spindles
(1)WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
(2)Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.
(3) Artwork and Decoration: wood crafts, gift box, jewelry box
(4)Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,
PVC pipe, wooden planks and other non-metallic mold.
(5)Relief Sculpture and 3D Engraving & Cylindrical object.
Advantages of Double Spindles cnc router from Smartech
♦ Easy and safe operation and low maintenance cost.
♦ Single or double rotary devices are available for the cnc router as an option
♦ 3.0kw HQD spindle and 4.5kw HQD spindle, spindles can be changed with the demands from system. One optional spindle can be rotated 90 degree for lock slot, side milling woodworking etc
♦ Overall seamless steel tube structure. After tempering treatment, reliving of internal pressure, ensure the bathe more rigidty, reliability and durability, no distoration for whole structure.
♦ Top-quality world famous brand components, to make the machine hig-precision and high-efficiency. HSD spindle, Delta inverter, TBI ball screw, Syntec control system etc,
♦ Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages.
* With High efficiency;High stable;Multi-use Popular controller;High loading capacity and smooth operation.
* This machine is suit for diverse complexity products processing:engraving andmilling,drilling,cutting,chamfering edge
* Large compatibility of drawing software, such as type3/Actcam/Artcut, etc.
* The advanced professional control system compatible with many instructionformat, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
* Machine body use heavy steel structure, welding tempering aging,strong enough to avoid shape change.
Parameters of CNC Router Double Spindles
| No. | Description | Parametrs |
| 1 | X,Y,Z Working Area: | 1500*2500*200mm |
| 2 | Table Size: | 2250*3640mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
| 5 | Table Surface: | Vacuum and T-slot combined(option:T-slot Table) |
| 6 | Frame: | Steel Tube Welded Structure |
| 7 | X,Y Structure: | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure: | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption: | 3.0kw(without spindle) |
| 10 | Max. Rapid Travel Rate: | 30,000mm/min |
| 11 | Max. Working Speed: | 25,000mm/min |
| 12 | Spindle Power: | 3.0/4.5/6/7 KW Air / Water Cooling Spindle |
| 13 | Spindle Speed: | 0-18000 RPM/0-24000RPM |
| 14 | Drive Motors: | Stepper Motor System/ Servo |
| 15 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language: | G Code |
| 17 | Operating System: | DSP Control System (Options:Ncstudio/ Mach3 PC Software) |
| 18 | Computer Interface: | USB |
| 19 | Flash Memory: | 128M (U Disk) |
| 20 | Collet: | ER25/ER32 |
| 21 | X,Y Resolution: | < 0.03mm |
| 22 | Software Compatibility: | Type3/Ucancame V9 Software(Option: Artcam Software) |
| 23 | Running Environment Temperature: | 0°-45° |
| 24 | Relative Humidity: | 30%-75% |
| 25 | Packing Size: | 3750x2250x2100mm |
| 26 | N.W.: | 1750kg |
| 27 | G.W.: | 2190kg |
PS:All the working area and specifications can be customized according to your requests

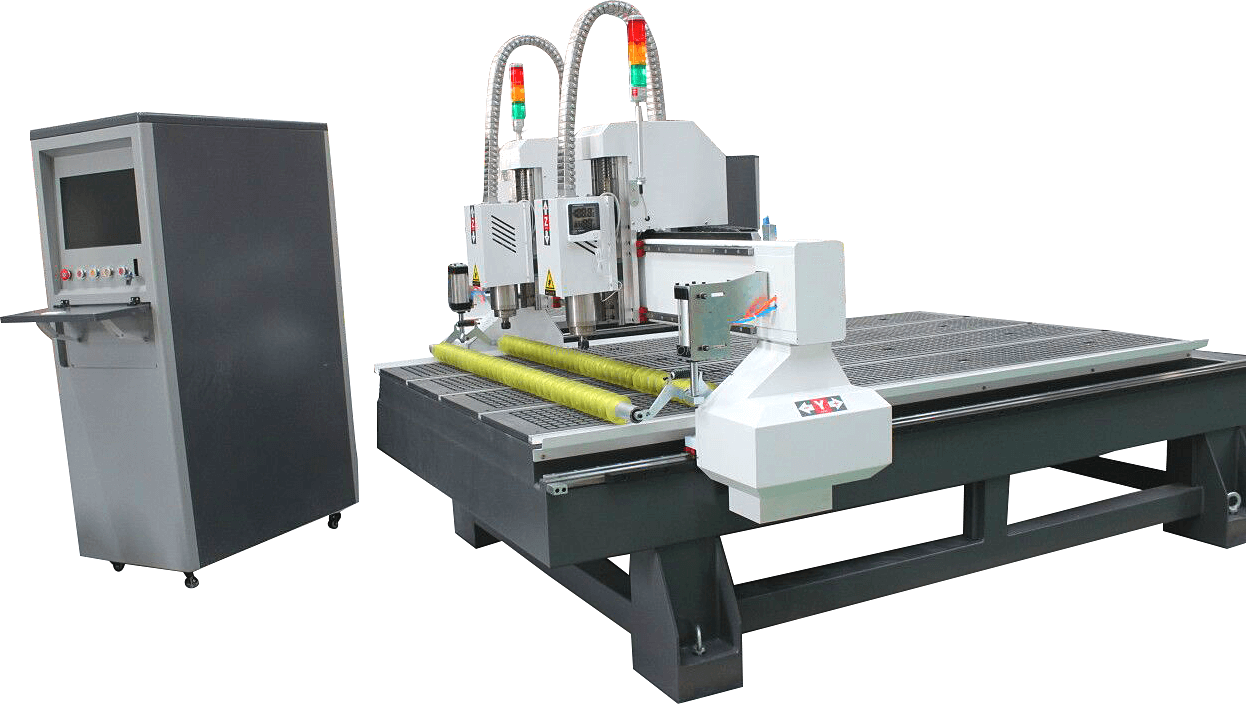

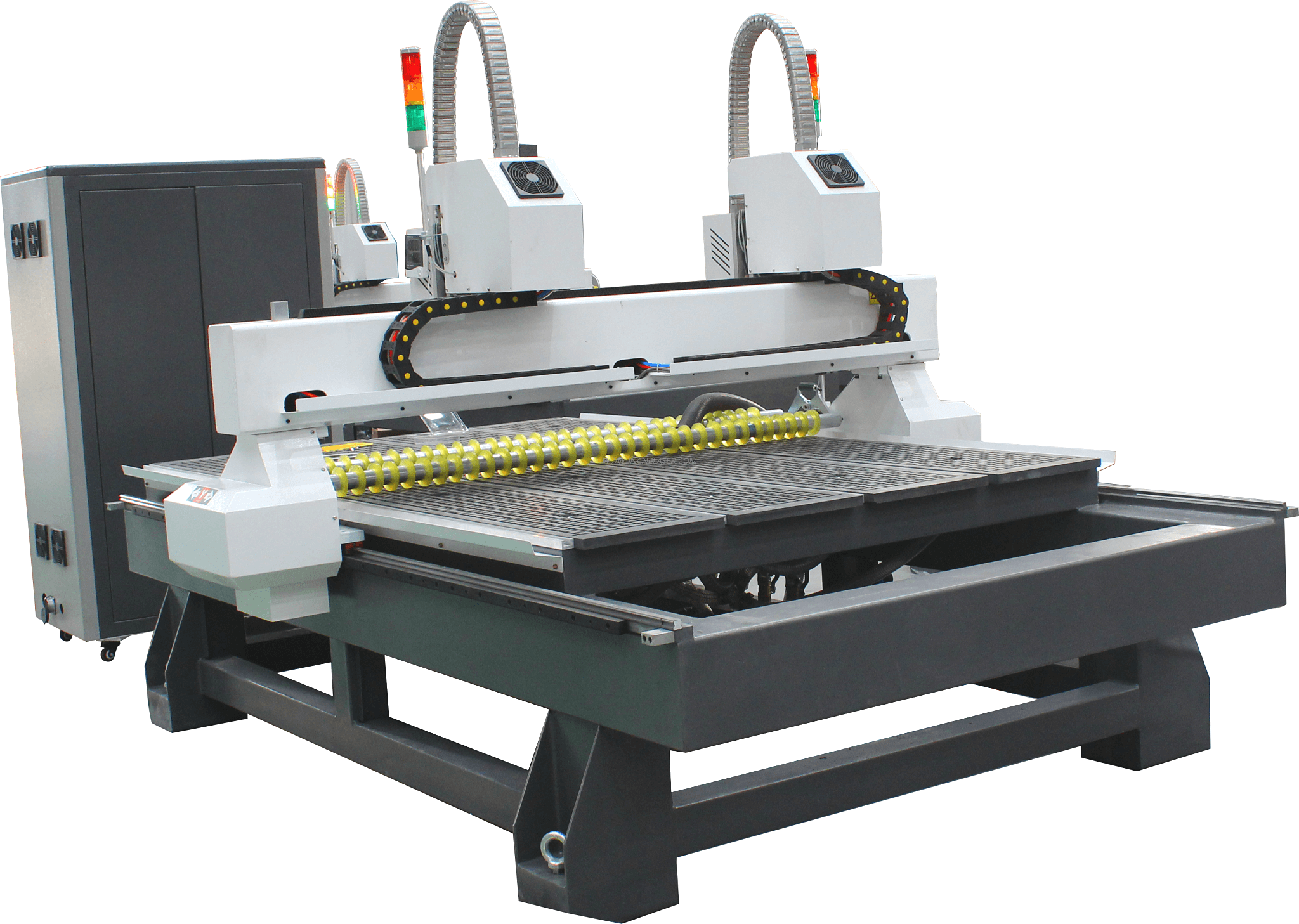

Double heads cnc router pictures.
Contact us for more information !
