D80
SMARTECH
as your preference
Equipment advantages:
Shelf lengthening and thickening stroke 800 shelf length 1.4 meters, machine tool is more stable.
2. The x axis adopts reducer rack to drive in the center of the slide plate, and the transmission slider is stressed evenly.
3. Machine tools and electrical appliances adopt Chint, and electric wire standard.
4. Flip beam with square rail, square rail brake block adjustment convenient and high precision.
5. Machine tool surface treatment adopts spray of plastic.

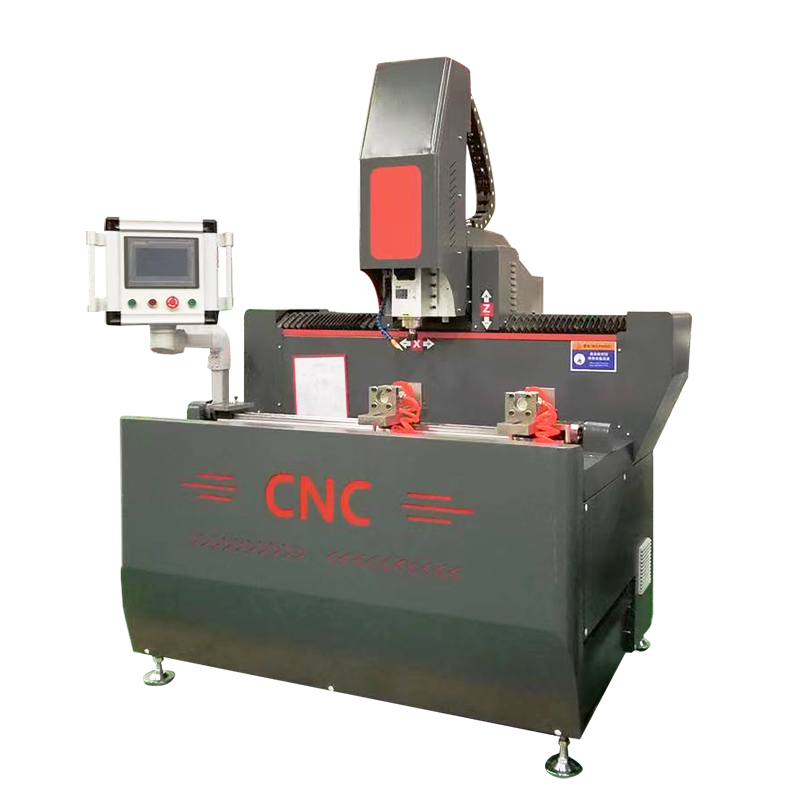

The drilling and groove milling system suitable for aluminium alloy extrusions adopts MGCS numerical control system adopts electric spindle, with high precision and good security. The x axis adopts high precision helical gear and diagonal rack, through programming software, the processing code Workbench can be automatically converted and turned 180 ° (-90~0~+90）
Technical parameters | |
Power | 380V/50Hz |
Spindle power | 3.5Kw |
Spindle RPM | 18000rpm |
Working pressure | 0.5-0.6MPa |
X axis | 800MM |
Y axis | 350mm |
Z axis | 350mm |
Working area： | 3000*140mm |
collet： | ER20 |
Main parts | |
Item | CNC Drilling Equipment for Doors Window Frames |
Cnc control system | MCGS |
Stepper motor | 450B |
Driver | Leadshine |
Power switch | Mingwei |
Switch | Omon |
Power | CHNT |
Relay part | Yijia |
Spindle | China |
Inverter | Best |
Cylinder | Sanwo |
Electromagnetic valve | Sanwo |
Connector | Sanwo |
Electrical parts | CHNT |
machine recommendation
About SMARTECH
SMARTECH has been a professional manufacturer of CNC lasers since 2002. We have seven morden production facilities with R&D and assembly workshops. The success and strength of SMARTECH is based on the application of the latest scientific achievements andprofessional high-tech expertise. Focusing on innovative product design and processes, we strive to meet all customers demands. Our goal is to help every company improve its production efficiency through CNC laser technology!
Payment Term
Alibaba Trade Assurance
30% T/T deposit, 70% before shipment.
Paypal/Western Union
DP/LC
Why Smartech
Competitive price
Compared to those who has the same quality
Technical support
We will send engineers to your site if required anytime
24 Hours Online Live After sale Service.
Long time Life Warranty
3 Years Warranty for CNC
5 Years for Fiber Laser
On-time delivery
100% On-time delivery,Never delayed.
Support customization
We could make machines as your design
OEM/ODM is supported
Sufficient Parts
For freen components & worn spare parts are packed in package
Services
The SMARTECH Group is present in the global CNC machine market where it has developed an efficient after-sales service. SMARTECH is focused on modern ways of communication and diversification of customer support, with the thematic building of strong and solid relationships with potential and future customers. SMARTECH insists on building and maintaining a positive reputation and improving brand and customer satisfaction.
SMARTECH
takes full advantage of more than 60 offices worldwide,
builds unique service brands and improves service processes
strengthens internal management and technical level of service,
improves user experience and customer satisfaction,
requires 24/7 service support from all service offices, personnel, spare parts, tools, etc.
STRENGTHEN TRAINING
In order to improve the overall quality of the service network, SMARTECH properly formulate training plans and training support for customers to improve the quality of service and to maintain and customer satisfaction.
