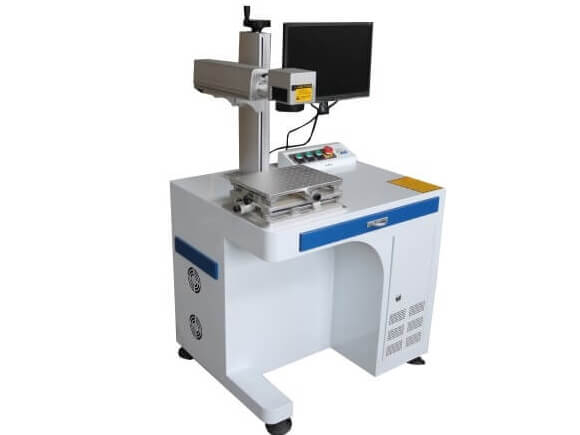

SJM Series
SMARTECH
20W/30W/60W/80W/100W
AS YOUR PREFERENCE
1.Features:
1).Long lifetime, over 100,000 hours.
2).Compact laser source with air cooling.
3).2 to 5 times more productive a traditional laser marker or laser engraver.
4).Super quality galvanometer scanning system.
5).High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6).More stable performance.
7).Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
8).Output power is stable, optical mode is good, beam quality is excellent.
9).Marking speed is fast, efficient, and high accuracy.
10).Appearance is professional, operation is easy.
2.Technical Parameter:
Technical parameter | |
Item / Model | SF-30W/60W/80/100W is optional) |
Laser source | Laser Source:JPT/RAYCUS/CAS/MAX/IPG |
Laser power | Laser Power:20/30/50W(70/100W is optional) |
Laser type | Fiber laser |
Graphic Format Supported | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
Marking speed | ≤8000mm/S |
Max.Marking Depth | ≤0.4mm |
Laser Wavelength | 1064nm |
Marking lines | 1-10 marking lines(in the marking area) |
Minimum line width | 0.01mm |
Minimum character | 0.15mm |
Resolution ratio | 0.01mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | TAJIMA, CorelDraw, Photoshop, AutoCAD |
Equipment Dimensions | 420*320*800mm |
Net Weight: | 120kg |
Unit Power | ≤500W |
Optional Spare Parts | 1) Rotary system 2) Outside red light 3) Light Equipment 4) Protection glasses |
Application:
1).Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
