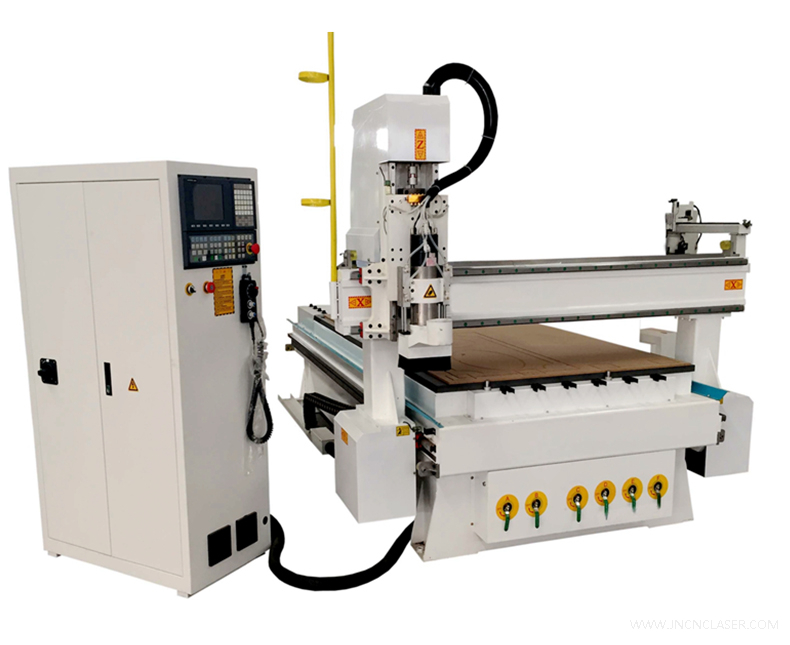

Configuration of ATC CNC Router:
| Standard spec | |
| 1 | Working size:1500x3000x200mm (can be customized) |
| 2 | 9kw ATC air cooling spindle |
| 3 | 11KW inveter |
| 4 | SERVO motor and drive |
| 5 | Vacuum table system |
| 6 | Taiwan Syntec controller |
| 7 | Hiwin guide rail |
| 8 | 8pcs linear auto tool changer |
| 9 | Dust collecor with two bags |
| Options | |
| 10 | 9KW HSD ATC Spindle from Italy |
| 11 | Disc auto tool changer |
| 12 | Rotray system |
| 13 | Oil mist cooling system for hard materials |
| 14 | DSP ATC controller |
Advantage of ATC CNC Router:
⋅ Super quality 9KW Air cooling Auto-tool changer spindle.
⋅ Taiwan Hiwin linear guide rail keep high precision
⋅ Famous servo motor and driver ensures machine to run with fast speed and low noise.
⋅ 8 pieces auto-tool changer and Auto tool sensor.
⋅ Vacuum table and vortex vacuum pump,big suctions,fix material stronger.
⋅ Syntec system, 20+ years controller experience more stable;tool sensor to compensate the tolerance of tool length.
⋅ High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
Technical Parameter:
Name | Specification |
X,Y,Z Working Area | 1500X3000X200mm |
Lathe Bed | Strong lathe bed |
Gantry | Steel structure gantry design |
Guide Rail | Taiwan Hiwin Square Rail with X,Y,Z axis |
XY Z Transmission | Gear rack with X and Y axis ;Imported Ball Screw with Z axis |
Spindle Motor | 9kw Air cooling spindle special for tool changer |
Spindle Speed | 0-24000RPM |
Drive Mode | Servo system |
Working Voltage | AC220V/380V, 50/60Hz |
Command | G Code, *uoo, *mmg, *plt |
Inverter | 11KW Delta inverter |
Control System | Syntec controller |
Typeset Software | ARTCAM(can support any G-code software) |
Motor | Japan Servo Motor |
Driver | Servo Driver |
Tools cooling | OIL sprayer pump |
Lathe Table | Vacuum table with 8 sections +6 vacuum cups |
Vacuum Pump | 7.5KW VACUUM Pump |
Air compressor | 3.0KW |
Tool Magazine | 8pcs ISO30 tool holder |
Dust Collector | 3.0KW |
Collet | ER32 |
X,Y Working Delicacy | <0.01mm |
Software | Ucancam, Artcam |
Applications of ATC CNC router:
⋅ Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
⋅ Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
⋅ Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
⋅ Other industry: image engraving, embossing, craft and gift industry
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 years guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
