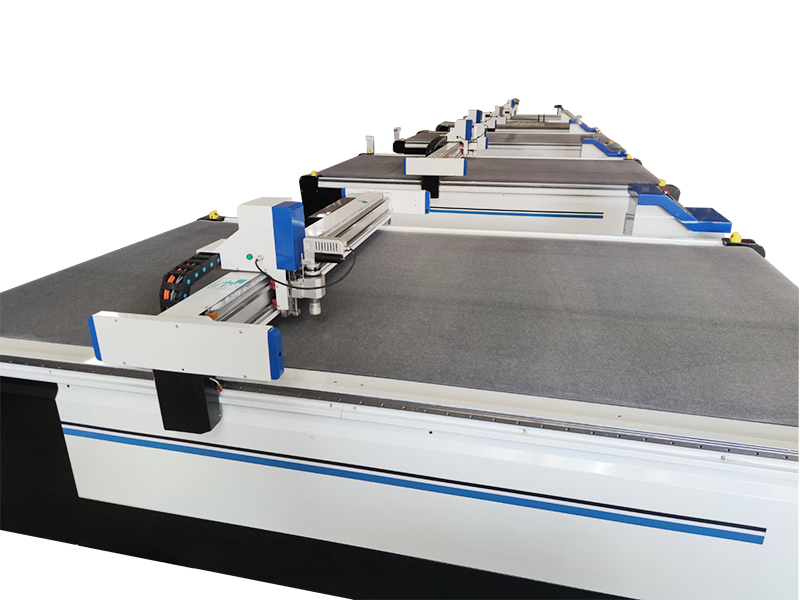

CNC Router With Tangential Knife For Carpet Carton Wood Aluminum

Availability:



Inquire Add to Basket

Model:
CNC Router With tangential Knife For Carpet Carton wood aluminum
Brand:
SMARTECH
Code:
New Product 2021
Size:
450x230x180
Diagonal distance:
3170mm x 2130mm x 2000mm
Power:
10W/20W/30W/50W
Machine Color:
as your preference

Product Description

Product Overview

CNC Oscillating Knife Machine For Leather/ bags/garment/fabric/pvc/carpet/cloth/kt board

 Applicable materialsLeather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, acrylic board, rubber, cloth, fabric, gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, carpets materials, car mat materials, sponge, PU, EVA, XPE, PVC, PP,PE, PTFE, ETFE and composites. AdvantagesSMARTECH CNC oscillating knife leather cutting machine is designed for production with small quantities and can save  Features: Automatic CNC Oscillating Knife Cutting Fabric Leather PVC Cutter Machines for sale 1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance; 2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life; 3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc. 4. SMARTECH digital cutting machine was designed easy to install, set-up and operate; 5. Being equipped with infrared sensor and emergency stop devices, guarantees safety; 6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

FEATURES AT A GLANCE

  (1)Cutting function of oscillation tool It can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat ) (2)Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line. (3)Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line. (4)Location: Location with laser. (5)Drawing function It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc. (6)Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.

 Right elevation

 Left elevation

 Front elevation

PRODUCT SPECIFICATIONS

 Quotation for CNC knife cutting machine Model SO-1625 (1600mm*2500mm) Optional part Auto feeding system Knife tools include Oscillating knife；V-cut；Increasing tool；CCD camera;Auto feeding system Working table Fixed working table Working area 1300*2500mm Material fixed way Vacuum suction system Control system LED Touching screen Cutting speed 0-1,500mm/s(according to different cutting materials) Cutting thickness ≤25mm Cutting accuracy ≤0.1mm Drive system Yaskawa servo motor and driver Transmission system PMI linear square rail and Megaoyne belt Instruction system HP-GL compatible format Vacuum pump power 9.0KW Graphic format supported PLT, DXF, AI, etc. Compatible CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. Safety device Infrared sensors and emergency stop devices double protection. Connection Network port Working voltage AC 220V±10%, 50Hz/60Hz Package Wooden case Machine size 3250*2150*1350MM/3050×2100×1350mm(SO1625/SO1325) Packing Size 3600*2280*1600/3200×2180×1600mm (SO1625/SO1325) Net weight 1500/1300KGS (SO1625/SO1325) Gross weight 1700/1500KGS(SO1625/SO1325)

PRODUCT CONFIGURATION
