SM6060
SMARTECH

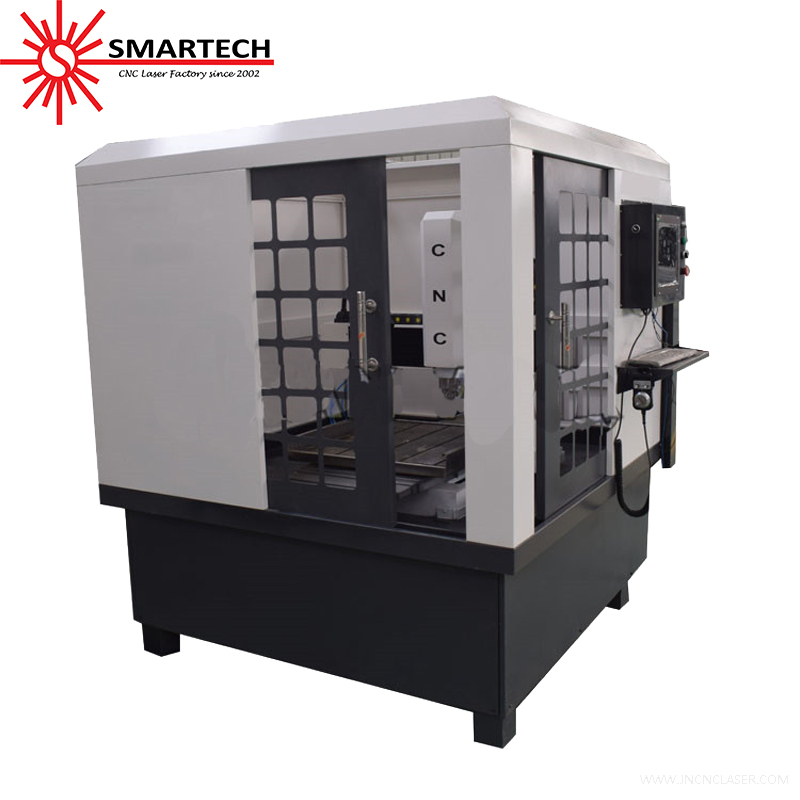

1.Main features of cnc moulding machine:
1). Whole machine cast by iron, very strong, table moving, high precision.
2). Imported Hiwin/PMI/TRV square rails and TBI ball screw for 3 axis.
3). Working area 600*600*200mm, Z axis zone can according your need make it.
4). Japan Yaskawa servo motor and drivers,leadshine hybrid servo motor for option.

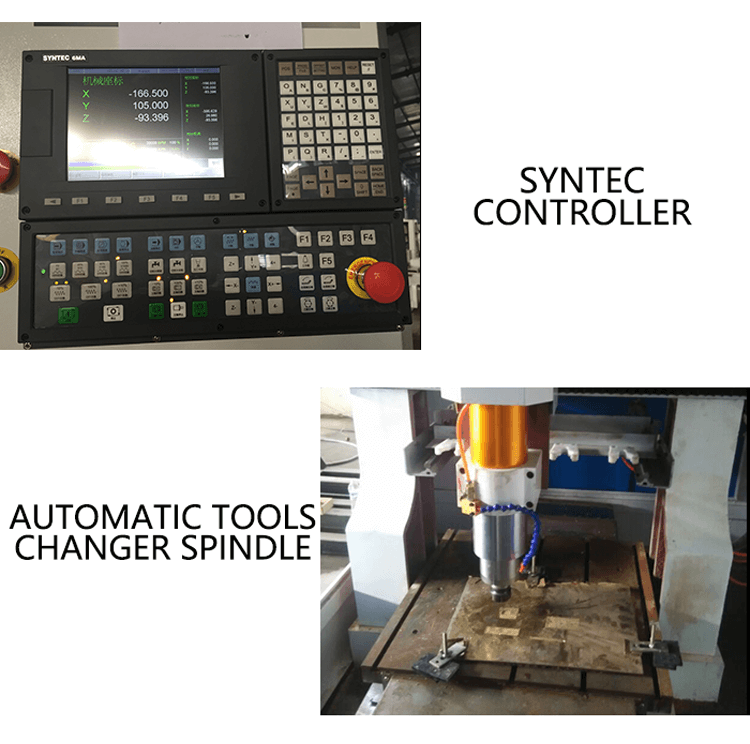

5). TK100 controller, DSP control system, Syntec,NC Studio and Mach3 for option.
6). Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
1.Technical specification of cnc moulding machine:
Model | SM0404 | SM0606 | |||
Travelling size | X working area | 400mm | / 600mm | ||
Y working area | 400mm | / 600mm | |||
Z working area | 200mm | ||||
Accuracy | Working Accuracy | ±0.01mm | |||
Repositioning Resolution | ±0.01 mm | ||||
Table | Surface | stainless steel T-slot table | |||
Guide rail | Taiwan HIWIN square guide rail 25 | PMI/TRV | |||
Transmission | X/Y/Z Axis | Taiwan TBI ball screw | |||
Structure | Lathe Structure | Integral cast iron | |||
Speed | Rapid Travel Rate | 15000mm/min | |||
Working Speed | 10000mm/min | ||||
Spindle | Spindle Power | 2.2KW | /3KW | ||
Spindle Speed | 0-24000rpm | ||||
Inverter | Fuling inverter | DELTA | |||
Working | Drive motor | Stepper motor | /JAPAN YASKAWA Servo motor | ||
Command Language | G code(optional:HPGL) | ||||
Others | Working Voltage | AC220/50HZ | AC 380V | ||
Operating System | Original NC studio | SYNTEC | |||
Compatible Software | Artcam | Type3 | |||
Weight | Gross weight | 1800kg | 1900KG | ||
Net weight | 1500kg | 1600KG | |||
Package | 1. Protective film package and fumigation-free plywood case. | ||||
2. OEM and package can according to customer requirements. |

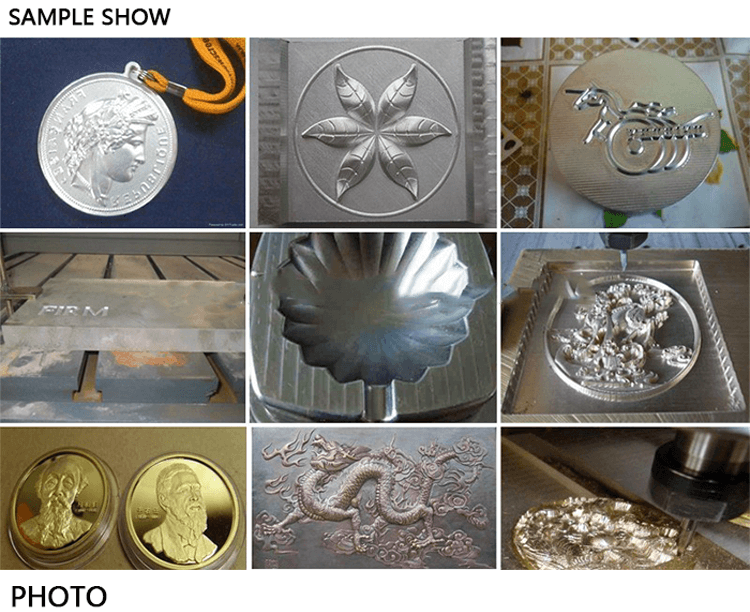

3.Application of cnc moulding machine:
1).It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2).Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3).Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,
graphics and words of three-dimensional and outside surface's sleeking of large size
