Applications
1). Applicable industries:
Large area digital printing, embroidering, car seat cushion, cloth toy, umbrella,wedding dress,model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper etc
2). Applicable materials:
Non-metallic materials,such as:wooden ware,paper,leather,cloth,organic glass,epoxy resin,acrylic,woolens,plastic etc.
Technical parameter
Model | SJ 1610 |
Working area | 1600*1000mm |
Laser tube | RECI 80W/100W/150W/180W |
Transmission system | High speed inner slide rail and belt |
CCD camera system | 1 set |
Driving system | Leadshine step motor and driver |
Working table | Conveyor platform with feeding system |
Cooling Type | Water cooling |
Working Speed | 0-400mm/s |
Laser Output Control | 0-100% |
Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
Locating Accuracy | ≤ ±0.01mm |
Control Software | DSP offline / USB |
Graphic Format Supported | DST, PLT, BMP, DXF, AI |
Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD, etc. |
Power Supply | AC110V/220V+10%, 50HZ/60HZ |
Working Environment | Temperature: 0-45C, Humidity 5-95%(No Condensate Water) |

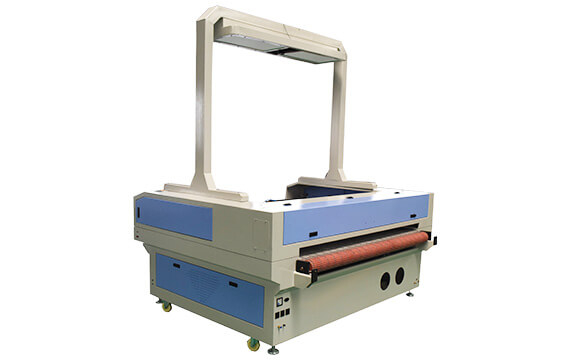

laser cutting machine with ccd camera machine pictures:
ccd camera laser cutting machine working samples
