ATC Marble CNC Router For Quartz

SSA series models are mainly used for heavy weight of the tile, bluestone,
granite,white marble, sandstone,such as a stone sculpture processing,marble,
category carved glass-cutting and engraving melting material.

  • SSC1325/1530/2030
  • SMARTECH
  • 9KW

(Features)

1.X,Y,Z three-axis all the imported linear square orbit   .
2.X,Y,Z three-axis all have the waterproof, dustproof system
3   .Water cooling   constant torque spindle with the imported with the imported bearing, high power, low tone
4.Adopt   Taiwan transducer   with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt   double drivers   to drive y axis, motivity is more stronger
7.   Whole seamless steel structure   ,can load weight up to 1000kg
8. The bed is made of seamless steel welded with high-quality steel. The gantry is treated with a large square pipe reinforcement center to ensure that there is sufficient stability in the material processing.
9.High-precision gear rack drive, equipped with high-power drive, 7.5KW water cycle      spindle, suitable for a variety of products for a long time processing industry.
10.Machine-wide cable with high-flexible cable, reciprocating up to 8 million times

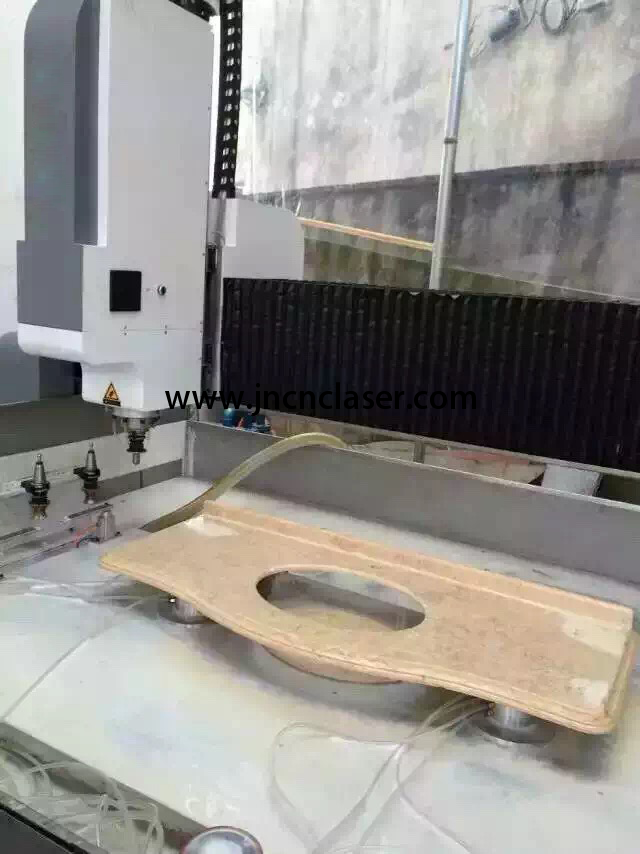

SSA-1530 luxury quartz stone processing center, widely used in various types of stone finishing profiled edge, all kinds of high-grade placards, cabinet panels, and a variety of stone carving products finishing.

(Application:)

SSA series models are mainly used for heavy weight of the tile, bluestone,

granite,white marble, sandstone,such as a stone sculpture processing,marble,

category carved glass-cutting and engraving melting material.


(Description & Specifications:)


Performance parameter

9015

1530

1224

X,Y Working area

900mmx1500mm

1500mmx3000mm

1200mmx2400mm

Z Working area

250mm

250mm

250mm

Table size

1100mmx2000mm

1700mmx3500mm

1400mmx2900mm

Processing precision

0.03mm

0.03mm

0.03mm

Reposition precision

0.02mm

0.05mm

0.05mm

Table structure

aluminium

aluminium

aluminium

X,Y,Z structure

X,Y,Z ballscrew

X,Y,Z ballscrew

X,Y,Z ballscrew

Command

G CODE

G CODE

G CODE

Machine power

2KW Or option

2KW Or option

2KW Or option

Max processing speed

6000mm/min

6000mm/min

6000mm/min

Max speed

8000mm/min

8000mm/min

8000mm/min

Working voltage

AC380V/50Hz

AC380V/50Hz

AC380V/50Hz

Spindle power

7.5KW Or option

7.5KW Or option

7.5KW

Spindle rotating speed

0-24000rpm/min

0-24000rpm/min

0-24000rpm/min

Drive motor

Servo

Servo

Servo

Operation system

PCI CARD control

PCI CARD control

PCI CARD control

cnc router for marble countertops

marble cnc router

marble cnc machine

marble countertops cnc

granite countertop cnc

granite countertop cnc machine
